CITROEN C2 2004 Manuale utente

PRIVATE CARS

C2-C3-C3 PLURIEL-XSARA

XSARA PICASSO-BERLINGO

PRIVATE CARS

CAR 050014

Volume 1

2004

AC/QCAV/MTD

Méthodes techniques documentation

«The intellectual property rights relating to the technical information contained in this document

belong exclusively to the manufacturer. Reproduction, translation or distribution in whole or in part

without prior written authorisation from the manufacturer is forbidden».

«The technical information contained in this document is intended for the exclusive use of the trained

personnel of the motor vehicle repair trade. In some instances, this information could concern the security and

safety of the vehicle. The information is to be used by the professional vehicle repairers for whom it is

intended and they alone would assume full responsibility to the exclusion of that of the manufacturer».

«The technical information appearing in this brochure is subject to updating as the characteristics of

each model in the range evolve. Motor vehicle repairers are invited to contact the CITROËN network

periodically for further information and to obtain any possible updates».

2004

PRESENTATION

THIS HANDBOOK summarises the specifications, adjustments, checks and special features of CITROEN

private vehicles, not including UTILITY vehicles for which there exists a separate handbook.

The handbook is divided into nine groups representing the main functions :

GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES,

SUSPENSION, STEERING - BRAKES - ELECTRICAL - AIR CONDITIONING.

In each section, the vehicles are dealt with in the following order: C2-C3-C3 PLURIEL XSARA -XSARA PICASSO - BERLINGO (1)

and all models where applicable.

The information given in this handbook is based on vehicles marketed in EUROPE.

(1) NOTE : The BERLINGO familiale appears only in :

- The correspondance tables for petrol and diesel engines.

- The general chapter.

For all the other chapters, see the Mechanics’ Handbook for UTILITY vehicles.

IMPORTANT

If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account

when preparing future publications. For example :

- INSUFFICIENT INFORMATION

- SUPERFLUOUS INFORMATION

- NEED FOR MORE DETAILS

Please send your comments and suggestions to :

CITROEN U.K. Ltd.

221, Bath Road,

SLOUGH,

SL1 4BA.

U.K.

XSARA 2, all types

Operation to reconnect the battery after a vehicle repair

WARNING

If the battery has been disconnected, after reconnecting it is ESSENTIAL to wait 1 minute before switching on the ignition,

otherwise the engine ECU will lock up.

If the ECU has locked up :

- Switch off the ignition.

- Wait 1 minute.

- Switch the ignition back on, the ECU is unlocked.

GENERAL

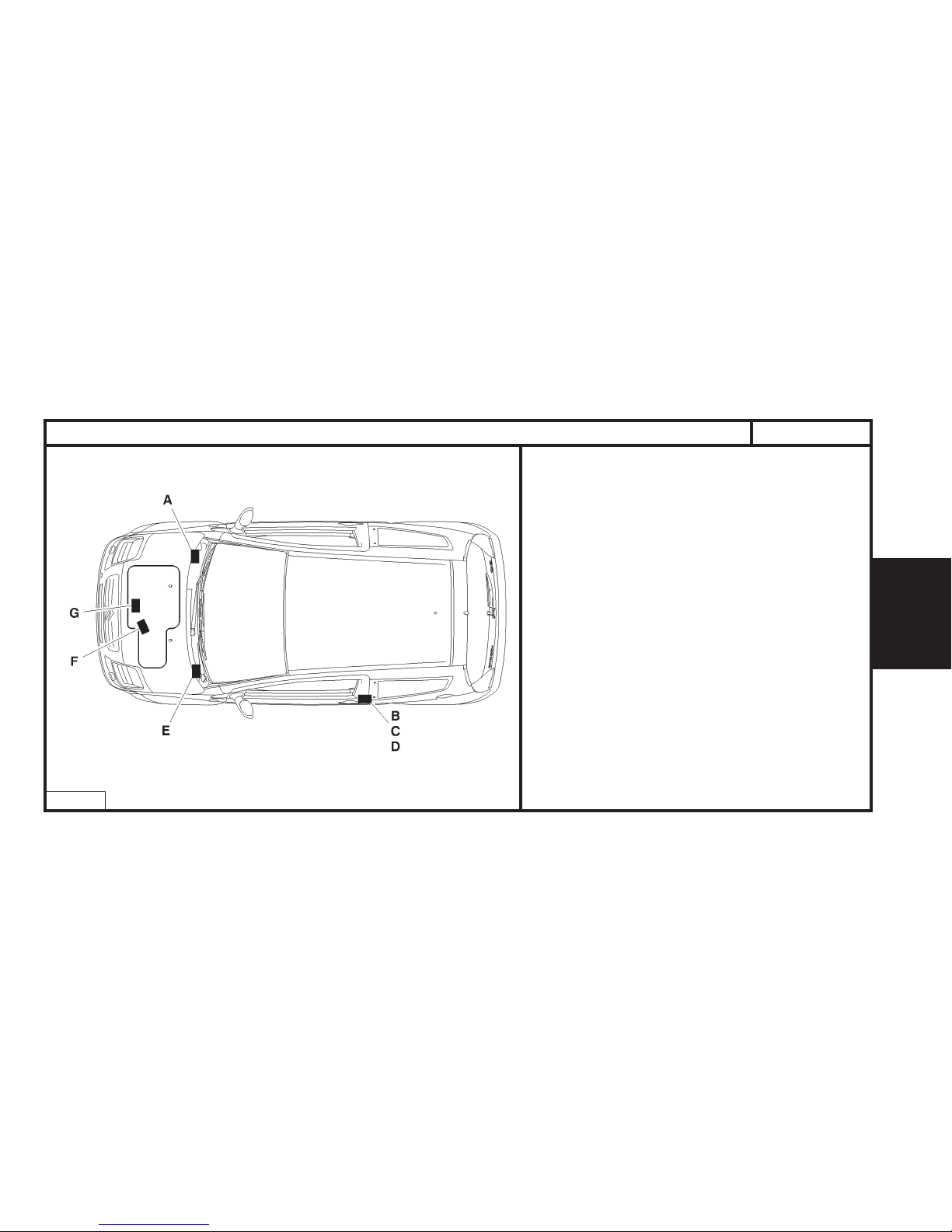

C2IDENTIFICATION OF VEHICLES

E1AP0C3D

A - Cold stamp

(Cold stamp engraved on the bodywork)

B - Manufacturer’s name plate

(On the LH centre pillar)

C - AS/RP No. and RP paint code

(On the LH centre pillar)

D - Tyre pressures and tyre type

(On the LH centre pillar)

E - Serial number on bodywork

F - Gearbox ident. reference – Factory serial no.

G - Engine legislation type– Factory serial no.

GENERAL

Emission standard L4 IFL5 L4 IFL5

Type code JM HFXB JM HFXC/IF (*) JM KFVB/P JM KFVC/PIF (**) JM KFVC/IF (*) JM NFUC/PIF (*)

Engine type HFX KFV NFU

Cubic capacity (cc) 1124 1360 1585

Fiscal rating (hp) 45 6

Gearbox type MA/5S MA/5N MA/5L MA/5S MA/5L

20 CF 20 (m) (4) 20 CF 21 (mp) (3) 20 CF 25 20 CF 16 20 CN 48 20 CN 50

Gearbox ident. plate RPO 9688 ➔ 9784 RPO 9688 ➔ 9784 (1) (m) (4) (2) (m) (4) (mp) (3) (mp) (3)

20 CP 20 RPO 9919 ➔20 CP 21 RPO 9786 ➔(5) (6) (7) (8)

C2 IDENTIFICATION OF VEHICLES

1.1i 1.4i 1.6i 16V

Pack - Pack ambiance Pack ambiance - VTR - Exclusive VTR

(1) = Europe. (*) = IF. (3) mp = Piloted manual gearbox

(2) = DAIC. (**) = PIF. (4) m = Manual gearbox

(5) = 20 CF 25 RPO 9919 ➔ 9784 20 CP 24 RPO 9919 ➔

(6) = 20 CF 16 RPO 9688 ➔ 9784 20 CP 16 RPO 9919 ➔

(7) = 20 CN 48 RPO 9688 ➔ 9784 20 CP 64 RPO 9786 ➔

(8) = 20 CN 50 RPO 9688 ➔ 9784 20 CP 66 RPO 9786 ➔

GENERAL

Emission standard L4 IFL5

Type code JM 8HXB JM 8HXC/IF (*) JM 8HXC/PIF (**)

Engine type 8HX

Cubic capacity (cc) 1398

Fiscal rating (hp) 4

Gearbox type MA/50

20 CN 51 (1) 20 CN 33 (2) 20 CN 51 (1) 20 CN 33 (2) 20 CN 49

Gearbox ident. plate (m) (4) (m) (4) (m) (4) (m) (4) (mp) (3)

(5) (6) (5) (6) (7)

C2IDENTIFICATION OF VEHICLES

1.4 HDi

Pack - Pack ambiance - Exclusive

(1) = Europe. (*) = IF. (3) mp = Piloted manual gearbox

(2) = DAIC. (**) = PIF. (4) m = Manual gearbox

(5) = 20 CN 51 RPO 9688 ➔ 9784 20 CP 67 RPO 9919 ➔

(6) = 20 CN 33 RPO 9688 ➔ 9784 20 CP 54 RPO 9919 ➔

(7) = 20 CN 49 RPO 9688 ➔ 9784 20 CP 65 RPO 9786 ➔

OPERATIONS TO BE CARRIED ORT AFTER A REPAIRC2 - C3

GENERAL

IMPERATIVE: All these operations are to be performed following a reconnection of the battery.

Antiscanning function.

It is necessary to wait 1 minute after the battery has been disconnected in order to be able to start the vehicle.

Tailgate.

The opening of the tailgate is deactivated on reconnection of the battery.

Perform locking/unlocking to activate the opening of the tailgate.

Overspeed check.

The vehicle’s overspeed values have to be re-initialised.

The button on the wiper stalk (multifunction display B or C) or the button on the dashboard (multifunction display A or clock) operates the following

functions:

- Activation of the vehicle’s overspeed function.

- Programming of the overspeed alert.

Electric windows.

It may be necessary to re-initialise the sequential and anti-pinch functions.

NOTE: If the window is open at the time the battery is reconnected, action the window switch several times to close it, then re-initialise.

Open the window fully.

Action and release the window switch until the window is complandely closed.

This operation has to be carried ort on each electric window.

C2OPERATIONS TO BE CARRIED ORT AFTER A REPAIR

GENERAL

Sun roof.

The anti-pinch function has to be re-initialised.

Place the sun roof switch in the maximum tilt position.

Keep the sun roof switch pressed until the sun roof ceases its movement.

Release the sun roof switch within 5 seconds.

Keep the sun roof switch pressed until the end of the sun roof opening sequence.

Multifunction screen.

It is necessary to adjust the date, time and ortside temperature.

Adjust the display language of the multifunction screen if necessary.

NOTE: The default display language of the multifunction screen is French.

Navigation.

Warning, the vehicle has to be in the open air (on switching on the ignition, the ECU searches for satellites).

Vehicle location is only effective after some ten minutes.

Reprogramme the customer paramanders.

Radio.

Reprogramme the radio stations.

Radiotelephone RT3.

Reprogramme the radio stations.

GENERAL

E1AP09HD

IDENTIFICATION OF VEHICLES

A - Cold stamp

(Cold stamp engraved on the bodywork).

B - Manufacturer’s name plate

(On the LH centre pillar)

C - AS/RP No. and RP paint code.

(label affixed to the front pillar on driver’s side)

D - Tyre pressures and tyre type.

(label affixed to the front pillar on driver’s side)

E - Serial number on bodywork.

F - Gearbox ident. reference – Factory serial no.

G - Engine legislation type– Factory serial no.
