REPAIR MANUALAIR MANUAL
AIR MANUALAIR MANUAL
AIR MANUAL

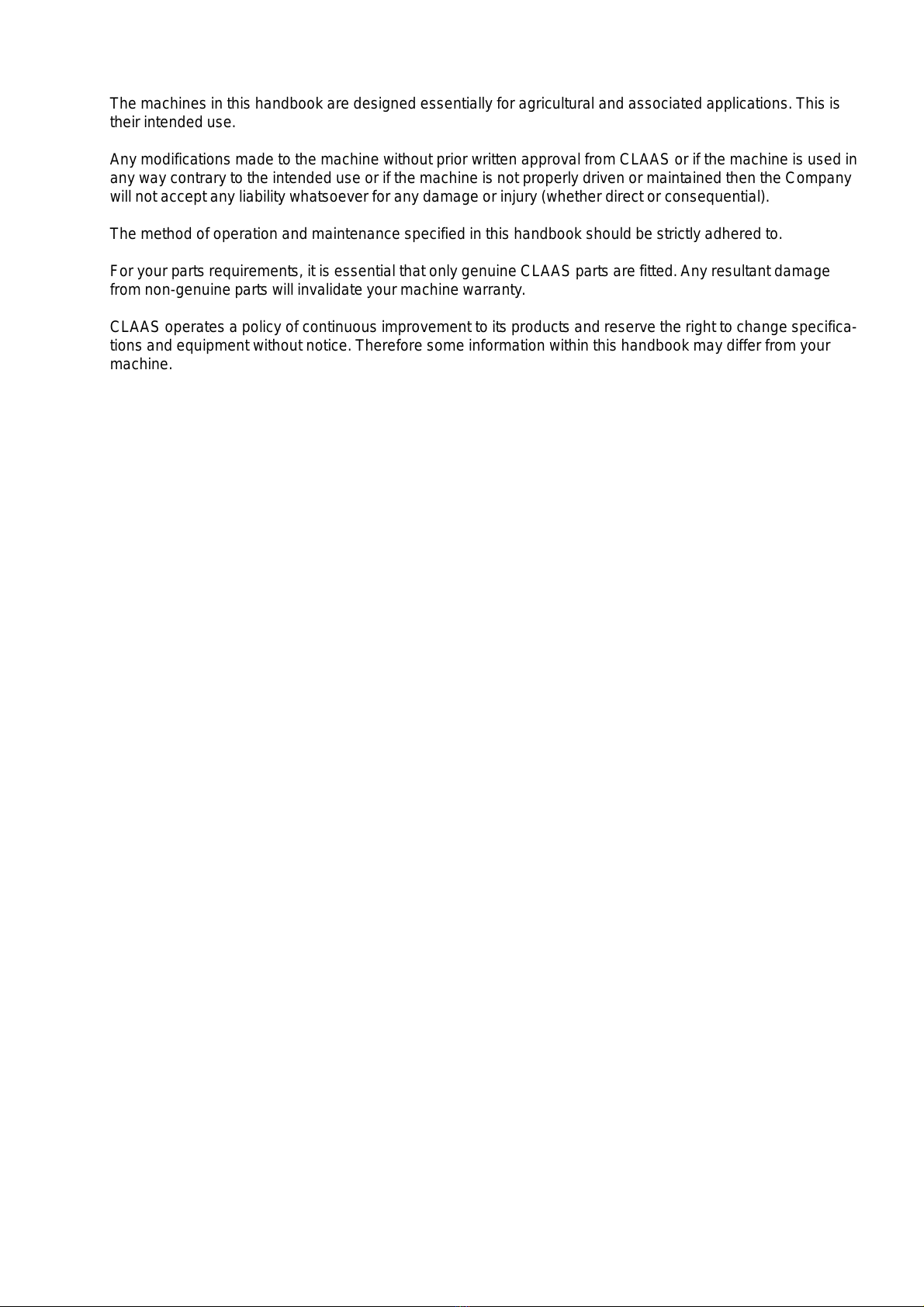

The machines in this handbook are designed essentially for agricultural and associated applications. This is
their intended use.
Any modifications made to the machine without prior written approval from CLAAS or if the machine is used in
any way contrary to the intended use or if the machine is not properly driven or maintained then the Company
will not accept any liability whatsoever for any damage or injury (whether direct or consequential).
The method of operation and maintenance specified in this handbook should be strictly adhered to.
For your parts requirements, it is essential that only genuine CLAAS parts are fitted.Any resultant damage
from non-genuine parts will invalidate your machine warranty.
CLAAS operates a policy of continuous improvement to its products and reserve the right to change specifica-
tions and equipment without notice. Therefore some information within this handbook may differ from your
machine.
This manual is designed to service machines:
from Serial No. 51200011
up to Serial No. 51200727.
from Serial No. K5D00100
from Serial No. K6D00100
from Serial No. K7D00100
INTRODUCTION
General
The contents of this Repair Manual, although correct at the time of publication, may be subject to alteration by
the manufacturer without notice.
This manual assumes that maintenance personnel have a sound knowledge of workshop practices and
safety procedures associated with the repairs of this type of machine. This manual is designed to assist with
the more specialised information required for removal and strip-down of major components.
It is recommended that the relevant part of this Repair Manual is studied carefully before proceeding with any
maintenance.
Machine identification
To make sure that the correct parts are obtained, always quote the machine Serial Number when ordering
parts.
Health and Safety
To prevent injury to personnel and damage to equipment and machinery, care must be taken to operate in a
safe manner. Read the Safety Warnings that follow and always work in a safe manner and obey the relevant
Warnings.
Throughout this manual and on the machine there are safety notes. Each note starts with a single word.The
meaning of these single words is as follows:
Identifies a hazard exists. If proper precautions are not taken, it is highly probable that the
operator (or others) could be killed or seriously injured.
Identifies a reminder of safety practices. Failure to observe these safety practices could result
in injury to the operator (or others) or damage to the machine.
In general these notes are used to indicate that the procedures being described in the manual must be
followed to avoid serious injury or death to yourself or others. The notes are also used to protect the machine
from unsafe maintenance practices.
SAFETY WARNINGS
Always wear correct fitting protective clothing. Loose or baggy clothing can be extremely
dangerous when operating or maintaining a machine.
Where possible, only work on or close to engines or machinery when they are stopped. If this
is not practical, remember to keep tools, test equipment and all parts of your body well away
from moving parts.
Avoid contact with exhaust pipes and exhaust manifolds when the engine is running; these
can be very hot.
Many liquids used on this machine are harmful if taken internally or splashed into the eyes. In
the event of accidentally swallowing oil, diesel fuel, anti-freeze, battery acid etc., DO NOT
induce vomiting, but OBTAIN QUALIFIED MEDICALASSISTANCE IMMEDIATELY.
Always obtain advice before mixing oils; some are incompatible.
Never run an engine in an enclosed space unless an exhaust extraction system is used.
Always disconnect battery cables before working on the electrical system to prevent injury
caused by electric shock.
When it is necessary to work on the electrical system with power on, for fault diagnosis,
always have a safety man in attendance
Any dust found on the machine or produced during work on the machine should be removed
by extraction, not by blowing. Dust waste should be dampened, placed in a sealed container
and marked for safe disposal.
Always dump pressure from the hydraulic system before carrying out any maintenance or
adjustment (refer to Hydraulic Repair Manual).
Never leave the machine unattended with pressure in the system.
Fine jets of hydraulic fluid at high pressure can penetrate the skin. Do not use your fingers to
check for hydraulic fluid leaks. Do not put your face close to suspected leaks. If hydraulic fluid
penetrates your skin OBTAIN QUALIFIED MEDICALASSISTANCE IMMEDIATELY.
Never allow unqualified personnel to attempt to remove or replace any part of the machine.
Always use the correct lifting equipment to remove large or heavy components.
Never attempt to lift or hold up the machine using the lash-down points.
SECTION 1
AXLES AND STEERING
AXLES & STEERING 1.1
Axles
Description
The front and rear axles are both double reduction by
bevelset andplanetaryhubreduction gears,both have
limited slip differentials. The front axle incorporates a
parking brake.
Steering is available to both axles, depending on the
steering mode selected. The axle hubs are steered
by the operation of a double acting hydraulic cylinder
attached to the axle.
Front axle
Removal
1. Park the machine on firm level ground and set the
wheels straight ahead, in line with the chassis. Fit
chocks to the front and rear of the rear wheels.
2. Raise the boom and fit the boom safety stop.
3. Stop the engine and apply the parking brake.
4. Refer to page 1.53 and dump hydraulic pressure
from the brake systems, then disconnect the
battery.
5. Disconnect the drive shaft from the axle flange
and support clear of axle.
6. Disconnect the inductive magnetic steering
sensor electrical lead.
7. Slacken front axle wheel nuts.
8. Support the chassis at a sufficient height to allow
the wheels to be removed.
9. Support axle with a fork-lift or trolley jacks.
10. Remove front wheels.
11. Disconnect brake pipes (2) and (3) from left and
right brake unit, fit blanks to open pipes and brake
unit connections.
Support the drive shaft clear of the
axle to make sure it is not damaged
during axle removal.
1. Steering pipes
2. Left brake pipes
3. Right brake pipes
12. Disconnect steering pipes (1) from steering
cylinder, fit blanks to open pipes and steering
cylinder connections.
Secure the axle to the fork-lift/trolley
jacks to prevent axle tipping on
removal.
The axle weighs 443 kg, take care
when removing and transporting.
13. Remove the eight attachment bolts/nuts
securing axle to chassis (four each side) and
remove support plates.
14. Lower axle on fork-lift/trolley jacks.
15. Move axle clear of machine and place on a
suitable support.
AXLES & STEERING1.2
Installation
1. Installation is the reverse of the removal
procedure.
2. Torque load components as follows:
Axle to chassis nuts 640 Nm (472 lbf ft.)
Drive shaft bolts 70-85 Nm (52-63 lbf ft.)
Wheel nuts 300 Nm (221 lbf ft.).
3. Check axle and wheel hub oil levels are correct.
4. When the axle has been dismantled and
reassembled, refer to the AxleAssembly section
and test the differential operation.
5. Refer to Page 1.52 and bleed then check brake
function.
6. Start engine, make sure front wheel steering is
selected and operate steering through full range
several times to bleed air from steering system.
7. Test machine operation.
AXLES & STEERING 1.3
REAR AXLE
Removal
1. Park the machine on firm level ground and set the
wheels straight ahead, in line with the chassis. Fit
chocks to the front and rear of the rear wheels.
2. Raise the boom and fit the boom safety stop.
3. Stop the engine and apply the parking brake.
4. Refer to page 1.53 and dump hydraulic pressure
from the brake systems, then disconnect the
battery.
5. Disconnect the drive shaft from the axle flange
and support clear of axle.
6. Disconnect the load sensor electrical lead.
7. Disconnect the inductive magnetic steering
sensor electrical lead.
8. Slacken rear axle wheel nuts.
9. Support the chassis at a sufficient height to allow
the wheels to be removed.
10. Support axle with a fork-lift or trolley jacks.
11. Remove the bolts attaching the axle front
support to the chassis.
12. Remove the bolts attaching the axle rear
support to the chassis.
13. Remove rear wheels.
14. Disconnect brake pipes (2) and (3) from left and
right brake units, fit blanks to open pipes and brake
unit connections.
15. Disconnect steering pipes (1) from steering
cylinder, fit blanks to open pipes and steering
cylinder connections.
Support the drive shaft clear of the
axle to make sure it is not damaged
during axle removal.
Secure the axle to the fork-lift/trolley
jacks to prevent axle tipping on
removal.
The axle weighs 443 kg, take care
when removing and transporting.
1. Steering pipes
2. Right brake pipes
3. Left brake pipes
17. Move axle clear of machine and place on a
suitable support.
Installation
1. Installation is the reverse of the removal
procedure.
2. Torque load components as follows:
Axle to chassis nuts 640 Nm (472 lbf ft.)
Drive shaft bolts 70-85 Nm (52-63 lbf ft.)
Wheel nuts 300 Nm (221 lbf ft.)
Axle support bolts 370 Nm (273 lbf ft.)
3. Check axle and wheel hub oil levels are correct.
4. When the axle has been dismantled and
reassembled, refer to the AxleAssembly section
and test the differential operation.
5. Refer to Page 1.52 and bleed then check brake
function.
6. Start engine, make sure rear wheel steering is
selected and operate steering through full range
several times to bleed air from steering system.
7. Test machine operation.
16. Lower axle on fork-lift/trolley jacks.
AXLES & STEERING1.4
NOTES:
(1) Sealing Compound. Ensure both surfaces
to be sealed are clean, dry and free from grease.
(2) O-ring seals. Lubricate seals before fitting
to prevent twisting when inserting the shaft
(3) Bearings. It is recommended (but not
mandatory) that bearings are heated to 80°C -
90°C before fitting to shaft, or cooling with dry ice
before inserting them into an outer housing.
(4) Shims. Measure shims before use, do not
rely on measurement marked on shim.
(5) Torque loading. Torque load all
components to the recommended figure.
(6) Oil seals. To assist with the correct
installation of oil seals carry out the following:
- Ensure the shaft is clean and not damaged
- Assemble with lip side towards the oil side
- Lubricate seal with oil and fill ¾ of seal
cavity with grease
- Use special tools to install seals, where
available. Do not hammer directly on the
seal
- Do not damage seals while assembling the
shaft.
(7) Special tools. Use the special tools to
dismantle and assemble the axle.
Servicing
Dismantling and assembly (General)
Dispose of used axle oil in
accordance with local regulations.
AXLES & STEERING 1.5
4.Remove both the track rods (1) by loosening the
lock nut (2) and unscrewing track rod from ball joint.
Remove the three cylinder attachment bolts (3) and
hydraulic adapter (4) from steering cylinder (5).
Remove cylinder from axle mounting brackets, if
necessary use a rubber hammer.
Cylinder overhaul
Refer to Hydraulic Manual for cylinder Dismantling
and Assembly.
1. Track rod
2. Nut
3. Bolt
4. Hydraulic adapter
5. Steering cylinder
Removal
1. Remove the inductive magnetic steering sensor,
by loosening the locking clamp screws.
Dismantling
Steering cylinder
2. Loosen the track rod end nut until it covers end of
threaded pin.
3. Use a suitable tool and break the track rod joint.
NOTE: This may damage the nut, use a new nut on
assembly.
