Clarion VRX815 Manuale di istruzioni

VRX815 47

English

Installation and Wire

connection manual

VRX815

Installation andWire connection manual

■Contents

1. BEFORE STARTING ............................................................... 47

2. PACKAGE CONTENTS ........................................................... 47

3. GENERAL CAUTIONS ............................................................ 48

4. CAUTIONS ON INSTALLATION .............................................. 48

5. INSTALLING THE MAIN UNIT ................................................. 49

6. REMOVING THE MAIN UNIT .................................................. 51

7. CAUTIONS ON WIRING .......................................................... 51

8. WIRE CONNECTION .............................................................. 52

9. SAMPLE SYSTEMS ................................................................ 55

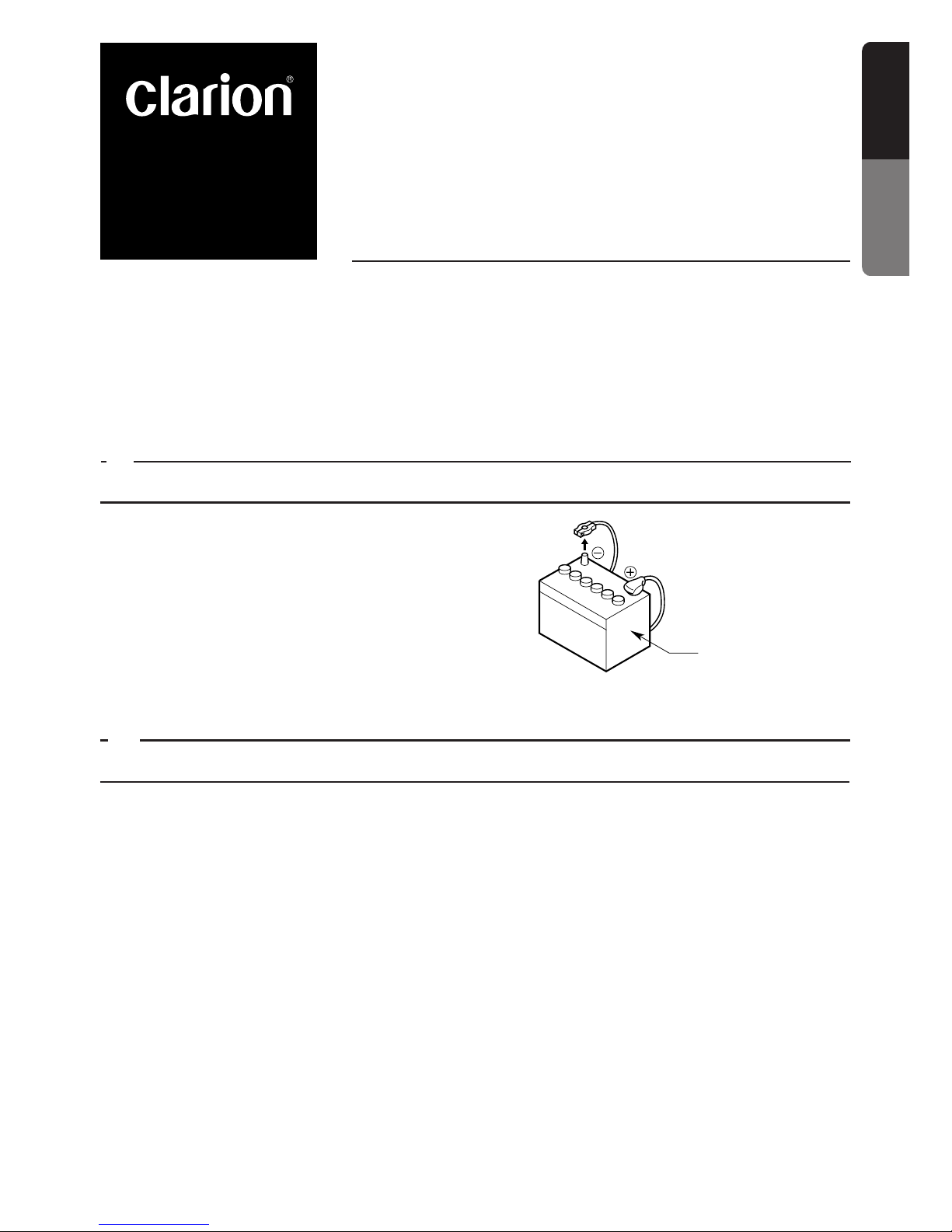

1. BEFORE STARTING

2. PACKAGE CONTENTS

1. This set is exclusively for use in cars with a

negative ground 12V power supply.

2. Read these instructions carefully.

3. Besure todisconnect thebattery“v”terminal

before starting.This is to prevent short circuits

during installation. (Figure 1)

Car battery

Figure 1

1Main unit

2Tuner Amp unit

3Manuals

Owner’s manual & Installation manual

Warranty card

4Power supply lead (For the tuner amp unit)

5Connection cord (Main unit ↔Tuner amp

unit)

6Antenna extension cord

7Bag for accessories of the main unit (No. 1)

Flat head screw (M5 ×8) ............................ 4

Sems hexagonal bolt (M5×8) ..................... 5

Electro tap

Machine screw (M4×3)............................... 4

8Bag for accessories of the main unit (No.2)

Hook plate................................................... 2

Cord clamp

Spacer

Special screw

9Bag for accessories of tuner amp unit

Maunting bracket......................................... 2

Canoe clip ................................................... 4

Machine screw (M4 ×8).............................. 4

0Universal mounting bracket

!Remote control unit

@Battery

(for remote control unit)

#Outer Escutcheon

$DCP Case

48 VRX815

English

Installation and Wire

connection manual

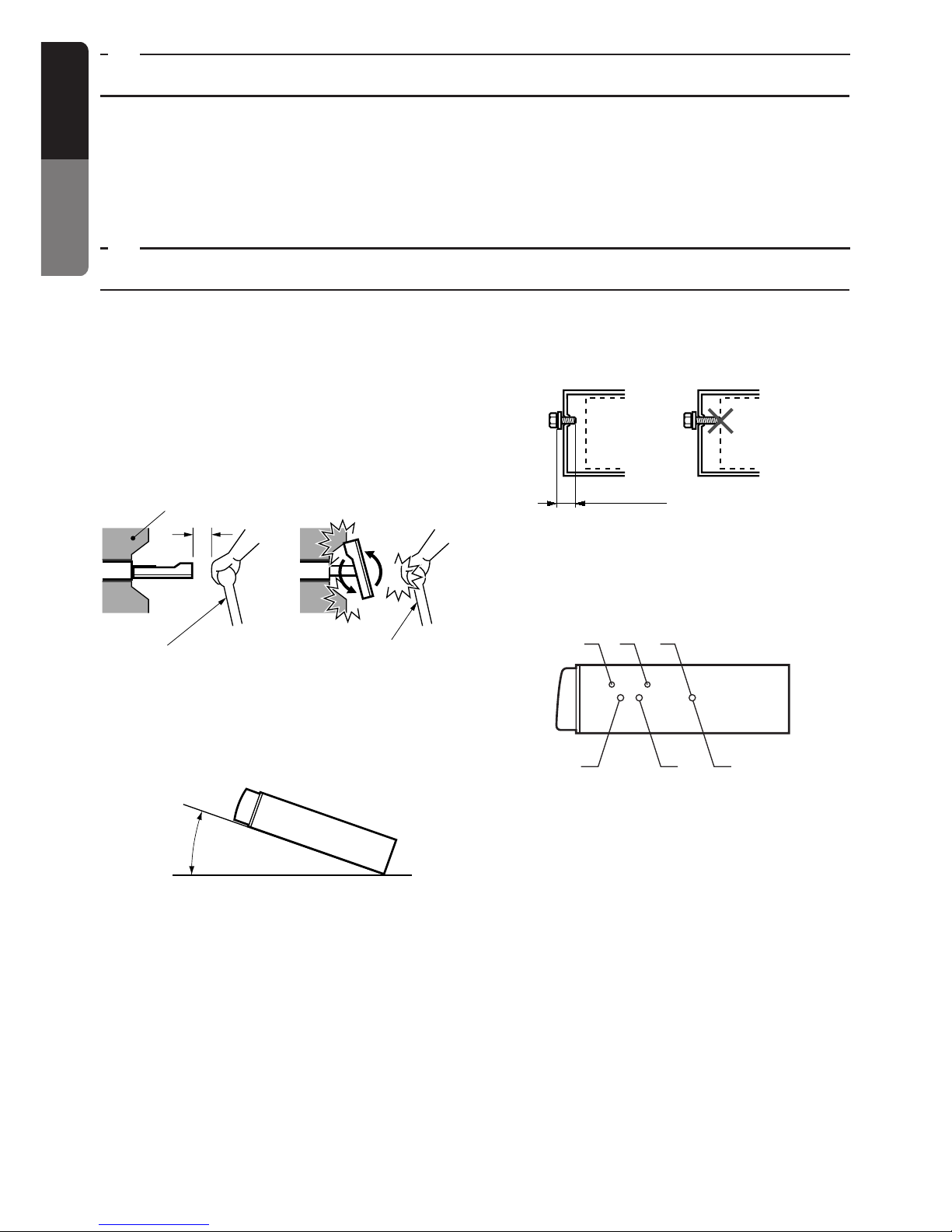

3. GENERAL CAUTIONS

4. CAUTIONS ON INSTALLATION

1. Do not open the case.There are no user ser-

viceable parts inside.If you drop anything into

the unit during installation, consult your dealer

or an authorized CLARION service centre.

2. Use a soft, dry cloth to clean the case. Never

use a rough cloth, thinner, benzine, or alcohol,

etc. For tough dirt, apply a little cold or warm

water to a soft cloth and wipe off the dirt gen-

tly.

1. Prepareall articlesnecessary forinstalling the

main unit before starting.

2. This model is used with the LCD panel slid for-

wards (shell loading system). On some types

of cars, the LCD panel may touch the dash-

board or shift lever, in which case it cannot be

installed. Check that the set will not hamper

operation of the shift lever before choosing the

place of installation.(Figure 2)

5. Use the enclosed screws for installation. Us-

ing other screws can cause damage. (Figure

3. Installtheunitwithin 30° of the horizontalplane.

(Figure 3)

4. If you have to do any work on the car body,

such as drilling holes, consult your car dealer

beforehand.

6. The source unit has mounting screw holes for

NISSAN (N marks) and TOYOTA (T marks)

vehicles.

Dashboard

Shift lever

(check that it does not

touch the LCD.)

Figure 2

Max. 30˚

Figure 3

Chassis Chassis

Damage

Max. 8 mm

Figure 4

Figure 5

NNT

VRX815 49

English

Installation and Wire

connection manual

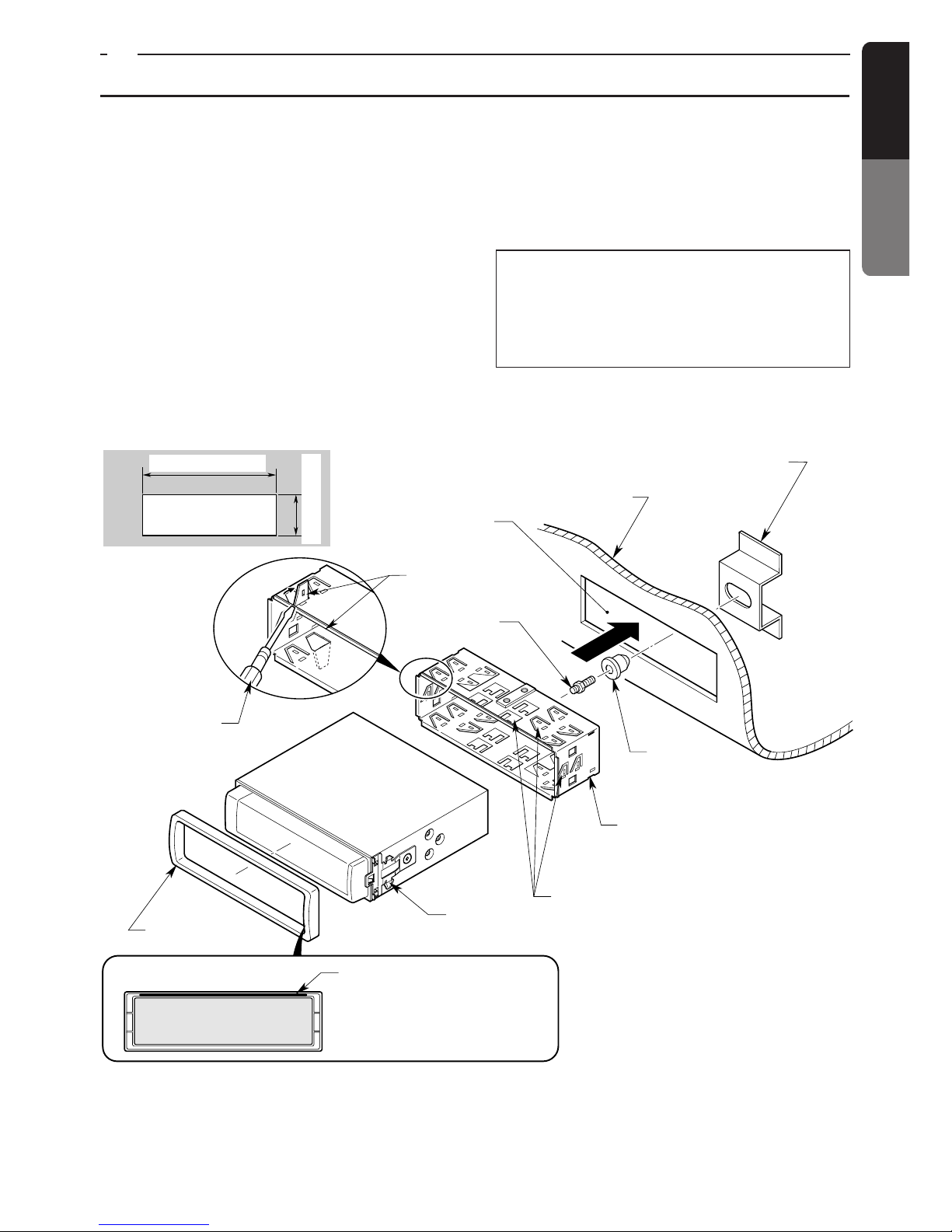

5. INSTALLINGTHE MAIN UNIT

■Universal Mount

1. Place the universal mounting bracket into the

instrument panel, use a screwdriver to bend

eachstopperof the universal mountingbracket

inward, then secure the stopper as shown in

Figure 6.

2. Wire as shown in Section 8.

3. Insert the main unit into the universal mount-

ing bracket until it locks.

4. Mount the outer escutcheon so that all the

hooks are locked.

Notes:

1) Some car models require special mounting kits

forproperinstallation.Consultyour Clariondealer

for details.

2) Fasten the front stopper securely to prevent the

main unit from coming loose.

Figure 6

• Console opening dimensions

Hole

Main unit

7-3/16" (182 mm)

2-1/16" (53 mm)

Screwdriver

Stoppers

Hole

Rear fastening hole (of vehicle)

Instrument panel

Rubber cap

Universal mounting bracket

Stoppers

2-Spring

Outer escutcheon

Note: Set the outer escutch-

eon so that its metallic

part on the back side

fits the upper edge of

the main unit.

50 VRX815

English

Installation and Wire

connection manual

This unit is designed for fixed installation in the

dashboard.

If the vehicle is equipped with a factory-installed

radio, install the main unit with the parts and

screws marked (∗). (Figure 8)

If the vehicle is not equipped with a factory-in-

stalled radio, obtain an installation kit to install the

main unit in the following procedure.

1. Removethescrewsfromboth sideof themain

unit.Then, ateither side,liftthe leaf spring until

the engaging claws are released from the

holes, and slide the spring to the direction of

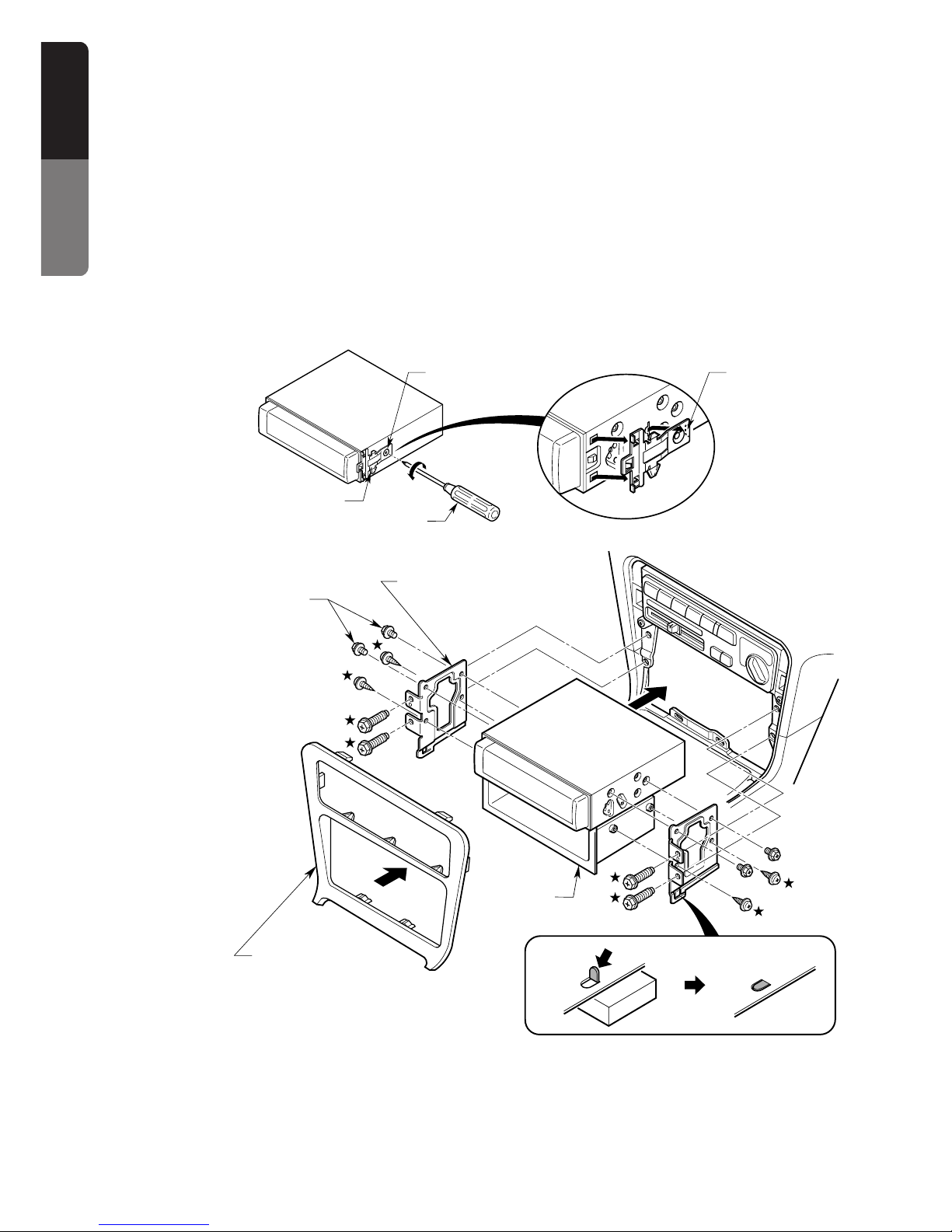

■Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)

arrow to remove it. Repeat the same for the

other side to remove the springs from the both

sides.(Figure 7)

2. Secure the mounting brackets to the chassis

as shown in Figure 8.Holes are pre-tapped for

TOYOTA and NISSAN vehicles; modification,

such as drilling new holes, of the mounting

brackets may be required for other models.

3. Wire as shown in Section 8.

4. Secure the unit in the dashboard, and then

reassemble the dashboard and the centre

panel.

Note 1: Insome cases,thecentrepanelmayrequire

some modification (trimming, filling, etc.). Note 2: If a hook on the installation bracket inter-

feres with the unit, bend and flatten it with a

nipper or a similar tool.

2-Screw

2-Spring

4-Hexagonal screw ∗(M5 ×8)

Main Unit

Figure 7

Main Unit

Screwdriver

Engagin claw

Mounting bracket ∗

(1 pair for the left and right sides)

Pocket

Centre Panel (Note 1) Note 2

Figure 8

∗: The parts and screws with this mark

are used to install radio or included in

the installation kit.

★:The parts and screws with this mark

are used to install radio or included in

the installation kit.

VRX815 51

English

Installation and Wire

connection manual

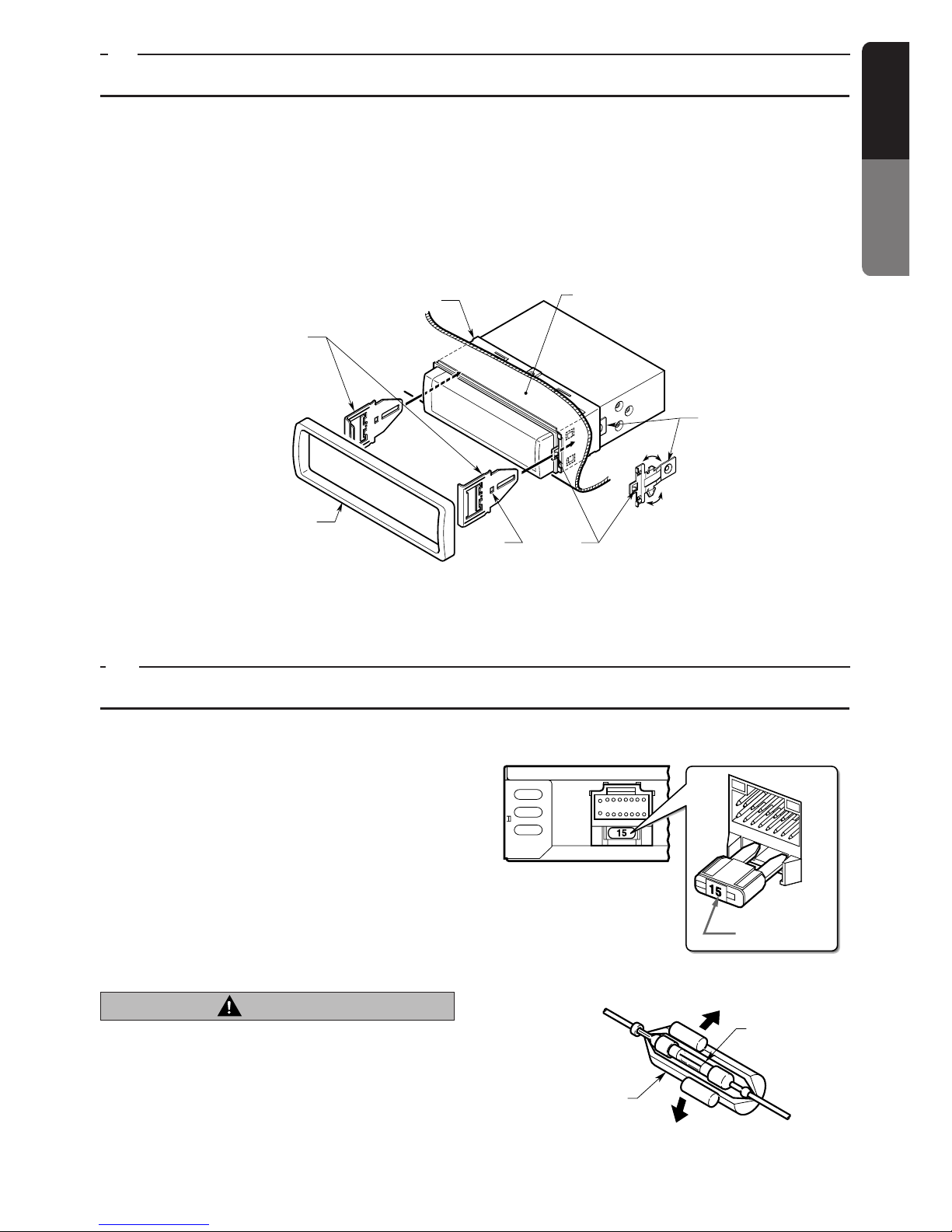

7. CAUTIONS ON WIRING

1. Be sure to turn the power off before wiring.

2. Be particularly careful where you route the

wires.

Keep them well away from the engine, and

exhaustpipe,etc.Heatmaydamage thewires.

3. If the fuse should blow, check to see if the wir-

ing is correct.

If it is, replace the fuse with a new one with the

same amperage rating as the original.

4. When any fuse is to be replaced, pull out the

fuse (15A) at the rear of the tuner amp unit

and put in a new one (Fig.10).

After the connection, fix the lead by a clamp or

insulation tape for protection.

CAUTION

Rear view of the tuner amp unit

Fuse (15A)

Figure 10

1. When the rear of the main unit has been se-

cured with the method shown in Figure 6 un-

fasten the special screw.

2. Remove the outer escutcheon.

3. Insert the hook plate between the spring and

theuniversalmountingbracket, fit tabBof the

spring into hole Aof the hook plate, then pull

6. REMOVINGTHE MAIN UNIT

themain unit outbythehook plate.(Insertboth

therightandleftedges ofthehook plate.)(Fig-

ure 9)

Note:

Keep the hook plate. You cannot remove the

main unit without disengaging the hook plate.

Universal mounting bracket

2-Hook plate

Outer escutcheon

Instrument panel

Spring

Main

Unit

Figure 9

Fuse

Fuse holder

Figure 11

5. To replace the fuse, release the catch on the

main unit side, remove the old fuse and insert

the new one.(Figure 11)

Note: There are various types of fuse holder. Do not

let the battery side touch other metal parts.

52 VRX815

English

Installation and Wire

connection manual

¥

∗2$%

∗6

Securely connect to the

metal part of the car with a

screw, etc.

CeNET cable (Sold separately)

Reset switch

DSP select switch (∗3)

Tuner amp unit

Subwoofer output terminal

L+R (RCA)

Front audio output (input)

terminal L+R (RCA) ∗4

Rear audio output (input)

terminal L+R (RCA) ∗4

∗1Top view of the

tuner amp unit

VIDEO output (RCA) ∗5

VISUAL 1 audio input terminal L+R (RCA)

DVD input (RCA)

VISUAL 1 input (RCA)/TV TUNER input (RCA)

Power supply lead

CeNET cable (provided with

this unit)

Choke coil Main power supply cord

Earth (ground) cord

Black

Yellow

Fuse

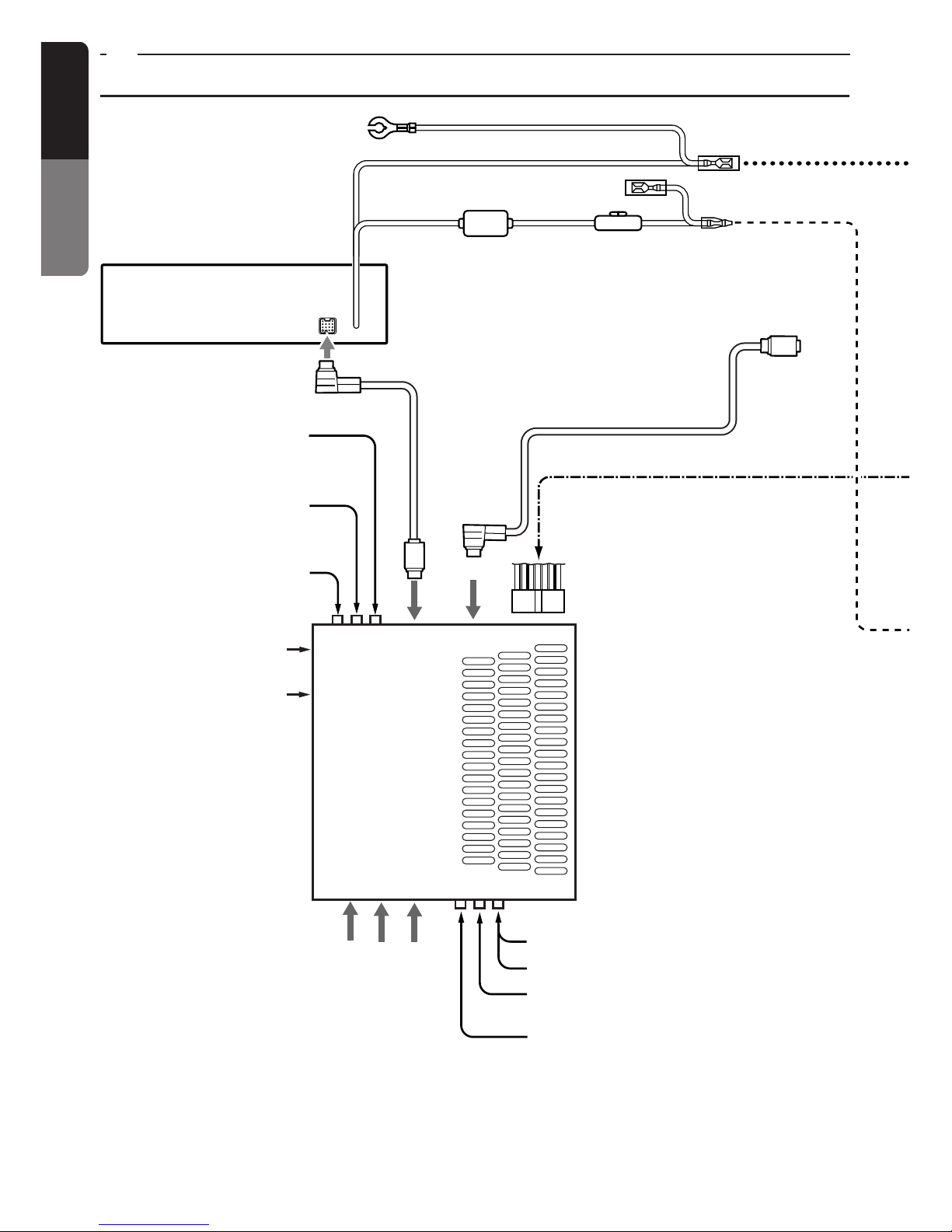

8. WIRE CONNECTION

VRX815 53

English

Installation and Wire

connection manual

(∗1

¡

)

Black

White

Yellow

Red

White/Black

Orange/White

Glay/Black

Grass-green

Glay

Brawn

Green

Blue/White

Green/Black

Purple/Black

Purple

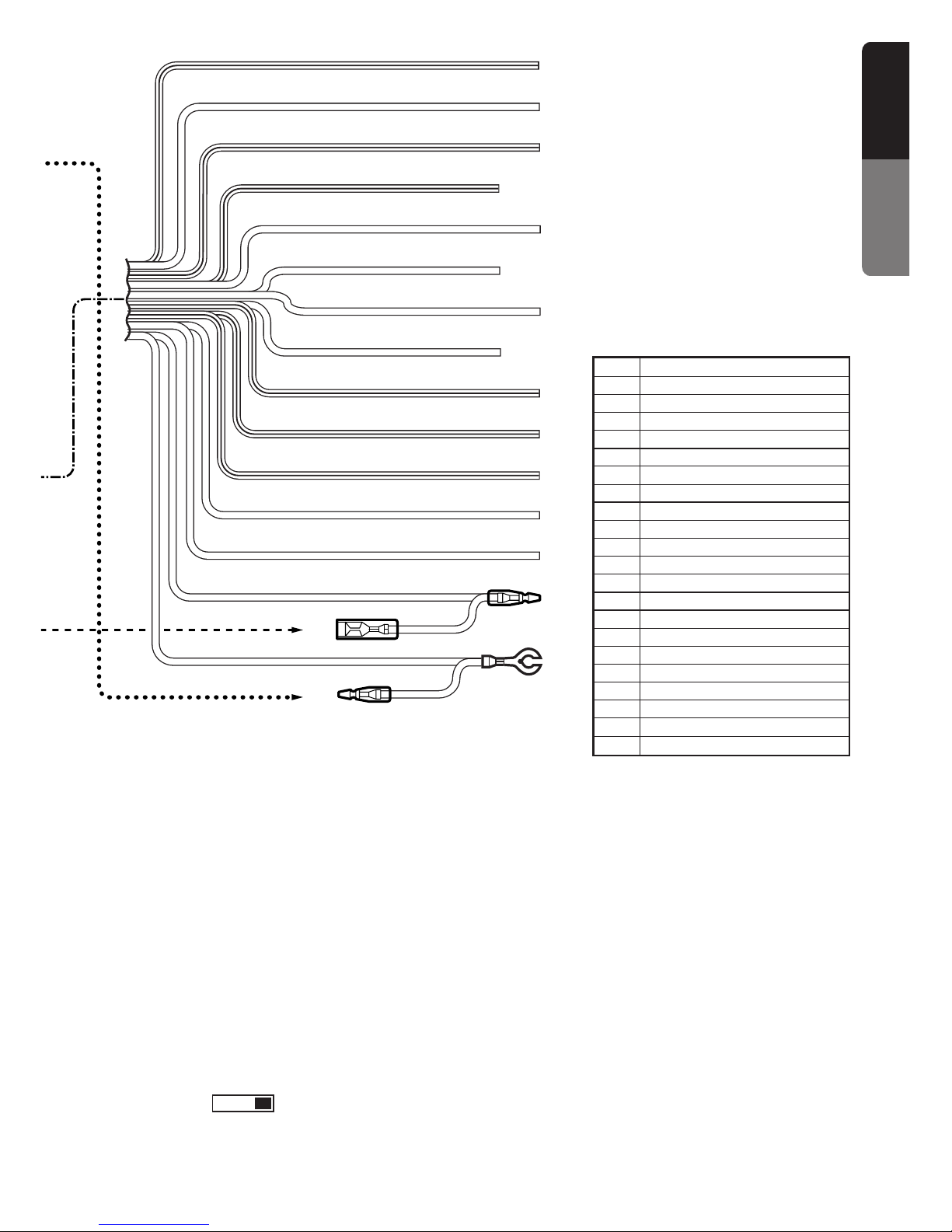

∗1: Connecting the PHONE MUTE Terminal

The lead included with the unit must be connected to the specified position of the vehicle’s

connector in order to use the “triggered audio mute for cellular telephones” function.

∗2: Use the attached extension lead when necessary. (Provided with this unit)

Note : Before making any installation, disconnect the car battery - (negative) cable.

∗3: When connecting a DSP (sold separately), set the normal DSP select switch to “D”.Then, the

AUDIO OUT (IN) terminal of the Tuner Amp Unit is only available for audio input, not outputting

the audio.

∗4: Connect to a separately sold external antenna, DSP, etc. with a separately sold RCA cord (L,R).

∗5: Connect to a TV/VTR/DVD video for the rear seat.

∗6: Connect to separately sold VTR equipment.

No. Description

1REAR RIGHTB

2REAR RIGHTv

3FRONT RIGHTB

4FRONT RIGHTv

5FRONT LEFTB

6FRONT LEFTv

7REAR LEFTB

8REAR LEFTv

9+12 V MAIN POWER

0AUTO ANTENNA

!ILLUMINATION

@+12 V ACCESSORY

#GROUND

$CCD/M.LOCK terminal

%VISUAL 2 terminal

¥Radio antenna jack (∗2)

&CeNET terminal

*Spare terminal (Black)

(Phone mute (Brown) (∗1)

)Spare terminal (Yellow)

¡Parking brake (Grass-Green)

54 VRX815

English

Installation and Wire

connection manual

■Connecting the Accessories

• Connection to the external amplifier

The external amplifier cannot be connected unless the DSP is connected. For detailed information,

refer to the instruction manual of the DSP.

• Connection to the security camera for vehicle

The rear vision camera for vehicle can be connected to the system expansion terminal on the main

unit. For detailed information, refer to the instruction sheet or manual for the rear vision camera.

Notes:

• A power supply box (sold separately) is required for connection of the main unit and the security camera.

• While the CCD camera is used, the navigation cannot be turned on.

• The power supply box for camera CAA147 cannot be used.Please use the CAA188 instead.

• If the specified lead of the cellular phone is connected to the phone mute

lead of the source unit, the audio mute is available when the cellular tele-

phone is used.

• DAB (Digital Audio Broadcasting)

When the DAB is to be connected, use the CeNET connector. For detailed information, refer to the

instruction manual of the DAB.

For DAB connection, the DAH913 can only be connected.The DAH9500Z cannot be connected.

• TVTunner

When the TV TUNER is to be connected, connect the CeNET connector and RCA PIN (yellow).For

detailed information, refer to the instruction manual of the TV TUNER.

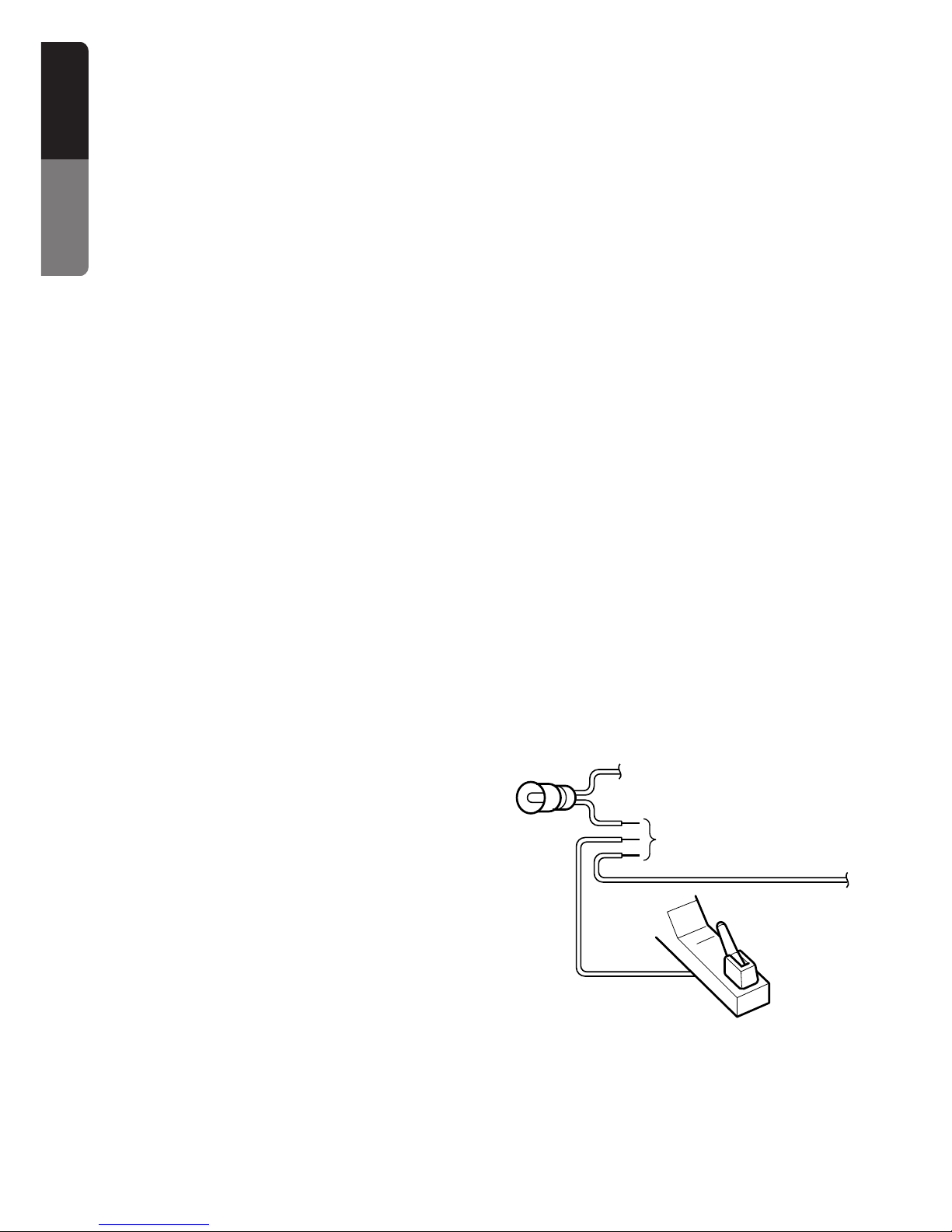

■Connectingthe parking brake lead

Connect the lead to parking brake lamp earth in

the meter panel.

Notes:

• Connecting the parking brake lead to lamp earth

allows you to watch TV/VTR/DVD video when the

parking brake is engaged.

• When the parking brake lead is not connected,

the monitor will stay off.

Parking brake

Parking brake lamp +lead to battery

Connect these three leads.

-cord

parking

brake signal

lead Parking brake lead

(bright green)

VRX815 55

English

Installation and Wire

connection manual

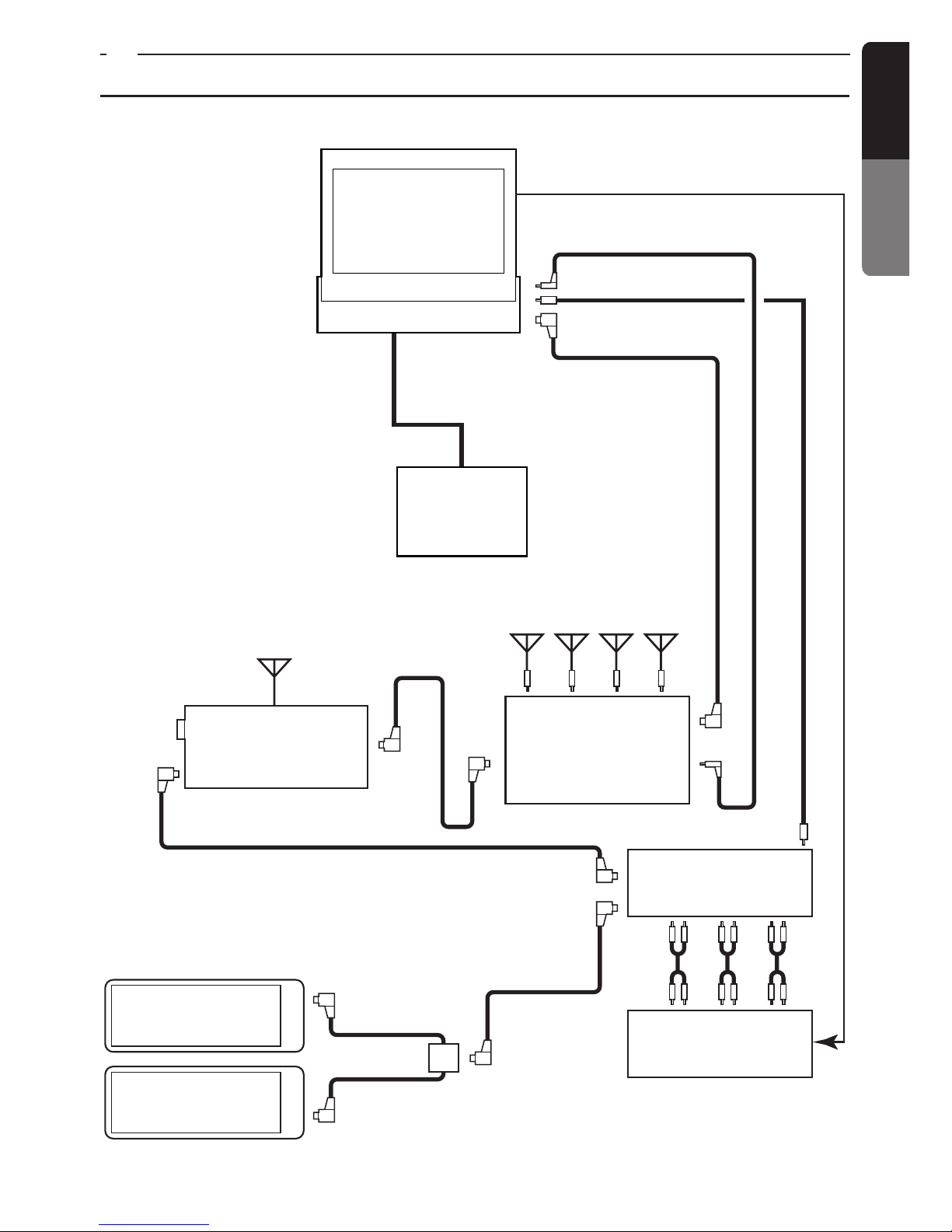

9. SAMPLE SYSTEMS

CeNET

RCA (F)

RCA (R)

RCA (W, C)

TV ANT.

CCA-519-500

RDI OUT

∗DAH 9500Z cannot be connected.

DAB ANT.

COMPOSITE (RCA)

(DAB TUNER)

DAH913

(MD CHANGER)

MDC655z

(CeNET TV TUNER)

TTX7501z

TTX7503z/TTX7504z

(DVD video deck)

DVS9755z

External amplifier

Rear view

monitor

(CD CHANGER)

CDC655z/655Tz/

1255z/DCZ625

(S-TV)

MAIN UNIT

VRX815

∗When two CD changers or MD changers are connected,

CCA-519-500 is required.

∗AMP built-in

AMP REMOTE

■Sample System 1

56 VRX815

English

Installation and Wire

connection manual

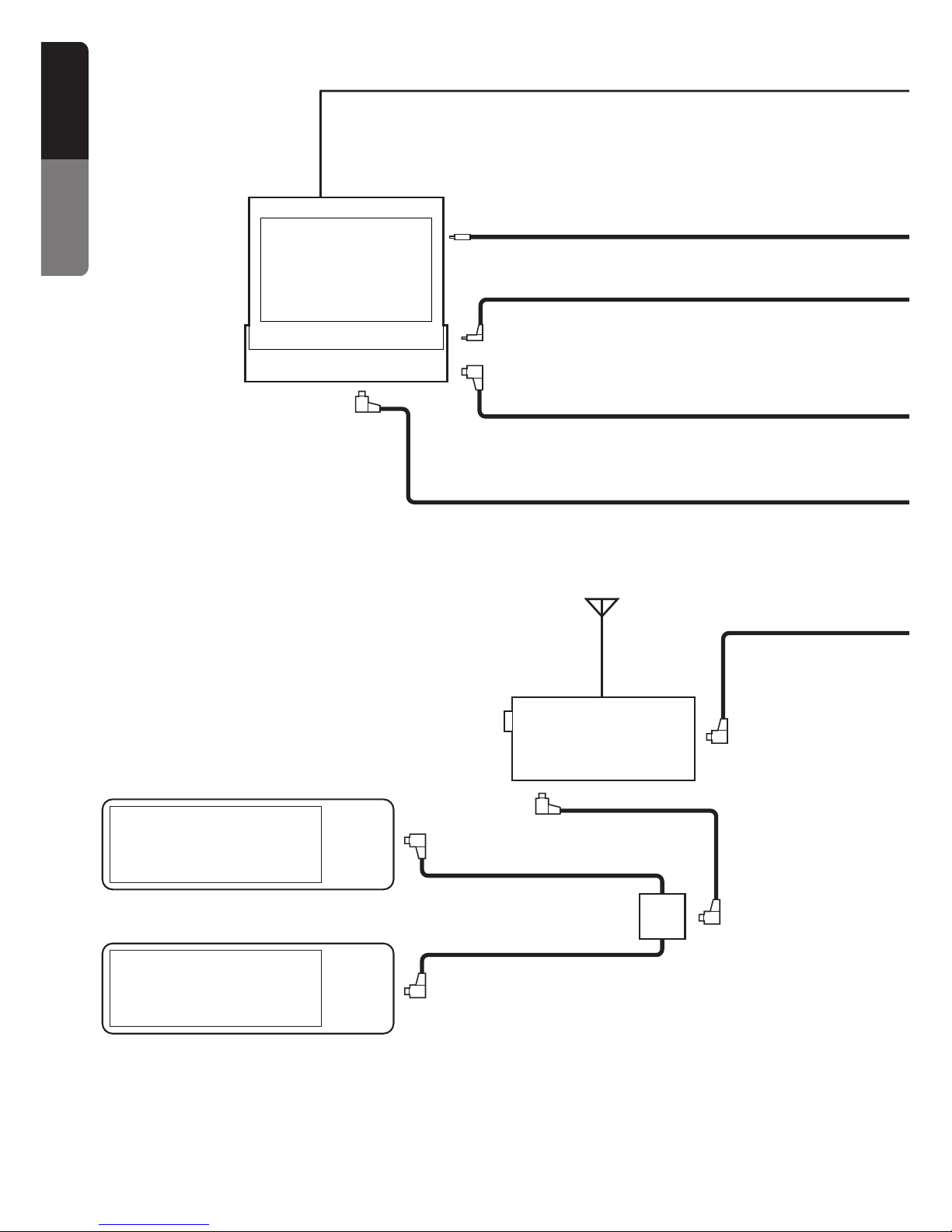

■Sample System 2

AMP REMOTE

CeNET

CCA-519-500

RDI OUT

DAB ANT.

COMPOSITE

(RCA)

(DAB TUNER)

DAH913

(MD CHANGER)

MDC655z

(S-TV)

MAIN UNIT

VRX815

∗When two CD changers or MD changers are connected,

CCA-519-500 is required.

∗DAH9500Z cannot

be connected.

∗DP

be c

∗AMP built-in

(CD CHANGER)

CDC655z/655Tz/

1255z/DCZ625

Altri manuali per VRX815

Indice

Altri manuali Clarion Ricevitore per auto

Clarion

Clarion DXZ948RMP Manuale utente

Clarion

Clarion CZ401 Guida di sicurezza

Clarion

Clarion FZ502E Manuale di programmazione

Clarion

Clarion AXZ610 Manuale utente

Clarion

Clarion PF-2945A-A Manuale utente

Clarion

Clarion DXZ858RMP Manuale utente

Clarion

Clarion RU-348A.B Manuale utente

Clarion

Clarion Addzest DB325 Manuale utente

Clarion

Clarion M235 Manuale utente

Clarion

Clarion DXZ665MP Manuale utente

Clarion

Clarion CZ205A Manuale di servizio

Clarion

Clarion FB275BT Manuale utente

Clarion

Clarion PH-2761C-F Manuale utente

Clarion

Clarion CD-8100USB Service Manuale utente

Clarion

Clarion DRZ 9255 Manuale utente

Clarion

Clarion CZ209 Manuale utente

Clarion

Clarion VRX935VD Manuale di riparazione

Clarion

Clarion CZ305 Manuale di riparazione

Clarion

Clarion RDX655DZ Manuale utente

Clarion

Clarion DXZ475MP Manuale utente

Clarion

Clarion DXZ275MP Manuale di istruzioni

Clarion

Clarion FZ105BT Manuale di riparazione

Clarion

Clarion VRX6570Rz Manuale di riparazione

Clarion

Clarion PH-2349C-A Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
