Installation and Wire

connection manual

VRX835

Installation andWire connection manual

■Contents

1. BEFORE STARTING ............................................................... 47

2. PACKAGE CONTENTS ........................................................... 47

3. GENERAL CAUTIONS ............................................................ 48

4. CAUTIONS ON INSTALLATION .............................................. 48

5. INSTALLING THE MAIN UNIT ................................................. 49

6. REMOVING THE MAIN UNIT .................................................. 51

7. CAUTIONS ON WIRING .......................................................... 51

8. WIRE CONNECTION .............................................................. 52

9. SAMPLE SYSTEMS ................................................................ 55

1. BEFORE STARTING

2. PACKAGE CONTENTS

1. This set is exclusively for use in cars with a

negative ground 12 V power supply.

2. Read these instructions carefully.

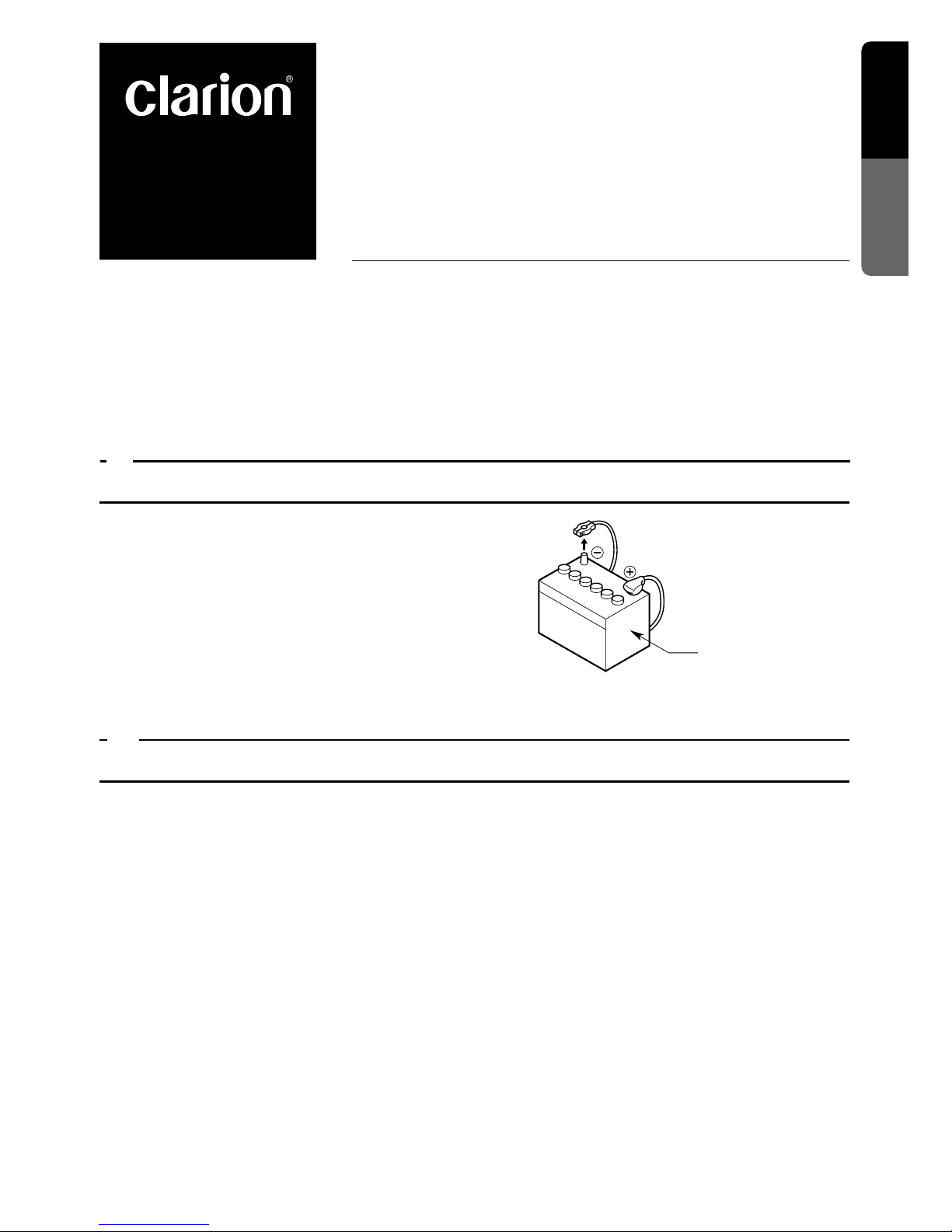

3. Be sure to disconnect the battery “v” termi-

nal before starting.This is to prevent short

circuits during installation. (Figure 1)

Car battery

Figure 1

1Main unit

2Tuner Amp unit

3Manuals

Owner’s manual & Installation manual

Warranty card

4Power supply lead (For the tuner amp unit)

5Connection cord (Main unit ↔Tuner amp

unit)

6Antenna extension cord

7Bag for accessories of the main unit (No. 1)

Flat head screw (M5 ×8) ............................ 4

Sems hexagonal bolt (M5×8) ..................... 5

Electro tap

Machine screw (M4×3)............................... 4

8Bag for accessories of the main unit (No. 2)

Hook plate................................................... 2

Cord clamp

Spacer

Special screw

9Bag for accessories of tuner amp unit

Maunting bracket......................................... 2

Canoe clip ................................................... 4

Machine screw (M4 ×8).............................. 4

0Universal mounting bracket

!Remote control unit

@Battery

(for remote control unit)

#Outer Escutcheon

$DCP Case

48 VRX835

English

Installation and Wire

connection manual

3. GENERAL CAUTIONS

4. CAUTIONS ON INSTALLATION

1. Do not open the case.There are no user ser-

viceable parts inside. If you drop anything

into the unit during installation, consult your

dealer or an authorized CLARION service

centre.

2. Use a soft, dry cloth to clean the case. Never

use a rough cloth, thinner, benzine, or alco-

hol, etc. For tough dirt, apply a little cold or

warm water to a soft cloth and wipe off the

dirt gently.

1. Prepare all articles necessary for installing

the main unit before starting.

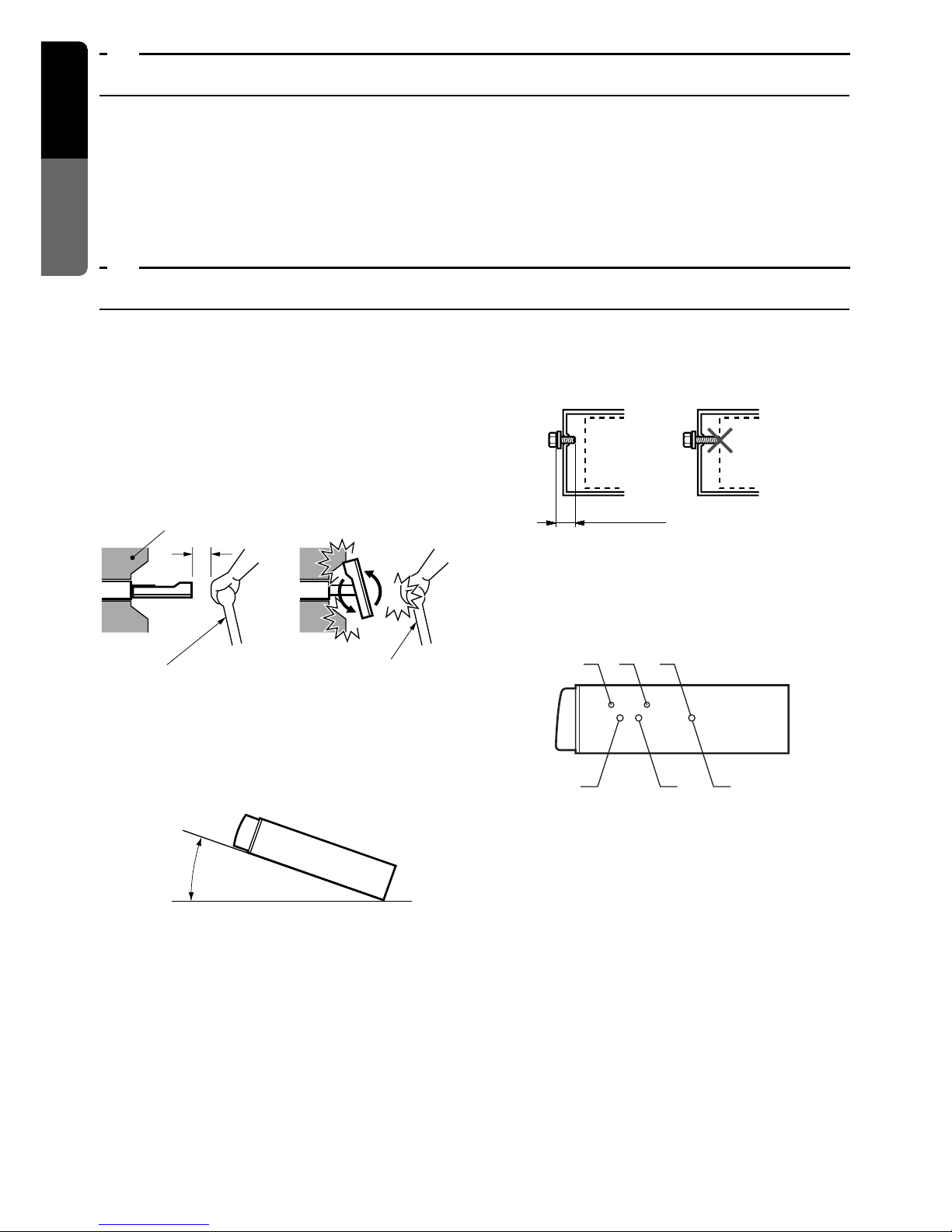

2. This model is used with the LCD panel slid

forwards (shell loading system). On some

types of cars, the LCD panel may touch the

dashboard or shift lever, in which case it can-

not be installed. Check that the set will not

hamper operation of the shift lever before

choosing the place of installation.(Figure 2)

5. Use the enclosed screws for installation.Us-

ing other screws can cause damage. (Figure

3. Install the unit within 30°of the horizontal

plane.(Figure 3)

4. If you have to do any work on the car body,

such as drilling holes, consult your car dealer

beforehand.

6. The source unit has mounting screw holes

for NISSAN (N marks) andTOYOTA (T

marks) vehicles.

Dashboard

Shift lever

(check that it does not

touch the LCD.)

Figure 2

Max. 30˚

Figure 3

Chassis Chassis

Damage

Max. 8 mm

Figure 4

Figure 5

NNT

VRX835 49

English

Installation and Wire

connection manual

5. INSTALLINGTHE MAIN UNIT

■Universal Mount

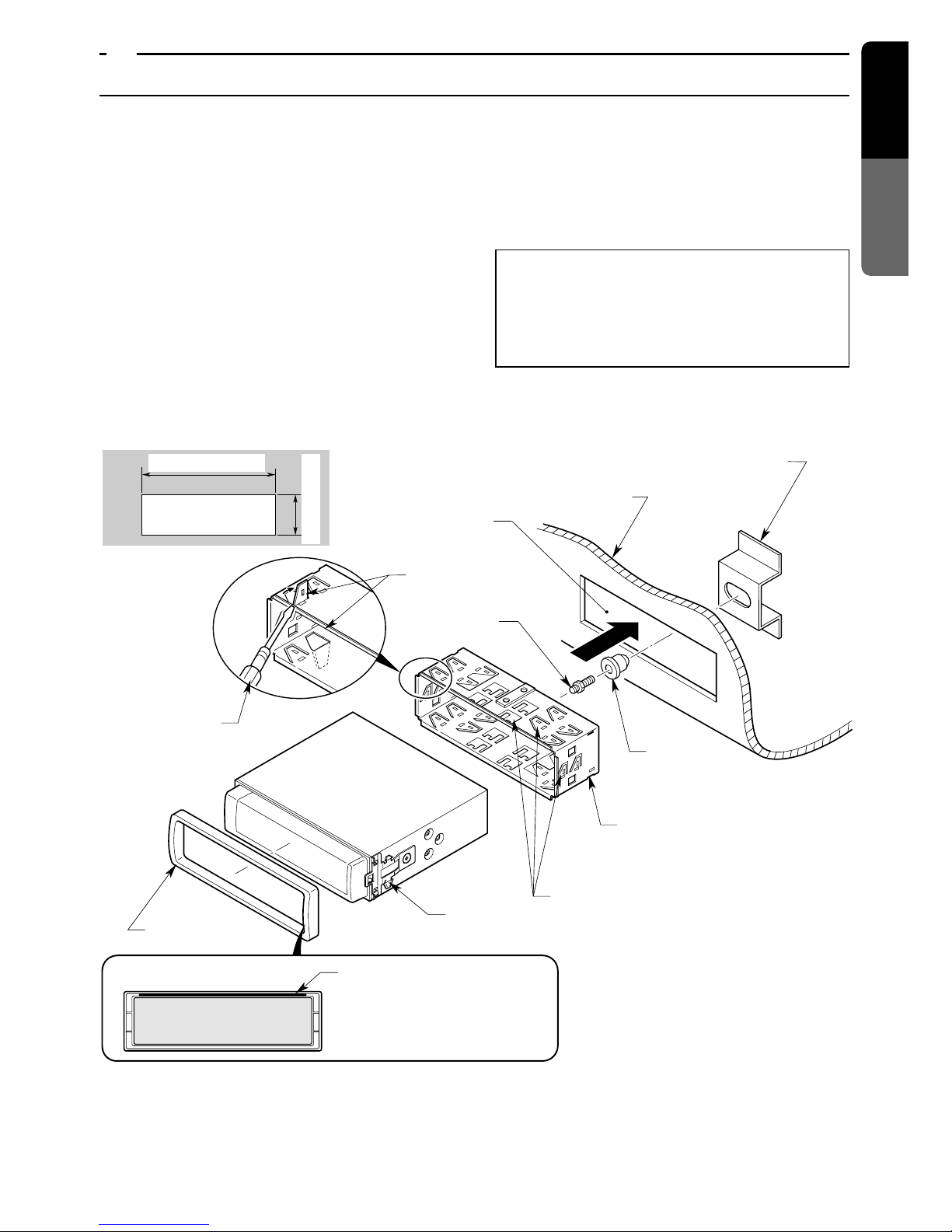

1. Place the universal mounting bracket into the

instrument panel, use a screwdriver to bend

each stopper of the universal mounting

bracket inward, then secure the stopper as

shown in Figure 6.

2. Wire as shown in Section 8.

3. Insert the main unit into the universal mount-

ing bracket until it locks.

4. Mount the outer escutcheon so that all the

hooks are locked.

Notes:

1) Some car models require special mounting kits

for proper installation.Consult your Clarion

dealer for details.

2) Fasten the front stopper securely to prevent the

main unit from coming loose.

Figure 6

• Console opening dimensions

Hole

Main unit

7-3/16" (182 mm)

2-1/16" (53 mm)

Screwdriver

Stoppers

Hole

Rear fastening hole (of vehicle)

Instrument panel

Rubber cap

Universal mounting bracket

Stoppers

2-Spring

Outer escutcheon

Note: Set the outer escutch-

eon so that its metallic

part on the back side

fits the upper edge of

the main unit.

50 VRX835

English

Installation and Wire

connection manual

This unit is designed for fixed installation in the

dashboard.

If the vehicle is equipped with a factory-installed

radio, install the main unit with the parts and

screws marked (∗). (Figure 8)

If the vehicle is not equipped with a factory-in-

stalled radio, obtain an installation kit to install

the main unit in the following procedure.

1. Remove the screws from both side of the

main unit.Then, at either side, lift the leaf

spring until the engaging claws are released

from the holes, and slide the spring to the di-

■Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)

rection of arrow to remove it.Repeat the

same for the other side to remove the

springs from the both sides. (Figure 7)

Secure the mounting brackets to the chassis

as shown in Figure 8. Holes are pre-tapped for

TOYOTA and NISSAN vehicles; modification,

such as drilling new holes, of the mounting

brackets may be required for other models

3. Wire as shown in Section 8.

4. Secure the unit in the dashboard, and then

reassemble the dashboard and the centre

panel.

Note 1: In some cases, the centre panel may re-

quire some modification (trimming, filling,

etc.).

Note 2: If a hook on the installation bracket inter-

feres with the unit, bend and flatten it with

a nipper or a similar tool.

2-Screw

2-Spring

4-Hexagonal screw ∗(M5 ×8)

Main Unit

Figure 7

Main Unit

Screwdriver

Engagin claw

Mounting bracket ★

(1 pair for the left and right sides)

Pocket

Centre Panel (Note 1) Note 2

Figure 8

∗: The screws with this mark

are enclosed in this set.

★:The parts and screws with this mark

are used to install radio or included in

the installation kit.

VRX835 51

English

Installation and Wire

connection manual

7. CAUTIONS ON WIRING

1. Be sure to turn the power off before wiring.

2. Be particularly careful where you route the

wires.

Keep them well away from the engine, and ex-

haust pipe, etc.Heat may damage the wires.

3. If the fuse should blow, check to see if the

wiring is correct.

If it is, replace the fuse with a new one with

the same amperage rating as the original.

4. When any fuse is to be replaced, pull out the

fuse (15A) at the rear of the tuner amp unit

and put in a new one (Fig.10).

After the connection, fix the lead by a clamp or

insulation tape for protection.

CAUTION

Rear view of the tuner amp unit

Fuse (15A)

Figure 10

1. When the rear of the main unit has been se-

cured with the method shown in Figure 6 un-

fasten the special screw.

2. Remove the outer escutcheon.

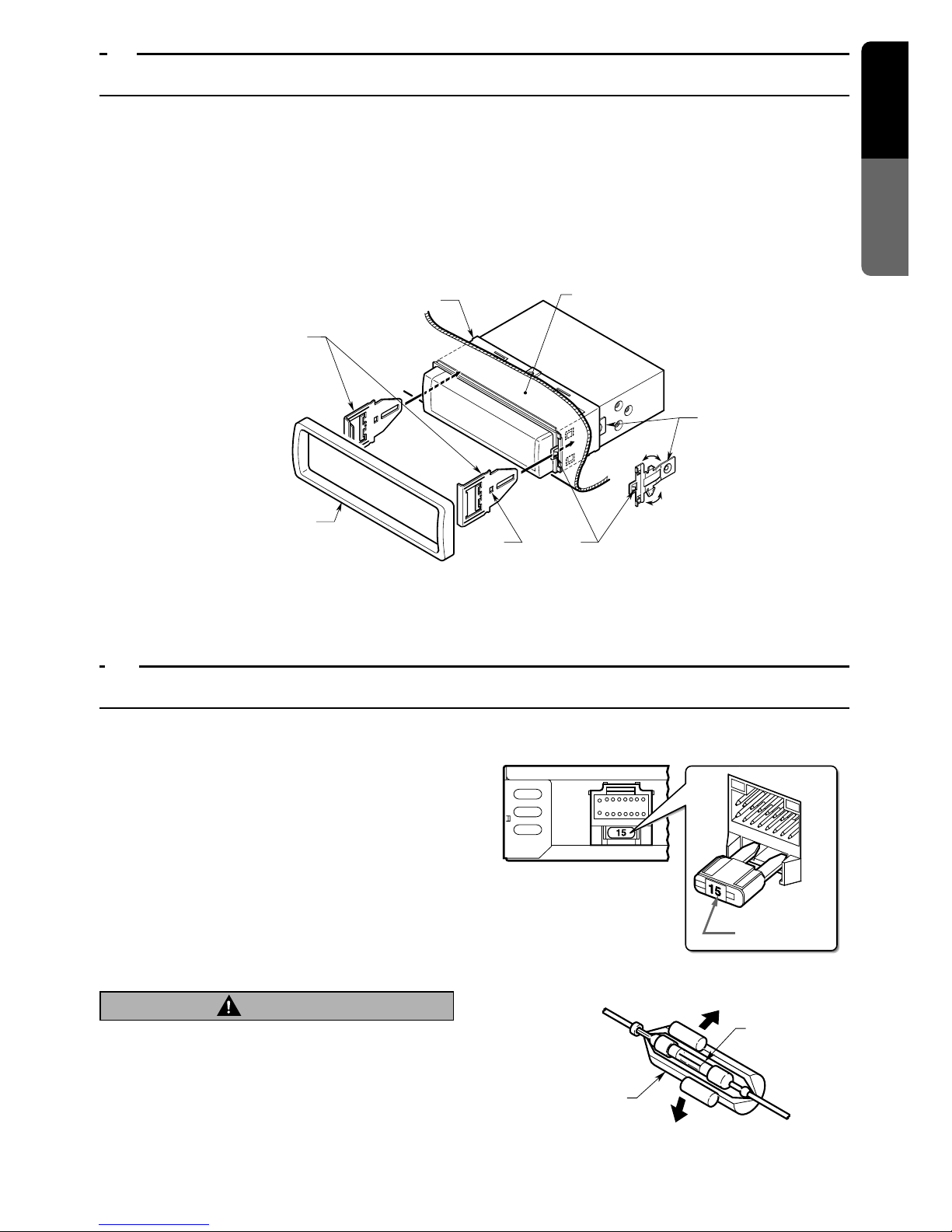

3. Insert the hook plate between the spring and

the universal mounting bracket, fit tab Bof

the spring into hole Aof the hook plate, then

6. REMOVINGTHE MAIN UNIT

pull the main unit out by the hook plate. (In-

sert both the right and left edges of the hook

plate.) (Figure 9)

Note:

Keep the hook plate.You cannot remove the

main unit without disengaging the hook plate.

Universal mounting bracket

2-Hook plate

Outer escutcheon

Instrument panel

Spring

Main

Unit

Figure 9

Fuse

Fuse holder

Figure 11

5. To replace the fuse, release the catch on the

main unit side, remove the old fuse and in-

sert the new one. (Figure 11)

Note: There are various types of fuse holder. Do not

let the battery side touch other metal parts.

52 VRX835

English

Installation and Wire

connection manual

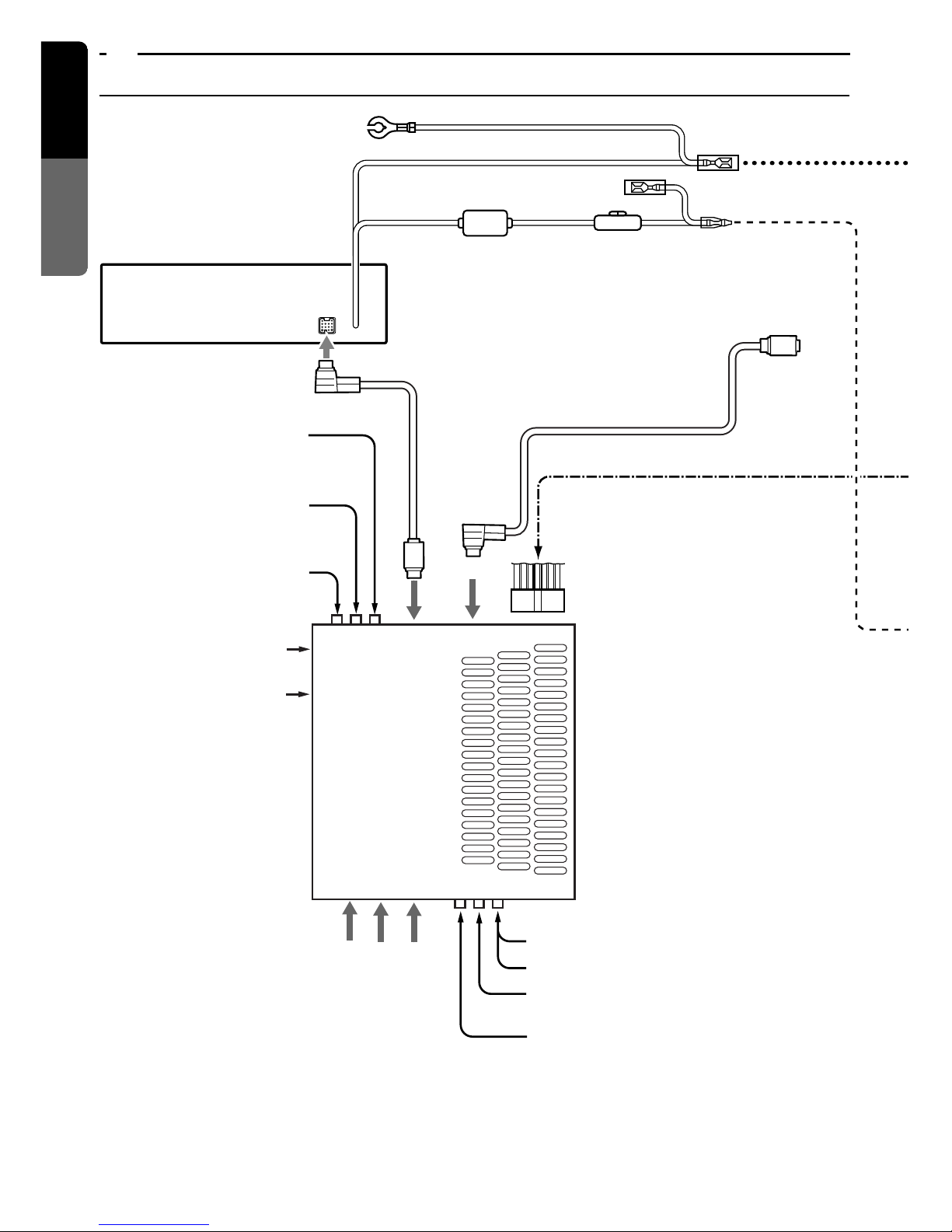

∗2$%

∗6

Securely connect to the

metal part of the car with a

screw, etc.

CeNET cable (Sold separately)

Reset switch

DSP select switch (∗3)

Tuner amp unit

Subwoofer output terminal

L+R (RCA)

Front audio output (input)

terminal L+R (RCA) ∗4

Rear audio output (input)

terminal L+R (RCA) ∗4

∗1Top view of the

tuner amp unit

VIDEO output (RCA) ∗5

VISUAL 1 audio input terminal L+R (RCA)

DVD input (RCA) (DECK or changer) ∗7

VISUAL 1 input (RCA)/TV TUNER input (RCA)

Power supply lead

CeNET cable (provided with

this unit)

Choke coil Main power supply cord

Earth (ground) cord

Black

Yellow

Fuse

8. WIRE CONNECTION

VRX835 53

English

Installation and Wire

connection manual

∗1: Connecting the PHONE MUTE Terminal

The lead included with the unit must be connected to the specified position of the vehicle’s con-

nector in order to use the “triggered audio mute for cellular telephones”function.

∗2: Use the attached extension lead when necessary. (Provided with this unit)

Note : Before making any installation, disconnect the car battery - (negative) cable.

∗3: When a DSP (sold separately) is connected and the internal amp of the Tuner Amp Unit is used,

set the normal DSP select switch to “D”.Then, the AUDIO OUT (IN) terminal of the Tuner Amp

Unit is only available for audio input, not outputting the audio.

∗4: Connect to a separately sold amp, DSP, etc. with a separately sold RCA cord (L,R).

∗5: Connect to a separately sold Rear view monitor.

∗6: Connect to separately sold VTR equipment.

∗7: DVD DECK and DVD changer can not be connected at the same time.

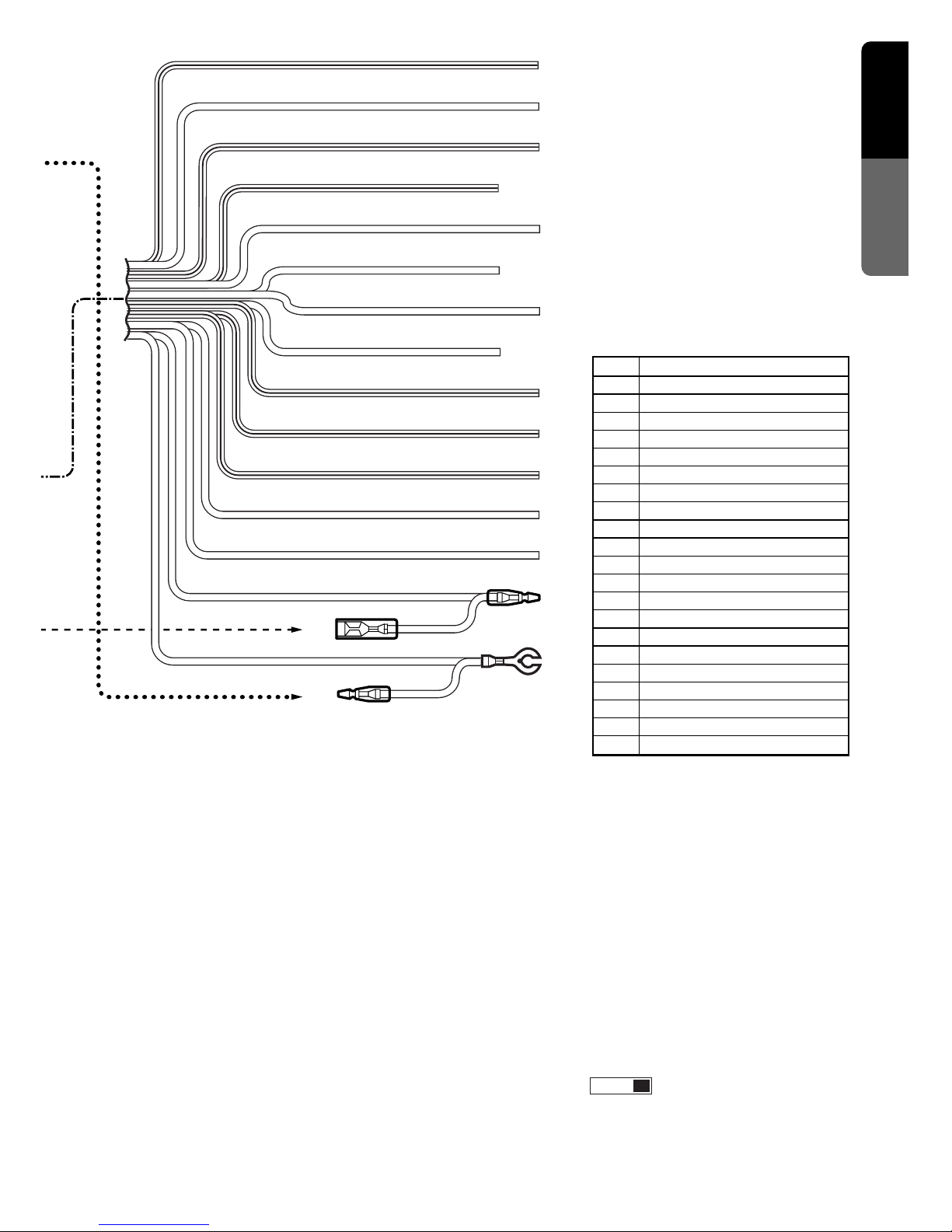

No. Description

1REAR RIGHTB

2REAR RIGHTv

3FRONT RIGHTB

4FRONT RIGHTv

5FRONT LEFTB

6FRONT LEFTv

7REAR LEFTB

8REAR LEFTv

9+12 V MAIN POWER

0AUTO ANTENNA

!ILLUMINATION

@+12 V ACCESSORY

#GROUND

$CCD/M.LOCK terminal

%VISUAL 2 terminal

¥Radio antenna jack (∗2)

&CeNET terminal

*Spare terminal (Black)

(Phone mute (Brown) (∗1)

)Spare terminal (Yellow)

¡Parking brake (Grass-Green)

(∗1

)

Black

White

Yellow

Red

White/Black

Orange/White

Glay/Black

Grass-green

Glay

Brawn

Green

Blue/White

Green/Black

Purple/Black

Purple

54 VRX835

English

Installation and Wire

connection manual

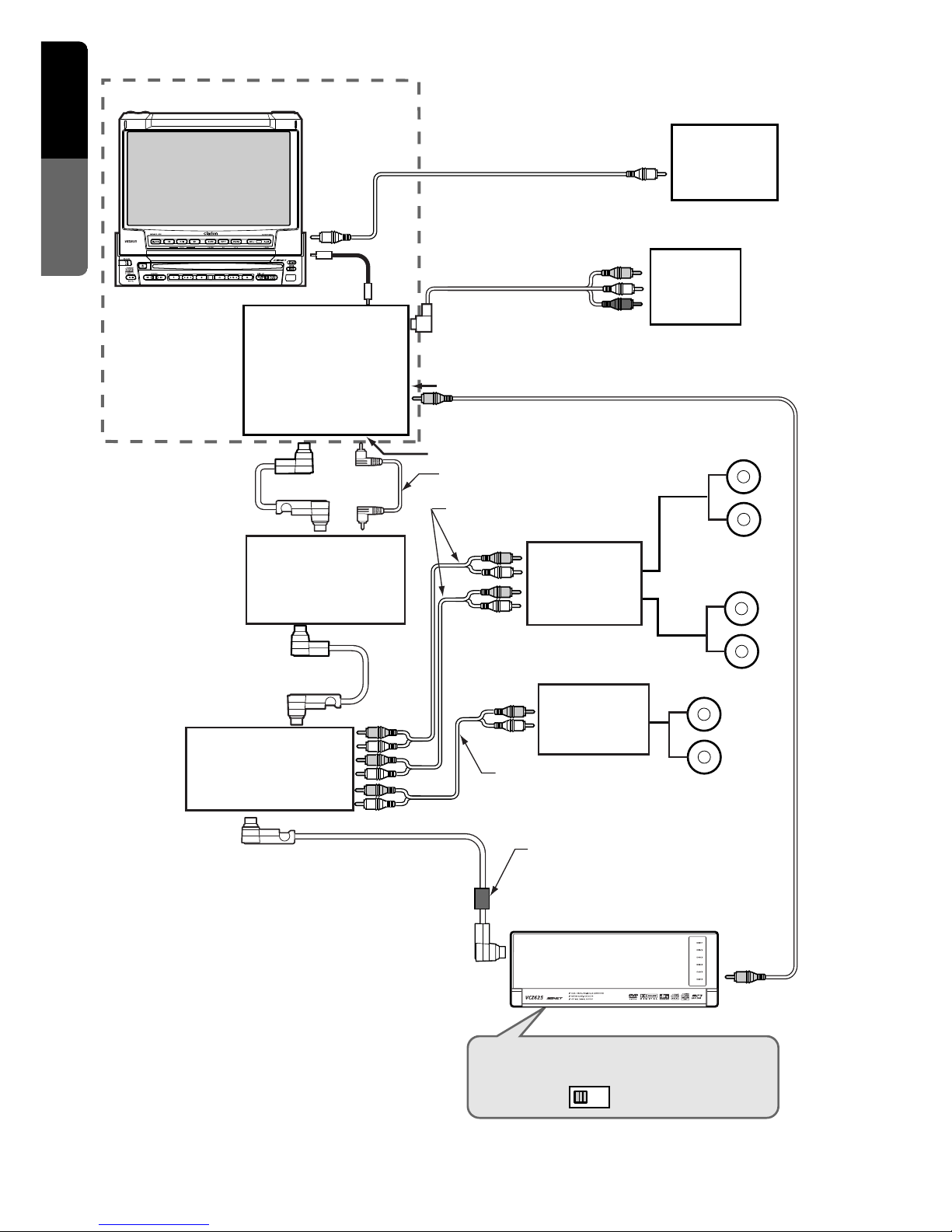

■Connecting the Accessories

•Connection to the external amplifier

The external amplifier cannot be connected unless the DSP is connected. For detailed information,

refer to the instruction manual of the DSP.

•Connection to the CCD camera for vehicle

The CCD camera for vehicle can be connected to the CCD terminal on the main unit. For detailed

information, refer to the instruction sheet or manual for the CCD camera.

Notes:

• A power supply box (sold separately) is required for connection of the main unit and the CCD camera.

• While the CCD camera is used, the navigation cannot be turned on.

• The power supply box for camera CAA147 cannot be used.Please use the CAA188 instead.

•If the specified lead of the cellular phone is connected to the phone mute

lead of the source unit, the audio mute is available when the cellular tele-

phone is used.

•TVTunner

When the TV TUNER is to be connected, connect the CeNET connector and RCA PIN (yellow). For

detailed information, refer to the instruction manual of the TV TUNER.

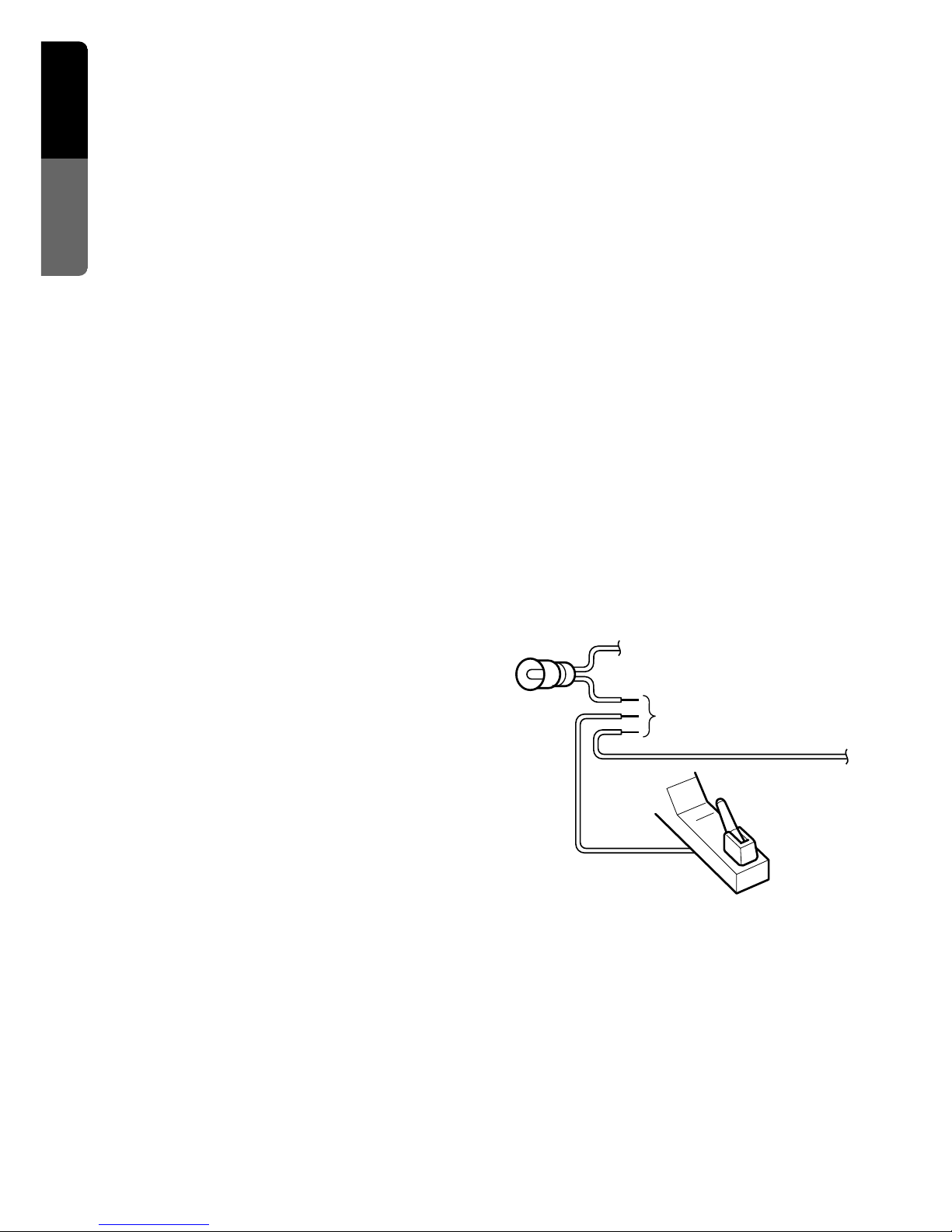

■Connectingthe parking brake lead

Connect the lead to parking brake lamp earth

in the meter panel.

Notes:

• Connecting the parking brake lead to lamp earth

allows you to watch TV/VTR/DVD video/DVD

changer when the parking brake is engaged.

• When the parking brake lead is not connected,

the monitor will stay off.

Parking brake

Parking brake lamp +lead to battery

Connect these three leads.

-cord

parking

brake signal

lead Parking brake lead

(bright green)

VRX835 55

English

Installation and Wire

connection manual

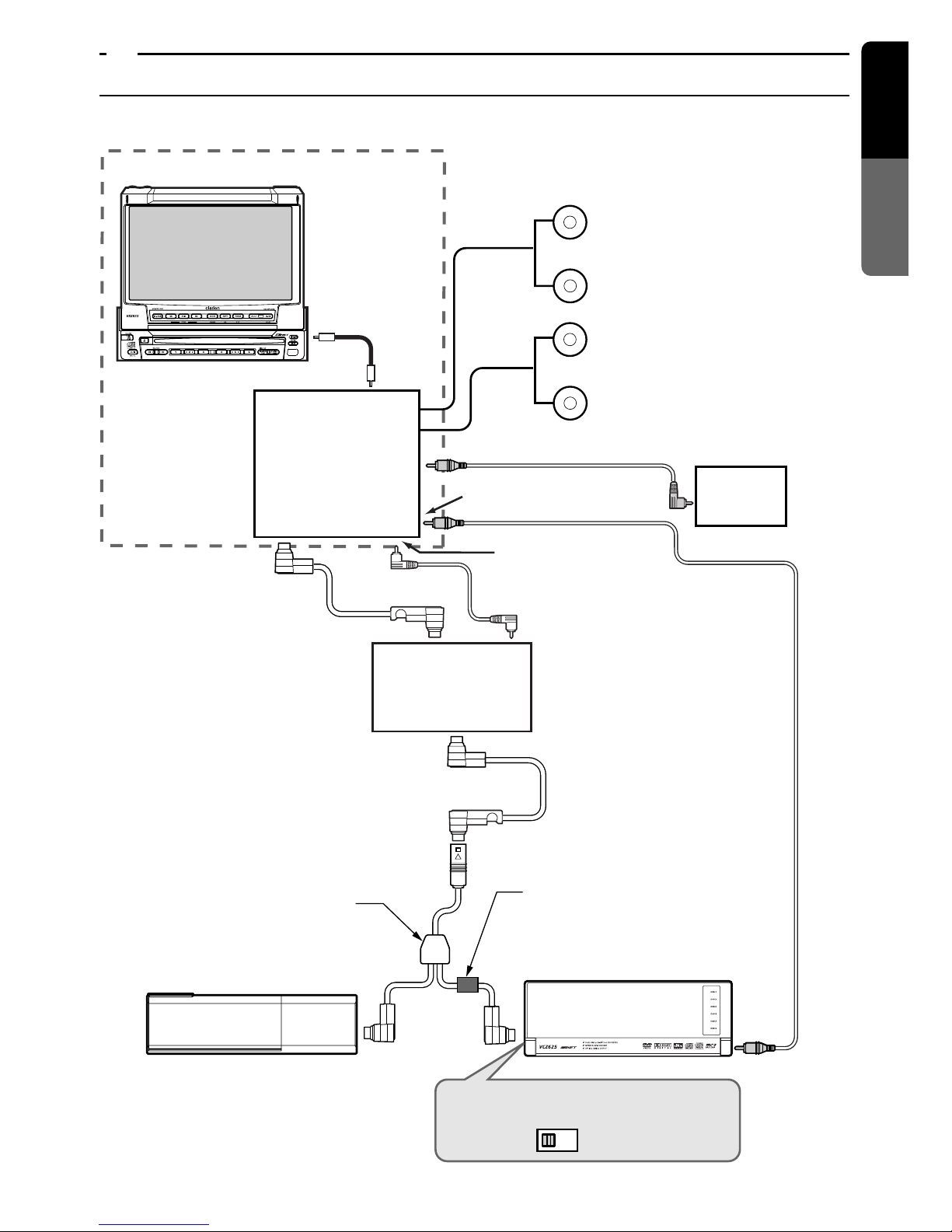

9. SAMPLE SYSTEMS

(TTX7501z)

(VCZ625)

(DCZ625)

CeNET STAND

ALONE

VRX835

TV tuner

CeNET cable

(included the

TV tuner)

RCA video cable

(included the TV tuner)

RearView

Monitor

RCA video cable (sold separately)

DVD Changer

CD Changer

CeNET Y-adapter

(CCA-519-500,

sold separately)

Ferrite clamp

(Included the DVD changer)

RCA video cable (included the VCZ625)

CeNET Cable

(included the Changer)

Front

Speakers

Rear

Speakers

Set the [CENET/STAND ALONE]

switch to the [CeNET] position.

Tuner Amp Unit

TV Tuner input

DVD input

■Sample System 1

56 VRX835

English

Installation and Wire

connection manual

■Sample System 2

CeNET STAND

ALONE

(VCZ625)

VRX835

(DPH910)

VTR

(TTX7501z)

CeNET

TV Tuner

Tuner Amp Unit

CeNET

cable

(included

the TV

tuner)

RCA video cable

(included the TV tuner)

CeNET DVD Changer

CeNET cable

(included the VCZ625)

Digital Sound

Processor

CeNET cable

(included the

DPH910)

Front

Speakers

4-Channel

Amplifier

Rear

Speakers

Sub-woofer

RCA cable

(sold separately)

RCA cable

(sold separately)

Set the [CENET/STAND ALONE]

switch to the [CeNET] position.

RCA video cable (included the VCZ625)

AV Adapter cable

(CCA-389,

sold separately)

RearView

Monitor

RCA video cable

(sold separately)

2-Channel

Amplifier

TV Tuner input

DVD input

Ferrite clamp

(Included the DVD changer)

Altri manuali per VRX835

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarion Ricevitore per auto

Clarion

Clarion DXZ758RMC Manuale utente

Clarion

Clarion DB415 Manuale utente

Clarion

Clarion PS-2760D Manuale utente

Clarion

Clarion ProAudio VRX 935VD VRX935VD VRX935VD Guida rapida

Clarion

Clarion ADZ625 Manuale utente

Clarion

Clarion DB345MP Manuale utente

Clarion

Clarion ADB340MP ADB340MP ADB340MP Manuale utente

Clarion

Clarion DXZ768RMP Istruzioni per il montaggio

Clarion

Clarion M455 Manuale di istruzioni

Clarion

Clarion PP-2515L Manuale utente

Clarion

Clarion DXZ728R Manuale utente

Clarion

Clarion AXZ610 Manuale utente

Clarion

Clarion DXZZ75MP Manuale utente

Clarion

Clarion PP-2898H-C Manuale utente

Clarion

Clarion FZ409 Manuale utente

Clarion

Clarion DX515 Manuale utente

Clarion

Clarion DXZ445 Manuale utente

Clarion

Clarion SIRIUS DSC920S Manuale utente

Clarion

Clarion NX500 Istruzioni originali

Clarion

Clarion .39100-S6M-A000 Manuale utente

Clarion

Clarion pro audio vrx 630 Guida rapida

Clarion

Clarion DB538RMP Manuale utente

Clarion

Clarion VXZ646 Manuale utente

Clarion

Clarion DB456MC Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
