OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0518 Iss 3
PORTABLE AIR CONDITIONER
MODEL NO: AC10000/13000
PART NO: 3230574/3230576
2
INTRODUCTION
Thank you for purchasing this CLARKE Portable Air Conditioner.
Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not affect your statutory rights.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as
waste. All unwanted accessories and packaging should be sorted
and taken to a recycling centre for disposal in a manner which is
compatible with the environment.
R410A is a refrigerant that complies with EEC environmental
standards. Nonetheless, the refrigerant circuit on the machine
should never be punctured. At the end of its working life, consign
the air conditioning unit to a special collection centre.
Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal of the
WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY WARNINGS
1. Please read these instructions carefully and retain for future reference.
2. Position the power cable so that it cannot be inadvertently pulled or
pinched, and where it does not cause a trip hazard.
3. This appliance is designed for use in residential environments and must not
be used for other purposes.
4. If the appliance requires repair, always contact your CLARKE dealer.
Always insist on original spare parts. Repairs carried out by unauthorized
persons may be dangerous and invalidate the guarantee.
5. This appliance must only be used by adults. Children should not be allowed
to play with this appliance.
6. Do not use extension power cables.
7. Before cleaning or maintenance operations, always unplug the appliance
from the power supply.
8. Do not move the appliance by pulling the power cable.
9. Do not install the appliance close to sources of gas, oil or sulphur. Do not
install near sources of heat.
10. Do not use the appliance on inclined surfaces.
11. Always keep the appliance at least 50 cm away from walls or furniture.
12. Keep the appliance at least 50 cm away from flammable substances
(solvents etc) or pressurised containers (e.g. aerosol cans).
13. Do not rest heavy or hot objects on top of the appliance.
14. Do not use the appliance outdoors.
15. Do not obstruct or restrict the airflow to the inlet or from the air outlet.
WARNING: IF THE SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY
THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED
PERSONS IN ORDER TO AVOID A HAZARD.
4
ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230 V AC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal which
is marked Lor coloured Red.
• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.
.
We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live Yellow and Green = Earth
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
OVERVIEW
NODESCRIPTION NODESCRIPTION
1 Air Outlet Flap 6 Lower Air Filter Frame
2 Control Panel 7 Power Cable with storage
3 Handle 8 Water Drain Port
4 Upper Air Filter Frame (Air Intake) 9 Power Plug Storage Socket
5 Air Outlet Port
13
24
6
8
5
7
9
6
CONTENTS
Ensure the air conditioner and its components suffered no damage during
transit and that all components are present. Should any loss or damage be
apparent, please contact your CLARKE dealer immediately.
The following components are supplied with the unit;
1. Flexible exhaust duct.
2. Adjustable window slider plate.
3. Remote control unit.
INSTALLATION
IMPORTANT: Do not position your air conditioner where it will be exposed to
sources of heat above 40oC.
1. Always transport the air conditioner upright or resting on one side.
Remember to drain the tank before moving the appliance.
• It is recommended to wait up to 24 hours after transporting the air
conditioner before using it, to allow the refrigerant gasses to settle.
2. Position the unit on a level, dry
surface with at least 50 cm of free
air space around the unit.
NOTE: Do not use the air exhaust
duct when in DRY or FAN
only modes.
3. Fit the flexible exhaust duct by
pushing some of the ducting ribs
past the locking channels and
then keep twisting the whole
ducting anti-clockwise until the ducting tightens in the outlet port.
4. Fit the window exhaust adaptor to the other end of the duct.
5. Move the air conditioner into position, and extend the flexible exhaust duct
to suit your window layout.
6. Pass the discharge end out of the nearest window.
NOTE: The length of the exhaust duct is variable between 480 mm and
1500 mm (adaptors included). Using a shorter length of ducting
uses less energy.
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
NOTE: The length of duct has been designed to suit the specification of
the air conditioner. Do not use an extension or change to a
different size duct as it may lead to poor performance.
7. The flexible exhaust ducting can
be bent to an angle if followed by
a straight section, but tight curves
and kinks must always be
avoided.
8
8. The window slider plate is
designed to fit most standard
vertical sash type and horizontal
sliding windows. However, it may
be necessary for you to adapt the
installation procedure for various
other types of window.
9. Extend the two parts of the
window slider and fit into the
window opening, below or beside
the window panel. Secure in
position by closing the window, or if not secure, wedge or otherwise secure
the window slider plate so that it cannot fall out.
10. Fit two AAA size batteries to the
remote control unit by sliding the
battery cover away and installing
the batteries to face in opposing
directions as indicated by the
symbols inside the unit.
• Follow the polarity diagram inside
the battery compartment.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
CONTROL PANEL
The control panel has the following buttons:
1. POWER: Press this button to turn the unit on & off. When turned on, the
machine will start running in the previously selected mode.
• If the ambient temperature is above 35oC, the display will indicate “H” and
enter standby mode.
• If it is below 5oC it will indicate “L” and the unit will enter standby mode.
2. TIMER: Press this to select the timer mode and the main display will initially
show “0”. Set the running time from 0-24 hours using the UP/DOWN buttons.
3. MODE: Press this button to select from COOLING, FAN, DRYING or ENERGY
SAVER modes.
4. UP/DOWN: Press the UP or DOWN buttons to set the required temperature
or adjust the running time in the TIMER mode.
• Press these buttons simultaneously to switch from Celsius to Fahrenheit
display.
5. FAN: Press this button to select Low, Medium or High (F1-F3) fan speed. If
switching between cooling and fan mode, the fan speed remains the
same. During dehumidifying, the fan will run at low speed. "In fan mode,
press this button for 5s, the up motor and down motor will start
simultaneously. This function is to dry the water on the evaporator, to avoid
the damp and mildew."
10

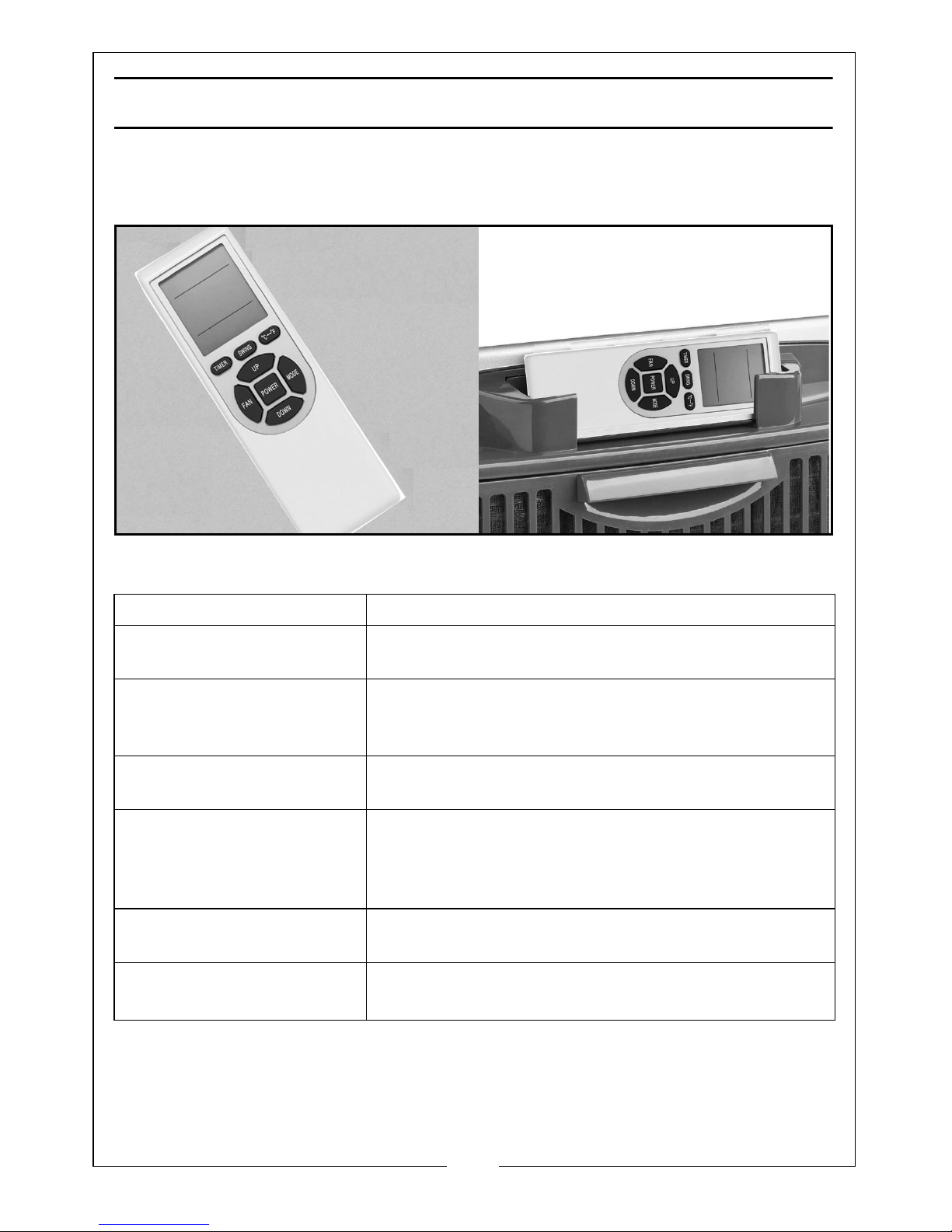

REMOTE CONTROL
The remote control can be stored in the holder provided at the top of the air
conditioning unit as shown. It requires 2 x AAA batteries to be installed as
shown on page 8.
The remote control incorporates the following pushbuttons:
POWER Turns the unit on or off.
TIMER Sets the timer On/Off and allows the running time
duration to be adjusted using the Up/Down arrows.
SWING Sets the air outlet cover to open and close. The
cover automatically closes when the unit is
switched off to prevent the ingress of dust.
oC/oF Switches the display between degrees Celsius to
degrees Fahrenheit.
MODE Selects either: COOLING mode
DRYING mode
FAN mode
UP or DOWN (arrows) Sets the target temperature or adjusts the run time
duration in TIMER mode.
FAN "Selects the fan speed to HIGH(F3), MID(F2) or
LOW(F1).
