Clarke CTJ1250AC Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0122

1.25 TONNE ALUMINIUM

RACING JACK

MODEL NO: CTJ1250AC

PART NO: 7621828

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Aluminium Racing Jack.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

Users must read these instructions before using this product.

Keep this document in a safe place for future reference.

SPECIFICATIONS

Model number CTJ1250AC

Part number 7621828

Rated Load 1.5 tonne (1500kg)

Length (not including handle): 520 mm

Width 245 mm

Height 200 mm

Height of saddle from floor (minimum) 85 mm

Height of saddle from floor (maximum) 370 mm

Lifting height with rated load 210 to 358 mm

Saddle cup diameter 97 mm

Distance raised per stroke 75 mm

Quick lift Yes

No of strokes from min to max height 5

Weight 12kg

Pump oil capacity 120 ml

Twist lock/unlock valve Yes

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY PRECAUTIONS

1. Read Instruction manual before use.

2. Only trained persons should operate this lifting equipment.

3. ALWAYS ensure that sufficient light is provided and that the work area is

kept clear of unrelated items.

4. ALWAYS inspect the jack before use. Make sure that all parts are in good

condition and operating smoothly and that no cracks or distortion is

apparent. If in doubt DO NOT use. Have the damaged parts replaced or

consult your CLARKE dealer.

5. The jack must be maintained and repaired by suitably qualified persons.

6. DO NOT make any modifications to this jack or adjust any valves.

7. DO NOT use the jack if an oil leak is apparent. Consult your CLARKE dealer.

8. DO NOT use to lift people and ensure that no-one is in the vehicle during

lifting.

9. NEVER exceed the rated load for the jack See “Specifications” on page.

Overloading can cause the jack to fail resulting in personal injury.

10. Make sure that the jack is on a hard level surface, and there is no possibility

of it slipping when under load.

11. Only use the jack on solid ground, preferably concrete. Avoid tarmac as

the jack could sink in.

12. Make sure the load is taken by the full saddle and that the lifting point on

the load is of sufficient strength to support the weight.

13. ALWAYS use axle stands to stabilise the load once lifted.

14. Consult the vehicle handbook to determine the correct lifting points.

15. Ensure the load is chocked and the handbrake applied before lifting.

16. NEVER work on or under a load unless it is fully and adequately supported.

17. NEVER rely upon the jack to hold the load in position.

18. NEVER push a load off the jack.

19. Ensure that all personnel are well clear of a load being raised or lowered.

20. Take care not to trap fingers within the moving parts.

1. Use only as a lifting device, do not use as a dolly to move a load.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

UNPACKING AND ASSEMBLY

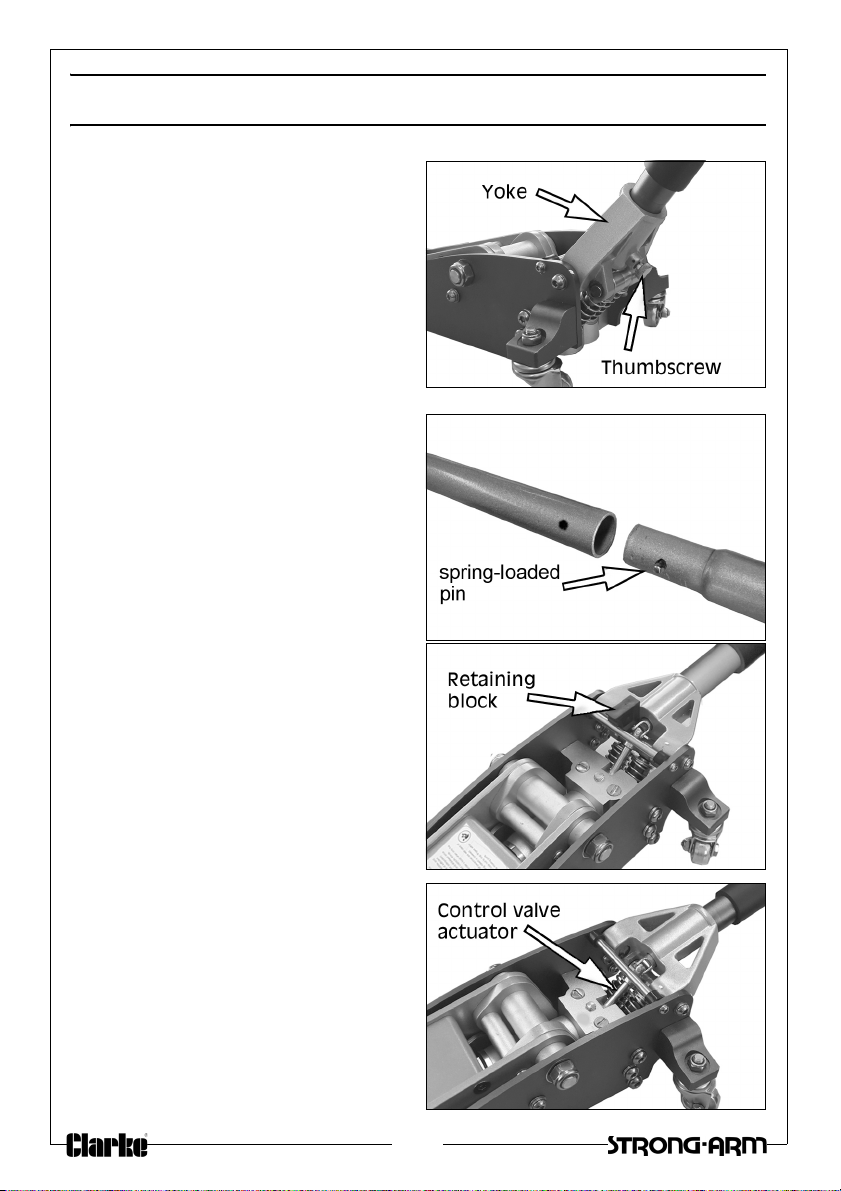

1. Loosen the thumbscrew in the

yoke until the lower handle can

be inserted fully into the handle

socket.

• The handle has a groove which

should engage with the thumb

screw once it is re-tightened.

• The socket in the handle will

engage with the jack control

valve at the base of the yoke.

2. Tighten the thumb screw to

secure the lower handle to the

jack.

3. Add the upper handle by sliding it

onto the lower handle until the

spring loaded pin clips in place.

Remove the travel retaining block by

pressing the handle yoke downwards

and pulling the block away.

• Take care of pinching fingers

between parts

PURGING AIR FROM THE SYSTEM

If air bubbles become trapped inside

the hydraulic system during shipping

or transport, the efficiency of the jack

will be reduced and the jack will feel

spongy.

1. Use the handle to turn the control

valve anti-clockwise, relieving the

pressure inside the jack.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

2. Pump the handle several times to purge air from the system.

3. Turn the control valve clockwise and test the jack. If efficiency is still low,

check the oil level as described under Maintenance on page 6.

The jack is now ready to use.

OPERATION

This jack incorporates a twin piston pump with a ‘quick lift’ facility. This provides

the user with a rapid raising operation for the unloaded jack. When the jack

reaches the vehicle to be raised its distance raised per stroke reduces to

provide a gradual and controllable lifting operation.

Before use, inspect the jack for oil leaks or any other defect. Should any be

apparent, have the jack repaired by a qualified technician.

1. Ensure the vehicle to be raised is stable and on firm level ground with the

wheels chocked. Ensure the vehicle’s handbrake is on, the engine is

switched off and the transmission is in gear or Park if automatic.

2. Ensure the vehicle will not come into contact with adjacent objects when

tilted by the jacking operation.

3. Position the jack so that the saddle is directly beneath the lifting point.

• Consult the vehicle handbook to determine suitable lifting points.

4. Ensure the jack wheels are free to move and there are no obstructions.

5. Twist the handle clockwise to close the control valve.

6. Pump the handle to raise the saddle until it reaches the jacking point, or

alternatively, pump the handle to raise the saddle.

7. Make sure that the saddle is in full contact with the lifting point and that

there is nothing that will prevent a clean lift. Keep all personnel at a safe

distance before lifting the vehicle.

8. Position suitably rated axle stands directly beneath suitable supporting

points on the vehicle and very gently twist the handle anti-clockwise to

lower the vehicle.

9. Make sure that the axle stands are in good condition and that they can

support the weight of the vehicle.

WARNING: NEVER WORK ON THE VEHICLE WHEN SUPPORTED ONLY BY A

JACK. THIS IS HIGHLY DANGEROUS. THE VEHICLE MUST BE SUPPORTED ON

AXLE STANDS OR SUITABLE SUPPORTS, BENEATH THE CORRECT JACKING/

SUPPORT POINTS.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

10. Ensure that the axle stands cannot move when supporting the load and

are on firm, level ground. Use suitable wheel chocks to stop the vehicle

from moving.

11. The jack may move slightly during operation. It is important therefore, that

the floor is clean and completely free from debris.

12. DO NOT lift the vehicle if there is any chance of spillage of fuel, battery

acid or other liquids.

13. Carefully lower the vehicle onto the axle stand(s), checking constantly that

the vehicle rests snugly and cleanly on the axle stand and that the stand is

stable before the weight is taken.

NOTE: Ensure this is carried out under complete control. DO NOT allow

the load to drop suddenly as this impose undue strain on the jack

internal parts and damage the vehicle.

14. ALWAYS avoid a rapid descent by turning the handle slowly.

15. Completely remove the jack from the vehicle.

SUITABLE AXLE STANDS FOR USE WITH THIS JACK

• CAX2TFB 2 Tonne Folding Axle Stands (part no 7600020)

• CAX2TA 2 Tonne Aluminium Axle Stands (part no 7600010)

• CAX3TPB 3 Tonne Axle Stands (part no 7600066)

• CAX3TBC 3 Tonne Axle Stands (part no 7600060)

• CAX3TAB 3 Tonne Aluminium Axle Stands (part no 7600035)

• CAX6TP 6 Tonne Axle Stands (part no 7600076)

• CAX6TBC 6 Tonne Axle Stands (part no 7600070)

• CAX10TP 10 Tonne Axle Stand (part no 7600090) - sold individually

MAINTENANCE

CHECKING/TOPPING UP THE OIL LEVEL

If the jack has been stored for long periods, check for oil leaks before use. If

necessary, check the oil level as follows:

1. Ensure the jack is fully lowered by turning the control valve fully anti-

clockwise.

2. Remove the filler plug.

• The oil should be almost level with the bottom of the oil filler hole.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Oil can be topped up using CLARKE Hydraulic Oil (p/n 3050830 1 litre).

Never use brake fluid instead of oil.

• Take care not to move the handle while topping up the oil.

3. Replace the filler plug and purge

any air from the system.

4. Wipe up any spillage and dispose

of old or spilled oil appropriately.

GENERAL CARE

1. Periodically lubricate the hinges,

front roller & rear castors with light

oil.

2. In the event of damage or broken

components, replacements are available from CLARKE Parts & Service.

STORAGE

Store in a dry, child-proof place with the ram fully lowered. If stored for long

periods, inspect at least once a year, clean and re-oil. For servicing, contact

your CLARKE dealer or CLARKE International Service Department.

ENVIRONMENTAL PROTECTION

One of the most damaging sources of environmental pollution is oil products.

Never throw away used hydraulic oil with domestic refuse or flush it down a

sink or drain. Collect any hydraulic oil in a leak proof container and take it to

your local waste disposal site.

If disposing of this product or any damaged components, do not dispose of

with general waste. This product contains valuable raw materials and should

be taken to your local civic amenity site for recycling of metal products.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended. Faulty goods should be returned to their place of purchase, no

product can be returned to us without prior permission. This guarantee does

not effect your statutory rights.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

Jack will not lift

the rated load

Low oil level.

Release valve not

closed.

Air in hydraulic system.

Damage to moving

parts.

Check for leakage and top up if

required as on pages 6/ 7.

Turn the release knob fully

clockwise

Purge the system as on page 4/5.

Replace or return to your dealer

for repair.

Jack lifts but

lowers when

under load

Release valve not fully

closed

Air in hydraulic system

Dirt on valve seats or

faulty seals.

Turn the release valve fully

clockwise.

Purge the system as on page 4/5.

Replace or return to your dealer

for repair.

Pump feels

Spongy

Low oil level.

Air in hydraulic system

Check for leakage and top up if

required as on pages 6/ 7.

Purge the system as on page 4/5.

Handle raises or

flies back under

load

Air in hydraulic system. Purge the system as on page 4/5.

Jack will not lift

full height

Low oil level.

Air in hydraulic system

Check for leakage and top up if

required as on pages 6/ 7.

Purge the system as on page 4/5.

Jack will not

lower completely

Return spring damaged

Piston or frame bent.

Release valve partly

open.

Air in system.

Replace or return to your CLARKE

dealer for repair.

Check and fully open release

valve.

Open release valve and pump

handle a few times. Close valve

and re-try.

Jack will not

lower at all.

Release valve still

closed.

Check and fully open release

valve.

If any of these remedies fail to restore your jack, consult your CLARKE dealer.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

DECLARATION OF CONFORMITY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

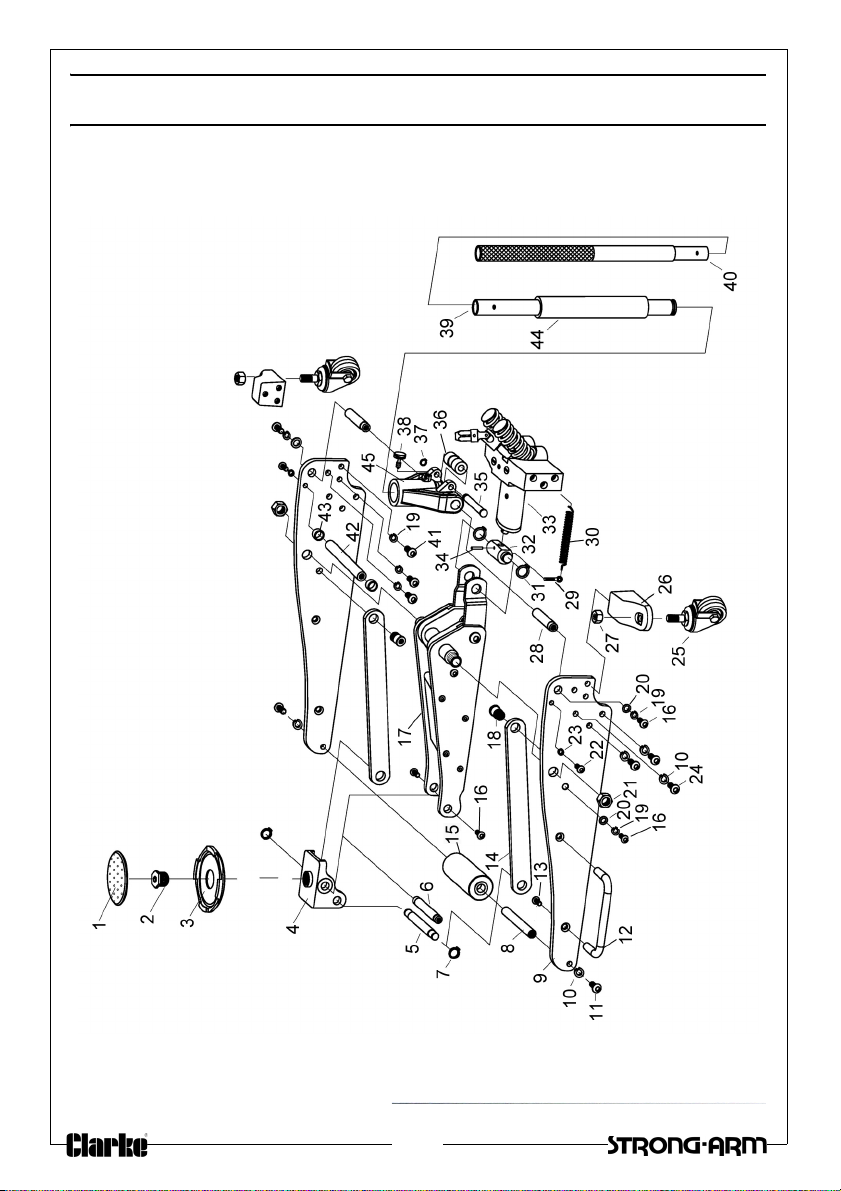

COMPONENT PARTS - GENERAL ASSEMBLY

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Jack

Clarke

Clarke CTJ2000LP Manuale di istruzioni

Clarke

Clarke CBJ32 Manuale di istruzioni

Clarke

Clarke CTJ3000C Manuale di istruzioni

Clarke

Clarke CTJ3QLGB Manuale di istruzioni

Clarke

Clarke STRONG-ARM CTJ3000QLB Manuale di istruzioni

Clarke

Clarke CFTJ500 Guida alla risoluzione dei problemi

Clarke

Clarke CTJ2500SUV Manuale di istruzioni

Clarke

Clarke Strong-Arm CTJ5GLS Manuale di istruzioni

Clarke

Clarke STRONG-ARM CTJ2B Manuale di istruzioni

Clarke

Clarke STRONG-ARM CTJ1250A Manuale utente

Clarke

Clarke CTBJ5 Guida alla risoluzione dei problemi

Clarke

Clarke Strong-Arm CBJ2B Guida alla risoluzione dei problemi

Clarke

Clarke CTJ2000A Manuale di installazione e funzionamento

Clarke

Clarke Strong-Arm CTJ100 Manuale di installazione e funzionamento

Clarke

Clarke CTJ1800A Manuale di istruzioni

Clarke

Clarke CTJ1800AB Manuale di istruzioni

Clarke

Clarke Strong-Arm CTJ 50 Manuale di installazione e funzionamento

Clarke

Clarke Strong-Arm CTJ1500QULP Manuale di installazione e funzionamento

Clarke

Clarke STRONG-ARM CBJ2 Manuale di installazione e funzionamento

Clarke

Clarke STRONG-ARM CTJ2LP Manuale di istruzioni

Clarke

Clarke Strong Arm CTJ1250AB Manuale di installazione e funzionamento

Clarke

Clarke CSJ1500 Manuale utente

Clarke

Clarke STRONG-ARM CTJ1500QL Manuale di installazione e funzionamento

Clarke

Clarke CAX2TA Manuale utente

Manuali Jack popolari di altre marche

Omega Lift Equipment

Omega Lift Equipment 18122C Istruzioni per l’uso

Pittsburgh

Pittsburgh 58816 Istruzioni per il montaggio

Unimec

Unimec TP Manuale utente

Sonic

Sonic 4800703 Manuale utente

BGS technic

BGS technic 70039 Manuale utente

TradeQuip

TradeQuip 1128T Manuale utente

VEVOR

VEVOR TJD-12000SP-F Manuale utente

ULTIMATE SPEED

ULTIMATE SPEED URW 2 A1 HYDRAULIC TROLLEY JACK Manuale utente

Stels

Stels 51131 Manuale utente

Bushranger

Bushranger RJX01 Manuale utente

Valex

Valex 1650520 Manuale utente

Pfaff

Pfaff Merkur M0 Manuale utente

Beta

Beta 3050/K Supplemento

Sealey

Sealey 1050CXHV Manuale utente

Jung

Jung JH Series Manuale utente

URIAH

URIAH UC200020 Manuale utente

Kennedy

Kennedy KSJ010 Manuale utente

Grizzly

Grizzly H8097 Manuale utente
