ORIGINAL INSTRUCTIONS GC1217 - ISSUE 3
18V CORDLESS DRILL
MODEL NO: CON18LiC
PART NO: 6479531
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Cordless Drill.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of in a manner which is compatible
with the environment.
CARTON CONTENTS
The following items should be supplied in the carton. If any parts are missing or
damaged, please see your Clarke dealer.
1 x 18 Volt Cordless Drill
1 x Battery Charger
2 x Li-Ion Battery Packs
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY PRECAUTIONS
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges or refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
2. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
3. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, or hearing protection used for
appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before
connecting to the power supply.
4. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR 18V CORDLESS DRILL.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
5. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the battery before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
4. Store idle tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Correctly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of
the power tool for operations different from intended could result in a
hazardous situation.
BATTERY TOOL USE AND CARE
1. Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that can
make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be lost from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
SERVICE
1. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
SAFETY SYMBOLS
Read instruction
manual before use
Indoor Use Only
Class 2 Double
Insulated
Maximum Temperature
Do not immerse in
water
Do not Incinerate
Weee Symbol (lithium
ion batteries)
Thermal Fuse Fitted
Isolating Transformer
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ELECTRICAL CONNECTIONS
This product battery charger is provided with a standard 13 amp, 230 volt
(50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply.
Should the plug need changing at any time, ensure that a plug of identical
specification is used.
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal
which is marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal
which is marked Lor coloured Red.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
This symbol indicates that this is a Class II product, and does not require
an earth connection.
WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
BATTERY CHARGING
• The battery pack must be charged before operating the drill.
• The battery should be charged at ambient air temperatures of
between -10oC and 45oC.
To charge the battery pack, proceed as follows.
1. Connect the charger to the mains
supply.
• The green power indicator will
light up.
2. Slide the battery onto the battery
charger.
• The green power indicator will
stay on and the red charging
LED will start flashing while
charging is in progress.
• When the battery is fully
charged, both the red and
green LEDs will be on.
• If both LEDs are flashing rapidly
the battery pack has become too hot or is defective.
3. Switch off the charger at the mains and remove the battery.
NOTE: Whilst charging, the battery pack and charger may become warm.
This is normal and can be expected.
WARNING: WHEN THE BATTERY IS REMOVED FROM THE DRILL AFTER USE, IT
MAY BE HOT. ALWAYS ALLOW IT TO COOL BEFORE RECHARGING. DO
NOT RECHARGE A HOT BATTERY.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
BEFORE USE
FITTING THE BATTERY
FIT THE BATTERY
1. Slide the battery pack onto the
base of the handle.
REMOVE THE BATTERY
1. Press and hold the release button
on top of the battery.
2. Slide the battery away from the
base of the handle.
INSERTING DRILL OR SCREWDRIVER BITS
1. Grip the chuck collar and rotate
the front of the chuck in an anti-
clockwise direction.
2. Place the bit in the jaws as far as it
will go.
3. Grip the chuck collar and rotate
the chuck sleeve in a clockwise
direction until it grips the bit tightly.
WARNING: BEFORE REMOVING ANY BITS, MAKE SURE THAT THE
FORWARD/REVERSE SWITCH IS IN THE CENTRAL LOCKED OFF POSITION.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ADJUSTMENTS
FORWARD/REVERSE OPERATION
The forward/reverse switch is used to select the direction of rotation.
1. Use the forward/reverse switch to
select the direction of rotation.
2. Reverse should only be selected
when removing screws.
SAFETY LOCK OFF
The forward/reverse switch can be
used as the safety lock off button by
pushing it half way through the drill
body.
SPEED RANGE
Use the speed range selector to
select the range you want to use.
• Setting 1: - 0-400 rpm
• Setting 2: - 0-1500 rpm
NOTE: Only use the speed range
selector when the chuck is
stationary.
WARNING: ALWAYS LOCK THE TRIGGER SWITCH IN THE OFF (CENTRAL)
POSITION WHEN THE DRILL IS NOT BEING USED OR ADJUSTMENTS ARE
BEING MADE TO THE SPEED OR TORQUE SETTINGS. THIS IS AN IMPORTANT
SAFETY FEATURE AND MUST BE OBSERVED.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

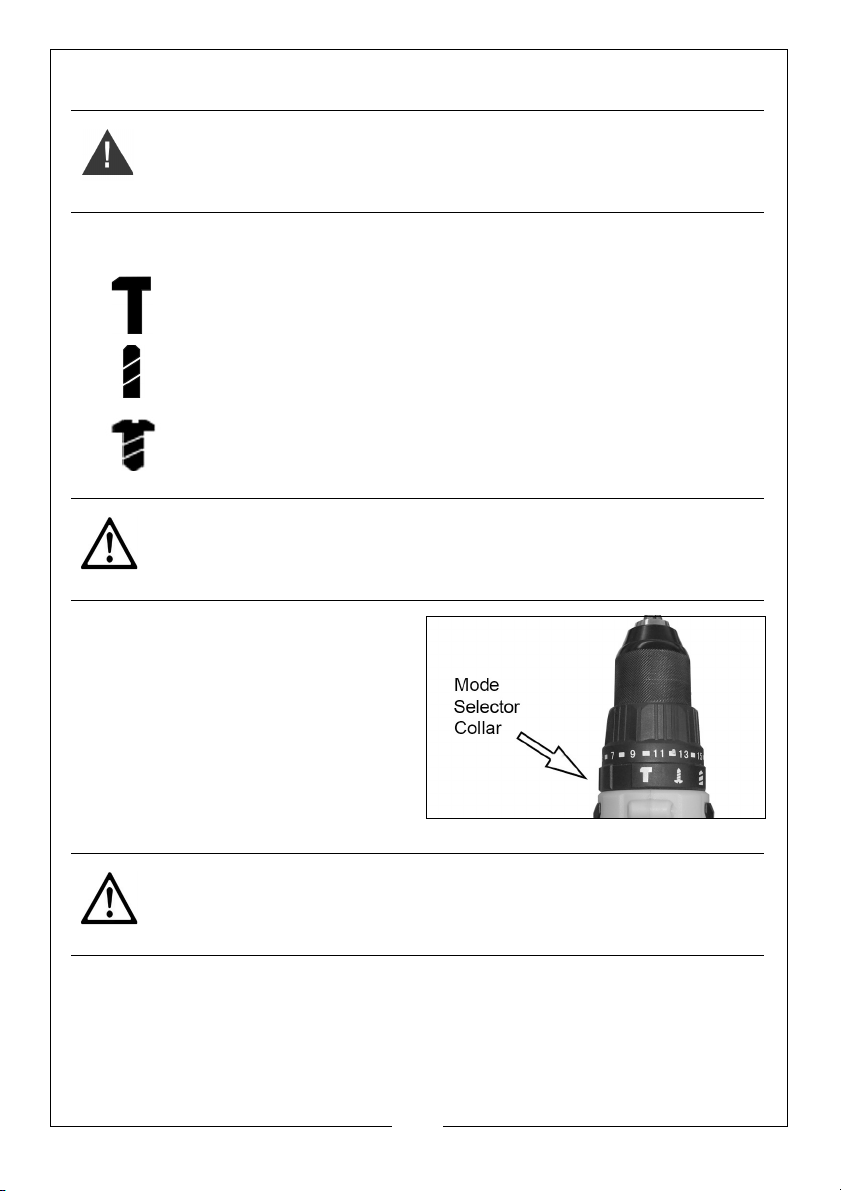

SELECTING THE DRILLING MODE
The drill is equipped with three operating modes.
To select either hammer, rotary
drilling, or screwdriver action mode,
rotate the mode selector collar until
the appropriate symbol is aligned
with the arrow on the machine
casing.
WARNING: DO NOT CHANGE THE DRILLING MODE WHILE THE CHUCK IS
ROTATING.
Hammer drilling mode
Rotary drill mode
Screwdriver mode
CAUTION: WHEN IN THE HAMMER DRILLING MODE YOU SHOULD ONLY
USE MASONRY DRILL BITS (NOT SUPPLIED).
CAUTION: NEVER USE THE HAMMER MODE FOR DRILLING MATERIALS
OTHER THAN CONCRETE AND MASONRY.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Clarke Cacciavite elettrico
Clarke
Clarke CCD96 Manuale
Clarke
Clarke CCS36V Guida alla risoluzione dei problemi
Clarke
Clarke CIS100 Manuale di installazione e funzionamento
Clarke
Clarke CHT604 Manuale utente
Clarke
Clarke Air CAT39 Manuale utente
Clarke
Clarke CON180Li Manuale di istruzioni
Clarke
Clarke CCD12T Manuale di installazione e funzionamento
