Clarke CAT40B Manuale di installazione e funzionamento

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0814

HIGH SPEED BELT SANDER

MODEL NO: CAT40B

PART NO: 3110440

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Air Sander.

The CAT40B Sander is ideal for use in garages and workshops. The narrow belt

and adjustable handle allow access in awkward places.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the sander where there are flammable liquids or gases.

USE OF POWER TOOLS

1. Stay alert and use common sense - do not operate the tool when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the sander. Eye protectors must

provide protection from flying particles from the front and the side. Ear

protectors should also be worn.

3. Do not overreach - Keep proper footing and balance at all times.

4. Never use oxygen, CO2, combustible gasses or any type of bottled gas as

a source of power for this tool.

5. Do not connect the air supply hose with your finger on the trigger.

6. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.

7. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

8. Keep the air supply hose away from heat, oil and sharp edges.

9. Do not use the tool for any purpose than that described in this manual.

10. Do not fit the tool to any stand or clamping device that may damage it.

11. Do not carry out any alterations or modifications to the tool.

12. Always disconnect from the air supply when:

• Performing any maintenance

• The tool is not in use.

• The tool will be left unattended.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Moving to another work area.

• Passing the tool to another person.

13. Never use the tool if it is defective or operating abnormally.

14. This tool should be serviced at regular intervals by qualified personnel.

15. Avoid damaging the tool by applying excessive force of any kind.

16. Always maintain the tool with care. Keep it clean for the best and safest

performance.

17. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

18. DO NOT force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

19. Do not remove any labels. Damaged labels should be replaced.

20. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

SANDER-SPECIFIC SAFETY RULES

1. Inspect the sanding belt before use. Do not use if frayed.

2. Avoid contact with the moving sanding belt and wear suitable gloves to

protect the hands.

3. Never run the tool unless the abrasive belt is applied to the workpiece.

4. Beware of potentially explosive atmospheres being caused by dust / fumes

resulting from sanding and used dust extraction systems where possible.

5. Always wear a face mask when using the sander as protection from

airborne particles of sanded material. Avoid disturbing existing dust and

minimise the scattering of dust in the workplace environment. Take steps to

control the dust at the point of emission.

TRANSPORT & STORAGE

1. Never carry the tool by the air hose.

2. Never carry the tool with your finger on the trigger.

3. When not in use the tool must be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

4. Avoid storing the tool where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERVIEW

When unpacking the tool, any damage or deficiency should be reported to

your CLARKE dealer immediately. The carton contains:

•Sander

• 80 and 100 grit sanding belts

• Allen (hex) key

Your sander has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local CLARKE dealer.

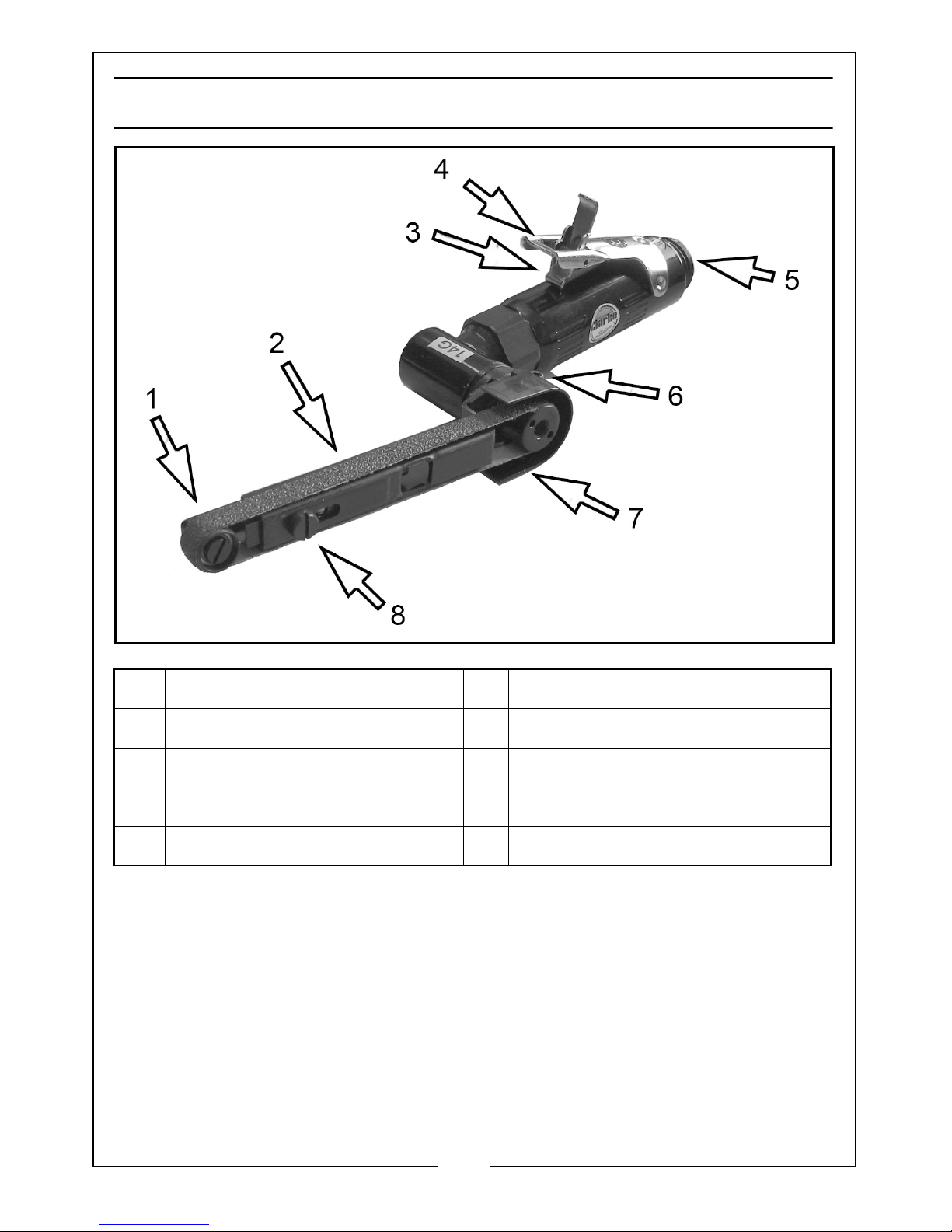

NO DESCRIPTION NO DESCRIPTION

1 Idler Pulley 5 Airline Connector

2 Abrasive Belt 6 Angle Adjuster

3 Throttle Lever Lock 7 Dust Guard

4 Throttle Lever 8 Tension Screw

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. Ensure any moisture is drained from

the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

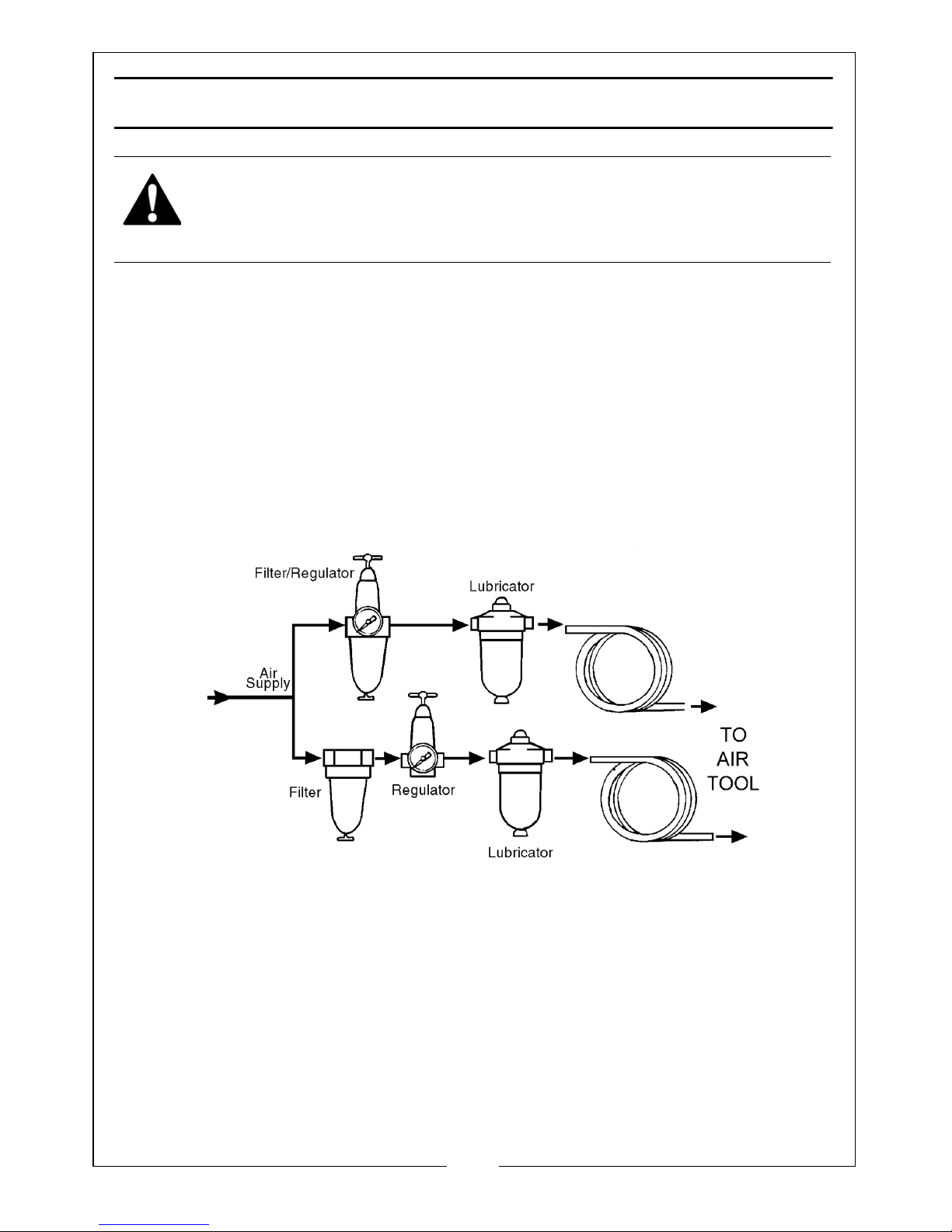

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked and topped up with oil. clarke airline oil should

be used, and the lubricator adjusted to approx 2 drops per minute.

• For optimum performance it is recommended that a 3/8” ID hose is

used.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and dirty air will shorten

the life of the tool due to faster wear and is a possible safety hazard.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

CONNECTING THE AIR SUPPLY

1. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done

regardless of whether or not a lubricated air supply is to be used.

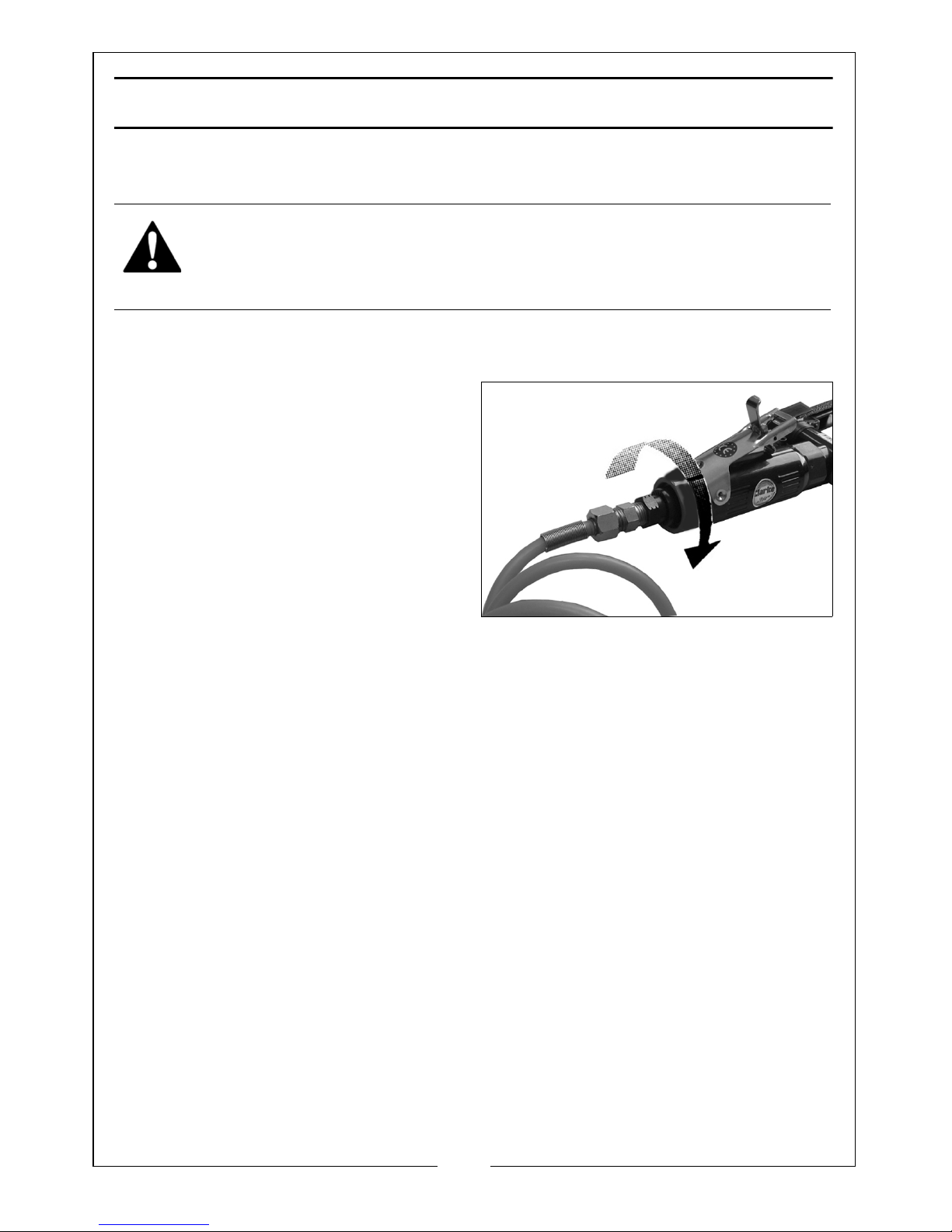

2. Connect a suitable hose to the

tool as shown using the airline

connector supplied with the tool.

3. If required, connect an in-line mini

oiler to the tool.

• A mini oiler helps to prolong the

life of the air tool. Remove the

oil fill screw from the side of the

mini oiler and fill with air-line oil

available from your CLARKE

dealer. Replace the screw before using the tool.

4. If a mini-oiler is not being used, run a few drops of oil through the tool

before use. It can be entered through the air inlet or via the hose at the

nearest connection to the air supply.

5. Connect the other end of the hose to the compressor.

6. Turn on the air supply and check for air leaks. Rectify any found before

proceeding. PTFE tape may be useful for sealing threaded connections.

7. Your air tool is now ready for use.

• You can fit a whip hose with a quick fit coupling if required

(available from your Clarke dealer.)

INSTALLING THE BELT

1. To install or replace sanding belt, slacken the tensioning screw and push

the idler pulley assembly towards the handle against the tension of the

spring, enabling the belt to be removed. Replace the belt and re-

tightening the screw.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The belt should be correctly tracked.

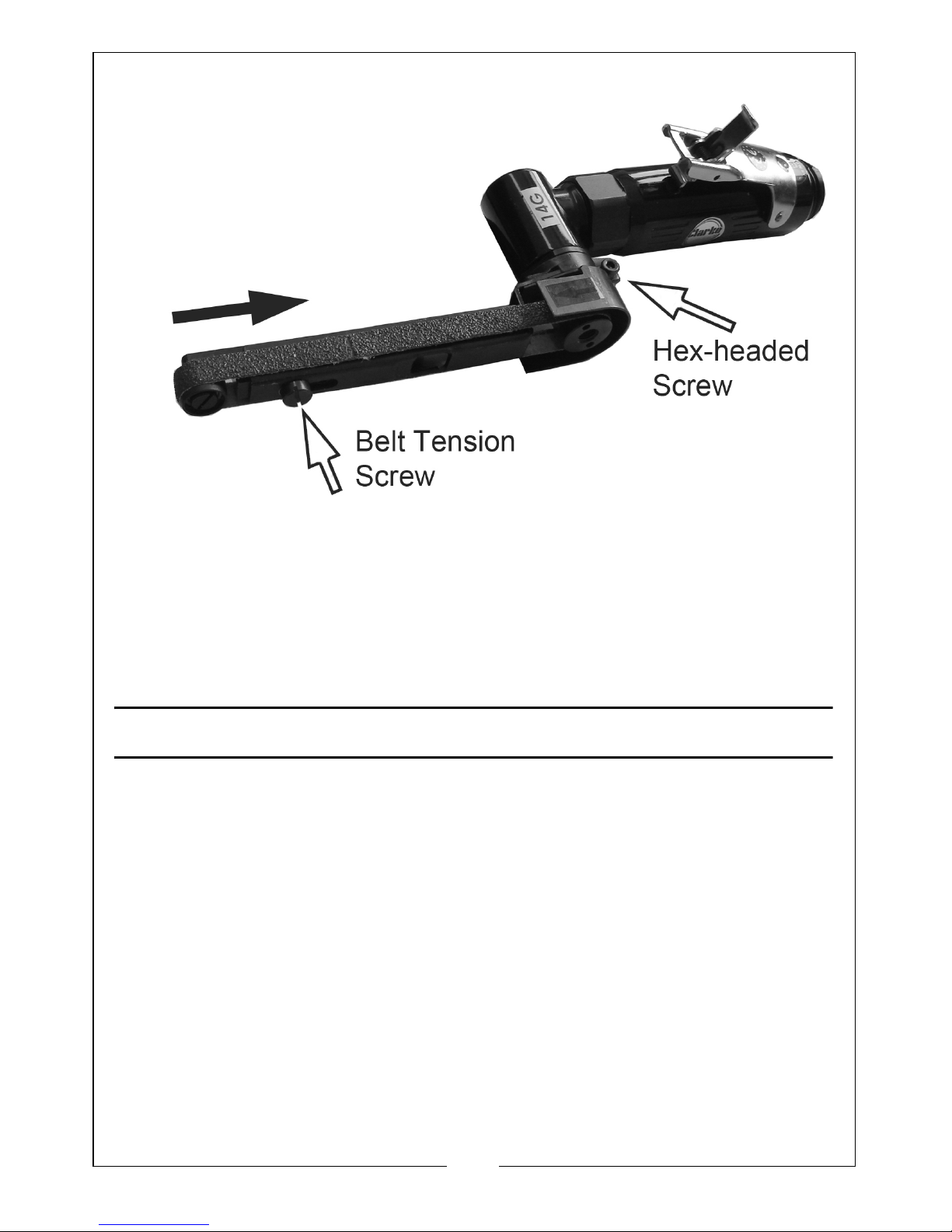

2. To adjust the handle position, slacken the hex headed screw, rotate the

handle to the required position, then secure by re-tightening the hex screw.

3. Connect to the airline and turn the air on.

•Only use sanding belts designed for use with this type of sander.

OPERATING

1. Squeeze the trigger against the body of the tool to start the sander and

control the speed. Evaluate the speed and adjust to suit.

2. Ensure your fingers are clear of the sanding belt. Allow the motor to reach

max speed before offering the belt to the workpiece.

3. To begin work, rest the belt on the workpiece and start the sander.

• Let the tool do the work. The actual weight of the machine is

normally sufficient for efficient sanding. Do not put additional

pressure on the machine, which would only slow down the speed of

the belt, reducing efficiency and placing an additional burden on

the motor.

4. Take care to keep the sander moving around at all times. Avoid dwelling in

one place for more than a moment.

5. Release the trigger to stop the tool.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. When finished sanding, release the throttle lever and allow the motor to

stop before carefully putting the tool down.

DISCONNECTING THE AIR SUPPLY

1. Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air released.

2. Refer to the compressor instruction manual for the procedure to shut down

and vent the compressed air.

3. Once the pressure has been released, disconnect the air supply hose from

the air tool.

MAINTENANCE

DAILY

1. Before use, drain water from the airline filter and compressor.

2. Pour a few drops of Clarke air-line oil, into the tool air inlet. This should be

carried out regardless of whether or not an in-line mini oiler is used. If an in-

line mini oiler is not used, this procedure should be repeated after every

two to three hours of use.

3. Check the air inlet screen filter for blockage and clean if necessary.

CLEANING

1. Keep the body of the tool clean and free from debris.

2. Grit or gum deposits in the tool may also reduce efficiency. This condition

can be corrected by cleaning the air strainer and flushing out the tool with

gum solvent oil, or failing this, the tool should be disassembled, thoroughly

cleaned, dried and reassembled. This is better left to your Clarke dealer.

3. After extensive use, flush out the mechanism with gum solvent oil or an

equal mixture of Clarke air-line oil and paraffin. Allow to dry before use.

4. If the tool runs erratically or becomes inefficient, and the air supply is of

good quality, it may be necessary to dismantle the air motor and replace

worn or damaged parts. You may prefer to take the tool to your Clarke

dealer if internal maintenance is required.

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE

AIR SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE

PROCEDURES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PERFORMANCE

Please note that factors other than the tool may effect its operation and

efficiency such as reduced compressor output, excessive drain on the airline,

moisture or restrictions in the air-line, or the use of connectors of improper size

or poor condition which will reduce air supply.

**Clarke Air Line Oil (part no. 3050825) is available from your Clarke dealer.

Your Clarke air tool has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local Clarke dealer.

STORAGE

When not in use, disconnect from air supply, clean & store in a safe, dry place.

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of

Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to

lubricate the internal parts.

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,

high-pressure hoses (5 to 50 metres) etc. Contact your Clarke dealer for further

information.

ABRASIVE BELTS

Replacement abrasive belts are available from your CLARKE dealer:

CAT57 - 2x80 grit /2 x 100 grit

(pack of 4) - 10 x 330mm

Part no. 3110507

Indice

Altri manuali Clarke Levigatrice

Clarke

Clarke American Sanders B2 Manuale utente

Clarke

Clarke DU-8R Manuale utente

Clarke

Clarke CAT24B Manuale di istruzioni

Clarke

Clarke CROS1 Manuale di istruzioni

Clarke

Clarke 01207SD Manuale utente

Clarke

Clarke Woodworker CS6-9C Manuale di installazione e funzionamento

Clarke

Clarke CMS 200 Manuale di istruzioni

Clarke

Clarke OBS-18DC Manuale utente

Clarke

Clarke C2K-1600HD Manuale utente

Clarke

Clarke 07100A Manuale utente

Clarke

Clarke American Sanders RS-16 HDTR Manuale utente

Clarke

Clarke RS-16 HDTR Manuale utente

Clarke

Clarke X-PRO CAT165 Manuale di installazione e funzionamento

Clarke

Clarke CP254 Manuale di installazione e funzionamento

Clarke

Clarke 6462021 Manuale di installazione e funzionamento

Clarke

Clarke Contractor CBS2 Manuale di istruzioni

Clarke

Clarke CS48 Manuale di istruzioni

Clarke

Clarke Super 7R Edger 07013A Manuale utente

Clarke

Clarke CDS1V Manuale di istruzioni

Clarke

Clarke RS-16 HDTR Manuale di installazione e funzionamento

Clarke

Clarke air CAT34B Manuale di installazione e funzionamento

Clarke

Clarke RS-16 HDTR Manuale utente

Clarke

Clarke air CAT54 Manuale di installazione e funzionamento

Clarke

Clarke 07097A Manuale utente

Manuali Levigatrice popolari di altre marche

Oliver

Oliver 6305 Manuale utente

Jet

Jet 22-44 Pro-3 Manuale di servizio

Makita

Makita M9204 Manuale

Makita

Makita M9204 Manuale utente

Craftsman

Craftsman 351.215131 Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP9778 Manuale utente

Nitto Kohki

Nitto Kohki BB-20 Manuale utente

Ferm

Ferm FEOS-135 Manuale utente

Unior

Unior 1510 Manuale utente

stayer

stayer ls1200 Manuale utente

Jet

Jet JSG-96 Manuale di servizio

Parkside

Parkside PDS 290 B2 Manuale utente

Status

Status XPA Series Manuale utente

Craftsman

Craftsman 113.22521 Manuale utente

Craftsman

Craftsman 113.225831 Manuale utente

CLAS

CLAS OP 1429 Manuale utente

Parkside

Parkside PEXS 270 Al Manuale utente

Makita

Makita 9207SPB Manuale utente
