Classic coffee concepts

INSTALLATION,OPERATION,AND SERVICE MANUAL FOR

MRC3AF AUTOMATIC BREWER WTTH HOT WATER FAUCET

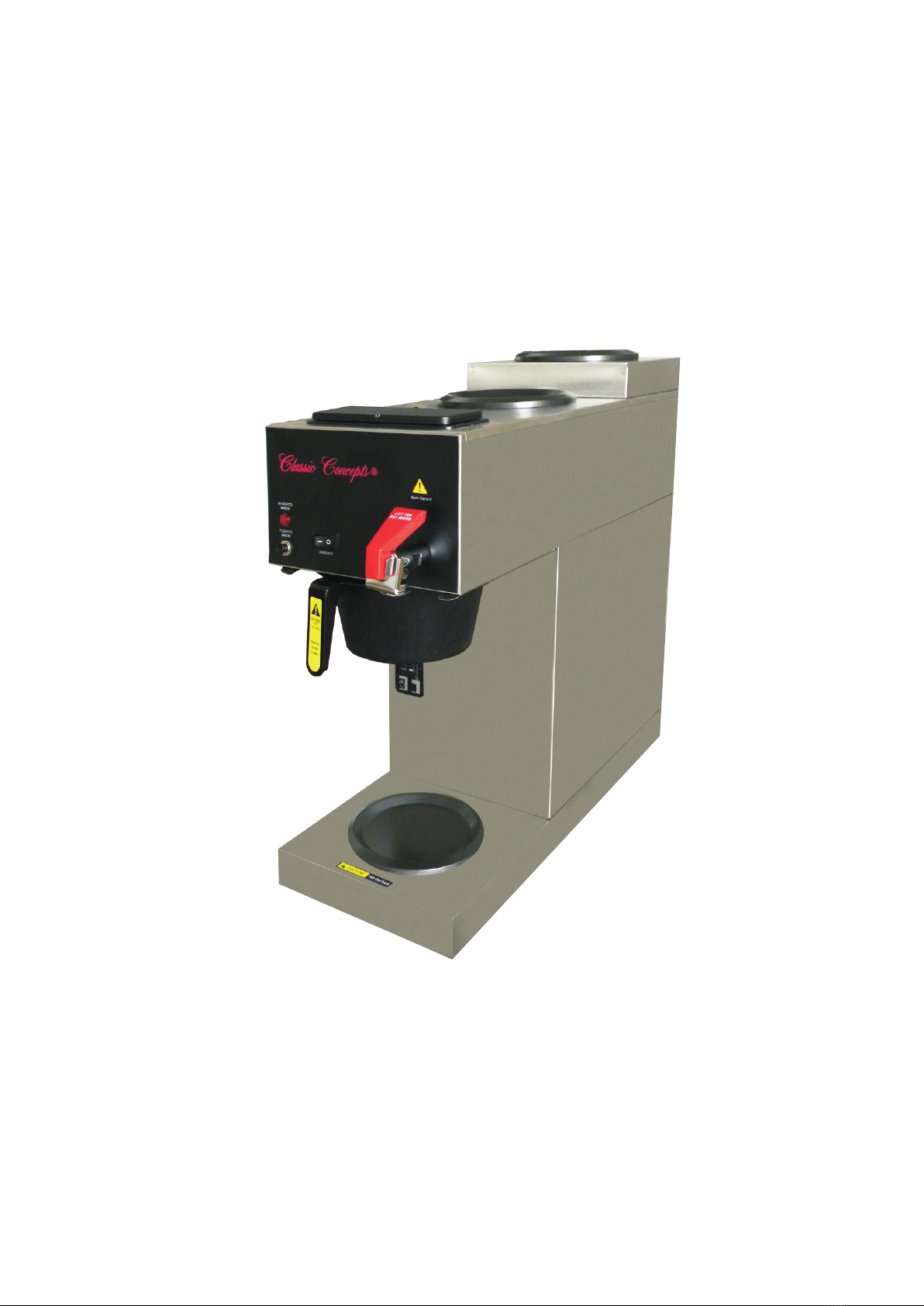

Model MRC3AF

23.43Wx8.43Dx20.87H

1750W,14.58A

Ship Wt approx.26.46LB’s

Decanters Not Included

PLUMBER’S INSTALLATION LNSTRUCTIONS

CAUTION: Power to brewer must be O FF before proceeding with plumbin g installation

1) Attach flow/strainer assembly to back of brewer. Strainer inlet will point down.

2) Flush water line before installing brewer. Brewer should be connected to COLD WATER LLNE for best oper ation

3) Water pressure should be at least 20 lbs For less than a 25 ft run ,use 1/4’ copper tubing and connect to 1/2 or larger

Water line, For longer runs ,use 3/8” copper tubing & connect to 1/2” or larger water line and provide an adapter fitting for

Connection to the brewer.

4) lf installed with saddle valve, the valve should have a minimum of 1/8” port hole for up to 25 ft run, and 5/16” port hole for

over 25 ft runs.

5) Connect incoming water line to the strainer in the back of the brewer. Manufacturer recommends connecting to copper tubing.

INSTALLATION INSTRUCTIONS

WARNING: read and follow installation instructions before plugging or wiring in machine to electrical circuit. Warranty will be

Void if machine is connected to any voltage other than that specified on the name plate.

FILL BREWER TANK WITH WATER BEFORE CONNETING TO POWER SUPPLY

1) place the decanter under brew basket, raise top evaporation cover and pour three decanters of water through the top pour-in

screen. water should come through the brew basket as the third decanter of water drains out of water the pour in basin. lf brewer

does not have a pour in opening remove top cover and pour water directly into receiving pan.

2) Adjust timer to deliver desired amount of water (Timer is located behind front acc ess panel).To brew into a regular 60 oz.

Decanter little adjustment should be needed. Turn timer dial clockwise to increase volume of warier ,and counter clockwise

To decrease volume.

3) Brewer is shipped with thermostat turned on, (full clockwise position).Plug or wire in machine to appropriate voltage

Circuit aw noted in the brewers serial tag. Serial tag is located on rear of brewer.

4） Allow 10 to 15 minutes for water in tank to heat to brewing temperature .(Additional water may drip from brew basket on

Initial expansion of water in the tank). This will not occur thereafter.

5) After water hoax reached brewing temperature (thermostat will click off, heatin g noise will stop and green ready light will be

on.) turn lower war mer switch (warmer models). Or lighted rocker switch (airport brewers) to the on position. Depress brew

start switch and run a cycle of water to remove expanded water from tank. (Bre w cycle may be canceled by turning the

rocker switch back to the OFF position.)

6) Run one cycle to check for the proper temperature setting with an accurate thermometer. Take the temperature of this water

at a point below the brew basket opening, at the start of the brew cycle and when the decanter is half full. Recommended

temperature of the water is approximately 195 F.

7) In higher altitude locations (5000 feet above sea level) the thermostat may have to be adjusted lower to prevent boiling.

8) CAUTION: On faucet models the water faucet will dispense hot water when the handle is depressed. The faucet system is

Independent of the brewing system and can be operated dunning brew c ycle. Once brewer is pressurized operate faucet until

Water flows smoothly.

COFFEE PREPARA TION PROCEDURES

1) Place filter into brew basket.

2) Put the proper amount of coffee into the filter.

3) Slide the brew basket into holder.

4) Place empty decanter on warmer located directly under the brew backer and turn corresponding warmer switch to ON position

5) Pour decanter of water through pour-in screen into pour in basin.

6) Hot water will be delivered through the spray head. This distributes the hot water evenly over the coffee bed within the brew

Basket. The coffee brew will drain fro m the brew basket into the decanter below.

1) The resultant coffee brew should be crystal clear and have the desired properties attainable through excellent extraction.

2) TURN OFF WARMER WHEN NOT IN USE. (Red light indicator warmer is on.)

3) To clean brew basket simply remove from brew rails and dump filter into waste basket. The brewing process, as described

Above, can now be started again.

LIMING

To prevent liming problems in tank fittings remove spray head and insert declaiming spring all the wa y into the tank When

inserted into tank properly, no more than ten inches of the spring should be visible at the spray he ad fitting Saw back and forth five or

six times. This will keep fittings open and clear of lime. In hard water areas this should be done everyday. This process takes

approximately one minute. In all areas the spra y he ad should be cleaned at least once a week, Where bad liming has already o ccurred,

a new complete tank assembly may be installed. The tank may be changed in approximately 5 minutes time.

WARRANTY

Classic Coffee Concepts coffee brewers are watt anted against defects in workmanship or materials, under normal use, for 90

Days from the date of purchase Brewer parts are warranted against defect for 12 months from date of purchase.

Liability in all events is limited to the purchase price paid and liability under the aforesaid warranty is limited to replacing or

repainting any part or Paris which are defective in material or workmanship, and retimed to our factory, shipping cost prepaid, NO

warranty expressed or implied, other than the aforesaid is made or authorized b y Classic Coffee Concepts

Prompt disposition will be made if item proves to be defective, within warranty. Before returning an y item, write or call

Classic Coffee Concepts giving model number, serial number, and date of purchase, and describe the nature of the defe ct.

TROUBLE SHOOTING GUIDE

SYMPTOM

POSSIBLE CAUSE

WATH TO CHECK

REMEDY

IRRECULARYIELD 1.Not siphoning properly

2.Timer

3.Fluctuating water pressure

4.Solenoid valve

5.Flow washer

6.Flow control screen

7.Faucet coil is leaking

8.Strainer.

1.Refer to "DRIPPING",Step1.

2..Timer consistency,Time

several brew cycles

3. Water pressure

4..Referto "DRIPPING",Step2.

5.Possible line build up in flow

control.

6.Screenbuilt into flow

control .

7.Refer to "DRIPPING",Step3.

8.Water pressure at output

1..Refer to "DRIPPING",Step1.

2. If times are irregular ,replace

timer

3.If pressure fluctuates 10-20PST

during operation of brew

cycle ,add pressure regulator to

inlet side of brewer .set to lowest

pressure level .

4.Refer to "DRIPPING",Step 2.

5.Replace flow washer and clean

line from the control .

6.Replace or clean scree ,Clean

line from flow control

7.Refer to "DRIPPING",Step3

If pressure is low ,clean or replace

strainer.

DRYCOFFEE

REMAINNG

INBREW BASKET

AFTER BREWING

1.Filters

2. Not siphoning properly

3.Improper loading of the brew

basket

1.Are correct filters being

used .

2..Referto "DRIPPING",Step1.

3.Filter and coffee in brew

basket .

1. Insert correct filter

2.Refer to "DRIPPING",Step1.

3.Filter should be contract in the

brew basket and cottee

Bod should be level

WEAK COFFEE

1.Filters

2. Not siphoning properly

3.Improper loading of the brew

basket .

1.Are correct filters being

used .

2..Referto "DRIPPING",Step1.

3.Filter and coffee in brew

basket .

1. Insert correct filter

2.Refer to "DRIPPING",Step1.

3.Filter should be contract in the

brew basket and cottee

Bod should be level

SOLENOID

CLATTE OR

NOWLING

1.Brewer connected to hot

water line

2.Vibration

3.High water pressure

4.Water hammer .

5.60 cycle vibration

1.Incoming water line

2.If brewer is on a metal stand

or counter ,anther the bottom

pan not copper tubing to the

brewer should touch the

counter .

3.Water pressure on incoming

line

4.Nut on top of morbid

1.Brewer should be connected to

cold water line

2.Adjust as necessary

3. If water pressure is over 90PSL

install a pressure regulator and

adjust to 50 PSL

4.This not the fault of the brewer

and can usually be corrected by

rearing scree plumbing water line

5.Nut should be tight ,Tighter as

required

TROUBLE SHOOTING GUIDE

COLDWARMER

STATION

1.Warner-defective

2.Warmer ON/OFF Switch

3.Bad baroness

1.Voltage at warmer terminals

should be 120volts AC

2.If voltage is not present on

warmer terminals,check

continuity of switch .

3. Check connections between

switch and warmer .

1.If voltage is present on

terminals,but warmer will not

beat ,replace warmer

2.If switch does not make and

break continuity when turned

off ,replace switch

3.All connections should be tight

FAUCET WATER

FLOW TOO FAST

OR TOO SLOW

1.No water

2.Flow too slow or too fast

1.(A)Incoming water line shut

off valve (B) Faucet clogging

2. Needle valve

1.(A)Water shut off valve should

be open (B)Clean or rebuild faucet

(C)Needle valve should be open.

2.Increase flow by ruining needle

valve counter clockwise flow by

turning clockwise

SYMPTOM POSSIBLE CAUSE WHAT TO CHECK

REMEDY

CAN'T START

BREW CYCLE

1.No water

2.NO power

3.ON/OFF switch

4.Brew star switch

5.Time or timer harness

6.Solenoid valve

1.Incoming water line&water

shut off

2.Fuse or circuit breaker

Power cord and plug

connections. 3.Swatch

continuity (Normally open)

4.Swatch continuity

(Normally closed)

5.Wire leads to solenoid and

black 3-pin connector

6.(A)Voltage at solenoid valve

terminals.Start a brew cycle

and check for 120 volts AC.

(B)If voltage is present at

terminals chock for water at

line pressure on the inlet side

of solenoid valve.

1.Be sure water shut off is open.

2.Replace or rest circuit protector

3.If ON/OFF switch does not

make and break contact,replace

ON/OFF switch.

4.Make sure these connections are

tight ,If so ,and all also checks out

ok ,replace timer .

5.(A)If voltage is not present at

terminal,refer to steps 2 through

(B)If voltage is present at terminal

and water at line pressure is

present on the inter side of the

solenoid,but not present on the

outgoing side ,replace solenoid.

NO HOT WATER 1.Tank heater

2.Hi-limit thermostat or main

thermosla

1.Check the voltage at the

tank beater terminals.Voltage

should be as implicated on the

octal tug (on real of brewer)

2..Check the voltage between

the white wire on the tank and

the meaning terminal (blue

wire) on the hi-limit

thermostat ,then the outgoing

terminal(black wire) on the

hi-limit thermostat.

1.(A)If correct voltage is present at

the tank heater terminal and water

in tank is not being headed replace

the tank better (B)If voltage is not

present at the tan headed terminals

refer step. (C) If interest voltage is

present at the tank heater

terminals,check voltage at outlet.

2.(A)If voltage is present on the

imaging terminal of the hi-limit

thermostat but not on the outgoing

terminal ,replace hi-limit

thermostat.(B)Check voltage

between black and white wire on

the restate,If voltage is not present

check outlet or circuit breaker.

incoming terminal of the hi-limit

thermostat,replace the main

thermostat.

TROUBLE SHOOTING GUIDE

DRIPPING 1.Not siphoning propertly

2.Solenoid valve not heating

properly

3.Faucet coil is leaking

1.Water should flow freely

from the spearhead .

2.Solenoid valve assembly .

3.Hot water coil.

1.(A)Clean spearhead holes.

(B)Check tightness of spearhead

tube. (C) See "LIMING"page 2.

2.Be sure spring is in place and

any particles are cleaned from

valve scat ,If valve sent is mon of

modulate ,replace solenoid valve

3.Tighten filings or replace coil .

STEAMING OR

SPITTING

AROUND FUNNEL

1. Main thermostat

2. High altitude

1.Thermostat points stuck or

out of calibrator . 2.Located

above 5.000set.

1.(A)Adjust thermostat.

(B)Thermostat should be calibrated

or replaced

2.See"INSTALLATION

INSTRUCTIONS"page 2.

FAUCET

DRIPPING

1. Charged valve seal

1.Valve seat.

1.Dissemble and clean or replace

as required .

WATER KEEPS

RUNNING

1.Solenoid valve

2.Start switch

3.Timer

1.Refer to "DRIPPING"Step1.

2.Remove wire from switch

and check continuity .

3.Solid state timers are not

repairable.If timer will not

shut off replace.

1.Refer to "DRIPPING",Step1.

2.If start switch does not make and

break contact switch should be

replaced. 3.Replace timer.

Indice

Altri manuali Classic Coffee Concepts Macchina per il caffè

Classic Coffee Concepts

Classic Coffee Concepts RB-2 Manuale utente

Classic Coffee Concepts

Classic Coffee Concepts RC130 Manuale di programmazione

Classic Coffee Concepts

Classic Coffee Concepts CC40 Manuale utente

Classic Coffee Concepts

Classic Coffee Concepts RCB130 Manuale di programmazione

Manuali Macchina per il caffè popolari di altre marche

Taurus

Taurus Livorno 6 Manuale utente

Delta-q

Delta-q QUICK Manuale utente

Bunn

Bunn LCA-1 Guida alla risoluzione dei problemi

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Istruzioni per l'installazione

Saeco

Saeco Vienna Plus Sup 018M Manuale utente

DeLonghi

DeLonghi DC300 Manuale utente

INCAPTO

INCAPTO BXCO1470E Manuale utente

Bosch

Bosch TASSIMO finesse TAS16B Series Manuale utente

Exido

Exido 245-072 Manuale utente

Animo

Animo OptiVend Choco Manuale utente

Siemens

Siemens TQ505DF Series Manuale utente

DeLonghi

DeLonghi ECI341 Manuale utente

Krups

Krups KT406511 Manuale utente

Cimbali

Cimbali M32 Classic Manuale utente

Philips

Philips HL3844N Manuale utente

Bosch

Bosch TES 515 SERIES Manuale utente

Tekmatix

Tekmatix TMFM - 65 Manuale utente

Scarlett

Scarlett SC-CM33005 Manuale utente
