Classic Fire CHICAGO Manuale utente
871125254211
A.I.&E. Adriaan Mulderweg 9-11,
5657 EM Eindhoven,
The Netherlands

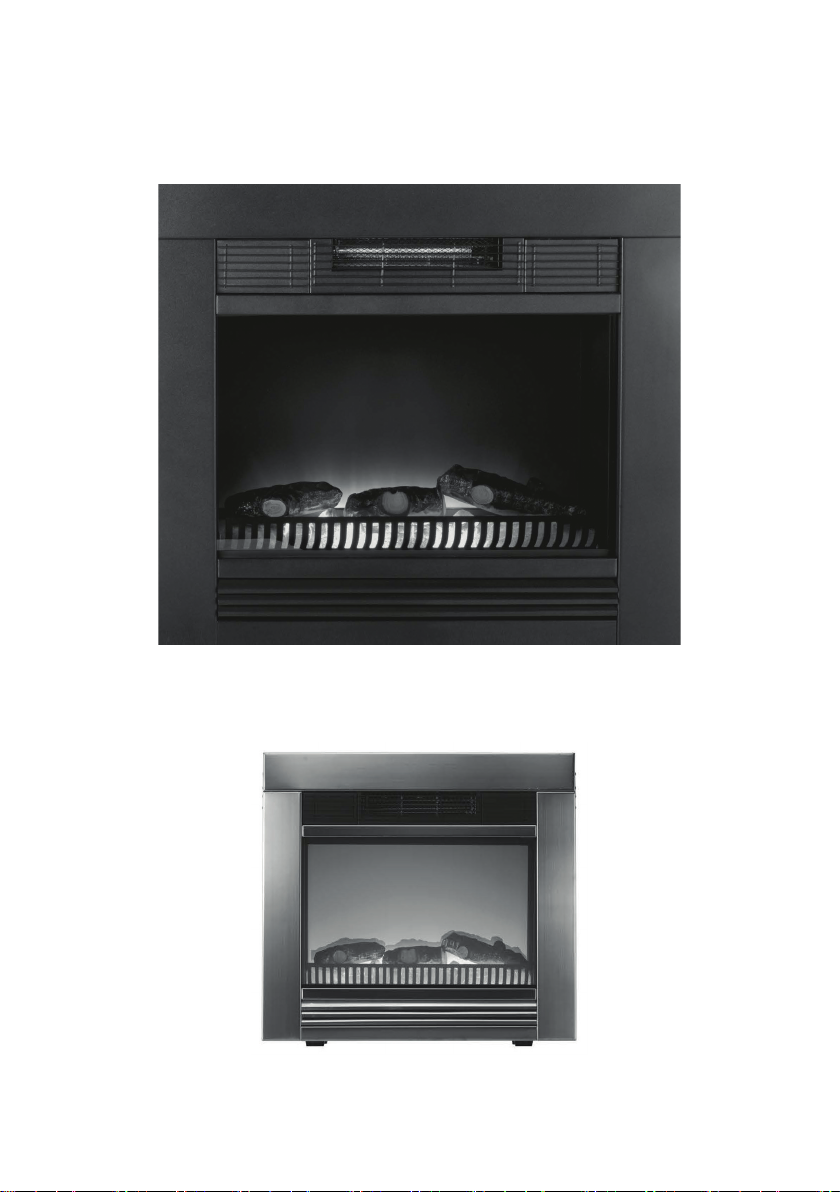

UK Electric heater for building-in purposes with replace effect (AJ55C-LED)
DE Elektrische Heizung für Einbauzwecke mit Kamineffekt (AJ55C-LED)
FR Chauffage électrique à encastrer avec effet cheminée (AJ55C-LED)
NL Elektrische inbouw kachel met haardeffect (AJ55C-LED)
Instruction manual
Bedienungsanleitung
Manuel d’utilisation
Gebruiksaanwijzing CHICAGO
1
a Electric replace
Operation and Safety Notes
2
Table of content
Introduction
Intended use........................................................................ Page 4
Technical specications....................................................... Page 4
Scope of delivery................................................................. Page 4
Description of parts.............................................................. Page 5
Safety Instructions
Avoid danger to life by electric shock .................................. Page 7
Avoid injuries and damages of the electric unit ................... Page 8
Avoid danger to life by environmental effects...................... Page 10
Before operation.................................................................. Page 11
Operation
Switching ame simulator on / off........................................ Page 12
Using the dimmer function................................................... Page 12
Switching heating function on / off....................................... Page 13
Using the thermostat. .......................................................... Page 15
Maintenance and cleaning
Cleaning the housing........................................................... Page 16
Disposal.............................................................................. Page 17
Information
Service / Warranty ............................................................... Page 17
Declaration of conformity..................................................... Page 18
3
The following pictograms are used in this operating manual / on
the unit:
Read the operating
manual!
Danger to life and of
accidents for toddlers
and children!
Observe warning and
safety instructions! Warning! Do not cover.
Beware of electric
shock! Danger to life!
Wear protective
gloves!
Risk of explosion! Watt (actual power)
Fire hazard! Volt (alternating
current)
Beware of hot
surfaces!
Dispose of packaging
and product in an
environmentally
friendly manner!
Introduction
4
Electric replace AJ55C-LED / AJ55C-LED-RC
Introduction
Unfold the page with the illustrations and become
acquainted with the functions of the unit before putting it
into operation for the rst time. In order to do so, please
read the following operating and safety instructions. Only use the unit
as described and for the indicated range of operation. Keep these
instructions in a safe place. Please also hand over all documents to
third parties when passing on the unit.
Intended use
The unit is intended for the generation of hot air in closed, dry rooms.
The unit is intended for installation into existing replaces. The electric
ame simulator conveys a log re atmosphere. Other types of use
or modications of the unit are not regarded as intended and pose
serious danger of accidents.
The manufacturer is not liable for any damages caused by any use
other than for the intended purpose.
The unit is designed for use in private households and not suitable for
industrial purposes.
Technical specications
Model: AJ55C-LED / AJ55C-LED-RC
Nominal voltage: 230 V ~, 50 Hz
Rated power: max. 1.800 W
Power stages: 2 (900 W, 1.800 W)
Illuminants: 2 x 1 W LED
Dimensions: 67 x 23 x 62 cm (w x d x h)
Installation
dimensions: 58 x 22 x 54 cm (w x d x h)
Weight: approx. 14.8 kg
Scope of delivery
Immediately after unpacking please check if the delivery is complete
and also if all parts of the product are in good condition.
1 Fireplace insert, electric
1 Operating instructions Avoid injuries and damages of the electric unit
5
Description of parts
1. Ventilation slots
2. Right hand cover
3. Front
4. Power plug
5. Glass plate
6. Left hand cover
7. Switch second heating stage
8. Switch rst heating stage
9. ON / OFF switch
10.Thermostat control
11. Dimmer switch
6
Safety Instructions
WARNING! Please read all safety
instructions. Failure to adhere to the safety
instructions can cause electric shock, re
and / or serious injuries.
SAVE ALL SAFETY INSTRUCTIONS FOR THE FUTURE!
WARNING! DANGER TO LIFE AND OF
ACCIDENTS FOR TODDLERS AND
CHILDREN!
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
Children of less than 3 years should be kept away
unless continuously supervised.
Children aged from 3 years and less than 8 years
shall only switch on/off the appliance provided that
it has been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the ap-
pliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8
7
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
ATTENTION! RISK OF EXPLOSION!
Do not operate the electric unit in explosion
endangered environments in which there are
ammable liquids or gases.
Avoid danger to life by electric shock
The heater must not be located immediately
below a socket outlet.
Do not use this heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
Do not use this heater with a programmer, timer,
separate remote-control system or any other device
that switches the heater on automatically, since a re
risk exists if the heater is covered or positioned
incorrectly.
• Do not operate the unit with a damaged power
line or damaged power plug.
ATTENTION! Damaged power lines represent
danger to life by electric shock.
• Check the power lines regularly for damages and
aging.
• Attention! If the appliance or the supply cord is
8
damaged, it must be repaired by manufacturer, its
• service agent or qualied person.
• Protect the power line against sharp edges,
mechanical strain and hot surfaces.
• Only operate the unit with an earthed outlet.
• Do not operate the unit outdoors. Make sure that
the power line never gets wet or damp during
• operation.
• Do not switch on the unit if you notice visible
damages (e.g. tears or cracks) or if you assume
that the unit is damaged (e.g. after having fallen
down).
• Never operate the unit in the immediate vicinity of
a bathtub, shower or wash basin or a pool.
• In the case of disturbances immediately pull the
power plug out of the outlet.
• Only let an electrical technician conduct repairs.
• Pull the power plug out of the outlet when you are
not using the electric replace insert for a longer
period of time.
Avoid injuries and damages of the
electric unit

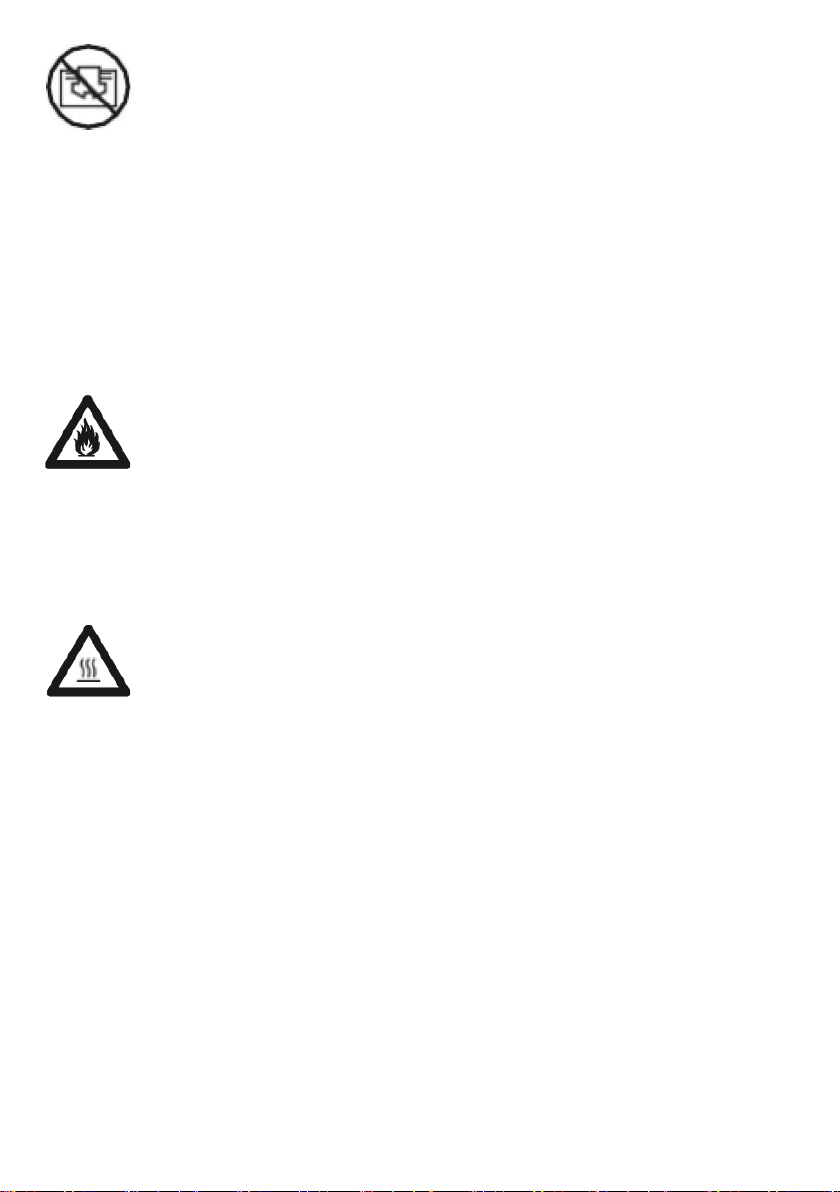

ATTENTION! FIRE HAZARD! Do not place
any ammable objects such as clothing or
the like on the electric replace insert.
9
ATTENTION! In no case should the
ventilation slots of 1 the electric replace
insert be covered. Otherwise there is a re
hazard.
ATTENTION! Never leave the electric replace
insert unattended when it is in operation. There is a
risk of injury in the case of non-observance.
ATTENTION! FIRE HAZARD! Please make
sure that the distance between the front of
the electric replace insert and ammable
objects such as furniture, curtains or the like is at
least 1 m.
ATTENTION! DANGER OF BURNING!
Please make sure that the surfaces which
radiate heat can achieve temperatures
exceeding 50 °C. Make sure that the unit is switched
off and cooled off before you touch it.
CAUTION — Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
Prevent the power line from becoming a trip hazard.
Therefore, always run it away from the unit from the
back.
