Dmbttjd!Pshbo!Xpslt!

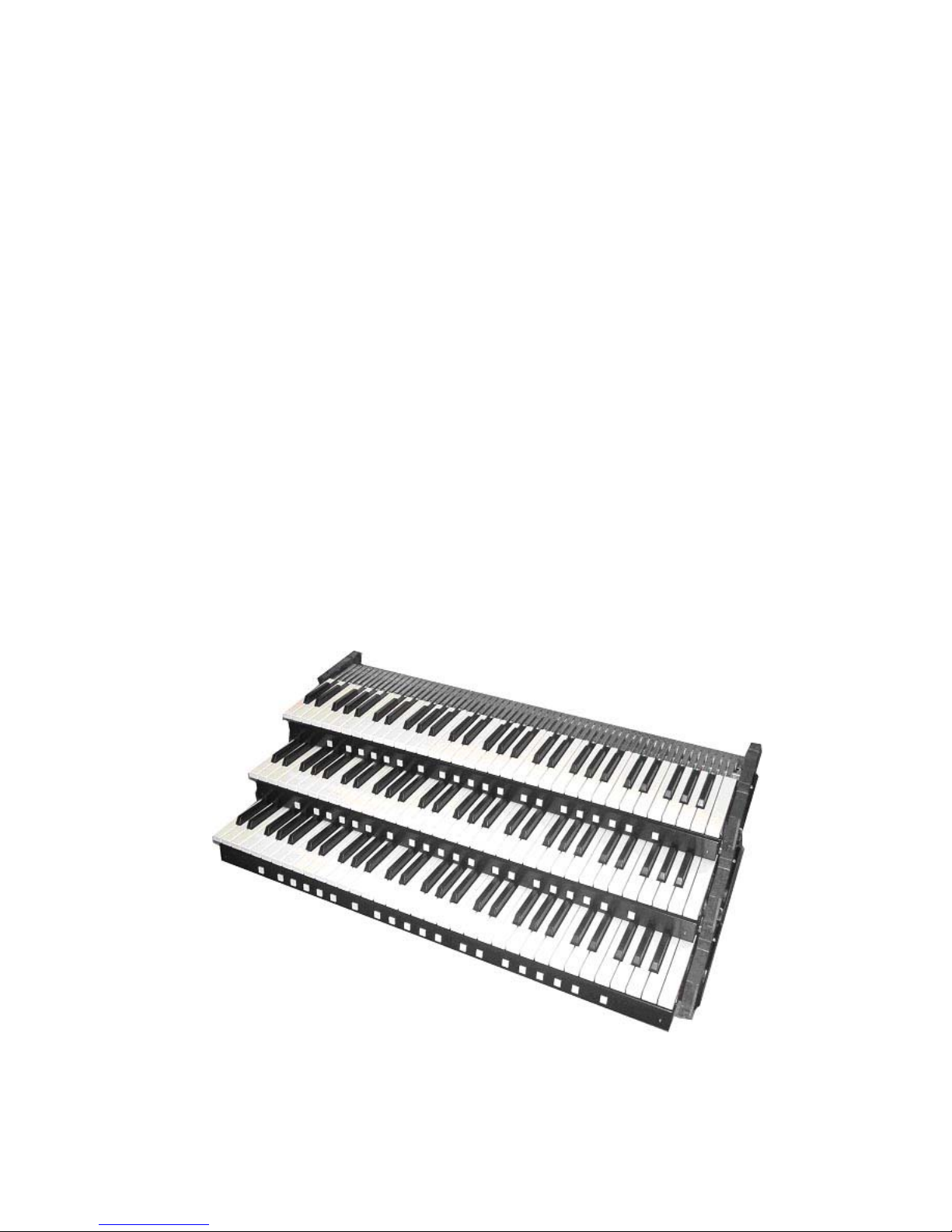

CMK-2
Classic MIDI Keyboard
User Manual
Version 1.5
Div. of:
ARTISAN CLASSIC ORGAN INC.
MIDI KEYBOARD CMK-2 CONTENTS MANUAL v1.5
CMK-2 Manual 1.5.doc CMK-2 MANUAL 3
CLASSIC MIDI KEYBOARD
CMK-2
TABLE OF CONTENTS
1. LIMITED WARRANTY ....................5
2. INTRODUCTION .............................7
Description............................................... 7
Package Contents.................................... 8
Table 1: Package Contents 8
Figure 1: CMK-2 components: 8
Figure 2: CMK-2 connections 9
3. INSTALLATION ............................11
Physical Installation .............................. 11
Figure 3: Bracket Installation 11
Figure 4: Bracket Goes above Keyboard Mount 11
Figure 5: Install three #8 Screws in the Underside 12
Connectors............................................. 12
Figure 6: Rear View Connections 12
Power Connections ............................... 13
Figure 7: Power Terminal Block Connections 13
MIDI Connections .................................. 14
Figure 8: Connecting Cables to a Keyboard Stack 14
Connecting Swell Shoes ....................... 15
Figure 9 Wiring Schematic for Analog inputs 15
Table 2: Connection Chart.................................. 15
Software Installation (Windows and MacIntosh
users) 16
4. MIDI SPECIFICATION .................. 17
Table 7: MIDI messages relevant to Hauptwerk. 19
Table 8: Default Configuration for Hauptwerk .... 19
Figure 10: 5-pin DIN connections 20
5. HARDWARE CONFIGURATION .. 21
Introduction............................................ 21
Power-On Self Test................................ 21
Analog Input Pins .................................. 21
MIDI Crescendo – for Ahlborn Archive modules 21
MIDI Volume 21
MIDI Expression 21
Programming Keyboard Functions ...... 22
Table 9: Programming Functions ........................22
6. SOFTWARE CONFIGURATION .. 25
Introduction ............................................25
Software Installation.............................. 25
Figure 11 Installing ‘CMK-2_Setup.exe’ file. 25
Figure 12 Select a directory to install the program 26
Figure 13 Adding an icon to the start menu 26
Figure 14 Creating an icon on the desktop 26
Figure 15 Confirmation window 26
Figure 16 Setup progress window 26
Figure 17 Confirms successful installation 26
Software Startup .................................... 27
Figure 18 Config software startup screen. 27
Figure 19 Config software main menu. 27
Functions of the Menus......................... 28
Figure 20: Toolbars in CMK-2Config software 28
1. File Menu 28
Figure 21: Software attempting to connect 29
Figure 22: MIDI Interface device choice 29
Figure 23: Software detecting keyboards 29
Figure 24: Loading configuration. 29
Figure 25: Requesting CMK Configuration 30
Figure 26: Confirmation Window. 30
2. Edit Menu 30
3. Options Menu 31
Figure 27: MIDI Input Output Setup windows 31
4. Help Menu 31
Figure 28: Help Menu 31
Configuring Multiple Keyboards...........32
Edit a Previously-Saved CMK
Configuration .........................................33
Figure 29: Configuration File selection window. 33
1. Keyboard Functions, MIDI Channels 34
Figure 30: Program window 34
2. Expression Shoe Functions 36
3. General Settings 36
4. Piston Functions 37
Figure 31: Piston function drop-down menu. 37
MIDI KEYBOARD CMK-2 CONTENTS MANUAL v1.5
42009 CLASSIC ORGAN WORKS CMK-2 Manual 1.5.doc
7. REFERENCES ..............................41
8. APPENDIX A: ...............................43
9. APPENDIX B: ...............................45
10. APPENDIX C: .............................53
Figure 32: CMK-2A-SS Circuit board Silk Screen 53
Figure 33: CMK-2A Circuit Board Schematic 54
Figure 34: CMK-2 Piston Rail Screen 55
Figure 35: CMK-2 Piston Rail Schematic 56
11. APPENDIX D: .............................57
Figure 36: CMK-2 Piston Rail Front Panel 58
12. APPENDIX E:..............................59
13. APPENDIX F: ............................. 61
MIDI Sound Sets.....................................61
Table 19: Sound Set Groups...............................62
Table 20: General MIDI Program Numbers ........63
Table 21: General MIDI Percussion Key Map.....64
14. APPENDIX G:............................. 65
Mating the Brackets...............................65
Figure 37: Small Mounting Bracket for Top Manual65
Figure 38: Large Bracket for other Manuals 65
Figure 39: Mating the Small and Large Brackets 65
Figure 40: Connecting Two Brackets 65
Figure 41: Brackets mated and closed 66
Figure 42: A Four-Manual Stack Open 66
Figure 43: A Four-Manual Stack Closed 66
Figure 44: A Completed Four-Manual Stack 66
15. DISCLAIMER.............................. 67
16. TROUBLESHOOTING................ 69
MIDI KEYBOARD CMK-2 WARRANTY MANUAL v1.5
CMK-2 Manual 1.5.doc 2009 CLASSIC ORGAN WORKS 5
CLASSIC MIDI KEYBOARD
CMK-2
1. LIMITED WARRANTY
Classic Organ Works warrants the Classic MIDI
Keyboard (CMK-2) to be free from defects in
materials and workmanship under normal use for a
period of ONE YEAR from the delivery date.
This warranty applies only if the original
purchaser who has the bill of sale owns the
product.
This warranty explicitly excludes any cables
provided with the CMK-2, which may become
defective because of normal wear and tear. The
DC power adaptor is included in the warranty
however.
As soon as a defect is detected, contact Classic
Organ Works. In particular, defects due to
shipping should be reported within 5 days for
insurance claim purposes. For all other defects,
Classic Organ Works agrees to repair or replace
all defective parts of said products, which are
returned, transportation prepaid, for inspection at
its service centre within the period of the
warranty.
In the event that Classic Organ Works
determines the product requires repair because of
user misuse or regular wear, it will assess a fair
repair or replacement fee. The customer will have
the option to pay this fee and have the unit
repaired and returned, or not pay this fee and have
the unit returned un-repaired.
Classic Organ Works will not be liable for
consequential, special, indirect, or similar
damages or claims including loss of profit or any
other commercial damage, and in no event will
Classic Organ Works’ liability for any damages
to the purchaser or any other person exceed the
price paid for the product, regardless of any form
of the claim.
Classic Organ Works specifically disclaims all
other warranties, expressed or implied.
Specifically, Classic Organ Works makes no
warranty that the product is fit for any particular
purpose.
This warranty shall be interpreted, and governed
by applicable laws in the province of Ontario,
Canada. If any provision of this warranty is found
void, invalid or unenforceable, it will not affect
the validity of the balance of the warranty, which
shall remain valid and enforceable according to its
terms. In the event any remedy hereunder is
determined to have failed of its essential purpose,
all limitations of liability and exclusion of
damages set forth herein shall remain in full force
and effect.
MIDI KEYBOARD CMK-2 INTRODUCTION MANUAL v1.5
CMK-2 Manual 1.5.doc 2009 CLASSIC ORGAN WORKS 7
CLASSIC MIDI KEYBOARD
CMK-2-1
2. INTRODUCTION
Description
The CMK-2 is a MIDI keyboard controller designed for the modern organist. It combines technology and
classical church organ ideas into an innovative MIDI device.
The keyboard features:
•Tracker organ style key action
•User-programmable pistons
•A stacking mechanism for mounting multiple manuals in a traditional organ configuration
•Inputs for expression shoes
•Velocity sensitive (optional)
With the CMK-2, MIDI software and sound modules may be controlled as if they were part of the organ. The
CMK-2 is designed to work with all of your favorite hardware and software, including:
•Crumhorn Labs’ Hauptwerk virtual organ software
•Ahlborn-Galanti’s Archive MIDI sound modules
•MidiTzer virtual organ software
•Products capable of being controlled by standard MIDI messages
Enjoy your new CMK-2!
MIDI KEYBOARD CMK-2 INTRODUCTION MANUAL v1.5
82009 CLASSIC ORGAN WORKS CMK-2 Manual 1.5.doc

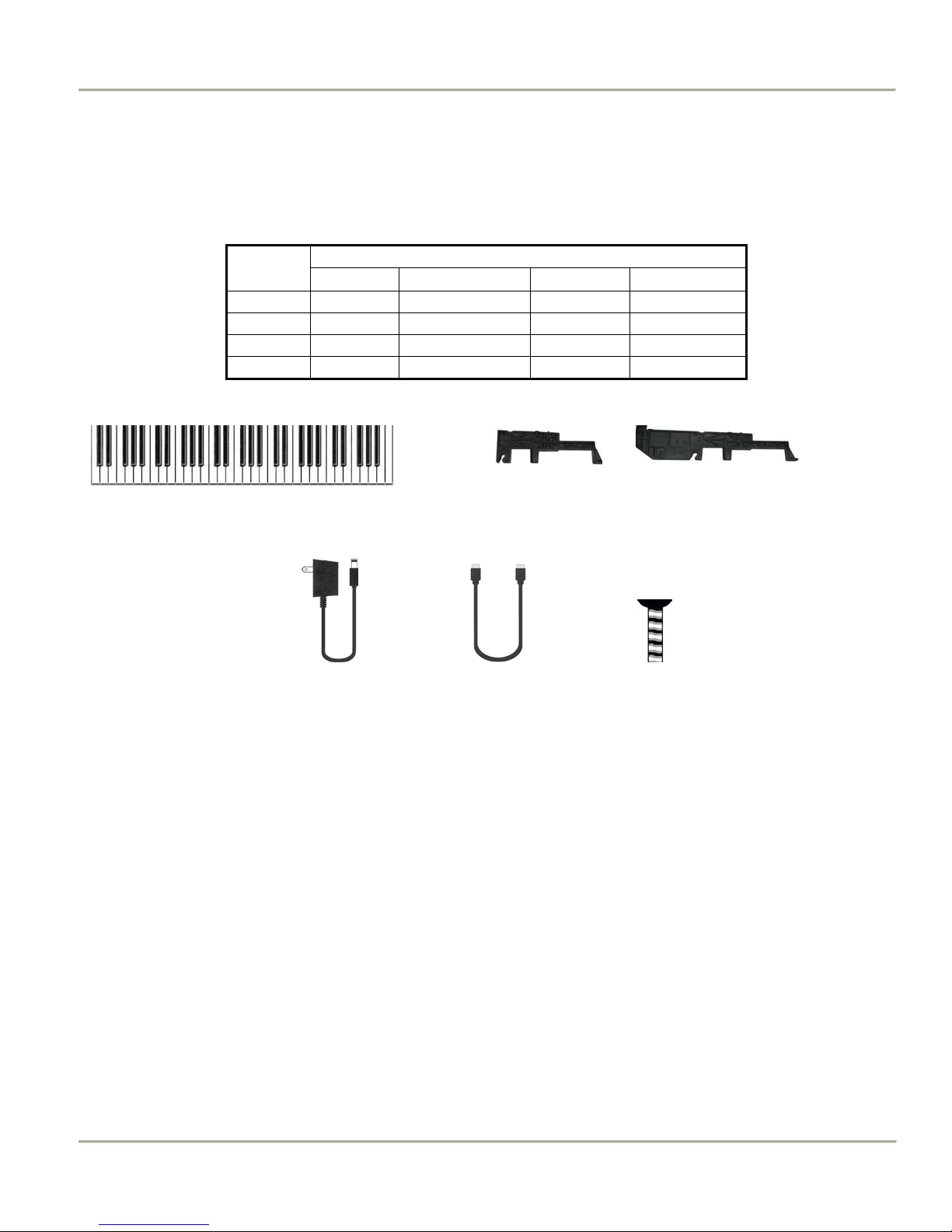

Package Contents
Table 1: Package Contents
Items
Setup
Manual(s) Stacking Bracket DC Adapter MIDI Cable(s)
1 Manual 1 2 x B 1 1
2 Manual 2 2 x B + 2 x C 1 2
3 Manual 3 2 x B + 4 x C 1 3
4 Manual 4 2 x B + 6 x C 1 * 4
A B C
D E F
Figure 1: CMK-2 components:
A) Keyboard
B) Fatar small mounting bracket
C) Fatar large mounting bracket
D) 9 to 12V DC wall adaptor
E) 6-Ft. MIDI cable
F) Mounting screw.
* Adaptor is 9V 1A for four keyboards. Normal one is 500 mA.
MIDI KEYBOARD CMK-2 INTRODUCTION MANUAL v1.5
CMK-2 Manual 1.5.doc 2009 CLASSIC ORGAN WORKS 9
Figure 2: CMK-2 connections
