Classique CLH60SLMSS Manuale utente
User Manual for your
CLH60SLMSS & CLH60SLMW &
CLRH60SS & CLRH90SS &
CLH600BXSS & CLH900BXSS
& CLH9GLSS
Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
1
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….2
IMPORTANT SAFETY INFORMATION……………………………….…3-4
ENVIRONMENTAL NOTE ………….…………………………………………5
USING YOUR COOKER HOOD……………………………...……………6-7
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-9
INSTALLATION INSTRUCTIONS ……………………….……...….10-23
TROUBLESHOOTING ……………………………………………24
CONDITIONS OF GUARANTEE……………………………………………25
HT Mod 15/08/09
CONTENTS
2
Congratulations on purchasing a Cooker Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the replacement of
carbon filters.
Please see the installation section of this manual for details.
Specifications of your Cooker Hood:
Model Width
(CM) control light Extraction
capacity Carbon
filter
CLH60SLMSS 60 Slider
switch 1x
incandescence 250 SF11
CLH60SLMW 60 Slider
switch 1x
incandescence 250 SF11
CLRH60SS 60 Push
button 2x
incandescence 500 ST1
CLRH90SS 90 Push
button 2x
incandescence 500 ST1
CLH600BXSS 60 Push
button 2X halogen 750 S1
CLH900BXSS 90 Push
button 2X halogen 750 S1
CLH9GLSS 90 Electronic
button 2X halogen 750 S1
Specifications of your Cooker Hood
3
o
Any installation work must be
carried out by a qualified
electrician or competent person.
o
The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
750 mm
9Gas cookers:
750 mm
9Coal/ oil cookers:
750 mm
* NOTE -
DO NOT SET YOUR
COOKER HOOD LESS THAN
750 mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob and
their undersides must be
at least 50 mm off from
the hob edges.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
o
DO
NOT
CLEAN
IN
BEHIND
THE
GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.
4
oEnsure the ducting for
the extractor function
has the same diameter as
othe outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o
Please dispose of the
packing material
carefully – children are
especially vulnerable to it.
o
Dirty oil is an even
greater fire risk.
o
Always put lids on pots
and pans when cooking
on a gas cooker.
o
The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o
Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
: Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
:
Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
:
Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
:
Never flambé cook under
this cooker hood
.
Important Safety Information: Please Read this before installing & using.
5
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note
6
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located on the hood’s front
surface near the upper right corner of the unit.
3) The CONTROL PANEL contains switches as shown in the Figure below.
These perform separate functions. You will need to understand what
both switches do before you attempt to use your cooker hood.
Note: The hood should be switched on at least as soon as you start
cooking.
*Slider switch:
MOTOR ON /OFF switch – the ‘ ’ switch (‘A’ in figure above) turns the motor
on and off and adjusts its speed. There are three speeds, pushing the switch to
the right increases the speeds.
LIGHT ON/OFF switch - Pressing the ‘ ’ switch (‘B’ in figure above) turns your
cooker hood’s light on and off.
Using your Cooker Hood:
Your Cooker
Hood’s
Control Panel
7
*Push button :
KEY
‘V’- Motor Off button
‘W’ - Motor operation:
= low speed, = mid speed, = high speed.
‘U’ - Light ‘ON/OFF’ button-This button controls the light
*Electronic button
KEY
‘W’ - Motor operation:
= low speed, = mid speed, = high speed.
‘U’ – Light ‘on/off’ button-This button controls the light
8
PLEASE NOTE THAT YOUR COOKER HOOD CAN BE USED EITHER
IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE
IN RE-CIRCULATION MODE, YOU WILL NEED TO FIT THE
CARBON FOAM.
* IMPORTANT:
Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grill
ÂYour cooker hood includes an anti-grease grill
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
ÂThe metal grill may become inflammable if it
becomes saturated with greasy residue.
Cleaning your Cooker Hood:
9
9To prevent this fire hazard, the grill should be
cleaned regularly (depending on use) every 10-15
days and at least every three months in a dishwasher
or in hot water with normal washing-up detergent.

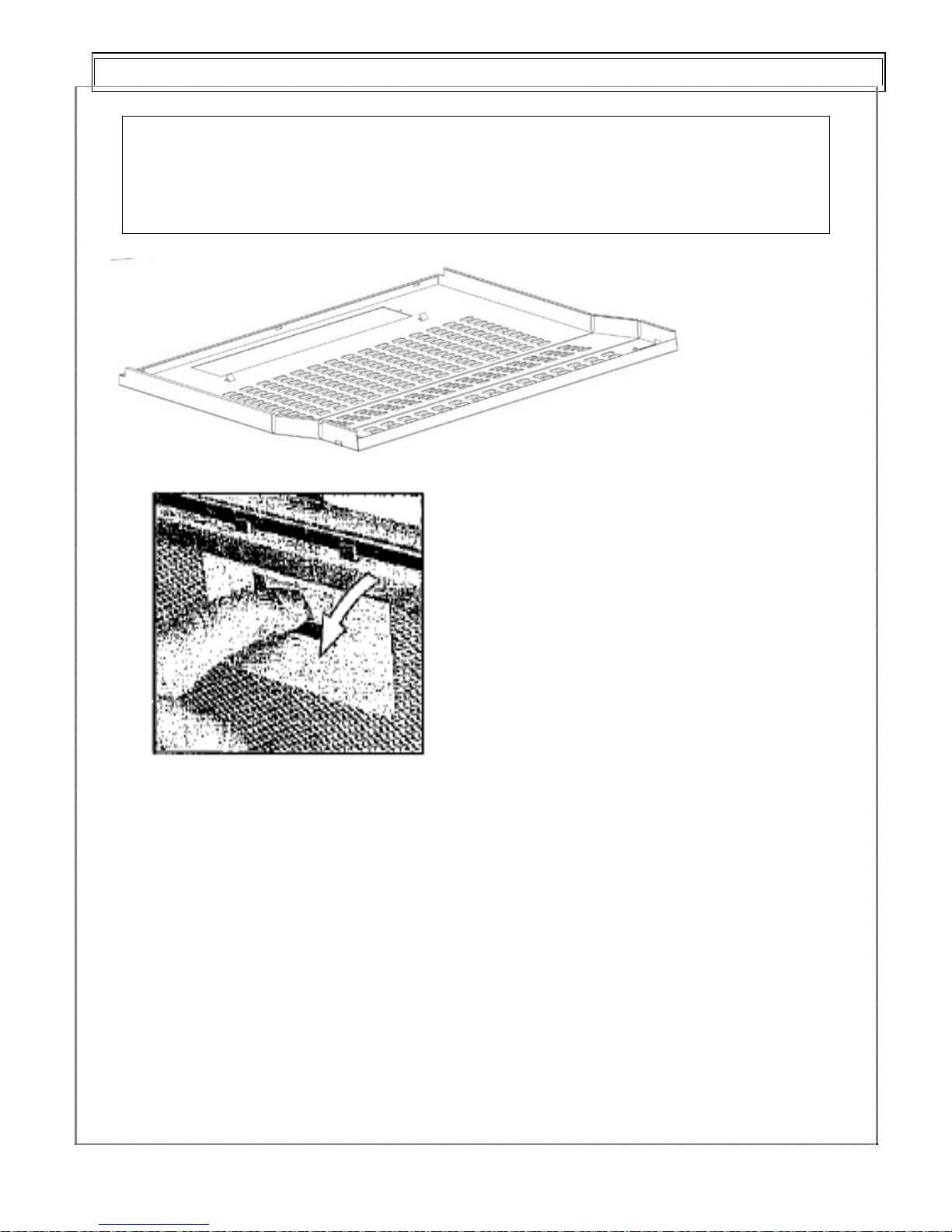

First remove the anti-
grease filter by sliding the
securing nibs at the sides
of the grille on the
underside of the hood.
You can now clean
the anti-grease grill:
To clean the grill by hand:
9Soak it for about one hour in
hot water with a grease-
loosening detergent then rinse off
thoroughly with hot water.
9Repeat the process if needed.
Refit the grease grill once it has
dried.
Maintenance - Cleaning the Anti-grease Filters
