Clear-Com RS-602 Manuale utente

RS-602/622

BELTPACKS

INSTRUCTION MANUAL

RS-602/622 Instruction Manual

Part Number 810288, Rev. B

Vitec Group Communicatons

4065 Hollis Street

Emeryville, CA 94608-3505

U.S.A

Clear-Com is a registered trademark of Vitec Group

Communications

The Clear-Com Logo is a registered trademark of Vitec

Group Communications

Windows is a registered trademarks of Microsoft Corp.

RS-602/622 BELTPACK 1

CONTENTS

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

QUICK START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

OPERATING YOUR BELTPACK . . . . . . . . . . . . . . . . . . . . 5

Beltpack Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Controls and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CONNECTING YOUR BELTPACK . . . . . . . . . . . . . . . . . . 17

Intercom Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Loop-Through Connector . . . . . . . . . . . . . . . . . . . . . 20

Program-Audio Volume Control . . . . . . . . . . . . . . . . 21

Auxiliary (“AUX”) Headphone . . . . . . . . . . . . . . . . . . 21

Headset Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CUSTOMIZING YOUR BELTPACK . . . . . . . . . . . . . . . . . . 25

V-Pack Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Onboard Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Understanding Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Selecting a Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2 R S - 6 0 2 / 6 2 2 B E L T P A C K

Editing a Mode’s Settings. . . . . . . . . . . . . . . . . . . . . . . . . 30

Restoring the Factory Default Settings. . . . . . . . . . . . . . . 31

Settings You Can Customize . . . . . . . . . . . . . . . . . . . . . . 32

Mode Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Latch Disable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Call-on-Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Electret Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Audible Call Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Channel Swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Channel Exclusive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Split-ear Headset (RS-622 only) . . . . . . . . . . . . . . . . . 36

Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 37

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

RS-602/622 BELTPACK 1

INTRODUCTION

Thank you for choosing this product. Clear-Com designed the 600

series of beltpacks to meet the needs of all beltpack users, from

beginners to experienced professionals. For advanced users, the 600

series provides the most advanced level of functioning available.

You can choose from among seven different versions of beltpacks,

including single and dual-channel units, featuring both Clear-Com

and TW (two-wire) compatibility.

RS-600 SERIES

All RS-600 series beltpacks offer the following features:

• Rugged, compact design

• Full compatibility with all existing Clear-Com party-line

systems

• Four setup configurations that you can activate directly from

the beltpack

• Extra 2.5 mm cell-phone type headset jack

• Advanced setup options with V-Pack software

2 RS-602/622 BELTPACK

RS-602 AND RS-622 BELTPACKS

The RS-602 and RS-622 beltpacks add the following features:

• Two intercom channels

• Local input for program audio

• “Loopable” program audio; you can connect program audio to

other beltpacks in a “daisy-chain” configuration

• Program audio volume control

• RS-602 offers monaural headset connector

• RS-622 offers binaural headset connector

• 6-pin Switchcraft-style intercom connectors

RS-602/622 BELTPACK 3

QUICK START

To start using your beltpack immediately:

1. Connect the appropriate 6-pin XLR line cables from an

active intercom line to the beltpack.

Note: The beltpack’s intercom connectors use the Switchcraft-style

6-pin configuration. If ordering Neutrik 6-pin plugs to make a

cable or patch panel, specify that you need the Switchcraft pin

configuration. This configuration usually has an “S” suffix at the

end of the Neutrik model number.

2. Turn down the beltpack’s incoming volume on each intercom

channel with the channel A and channel B volume-control

knobs.

3. Plug in a headset equipped with a dynamic microphone to

the beltpack’s main headset jack.

The headset jack is labeled on the back of the beltpack.

4. To talk on an intercom channel, press and hold the talk

button for the desired channel. Speak into the microphone in

your headset.

Note: If you tap the talk button twice in quick succession, the

talk button locks to the “on” setting (“latches”) for hands-free use.

Press the talk button again to unlatch it.

RS-602/622 BELTPACK

5. Adjust the sidetone and incoming volume levels

for both channels as you and others on the

channels speak at the anticipated levels for the

application.

6. To send a call signal, press the button labeled

“call” for the appropriate channel.

RS-602/622 BELTPACK

OPERATING YOUR BELTPACK

BELTPACK COMPATIBILITY

The RS-602 and RS-622 beltpacks work with all

previous versions of standard Clear-Com party-line

stations and beltpacks, as long as you use proper cabling

and 6-pin connectors. These models are not designed

for use on a two-wire (TW) line. If you use these

beltpacks on a TW line, the audio on channel A of the

TW line will be lost.

The RS-603 series of beltpacks operate on TW lines.

See the RS-603 series manual for more information.

CONTROLS AND ADJUSTMENTS

Figures 1 and 2 illustrate the beltpack’s onboard controls

and adjustments.

Talk Lights, Channels A and B

A channel’s green talk light illuminates when you press

or latch that channel’s talk button.

6 RS-602/622 BELTPACK

Some onboard programming options can change the

function of this light. For more information about

onboard programming, refer to the chapter

“Customizing Your Beltpack.”.

Figure 1: RS-602/622 Control Panel



$BMMMJHIUTDIBOOFMT"BOE#

$BMMCVUUPOTDIBOOFMT"BOE#

5BMLMJHIUTDIBOOFMT"BOE#

5BMLCVUUPOTDIBOOFMT"BOE#







CALL A

TALK A

TAL K B

CALL B

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clear-Com Sistema di interfono

Clear-Com

Clear-Com Eclipse HX-PiCo Manuale utente

Clear-Com

Clear-Com FreeSpeak II FSII-TCVR-24 Manuale utente

Clear-Com

Clear-Com Encore Manuale utente

Clear-Com

Clear-Com TEMPEST 2400 Manuale utente

Clear-Com

Clear-Com FreeSpeak II Manuale utente

Clear-Com

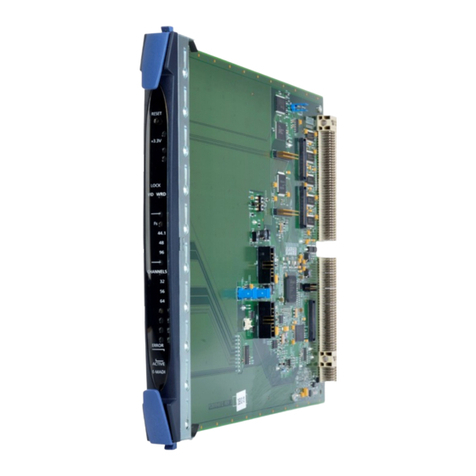

Clear-Com EclipseHX Manuale di installazione e funzionamento
