Clear One INTERACT AT-OC Manuale utente

INTERACT™ AT-OC for Microsoft Communicator Server

Qu i c k St a r t Gu i d e

Other product names may be registered trademarks of their respecitve owners who do not necessarily endorse ClearOne or ClearOne’s products in the United States and/or other countries.

ClearOne Document: 800-154-002-00 Rev 1.0 June 2010

Ma i n it e M s in c l u d e d i n Bu n d l e

INTERACT AT-OC Mixer with Power Supply, Two (2) Mic Units, Two (2) Bose® Wall Mount Speakers, One (1) INTERACT COM Unit, One (1)

INTERACT Dialer, One (1) RJ-11 to RS232 Adapter, One (1) USB-A/B Cable, Three (3) 12’ CAT5 Cables and One (1) 25’ CAT5 Cable.

co n n e c t i n g t h e inteRact at-oc co M p o n e n t s

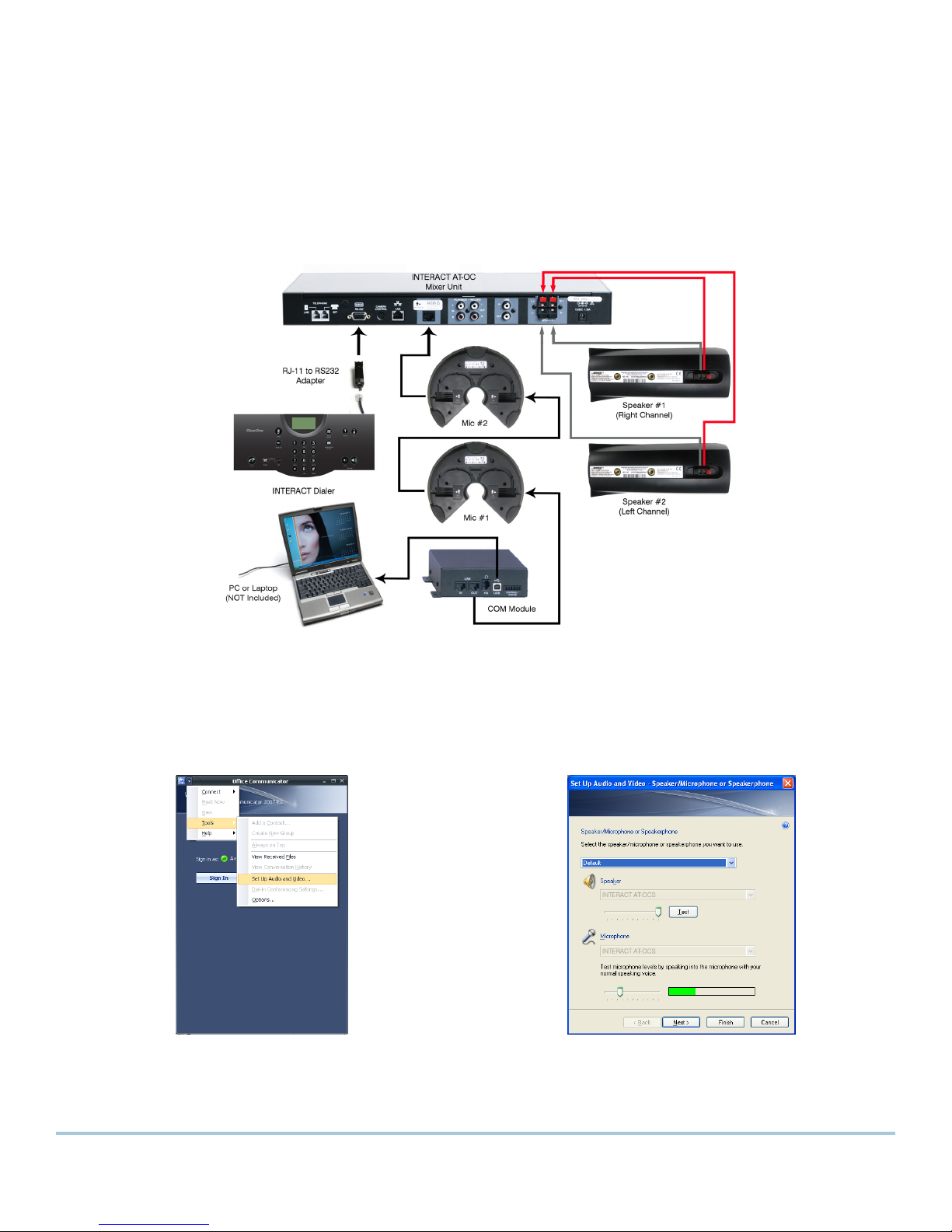

* The recommended method of connecting the INTERACT AT-OC is described and shown below.

Connect a 12’ CAT5 cable from the Link Out port on the back of the COM module to the Link In port on the bottom of MIC #1.1.

Connect a 12’ CAT5 cable from the Link Out port of MIC #1 to the Link In port on MIC #2.2.

Connect the 25’ CAT5 cable from the Link Out port of MIC #2 to the Link In port on the back of the mixer.3.

Insert the RJ-11 connector into the RJ-11 to RS232 Adapter and connect the adapter to the RS232 port on the back of the mixer.4.

Connect the power supply to the mixer.5.

co n n e c t i n g t h e inteRact at-oc t o t h e pc

Once the components are connected, use the USB cable to connect the INTERACT COM module to the PC.

Plug the power supply into an outlet and turn the system on.

au d i o tu n i n g Wi z a R d

Once the system is turned on the first time, start up the Communication Server Client application and perform the Audio Tuning procedure.

The Audio Tuning Wizard can be found in the Tools section of the Communicator Server Client application.

* In order to substantiate a Communication Server call, press the OCS button on the INTERACT AT-OC Dialer prior to placing a call.

* For Advanced Configuration of the system, please consult the product CD.
