Clear One CHAT 150 Manuale utente

CHAT

™150 Group Speaker Phone

QUICK START GUIDE

TELEPHONE 1.800.283.5936

1.801.974.3760

FAX 1.801.974.3669

EMAIL [email protected]

TECHNICAL SUPPORT

Caution: Read the Safety Information

in the instruction manual

notice. 800-156-202 Rev. 1.2.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

BEFORE YOU BEGIN

To use your Chat 150 with a telephone, video conferencing device, or

computer, see the appropriate heading in the Table of Contents to locate

the installation instructions.

To use your Chat 150 with telephone or video conferencing device and a

computer at the same time, use the following procedure:

1. Connect your Chat 150 to your telephone or video confer-

encing device (see the appropriate heading in the Table of

Contents to locate the instructions).

2. Connect your Chat 150 to your computer using this Quick

Start Guide (see Connecting Chat 150 to a PC in the Table

of Contents to locate the instructions).

3. Refer to the Chat 150 User’s Manual for detailed instruc-

tions on how to configure and customize your Chat 150 for

use with your computer.

TABLE OF CONTENTS

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connecting Chat 150 to a Telephone. . . . . . . . . . . . . . . . . . . . . . . 2

Connecting Chat 150 to a Video Conferencing Device . . . . . . . . 16

Connecting Chat 150 to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

CONNECTING CHAT 150 TO A TELEPHONE

Perform the following steps to connect your Chat 150 to a telephone:

1. Using the included 25’ ClearOne RJ-45 Chat 150 connection cable,

connect the Chat 150 Phone Breakout Box to your Chat 150 as

shown in the picture to the right.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

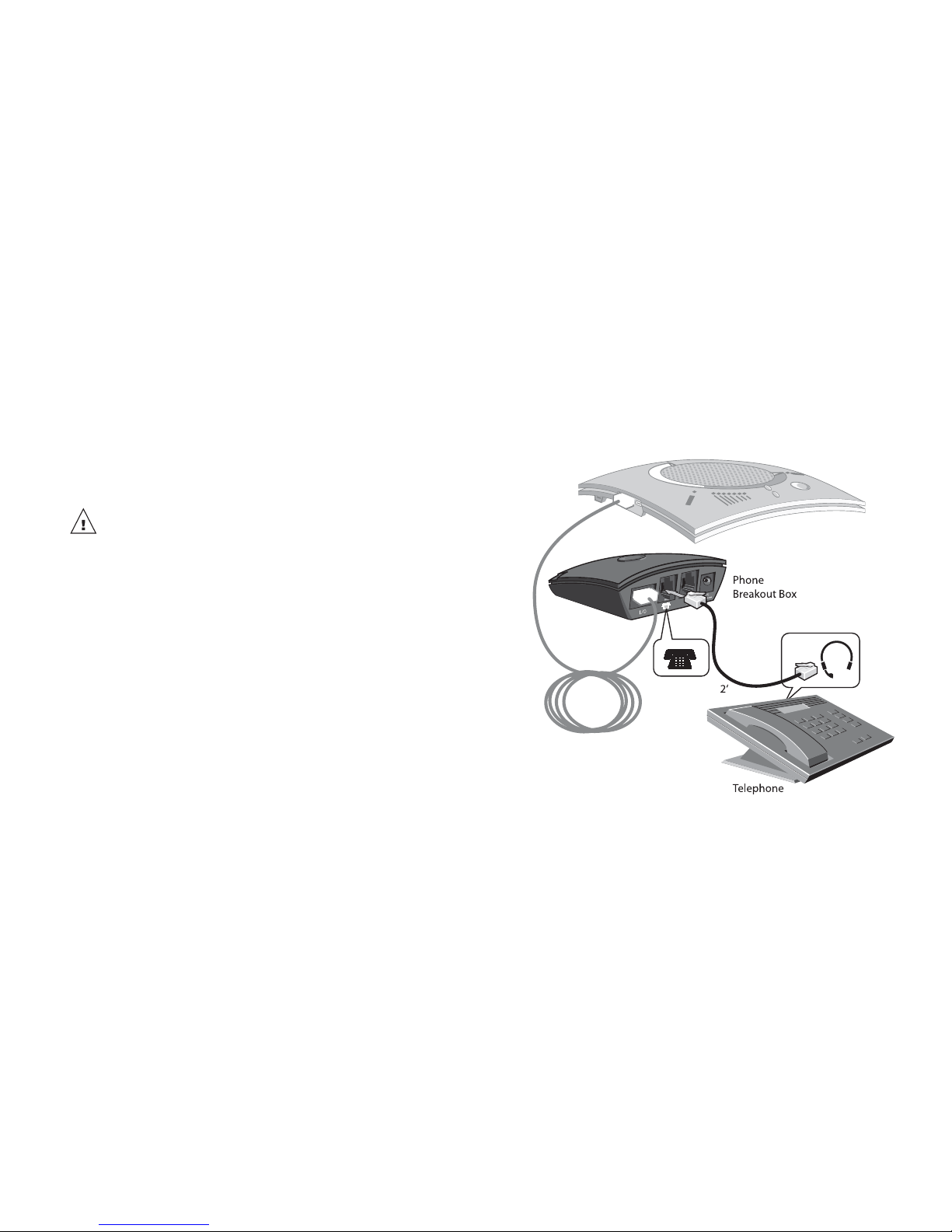

2. Using the included 2’ ClearOne RJ-9 telephone connection cable,

connect the Chat 150 Phone Breakout Box’s phone jack to your

telephone’s headset jack as shown in the picture to the right.

DO NOT plug the cable into the telephone’s line jack, handset

jack, or to phones other than those listed on your Chat 150

package labeling. Damage to the telephone and/or Chat 150

might occur.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

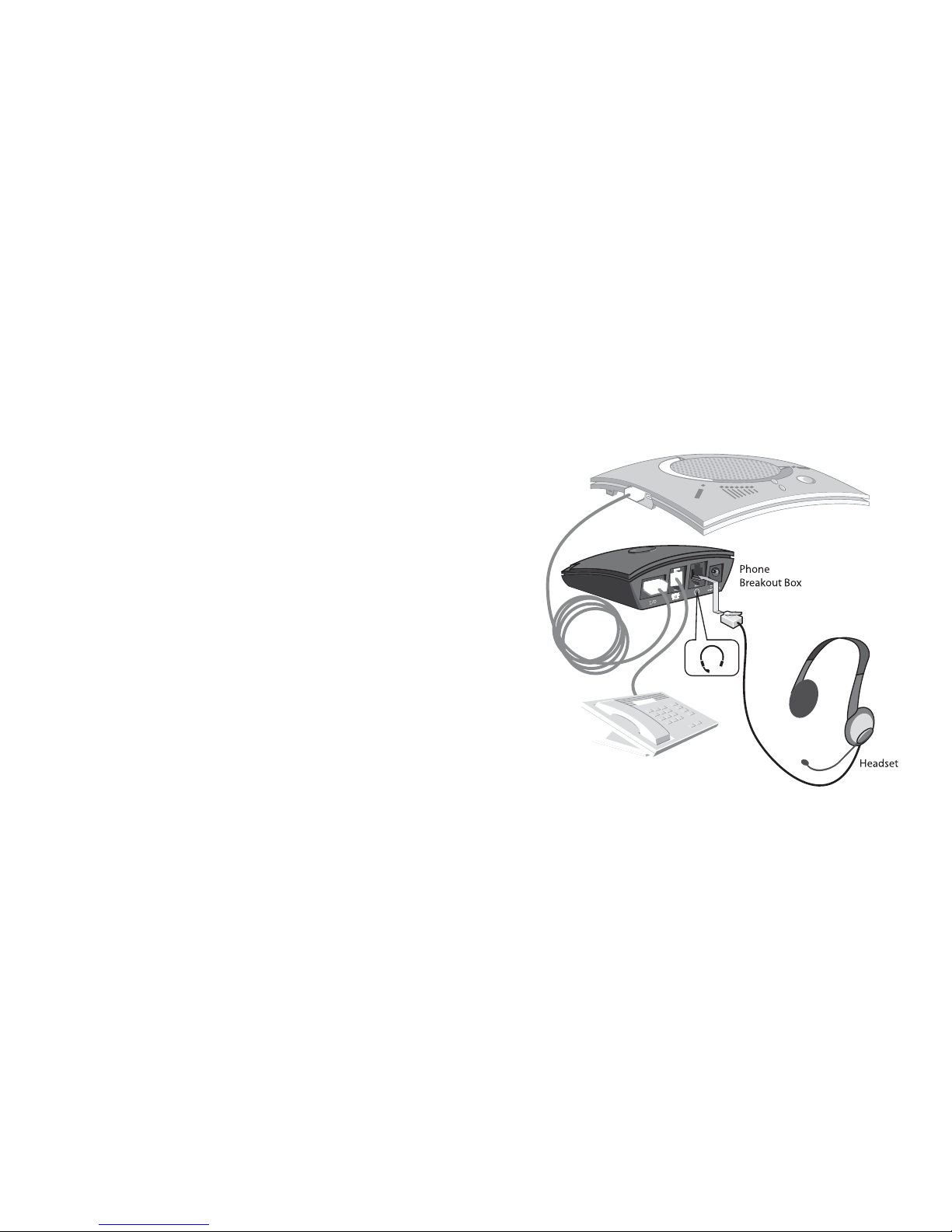

3. If you have a headset that you typically use with your telephone,

connect it to the headset jack on the Chat 150 Phone Breakout Box

as shown in the picture to the right.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

4. Slide the correct power supply clip for your country into the included

power supply as shown in the picture to the right. The power supply

may contain a plastic shield that must be removed before inserting

the clip.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

5. Using the included power supply, connect the Chat 150 Phone

Breakout Box to a power outlet as shown in the picture to the right.

6. The blue LED indicators on the Chat 150 illuminate, indicating that the

Chat 150 has power.

7. Install the Chat software and configure the Chat 150 for use with your

telephone by clicking on Device Setup. See the Connecting Chat 150

to a PC section of this manual for quick instructions. For detailed

instructions, refer to the Chat 150 User’s Manual.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

CHAT 150 Volume Up/Down & MUTE Buttons

Use the Volume Up/Down buttons (indicated by a large dot and a small

dot) to adjust the volume level of the Chat 150. Holding down either but-

ton continuously will change the volume rapidly.

Use the Mute button to mute the Chat 150’s microphone until the Mute

button is pressed again. If you are using the Chat 150 with a PC, you can

also use the Volume Control in Windows, as well as the Chat 150 software

to adjust the volume and mute the microphone.

USING THE CHAT 150

CHAT 150 LED Indicators

The three microphone LED indicators illuminate blue when the Chat 150

microphones are unmuted. The indicators illuminate red when the Chat

150 microphone mute function is active.

The seven volume LED indicators illuminate blue to indicate the current

volume setting--more lights indicate higher volume.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

CHAT 150 SOFTWARE

The Chat 150 includes software that has a database of pre-configured

device settings, which allows you to instantly select and apply optimal

audio settings for supported devices. It also allows you to create cus-

tomized audio settings and save them as custom devices. To learn more

about this software, refer to your Chat 150 User’s Manual.

To install the the Chat 150 software, visit http://www.clearone.com/sup-

port/downloads.php?content=main and select Chat 150 from the product

drop-down list. Select the Chat 50/150 Software from the list to download

the most current version of the Chat 150 software. For detailed installation

instructions, refer to your Chat 150 User’s Manual.

>Note: If you do not have internet access on your computer, use the

Chat 150 Installation CD included in the box.

CHAT 150 PHONE BREAKOUT BOX

Press the Headset button on the phone breakout box to send audio from

your phone to your headset connected to the Chat 150 Breakout Box.

This will also disable audio going from the Breakout Box to the Chat 150 -

it is only routed to the headset. The phone breakout box LED indicator illu-

minates green, indicating that headset audio is activated. The Chat 150

LED indicators remain lit, although audio is not routed to the Chat 150

from the Breakout Box (USB audio is still active). Press the Headset but-

ton again to disable headset audio and reactivate audio from the

Breakout Box to the Chat 150.

QUICK START GUIDE

CHATTM 150 Group Speaker Phone

(

)

(

)

CONNECTING CHAT 150 TO A VIDEO

CONFERENCING DEVICE

Perform the following steps to connect your Chat 150 to a video

conferencing device:

1. Using the included 25’ ClearOne RJ-45 Chat 150 connection cable,

connect the Chat 150 VC Breakout Box to your Chat 150 as shown in

the picture to the right.
