C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 1of 8

Overview

Package

Contents

ClearCube C3Pi Thin Client

Power adapter

Mini USB power cable with integrated power switch

This Quick Start Guide

C3Pi Features

The pictures below show the features of the C3Pi Thin Client.

Figure 1. The C3Pi features and components

Thin Client

Overview

A thin client is a remote computing device that connects a user’s monitors, keyboard, mouse,

speakers, and other peripherals to remote computers and to virtual desktops (VMs). As shown

below, computing resources are typically located in remote data centers.

Thin clients use a remote connection protocol to enable users to work on a blade or VM as if

it is a local PC. See the documentation for the remote protocol application that you use for

additional information.

Figure 2. Overview of thin client architecture

Chassis with

Blades and VMs

Thin Client with

Monitors and Peripherals

Network Infrastructure

Ethernet

USB 2.0

LAN

Audio out

HDMI

Power

connector

(Mini USB)

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 2of 8

Thin Client Setup

Network

Requirements

The list below shows inbound ports to open for thin client communication and management.

TCP/UDP

Port

Application

TCP

SSH, secure thin client communication (if enabled)

TCP

Thin client communication (if enabled)

TCP/UDP

HTTP, thin client management access (if enabled)

TCP

443

HTTPS, secure thin client management access (if enabled)

Setting up a

Thin Client

The steps below show how to set up a C3Pi thin client.

Step

Action

Carefully unpack the thin client and components. Ensure that you have

the following items:

Mini USB power cable and 5V, 2.5A power adapter (included)

USB mouse

USB keyboard

HDMI cable and monitor

Connect a USB keyboard, mouse, and any additional peripherals to the C3Pi

thin client.

Prepare a network connection in one of the following ways:

If you are using a wired network connection, connect an Ethernet cable to

the Ethernet port on the rear of the thin client and to the Ethernet port on

the remote compute device or network device (such as a network switch).

—OR—

If you are using wireless (Wi-Fi) connections, see “Connecting to Wireless

Networks”below to configure wireless connections after using the First-

Time Wizard.

Continued on next page

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 3of 8

Thin Client Setup, Continued

Setting up a

Thin Client

(continued)

Step

Action

Connect the included Mini USB power cord and AC adapter, and then plug

the Mini USB cable into the rear of the thin client. Continue by plugging the

power adapter into an AC power outlet.

Power on the thin client by pressing the inline power button on the

power cable.

Next steps: Perform the initial configuration of Cloud Desktop OS (First-Time Wizard)

and, optionally, configure Wi-Fi connections.

C3Pi Indicators

and

Power Controls

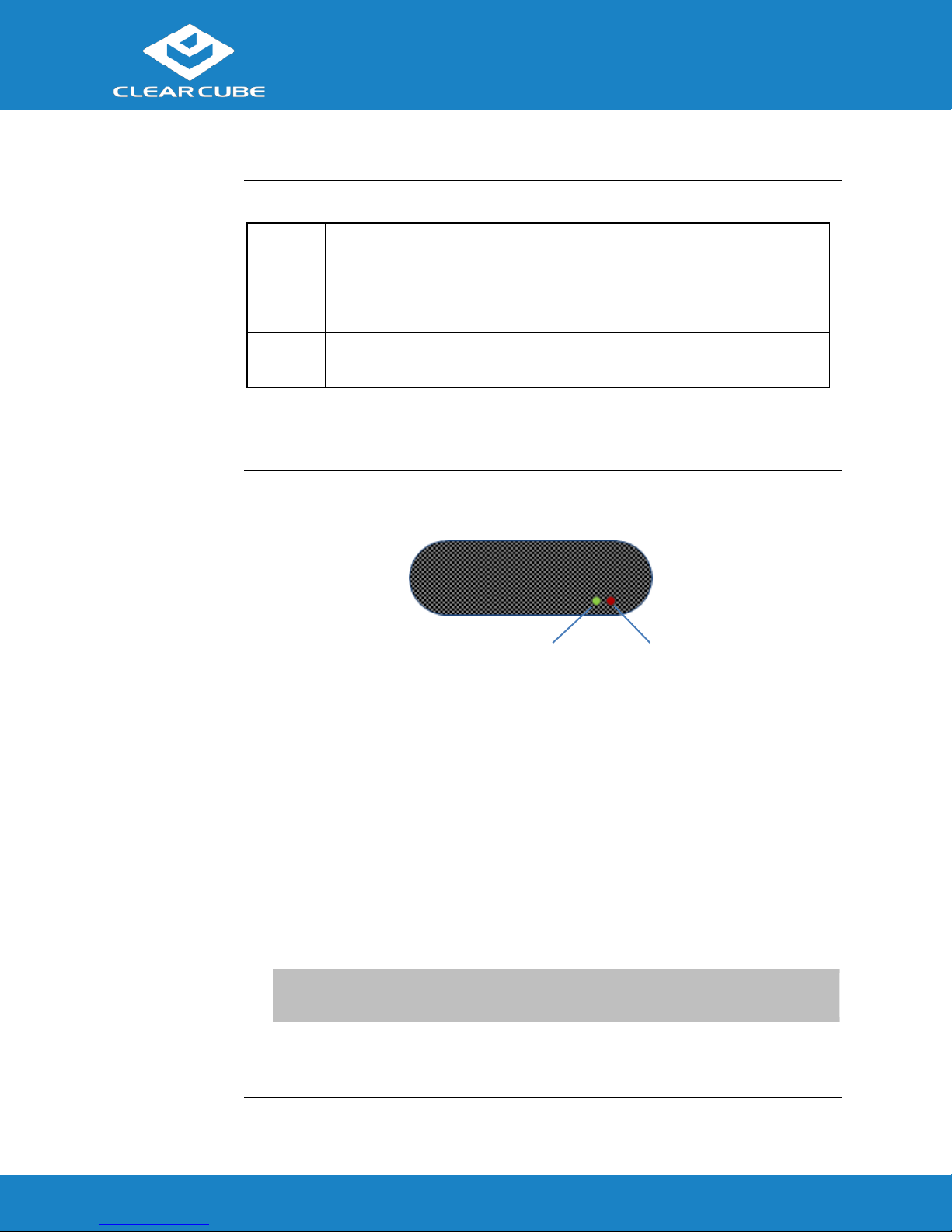

The picture below shows the indicators on the side of the C3PI.

Figure 3. Indicators on the side of the C3Pi

The list below describes power functions available from the power cable and operating system.

Power cable with inline switch

The power cable provides 5V power to the C3Pi, and the switch integrated into the cable

turns 5V power on and off.

Cloud Desktop OS:

Shutdown: From Cloud Desktop OS, click Start > Shutdown.

When using Cloud Desktop Shutdown option, the C3Pi enters a low power state—note

that the red, 5V power light remains on after shutting down. While the C3Pi is in a low

power state, 5V power is still present. To turn off 5V power, press the inline power

button on the power cable, and the light will turn off.

NOTE: To apply power to the C3Pi from this state, you might have to press the inline

power button twice.

Reboot: From Cloud Desktop OS, click Start > Reboot to shut down and restart the

operating system.

5V Power

Applied

SD Card

Activity

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 4of 8

Cloud Desktop OS Setup (First-Time Wizard)

About

CloudDesktop OS

Cloud Desktop OS is the operating system included with ClearCube C3P1 thin clients. See

the Cloud Desktop Quick Start Guide, included in your shipment, for details about setting up

and configuring Cloud Desktop OS. The quick start guide is also available from the

ClearCube Support site (www.clearcube.com/support/). From the Software drop-down menu,

click Cloud Desktop OS.

Cloud Desktop

OS Accounts

The C3Pi Thin Client boots to the user account and displays the configuration wizard the first

time you power on the thin client. The default password is admin (case-sensitive).

NOTE: Change administrator password immediately after logging in. You can specify a

new password using the configuration wizard (First-Time Wizard).

The First-Time

Wizard

Cloud Desktop OS displays the First-Time Wizard the first time you power on a client or

after a factory reset. This wizard lets administrators create connections quickly by specifying

a minimum number of Connection attributes. After creating a Connection, administrators can

edit and create additional Connections using the OS’s Configuration application.

The section below shows each step in the First-Time Wizard.

First

Connection

This section assumes you are powering on a client for the first time. The table below shows

how to create a simple Connection and specify the administrator password.

Step

Action

Power on the thin client.

Result: The thin client displays the BIOS splash screen then boots to the

desktop. The First-Time Wizard starts and displays the Step 1 - Location and

keyboard screen.

From the drop-down menus, select values for the Time zone, Country, System

locale, and Keyboard layout fields.

Click Next.

Result: The First-Time Wizard displays the Step 2 - Create a

connection screen.

Click Mode to display a list of connection modes. Select the mode or

protocol for the connection you are creating.

In the Target field, type the host name, URL, or IP address of the connection

host or connection broker for the thin client. For example, if you are using

VMware Horizon View, specify the connection server or security server.

Optionally, specify a group name in the Resource field if the host target is

part of a resource group.

Continued on next page

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 5of 8

Cloud Desktop OS Setup (First-Time Wizard), Continued

First

Connection

(continued)

Step

Action

Optionally, select the Automatic start option to start the connection when

the thin client is powered on.

Click Next.

Result: The First-Time Wizard displays the Step 3 - Set administrator

password screen.

Specify an administrator password. This is the password that administrators

use to access the OS’s Configuration application.

Click Finish.

Result: The First-Time Wizard displays a success message and places a

connection shortcut on the desktop. Click the Close button in the upper-right

portion of the screen to close the First-Time Wizard. (Desktop Connection

icons are enabled by default. You can change this setting from the

Configuration application.)

Next step: The Connection is placed on the desktop and is available from the Start menu (see

Figure 5). See the section below for information about starting a Connection. For more

information about configuration options, see Cloud Desktop OS Quick Start Guide.

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 6of 8

Wireless Network Setup

Connecting to

Wireless

Networks

Your C3Pi Thin Client includes an internal wireless radio (Wi-Fi) for wireless network

connections. The table below shows how to connect to wireless networks (instructions

assume that wireless network infrastructure is in place).

Step

Action

From Cloud Desktop OS, press CTRL+ALT+w on your keyboard.

Result: a dialog box appears listing available wireless networks.

Click a wireless network listed in the Visible Wi-Fi networks area.

Result: if a password is required, a dialog box appears. Otherwise, the thin

client joins the wireless network

If a password is requested, enter the wireless network password in the

Password text box (optionally, select Remember this network to log in

automatically). Click Join to join the wireless network.

The picture and list below detail wireless options available from the list of visible networks.

Figure 4. Visible Wi-Fi networks list and options

Connect to a hidden network

Administrators can prevent networks from appearing in the list of networks displayed after

pressing the network hotkey (CTRL+ALT+w). To connect to a network that is not

displayed, click the click here to join other network link. Click the network to connect to,

then type the network name (SSID) and password. (From the management menus, you can

change or disable this hotkey.)

Continued on next page

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 7of 8

Wireless Network Setup, Continued

Connecting to

Wireless

Networks

(continued)

To disable this hotkey from Cloud Desktop OS, click Input > Keyboard > Hotkeys. Clear

all values from the Show and connect to available Wi-Fi networks field, making sure that

the field is empty. You can also change this and other hotkeys from the Cloud Desktop

Management application.

Delete remembered networks

Click Manage configured networks to display a dialog box containing remembered

wireless networks. You can delete any network entries from this list.

Reset wireless interface

If the thin client is experiencing wireless network issues, you can click this link to reset the

wireless network adapter without restarting the thin client.

Starting a

Connection

After creating a connection as shown above, users can start Connections from the Start menu

or from a desktop icon (if desktop icons are enabled in the Configuration application). The

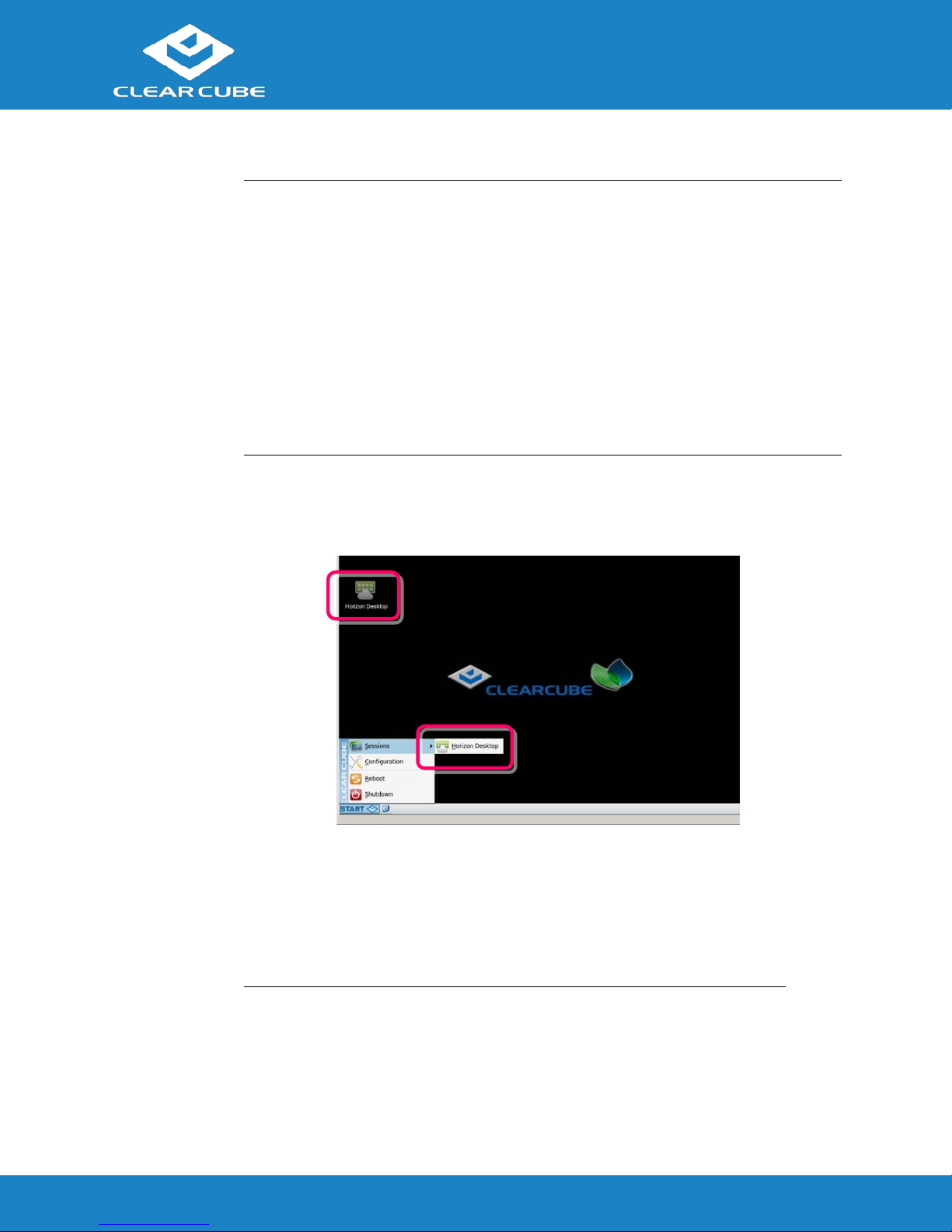

picture below shows a Connection desktop shortcut and a Connection listed in the

Session menu.

Figure 5. Connection (Sessions) shortcuts

The list below shows how to start a connection.

Click Start > Sessions, and then select a Connection. (Alternatively, you can right-click

an empty space on the desktop to display the Sessions menu.)

—OR—

Continued on next page

C3Pi Thin Client Quick Start Guide

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 8of 8

Wireless Network Setup, Continued

Starting a

Connection

(continued)

Double-click the Connection desktop icon.

Administrators can permit or prohibit Connection icons from appearing on the desktop. Click

Start > Configuration and enter the administrator password. From the menu’s Management

area, click Connections > edit. Select an option from the Icon on desktop field.

Resources and Support

Additional

Information

Cloud Desktop Quick Start Guide details Cloud Desktop OS setup, configuration, and more.

From the ClearCube Support site (www.clearcube.com/support/), click the Software drop-

down menu, and then click Cloud Desktop OS.

Contacting

Support

Web site: www.clearcube.com/support

Email: support@clearcube.com

Phone: (512) 652-3400

Toll-free: (866) 652-3400

G0200190, Rev A

WEEE Disposal Guidelines

In the European Union, this electronic product falls under the European Directive (2002/96/EC) WEEE. When

it reaches the end of its useful life or is no longer wanted, dispose of it at an approved, designated recycling

or treatment facility. Check with your local authorities for proper disposal instructions. For assistance, contact

ClearCube at recycle@clearcube.com.

Indice

Altri manuali ClearCube Adattatore

ClearCube

ClearCube CD8815 Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

NETGEAR

NETGEAR A6100 Manuale utente

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente
