WRE2710-S Operator’s Manual and Installation Guide:

M2M –Machine to Machine

MAN-5446-001 Rev 7 2

Contents

Overview ...........................................................................................................................................2

Parts List............................................................................................................................................3

Installation Guide ...............................................................................................................................3

Installation with an SMA Device- Fixed Location...................................................................................4

Installation with an MMCX Device- Fixed Location................................................................................5

Installation with an SMA Device- Mobile Location ................................................................................7

LED Diagnostics ..................................................................................................................................8

Diagnostic LED definitions...................................................................................................................9

Optional Accessories...........................................................................................................................9

Passive Bypass Technology –Patent Pending........................................................................................9

WRE2710 Specifications....................................................................................................................10

Safeguard Features...........................................................................................................................11

Antennas .........................................................................................................................................11

Warranty Information.......................................................................................................................11

Overview

The WRE2710 Wireless Network Range Extender is a high performance, microprocessor controlled,

bidirectional RF amplifier for the entire North American 850 MHz cellular and 1900 MHz PCS frequency

bands. The amplifier has an automatic gain and oscillation control system that will automatically adjust

the gain and the output power if a signal anomaly occurs. This amplifier is designed to operate as a

direct connect unit within a cellularsystem, for maximum performance in weak signal coverage areas.

The input power requirements for the amplifier are positive 8.0 to 32.0 volts DC (negative ground).

MAN-5446-001 Rev 7 3

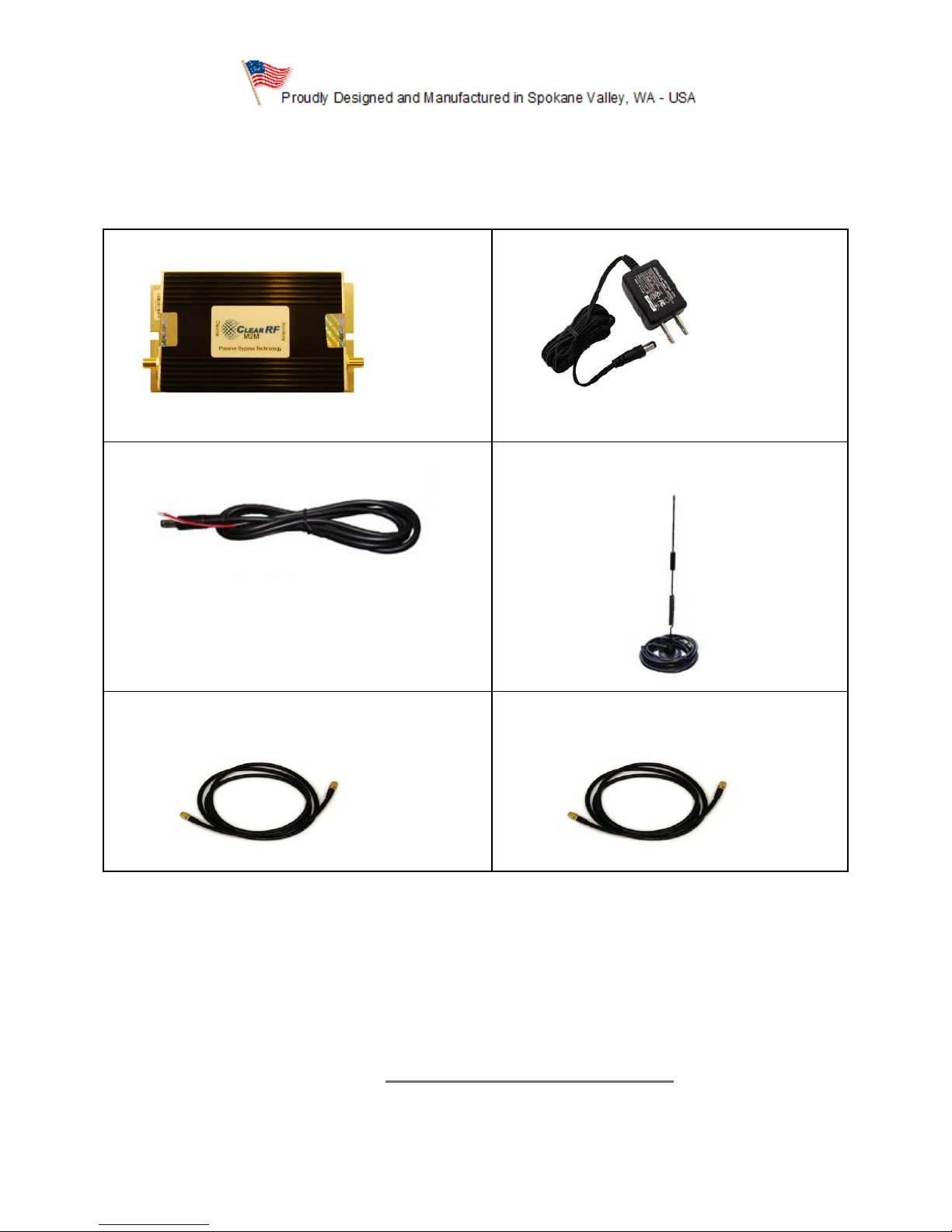

Parts List

Depending upon the connector type of the cellulardevice, ClearRF can customize the M2M kit to include

the appropriate adapters to ensure a seamless and quick installation. Adaptertypes include, but are not

limited to SMA, RP-SMA, MMCX, MCX, FME, and TNC.

1. WRE2710 Amplifier Unit

2. AC/DC Power Adapter

3. Hardwire DC Power Cable

4. Magnetic-Mount Outdoor Signal

Antenna

5. SMA-to-SMA Device Cable –If connecting to

an SMA device

6. Optional –SMA-to-MMCX Device Cable –

If connecting to an MMCX device.

Installation Guide

Disclaimer: Installation of this device requires knowledge of basic electrical and

experience with installing electronic devices. We recommend seeking a

professional installer if you are not accustomed to installing electronics or high

tech devices. Installation of this device is at your own risk. ClearRF, LLC

assumes no responsibility for the installation or improper operation of this

device. Contact your dealer or CustomerService@ClearRF.com with “Installation

Help” in the subject line for assistance.

MAN-5446-001 Rev 7 4

Installation with an SMA Device- Fixed Location

1. If connecting to a Cellular Modem (e.g. Raven X, CradlePoint), connect the SMA to SMA device cable

(#5 on Parts List) to the ClearRF Amplifier connector marked “Device”.

2. Connect the SMA end of the SMA to SMA device cable to the Cellular Modem antenna

connection.

MAN-5446-001 Rev 7 5

3. Mount the Outdoor Signal Antenna (#4 on Parts List) vertically on any metal surface.

a. Connect the Outdoor Signal Antenna connector to the ClearRF amplifier SMA connector

marked “Antenna”.

4. Plug the AC Adapter (#2 on Parts List) into a nearby wall outlet.

5. Insert the AC Adapter connector plug into the amplifier and watch the LED indicators.

Installation with an MMCX Device- Fixed Location

1. If connecting to a Cellular Module (e.g. Motorola, Sierra Wireless), connect the SMA-to-MMCX

device cable (#6on Parts List) to the ClearRF Amplifier connector marked “Device.”

MAN-5446-001 Rev 7 6

2. Connect the MMCX end of the SMA to MMCX device cable to the Cellular Module.

3. Mount the Outdoor Signal Antenna (#4on Parts List) vertically on any metal surface.

4. Connect the Outdoor Signal Antenna connector to the ClearRF amplifier SMA connector marked

“Antenna”.

5. Plug the AC Adapter (#2 on Parts List) into a nearby wall outlet.

6. Insert the AC Adapter connector plug into the amplifier and watch the LED indicators.

MAN-5446-001 Rev 7 7

Installation with an SMA Device- Mobile Location

1. If connecting to a Cellular Modem or Mobile Data Terminal (e.g. Raven X, etc) in a vehicle or

mobile application, connect the SMA to SMA device cable (#5on Parts List) to the ClearRF

Amplifier connector marked “Device”.

2. Connect the SMA end of the SMA-to-SMA device cable to the CellularModem or MDT antenna

connection.

3. Mount the OutdoorSignal Antenna (#4on Parts List) vertically on any metal surface on the roof,

hood or trunk of the vehicle.

MAN-5446-001 Rev 7 8

4. Connect the Outdoor Signal Antenna connector to the ClearRF amplifier SMA connector marked

“Antenna”.

5. Plug the 12V Hardwire DC Cable (#3 on Parts List) into the vehicle fuse block. You must connect

the red wire to a positive terminal from the fuse panel with a3 ampere fuse rating. The black

wire should be attached to a ground of the vehicle. Power may also be provided to the amplifier

using a 12V cigarette lighter adaptor. (not included, available at www.clearrf.com)

6. Insert the Hard Wire DC Cable connector plug into the amplifier and watch the LED indicators.

LED Diagnostics

Once the amplifier is installed properly and power is applied, the LEDs will both turn on followed by

the green LED flashing. The green LEDwill flash while the amplifier increases its gain to the optimum

level. The red LED may also flash during this stage while the gain (power) is properly set on the

amplifier. When power control is established, the green LEDwill remain constantly on. You may see

the green and red LEDs flash back and forth, THIS IS NORMAL. In areas where the cellular network is

adequate, the amplifier will maintain a maximum power level acceptable for normal operati on and

prevent overloading the wireless phone, as well as keeping RF signal levels at aminimum for a

healthy environment. If the red LED is constantly on and the green LED is off, the amplifier has

detected a fault. The amplifier will shut down automatically and restart. If the fault persists,

reposition the antenna until normal operation is achieved. - Once normal operation is established,

you may permanently mount the antennas in the locations you chose in the prior steps.

MAN-5446-001 Rev 7 9

Diagnostic LED definitions

1. Solid Green and Red –LED test, the unit is initializing

2. Solid Green –Normal operation

3. Flashing Green –Normal operation, increasing gain setting

4. Solid Green and Flashing Red –Normal operation, decreasing gain setting

5. Solid Red and no Green –Fault detected (Unit will shut down until power is cycled.)

Optional Accessories

parts and additional accessories may also be available.

Passive Bypass Technology –Patent Pending

The WRE2710 amplifier is equipped with ClearRF’s Passive Bypass technology. This feature allows the

amplifierto passively bypass itself and become merely a pass through cable when amplification is not

necessary, during loss of power or when a fault is detected.

Passive Bypass technology is useful in applications wherethe amplifieris mobile, moving in and out of

poor signal areas. The amplifierwillbypass itself when close to cell towers, completely eliminating any

potential for network disrupting noise power caused by too much amplification near a cell tower. The

technology is also extremely useful in fire and security system installations where a connection with the

antenna must always be maintained, even with loss of power.

MAN-5446-001 Rev 7 10

WRE2710 Specifications

Frequency Range: Cellular 850 (824MHz –894MHz), PCS 1900 (1850MHz –1990MHz)

20dB BW: 850 UL: 39MHz, 1900 UL: 115MHz

Rated Uplink Maximum Output Power: Cellular 850; 27dBm, PCS 1900; 27dBm

Rated Downlink Maximum Output Power: Cellular 850; -20dBm, PCS 1900; -20dBm

Current Draw @ 12VDC: Idle: 250 milliamperes; Max: 1 amperes

Power Requirement: 8.0 to 36.0 volts DC (negative ground), Connector is center positive

Nominal Gain: Cellular 850: 15dB, PCS 1900: 15dB

Input/output Impedance: 50Ohms

Rated Mean Output Power: 27dBm

FCC ID: XS7-WRE2710

IC ID: 8918A-WRE2710

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1 ) this

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

The term “IC:” before the radio certification number only signifies that Industry of Canada technical

specifications were met. The Manufacturer's rated output power of this equipment is for single carrier

operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5

dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This

power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of

the device.

La puissance de sortie nominale indiquée par le fabricant pour cet appareil concerne son fonctionnement avec

porteuse unique. Pour des appareils avec porteuses multiples, on doit réduire la valeur nominale de 3,5 dB,

surtout si le signal de sortie est retransmis et qu'il peut causer du brouillage aux utilisateurs de bandes

adjacentes. Une telle réduction doit porter sur la puissance d'entrée ou sur le gain, et ne doit pas se faire au

moyen d'un atténuateur raccordé à la sortie du dispositif.

FCC Regulatory Guidance: ClearRF’s WRE2710-S operates under the rules and regulations as provided by the

Federal Communications Commission (FCC). For more information on these rules and regulations, please

contact the FCC directly at (888)-225-5322.
