Installation Manual

P2434JH-EN

2022-07

mPro400GC(D)

Integrating mPro400GC andmPro400GCD

P2434JH | 2022-07

Apex Tool Group

No partof this documentmaybe reproduced in any way or in any form,in wholeorin part,or in a natural

or machine-readable language,or transmitted on electronic, mechanical,optical, or other media,without

the express permission oftheApex Tool Group.

Disclaimer

Apex Tool Group reserves therightto modify, supplement, or improvethis document or the product with-

out prior notice.

Trademark

Cleco Production Toolsis aregistered trademark of Apex Brands,Inc.

Apex Tool Group

670 Industrial Drive

Lexington,SC29072

USA

Manufacturer

Apex Tool Group GmbH

Industriestraße1

73463 Westhausen

Germany

Content

Apex Tool Group

P2434JH | 2022-07

Content

1About this document ...............................................................................4

1.1 Otherdocuments............................................................................................. 4

1.2 Symbols in the text .......................................................................................... 4

2Distinction of Controller Types..............................................................5

3mPro400GC Replaced by mPro400GCD...............................................6

3.1 Primary/MasterController................................................................................. 6

3.2 InstallPrimary/Master Controller with Existing Secondary Controllers...................... 7

3.3 InstallPrimary/MasterController with New Secondary Controllers........................... 9

3.4 InstallPrimary/Master Controller with Secondary Controllers mPro400GC...............10

3.5 InstallPrimary/Master Controller with Secondary Controllers mPro400GCD.............12

3.6 InstallPrimary/MasterController with Two Typesof Secondary Controllers .............13

3.7 InstallPrimary/Master Controller with Secondary Controllers and Stack Lights.........15

3.7.1 mPro400GC...................................................................................................15

3.7.2 mPro400GCD ................................................................................................17

About this document

P2434JH | 2022-07

Apex Tool Group

1 About this document

This documentis intendedfor all persons who replaces mPro400GC-P/-Mby mPro400GCD-P/-M.

It contains information

•on installation

•on configurationand function.

The original languageofthis document is English.

Observe thesafety instructions listed in therespectivehardwaredescriptions!

1.1 Other documents

Number

Document

P2174BA

Hardware Description mPro400GC

P2280PM

Programming Manual S168813 mPro400GC(D) & mPro200GC(-AP)

P2300HW

Hardware Description mPro400GCD-P

P2309HW

Hardware Description mPro400GCD-M

P2349HW

Hardware DescriptionmPro400GCD-SH

1.2 Symbols in the text

italic

Menu options (e.g.,Diagnostics)inputfields,check boxes,radiobuttons or dropdown

menus.

Indicatesselection ofamenu option fromamenu, e.g., File > Print.

<...>

Specifies switches,pushbuttons or thekeys ofan external keyboard, e.g., <F5>.

Courier

Indicates Filenames and paths,e.g., setup.exe.

•

Indicates lists,level 1.

Indicates lists,level 2.

Indicates options.

➢

Indicates results.

1. (...)

2. (...)

Indicates action steps.



Indicates singleaction steps.

Distinction of Controller Types

Apex Tool Group

P2434JH | 2022-07

2 Distinction of Controller Types

There are two types ofGlobalController:

•mPro400GC: only for analog tools

•mPro400GCD: for analog and digital tools

For controllers produced after November 2017, the softwareautomatically recognizes the controller type.If

the softwaredoes notautomatically recognizethecontroller type,thetypehas to be confirmed manually.

Which controllertypeis used can be determined on thebottomside:

•for Series on the type plate

•mPro400GCD-P have a second connection for NeoTek tools

Fig. 2-1: mPro400GCD-P

Fig. 2-2: mPro400GCD-P

Controller type

mPro400GC

mPro400GCD

Primary

mPro400GC-P

mPro400GCD-P

Master

mPro400GC-M

mPro400GCD-M

Secondary

mPro400GC-S

mPro400GCD-S(H)

Comparison of mPro400GCand mPro400GCD

Feature

mPro400GC

mPro400GCD-P/-M

mPro400GCD-S(H)

TSnet connection

Yes

ARCNet (System Bus) con-

nection:Connection to

mPro400GC-S, BTS spindles,

System Bus Accessories

(sockettrays,stack lights,I/O

boxes)

Yes

TSnet connection:Connection

to mPro400GCD-S(H)

Yes

Rangeof inputpower

115 V or 230 V

100 240 V AC

Power supply

GFCI, single-phase

Switch mode powersupply with PFC,single-

phase

UL certified

Yes

mPro400GC Replaced by mPro400GCD

P2434JH | 2022-07

Apex Tool Group

3 mPro400GC Replaced by mPro400GCD

If mPro400GC-P/-M is replaced by mPro400GCD-P/-M, certain things need to be considered.Beloware

various scenarios and procedures for exchangingcontroller types.

3.1 Primary/Master Controller

Scenario

•mPro400GC-P/-M is replaced by mPro400GCD-P/-M

•No Secondary controllersconnected

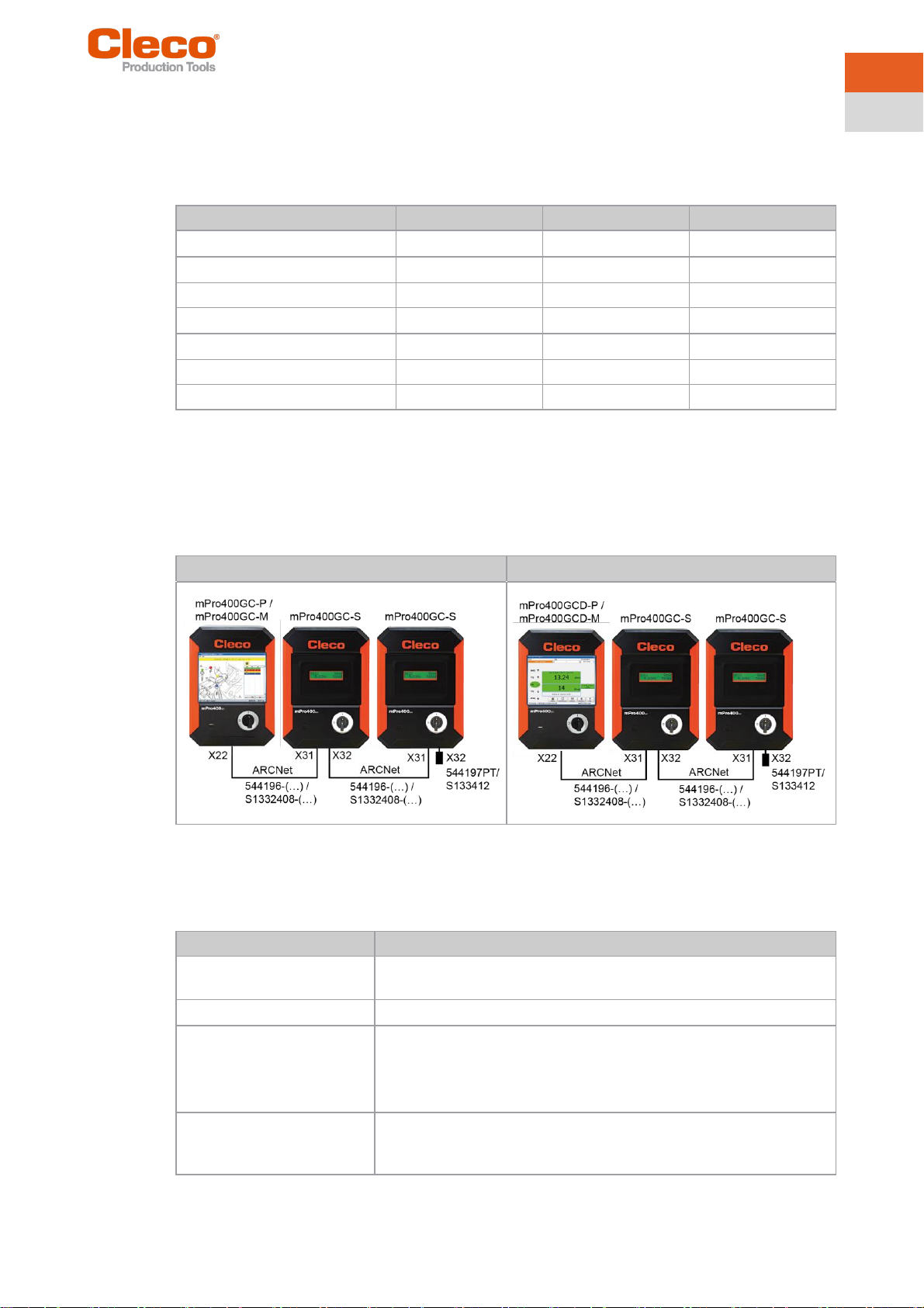

Old system layout

New system layout

mPro400GC-P/

mPro400GC-M

mPro400GCD-P/

mPro400GCD-M

Abb. 3-1: Primary/Master controller mPro400GC

Abb. 3-2: Primary/Master controller mPro400GCD

Conditions for New System Layout

Type

Indication

Software version

mPro400GCD-P/-M: S168813-1.8.0 or newer.

Operating system

2.7

Procedure

Save parameters from mPro400GC-P/-M

1. Select Navigator > Administration > Save Parameters.

➢The Save Parameters dialog opens.

2. Select the storagelocation and confirmwith <OK>. The parameters can be stored on an internal stor-

age device(CF card) or a connected USBdrive.

3. Press <All> to save all parameters.

4. DisconnectmPro400GC-P/-Mand connectmPro400GCD-P/-M. See documentation P2300HW or

P2309HW.

Set up mPro400GCD-P/-M

1. Start mPro400GCD-P/-M.

2. Ensure that hybrid-capablesoftwareisused.The softwarehas to be S168813-1.8.0 or newer.

3. Ensure that thecurrent version oftheoperatingsystemisused.Theoperating systemhasto be 2.7 or

newer.

Load parameters from an internal storage device (CF card) or a connected USB drive to

mPro400GCD-P/-M

1. If the parameters have been saved on theCF card,inserttheold CF card into mPro400GCD-P/-M. If

the parameters havebeen saved on theUSB drive,inserttheUSB driveinto mPro400GCD-P/-M.

2. Select Navigator > Administration > Load Parameters.

➢The Load Parameters dialog opens.

3. Select the previouslysaved parameters and confirmwith <OK>.

4. Press <All> to load all parameters.

mPro400GC Replaced by mPro400GCD

Apex Tool Group

P2434JH | 2022-07

Adjust Programmable I/O Mapping

1. Select Navigator > Tool Setup > I/O.

2. Confirmthemessages with <Run it> and <Continue>.

➢The Programmable I/O Mapping dialog opens.

3. Re-parameterize the start switch and thetool light.All signals fromPM_DIDO haveto be changed to

TM_DIDO.

Signal

Input/Output

Bit PM_DIDO

Bit TM_DIDO

Tool Group Start(SA)

Input

Reverse (TM_LL)

Input

Function button 2

Input

Status (YellowLED)

Output

Tool OK1 (Green LED)

Output

Tool NOK 1 (Red LED)

Output

Blue LED

Output

4. Confirmthechangewith <OK> and <Accept>.

3.2 Install Primary/Master Controller with Existing Secondary Controllers

Scenario

•mPro400GC-P/-M is replaced by mPro400GCD-P/-M

•Existing mPro400GC-Sused

Old system layout

New system layout

Abb. 3-3: Primary/Master controller mPro400GC

with Secondary controller mPro400GC

Abb. 3-4: Primary/Master controller mPro400GCD

with Secondary controller mPro400GC

Conditions for New System Layout

Type

Indication

Software version

mPro400GCD-P/-M: S168813-1.8.0 or newer.

mPro400GC-S: S168025-510

Operating system

2.7

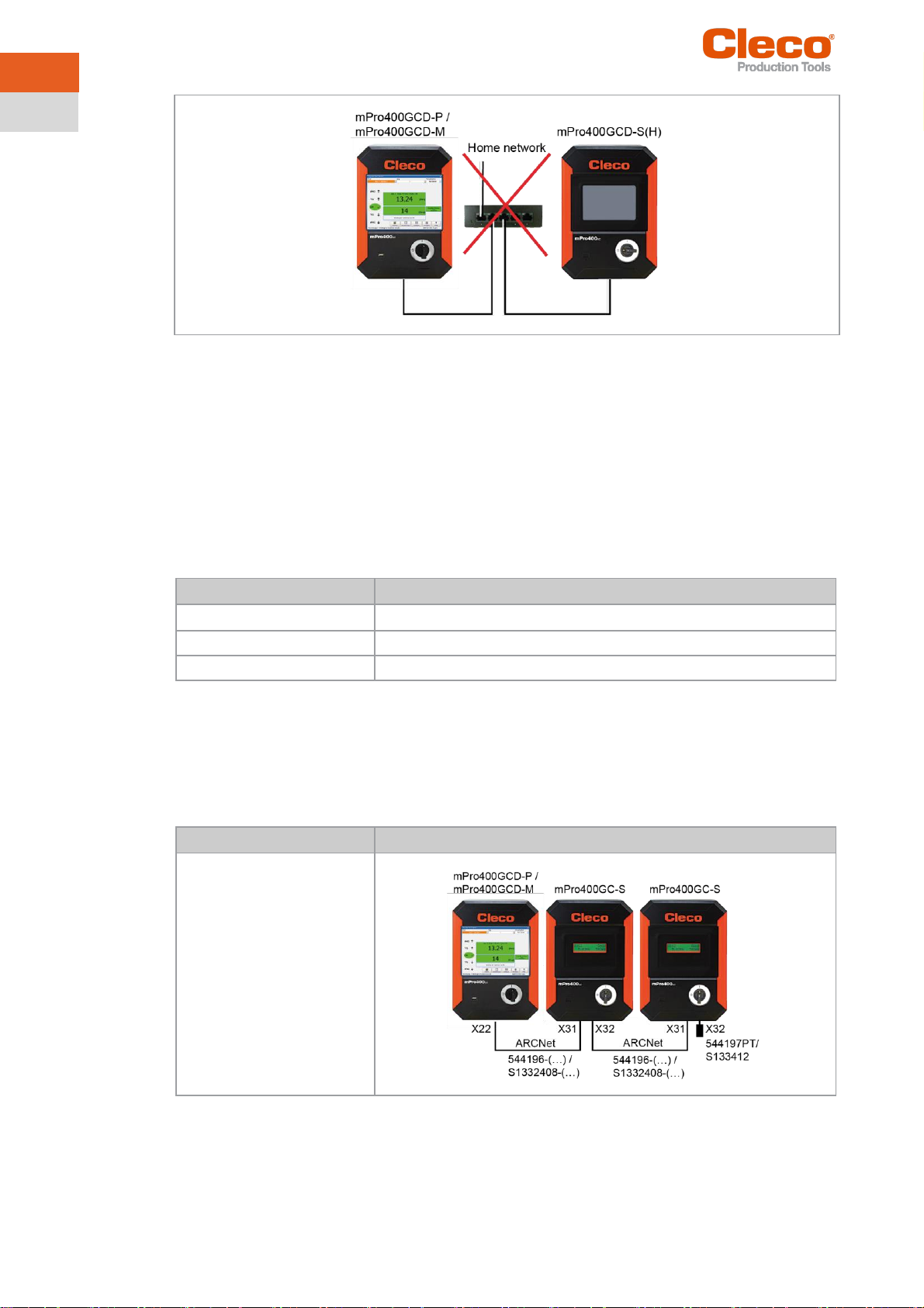

Cables

mPro400GCD-P/-M to mPro400GC-S.

System Bus cable:

•Order no.US: 544196-(...)

•Order no.EU: S1332408-(...)

System Bus terminator

Only required for mPro400GC-S:

•Order no.US: 544197PT

•Order no.EU: S133412

mPro400GC Replaced by mPro400GCD

P2434JH | 2022-07

Apex Tool Group

Procedure

Save parameters from mPro400GC-P/-M

1. Select Navigator > Administration > Save Parameters.

➢The Save Parameters dialog opens.

2. Select the storagelocation and confirmwith <OK>. The parameters can be stored on an internal stor-

age device(CF card) or a connected USBdrive.

3. Press <All> to save all parameters.

4. DisconnectmPro400GC-P/-Mand connectmPro400GCD-P/-M. See documentation P2300HW or

P2309HW.

Set up mPro400GCD-P/-M

1. Use the System Bus cable to connectmPro400GCD-P/-Mand mPro400GC-S. See documentation

P2300HW or P2309HW. Use followinginputs and outputs:

2. Ensure that hybrid-capablesoftwareisused.The softwarehas to be S168813-1.8.0 or newer.

3. Ensure that thecurrent version oftheoperatingsystemis used.Theoperating systemhasto be 2.7 or

newer.

-mPro400GCD-P/-M: output X22

-mPro400GC-S: inputX31

4. Use the System Bus cable to connectadditionalmPro400GC-Sto the previousmPro400GC-Sif nec-

essary.Use following inputs and outputs:

-Previous mPro400GC-S: outputX32

-Following mPro400GC-S:inputX31

5. Connect theSystem Bus terminator to X32 at the lastmPro400GC-S.

6. Start mPro400GCD-P/-M.

7. Ensure that hybrid-capablesoftwareisused.The softwarehas to be S168813-1.8.0 or newer.

8. Ensure that thecurrent version oftheoperatingsystemisused.Theoperating systemhas to be 2.7 or

newer.

Load parameters from an internal storage device (CF card) or a connected USB drive to

mPro400GCD-P/-M

1. If the parameters have been saved on theCF card,inserttheold CF card into mPro400GCD-P/-M. If

the parameters havebeen saved on theUSB drive,inserttheUSB driveinto mPro400GCD-P/-M.

2. Select Navigator > Administration > Load Parameters.

➢The Load Parameters dialog opens.

3. Select the previously saved parameters and confirmwith <OK>.

4. Press <All> to load all parameters.

Adjust Programmable I/O Mapping

1. Select Navigator > Tool Setup > I/O.

2. Confirmthemessages with <Run it> and <Continue>.

➢The Programmable I/O Mapping dialog opens.

3. Re-parameterize the start switch and thetool light.All signals fromPM_DIDO haveto be changed to

TM_DIDO.

Signal

Input/Output

Bit PM_DIDO

Bit TM_DIDO

Tool Group Start(SA)

Input

Reverse (TM_LL)

Input

Function button 2

Input

Status (YellowLED)

Output

Tool OK1 (Green LED)

Output

Tool NOK 1 (Red LED)

Output

Blue LED

Output

4. Confirmthechangewith <OK> and <Accept>.

mPro400GC Replaced by mPro400GCD

Apex Tool Group

P2434JH | 2022-07

3.3 Install Primary/Master Controller with New Secondary Controllers

Scenario

•mPro400GC-P/-M is maintained

•mPro400GCD-S(H) is added

Old system layout

New system layout

mPro400GC-P/

mPro400GC-M

Abb. 3-5: Primary/Master controller mPro400GC

Abb. 3-6: Primary/Master controller mPro400GCwith

Secondary controller mPro400GCD

Conditions for New System Layout

Type

Indication

Software version

mPro400GC-P/-M: S168813-1.8.0 or newer

mPro400GCD-S(H): S168025-510

Operating system

2.7

Cables

mPro400GC-P/-M to mPro400GCD-S(H)

RJ45 to TSnet cable: Order no.962275-(...)

mPro400GCD-S(H) to mPro400GCD-S(H)

TSnet cable: Orderno 962037-(...)

Procedure

Parameterize ethernet interface

1. Select Navigator > Communication > Network Settings.

2. Enter the ethernetsettings in EthernetCard 2:

Parameter

Value

IP Address

192 168 245 200

Subnet Mask

255 255 255 0

Set up mPro400GC-P/-M

1. Use the RJ45 to TSnet cable to connectmPro400GC-P/-M and mPro400GCD-S(H). See documenta-

tion P2174HW. Use following inputs and outputs:

-mPro400GC-P/-M: output X1

-mPro400GCD-S(H): inputX22 (TSnet in)

The TSnet cable may notbe connected to theinfrastructurenetwork.

mPro400GC Replaced by mPro400GCD

P2434JH | 2022-07

Apex Tool Group

2. Use the TSnet cable to connectadditionalmPro400GCD-S(H)to thepreviousmPro400GCD-S(H) if

necessary.Use following inputsand outputs:

-Previous mPro400GCD-S(H): outputX21 (TSnet out)

-Following mPro400GCD-S(H):inputX22 (TSnet in)

3. Start mPro400GC-P/-M.

4. Ensure that hybrid-capablesoftwareisused.The softwarehas to be S168813-1.8.0 or newer.

5. Ensure that thecurrent version oftheoperatingsystemisused.Theoperating systemhas to be 2.7 or

newer.

Install Secondary controllers

1. Select Navigator > Tool Setup > Install.

➢The Assign Tool dialog opens.

2. The followingsettingsarerequired:

Parameter

Description

Group Name

Select tool group.Itis possibleto selectup to 16 tool groups.

Name

Assign aname to the Secondary.

Type

Select Secondary.

3. Confirmwith <OK>.

3.4 Install Primary/Master Controller with Secondary Controllers mPro400GC

Scenario

•mPro400GC-P/-M is replaced by mPro400GCD-P/-M

•No Secondary controllersconnected

Old system layout

New system layout

Abb. 3-7: Primary/Master controller mPro400GCD with Secondary control-

ler mPro400GC

Altri manuali per DGD mPro400GC

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cleco Controllori

Cleco

Cleco mPro400GCD-M Manuale utente

Cleco

Cleco DGD mPro400GC Manuale del proprietario

Cleco

Cleco DGD mPro400GC Manuale utente

Cleco

Cleco DGD mPro400GC Guida

Cleco

Cleco mPro400GCD-P Guida

Cleco

Cleco mPro300GCD-STO Manuale utente

Cleco

Cleco CellCore 200 Series Guida

Cleco

Cleco TME-100 Manuale del proprietario

Cleco

Cleco mPro400GCD-P Guida

Cleco

Cleco mPro400GCD-S Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
