Cleode ZigBee ZMOVE Manuale utente
S.A. au capital de 167 200 €
R.C.S. Saint Brieuc TGI 450 570 767
Siège social : 8 rue Bourseul 22300 Lannion France
Tél. : +33 (0) 2 96 48 68 18 – Fax : +33 (0) 2 96 48 19 11
ZigBee Motion Detector
ZMOVE
User Manual
Revision: 4.0
Document: UM_ZMOVE_20090731_001_04_00
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 2 sur 18
WARRANTY
The device supplied to the buyer and/or the recipient is guaranteed by CLEODE against any
malfunctions originating from a design and/or manufacturing flaw, for a period of twelve (12)
months following delivery. The buyer and/or recipient is (are) responsible for proving the
existence of the said defects or flaws. This warranty is applicable in accordance with articles
1641 to 1648 of the French Civil Code and in compliance with the French statutory warranty.
The warranty covers the replacement free of charge of devices and parts affected by a design
and/or manufacturing flaw excluding conspicuous defects in the device that are covered by
the buyer and/or the recipient.
In order to invoke the warranty, the buyer must immediately send written notice to CLEODE
of the flaws that it attributes to the device. It must enable CLEODE to have access to the
device to observe these defects and repair them. The warranty provided by CLEODE is
strictly limited to the equipment provided and shall only have for effect the replacement or
repair, at CLEODE’s expense, on its own premises, of all devices or parts that are not
functioning as a result of defects or flaws. CLEODE reserves the right to modify the devices
in order to comply with the warranty.
The warranty does not apply to replacement or repairs that may result from normal wear and
tear of devices, systems or products, damage or accidents resulting from negligence, failure to
supervise or maintain, or incorrect use of the devices, systems and/or products.
The maintenance service is provided by CLEODE with all reasonable care possible and in
compliance with the current state of the arts.
The exchange of parts or repairs performed under the warranty cannot result in extending the
length of the warranty. In no event can the unavailability of the device due to servicing give
rise to compensation for any reason whatsoever. The seller is released from all obligations
relating to the warranty if the product or device has been modified without prior written
consent, or if original parts have been replaced by parts which it has not manufactured
without prior consent. If unforeseen damage is caused by the device, it is expressly agreed
that the seller can only be liable for the reimbursement of monies received for the purchase of
the device if it has been destroyed. Under no circumstances can the seller be held liable for
indirect or contingent damage. The seller is released from any liability and the buyer waives
any rights against it if an accident or direct or indirect damage is caused to the buyer
following a defect, incorrect usage, incorrect maintenance or normal wear of the device sold.
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 3 sur 18
TABLE OF CONTENT
WARRANTY ......................................................................................................................................... 2
REFERENCE DOCUMENTS ............................................................................................................. 5
IINTRODUCTION ........................................................................................................................... 6
I.1 ZIGBEE MOTION DETECTOR PRESENTATION .............................................................................. 6
I.2 COPYRIGHT ................................................................................................................................... 7
II MOTION DETECTOR DESCRIPTION .................................................................................... 8
II.1 ZIGBEE PRESENTATION .............................................................................................................. 8
II.2 MOTION DETECTOR APPLICATION ............................................................................................. 8
II.2.1 OPEN DOOR DETECTOR APPLICATION DESCRIPTION................................................................... 8
II.2.2 CLUSTERS DESCRIPTION ............................................................................................................. 9
III INSTALLATION AND NETWORK ASSOCIATION .......................................................... 11
III.1 INSTALLATION.......................................................................................................................... 11
III.1.1 DOUBLE-SIDED TAPE INSTALLATION ...................................................................................... 11
III.1.2 SCREW INSTALLATION ............................................................................................................ 11
III.1.3 CHANGE THE BATTERIES ......................................................................................................... 13
III.2 STARTING UP ZMOVE............................................................................................................ 14
III.3 RESTART OF THE ASSOCIATION PHASE .................................................................................. 15
III.4 RESET........................................................................................................................................ 15
IV TECHNICAL FEATURES........................................................................................................ 16
REPAIR AND MAINTENANCE ...................................................................................................... 17
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 4 sur 18
TABLE OF REVISIONS
Version Authors(s) Version description Date
0.1 CLEODE Initial version 08/02/2009
1.0 CLEODE Validated document 08/04/2009
1.1 CLEODE Minor corrections 04/09/2009
2.0 CLEODE Validated document 04/09/2009
2.1 CLEODE Add Technical features chapter 24/09/2009
3.0 CLEODE Validated document 24/09/2009
3.1 CLEODE Updated to new design 09/09/2011
4.0 CLEODE Validated document 14/09/2011
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 5 sur 18
REFERENCE DOCUMENTS
N° Document Description
[1] ZigBee_Cluster_Library_Public Spécification de la Zigbee Cluster Library
[2] ZigBee_Home_Automation_Profile
Spécification du profile Home Automation
[3] ZigBee_Specification Spécification de la norme ZigBee
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 6 sur 18
I INTRODUCTION
I.1 ZIGBEE MOTION DETECTOR PRESENTATION
The motion detector has this form:
The detector of presence ZigBee ™ ( ZMOVE) contains an infrared sensor allowing to detect
the movements in a room in a maximum 10 meter.
Association light and
button
Sensor PIR
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 7 sur 18

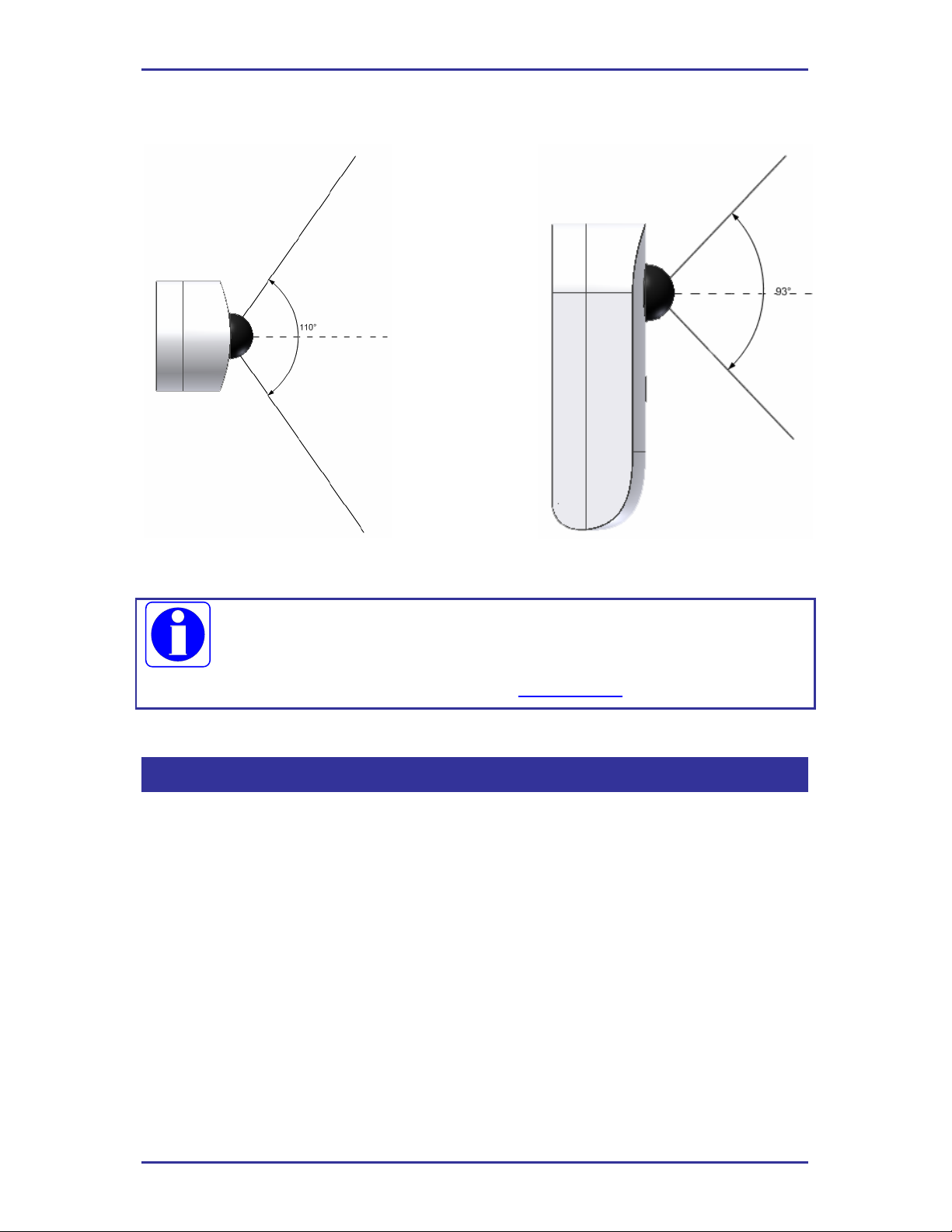

He can detect a person on 110 ° horizontally and on 93 ° vertically.
The ZMove module Zigbee ™ works in conjunction with a Zigbee coordinator ™
compatible stack pro 2007.
CLEODE also markets Coordinators Zigbee™.
I.2 COPYRIGHT
The CLEODE trademark and the CLEODE logo are properties of CLEODE SA, France. This
document also refers to trademarks and other product names that are registered trademarks of
their respective owners.
Copyright © 2009 CLEODE SA. All rights reserved.
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 8 sur 18
II MOTION DETECTOR DESCRIPTION
II.1 ZIGBEE PRESENTATION
The ZigBee™ motion detector contains an application of motion detector of type Occupancy
Sensing defined in the standard Home Automation (Cf. document [2]). It also integrates a
cluster ON/OFF allowing to send ON commands or OFF to an object also containing this
cluster.
This object ZigBee ™ is in accordance with the standard ZigBee ™ PRO 2007 and in the
profile Home Automation. For more details of the exchanged data, please refer to documents
[1], [2] et [3].
II.2 MOTION DETECTOR APPLICATION
The motion detection is made through a report value , on the cluster Occupancy sensing,
towards the objects which have a binding, on this cluster, with the ZMOVE. This application
is part of profile Home Automation.
In every motion detection, the ZMOVE will send an ON command to the objects which have
a binding with the ZMOVE on the cluster ON / OFF. The OFF command will be sent every
time at the end of the motion detection.
II.2.1 OPEN DOOR DETECTOR APPLICATION DESCRIPTION
Device ID : Occupancy Sensor
Endpoint : 1
Clusters :
Server Client
Basic (0x0000) On/Off (0x0006)
Power_Configuration (0x0001) /
Identify (0x0003) /
Alarms (0x0009) /
Occupancy_Sensing (0x0406) /
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 9 sur 18
II.2.2 CLUSTERS DESCRIPTION
This is a terse description of clusters and attributes which are implemented in the ZMOVE.
For more detail on these, see document [1].
Basic cluster :
This cluster is used to determine basic information about the device.
Attribute Attribute ID
ZCLVersion 0x0000
ApplicationVersion 0x0001
StackVersion 0x0002
HWVersion 0x0003
ManufacturerName 0x0004
ModelIdentifier 0x0005
DateCode 0x0006
PowerSource 0x0007
LocationDescription 0x0010
PhysicalEnvironment 0x0011
DeviceEnabled 0x0012
AlarmMask 0x0013
Power Configuration cluster:
This cluster is used to specify the min threshold of battery level by setting the
BatteryVoltageMinThreshold attribute value.
Attribute Attribute ID
BatteryAlarmMask 0x0035
BatteryVoltageMinThreshold 0x0036
Identify cluster :
This cluster is used to put a device into an identification mode. By writing the
IdentifyTime attribute value, the user asks the device to blink the light, during a number of
seconds specified by this value.
Attribute Attribute ID
IdentifyTime 0x0000
ZMOVE – User Manual
UM_ZMOVE_20090731_001_04_00 CLEODE Page 10 sur 18
Alarms cluster:
This cluster is used to signal an alarm. In the case of ZMOVE, only the low battery power
level is processed. If the battery power level is too low (under 2,4V) the AlarmCount
value changes to 1 and a command message is send to coordinator.
Attribute Attribute ID
AlarmCount 0x0000
Occupancy sensing:
This cluster is used to signal a motion or not by Occupancy attribute. On motion detection
and at the end of detection on report of Occupancy attribute value is transmitted on the
network.
Attribute Attribute ID
Occupancy 0x0000
OccupancySensorType 0x0001
PIROccupiedToUnoccupiedDelay
0x0010
Indice
