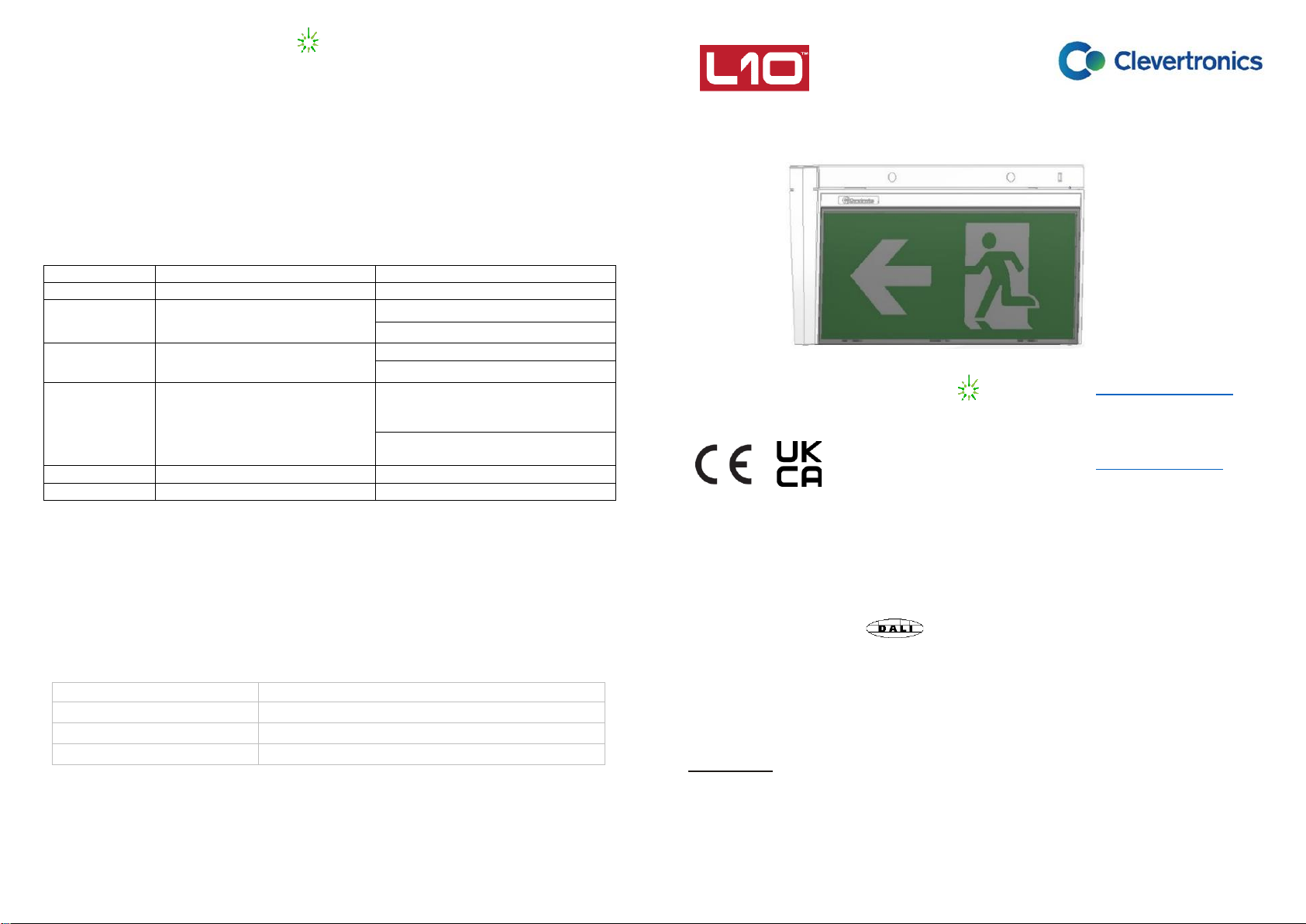

Clevertronics L10 Cleverfit Pro Istruzioni per l'installazione e il funzionamento

1944028

V1.3

9 December 2022

UK Instruction Sheet Template –V1.4 –Updated: 09/03/2022

Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

Zoneworks, HIVE and DATA Monitored Options

Fittings with part numbers -ZW, -HVG, -DATA are fitted with Zoneworks communications modules

(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power

cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated

data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also

be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,

coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a

single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides

a multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HVG, DATA

Commissioned

LED on Solid (Green)

ZW, DATA

Un-commissioned

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG

Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG

Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off

250mS, red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate

connection and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting

please confirm that the Lighting Control System has the capability to monitor DALI Emergency

Luminaires. The -DALI fitting will be addressed and configured into the control system by the Lighting

Control System Commissioning Technicians and not Clevertronics

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress

LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND”

Lamp and Status LED Flash for 30 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network OR a

5/6way “structured wiring system” lead and plug facilitating the power and DALI connection. DALI

connections are marked as Da Da.

L10™Cleverfit Pro LED Exit

Installation & Maintenance Instruction Leaflet

Australia (Head Office)

Website: www.clevertronics.com.au

Email: [email protected]om.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

UK OFFICE

Website: www.clevertronics.co.uk

362 Stockley Close

West Drayton UB7 9BL

Phone: 01895 430 255

NOTE: Standard product codes with this symbol are

enabled with Clevertest Plus capability. Please refer to the

operation guide supplied with the product for details.

IP20

Models:

LCFPRO-xx

Testing:

Manual Test

xx = Blank

Zoneworks

xx = ZW

Z/W DATA

xx = DATA

Zoneworks HIVE

xx = HVG

DALI Registered.

xx = DALI

Spare Parts:

1530030

Replacement Battery

8002710

Replacement Emergency LED Board

8003167

Replacement Emergency Driver (-CTP/ -ZW)

8003166

Replacement Emergency Driver (- DALI/ -HIVE)

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant British Standards.

1944028

V1.3

9 December 2022

UK Instruction Sheet Template –V1.4 –Updated: 09/03/2022

Installation:

The L10 Cleverfit Pro can be installed either Ceiling or Wall Mounted. The L10 Cleverfit Pro uses a “slide

connect bracket base” that is mounted and wired into position first. The main body can be installed once

the base is wired or later to avoid damage during the construction phase. Please follow the steps below

to install the L10 Cleverfit Pro Exit:

•Disengage the slide connect bracket from the exit body, using flat screwdriver.

•Position the base in the mounting position.

•Using the bracket as a guide, mark 2 holes for mounting and one for mains access. Then install the

bracket using appropriate fixings (not supplied).

•Configure all the mounting parts and cable entry points as below (if required) and engage the body

into the slide connect bracket.

•Connect mains and fit check Terminal Block Cover.

•then that the L10 Cleverfit Pro Exit is Operational.

•If the CTP capabilities are activated, please affix the CTP Status Label to a visible surface.

•If flexible wiring is connected to this luminaire and is within arm's reach, the wiring shall be

effectively fixed to the wall to reduce the risk of strangulation.

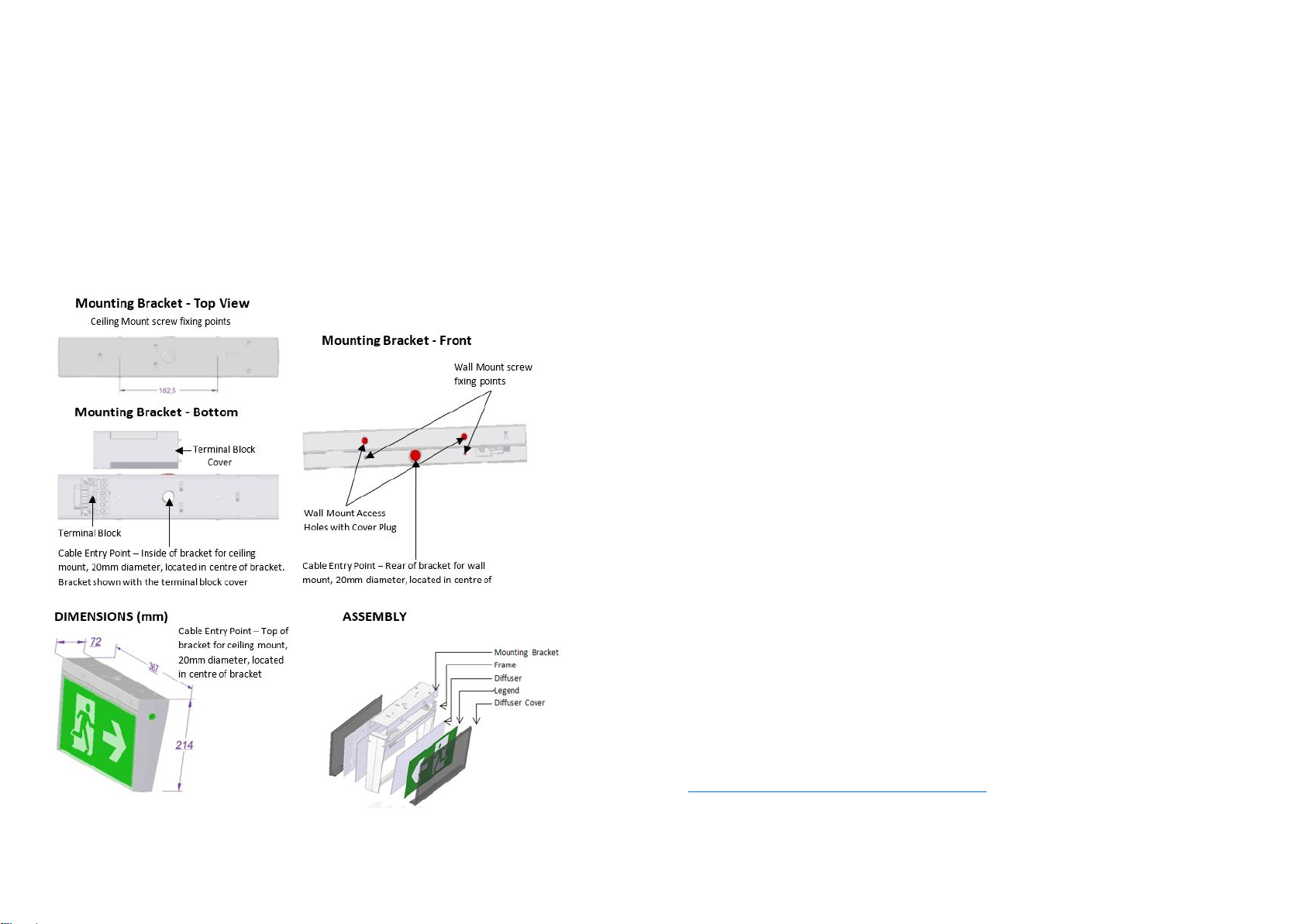

Dimensions:

Note:

This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-user

replaceable light source and battery - to be replaced (if required, refer installation instructions for battery

replacement) by Clevertronics service personnel/agents or a registered electrician.

Battery Replacement:

1. Prior to any work, isolate the power to the luminaire that requires battery replacement

2. Remove fitting from mounting bracket.

3. Remove Emergency Driver cover from top and disconnect the battery connector.

4. Remove battery from holder (Cut cable tie).

5. Replace battery (secure with a new cable tie) and connect to Emergency Driver.

6. Reinstall the fitting onto the mounting bracket.

Testing Procedure:

When the unit is connected to the un-switched active, it must be allowed to charge the battery for at

least 24 hours. The emergency lamp only illuminates during a power fail. Conduct the following tests:

•The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the

unit fails to illuminate for the requisite time, remedial action must be taken to repair the situation

and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The Li-ion battery in the Exit & Emergency Unit has been selected to give

excellent long life performance in a controlled IEC 60598-2-22 testing environment. Excessive battery

cycling will reduce through-life performance and may lead to premature battery failure. Battery warranty

claims, as a result of such abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

https://clevertronics.co.uk/product-warranty-statement/
