ClimateMaster ATC32U01 iGate Istruzioni per il montaggio
ATC32U01 Basic Operation Guide
Communicating Programmable Thermostat

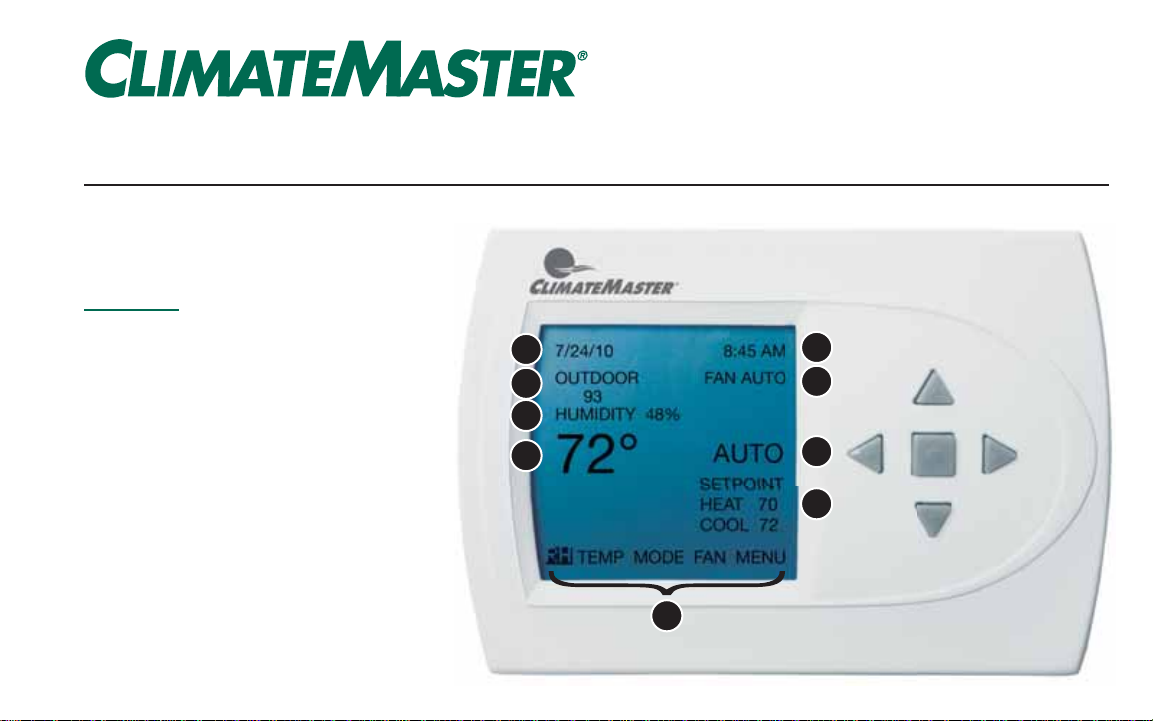

Display
1 Date
2 Outdoor Temperature (Optional)
3 Current Humidity Level
4 Indoor Temperature
5 Time
6 Fan Mode
7 Operating Mode
Off, Cool, Heat, Emergency Heat
8 Temperature Setpoints
9 User Options
{
5
1
2
47
8
9
6
3
1
• From the main menu select Mode
Select one of the following:
• OFF - Turns unit off
• AUTO - Automatically cool or heat
based on setpoint
• COOL - Cool down to the cool set-
point temperature
• HEAT - Heat up to the heat setpoint
temperature
• EMERGENCY HEAT - Turn on backup
heating source to heat up to heat
setpoint temperature (optional)
Select enter button to save settings
69°
RH 41%
10/13/11 8:27 AM
FAN AUTO
HUMID ON
AUTO
SETPOINT
HEAT 62
COOL 82
RH
TEMP
FAN
MENU
MODE
68°
RH 41%
10/13/11 8:25 AM
FAN AUTO
HUMID ON
AUTO
SETPOINT
HEAT 62
COOL 82
RH
FAN
MENU
TEMP
MODE
AUTO
OPERATING MODE MENU
SAVE
OFF
COOL
HEAT
EMERGENCY
PREVIOUS
CHANGE
MODE
HEAT
70°
COOL
HOLD THIS
TEMPERATURE
UNTIL 5:00 PM
CHANGE
SAVE
PREVIOUS
TEMP
74°
SET
HEAT
Change Temperature Setpoints
Use left-right arrow keys to select TEMP
Use left-right arrow keys to select HEAT
or COOL
Once selected, use up-down arrow
keys to change temperature setpoint
(desired temperature)
Select enter button to save settings
Select Mode
2
Use left-right arrow keys to select RH
Select on of the following:
• HUMIDITY SETTING - Desired hu-
midity when trying to humidify
the space (in heating mode, for
example)
• DEHUMID SETTING (OPTIONAL) -
Desired humidity when trying to
remove humidity from the space (in
cooling mode, for example)
Select enter button to save settings
FAN MENU
SAVE
CONTINUOUS ON
HEAT
PREVIOUS
SELECT OPTION
PROGRAMMED FAN
AUTO
42%
HUMIDITY
HUMIDITY CONTROL
HUMIDITY SETTING 40%
DEHUMID SETTING 60%
69°
RH 40%
10/13/11 8:27 AM
FAN AUTO
OFF
RH
TEMP
MENU
FAN
MODE
70°
RH 38%
10/12/11 5:22 PM
FAN AUTO
AUTO
TEMP
MENU
FAN
MODE
HUMID ON
RH
SETPOINT
HEAT 70
COOL 78
Use left-right arrow keys to select FAN
Select one of the following:
• AUTO - Runs when the unit is heat-
ing/cooling
• CONTINUOUS ON - Runs all the
time, regardless if it is heating/
cooling
• PROGRAMMED FAN - Follows daily/
weekly schedule (see section on
daily/weekly schedule)
Select Fan Mode Select Humidity Level
3
69°
RH 40%
10/13/11 8:27 AM
FAN AUTO
OFF
TEMP
FAN
MODE
RH
MENU
MAIN MENU
SET DATE AND TIME
HOLD
SECURITY LOCKOUT
PROGRAM
FAN
MODE
SETTINGS
SELECT OPTION
PREVIOUS
TUESDAY
WEDNESDAY
COPY
THURSDAY
SATURDAY
FRIDAY
EVERY DAY
SUNDAY
WEEKENDS
WEEKDAYS
PROGRAM MENU
MONDAY
SAVE
10:00P 62 82 AUTO
SLEEP
PREVIOUS
RETURN
5:00P 70 78 AUTO
LEAVE
8:00A 62 82 AUTO
6:00 A 70 78 AUTO
WAKE HEAT COOL FAN
MONDAY
SELECT OPTION
MONDAY
PREVIOUS
TUESDAY
WEDNESDAY
COPY
THURSDAY
SATURDAY
FRIDAY
EVERY DAY
SUNDAY
WEEKENDS
WEEKDAYS
PROGRAM MENU
SELECT OPTION
PREVIOUS
TUESDAY
WEDNESDAY
WEEKENDS
THURSDAY
SATURDAY
FRIDAY
EVERY DAY
SUNDAY
COPY TO WHICH DAY?
MONDAY
WEEKDAYS
Use left-right arrow keys to select MENU
Use up-down arrow keys to select
PROGRAM
Use up-down arrow keys to select DAY
Use left-right arrow keys to select
setpoints for cooling & heating
You can also select if you want the
unitʼs fan to run while heating/cool-
ing, or continuous during that period
Select COPY to copy program from
one day to another
Use up-down arrow keys to select
day to copy FROM
Use up-down arrow keys to select
day/group of days to copy to
Select enter button to save settings
Program Daily/Weekly Schedule
4
69°
RH 40%
10/13/11 8:27 AM
FAN AUTO
OFF
TEMP
FAN
MODE
RH
MENU
MAIN MENU
SET DATE AND TIME
HOLD
SECURITY LOCKOUT
PROGRAM
FAN
MODE
SETTINGS
SECURITY LOCKOUT
SAVE
TOTAL KEYPAD LOCKOUT
PREVIOUS
SELECT OPTION
TEMP ADJUST ONLY
Use left-right arrow keys to select MENU
Main Menu
Select one of the following:
• SET DATE AND TIME
• HOLD - Over ride daily/weekly
schedule
- VACATION - Set hold temperatures
till certain day/time
- PERMANENT - Set hold temperatures
till cancelled
- CANCEL - Select CANCEL
OVERRIDE on main screen
MAIN MENU
SET DATE AND TIME
HOLD
SECURITY LOCKOUT
PROGRAM
FAN
MODE
SETTINGS
• SETTINGS - See document
97B0055N02 for more details
• SECURITY LOCKOUT
- TEMP ADJUST ONLY - Set pass
code to lockout any changes
EXCEPT changing temperature
setpoints
- TOTAL KEYPAD LOCKOUT - Set pass
code to lock out ANY changes
Select enter button to save settings
MAIN MENU
SET DATE AND TIME
HOLD
SECURITY LOCKOUT
PROGRAM
FAN
MODE
SETTINGS
MAIN MENU
SET DATE AND TIME
HOLD
SECURITY LOCKOUT
PROGRAM
FAN
MODE
SETTINGS
5
Choose CANCEL ALARM once the
filter is changed
Service Needed
Press any button for more information
The next screen will display the
model and serial number of your
ClimateMaster unit, the phone number
of your installing contractor, and
the fault code and a description of
the fault that triggered the Service
Needed screen
PRESS ANY BUTTON FOR
MORE INFORMATION
SERVICE
NEEDED
PHONE CONTRACTOR
SERVICE
NEEDED
BRAND NAME
MODEL NUMBER
SERIAL NUMBER
E7 =OVER/UNDER VOLTAG
69°
RH 28%
CHANGE AIR FILTER
FAN AUTO
OFF
FAN
MODE
RH ALARM
MENU
CANCEL
Change Filter
