clivus multrum LOW PROFILE Manuale utente
CLIVUS MULTRUM
LOW PROFILE
INSTRUCTION MANUAL
Scan QR code to find latest digital manual
IMCM-203-203.08.30
©Ecoflo Wastewater Management Pty Ltd
TABLE OF CONTENTS
SPECIFICATIONS 1
ITEMS REQUIRED (NOT INCLUDED) 2
TOOLS REQUIRED 2
SCHEMATICS 3
INSTALLATION 4
STEP 1: POSITION THE PEDESTAL 4
STEP 2: POSITION THE WASTE CHUTE 4
STEP 3: INSTALL THE WASTE CHUTE 6
STEP 4: INSTALL THE WHEELS 7
STEP 5: INSTALL THE IN-SERVICE CHAMBER 8
STEP 6: CONNECT THE VENT PIPE AND FAN 9
STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE 10
OPTIONAL EXTRAS 11
HOW TO TURN THE MIXER 11
POWERING YOUR FAN 12
LEACHATE DRAIN 13
COMPOST ACCELERATORS 14
STARTING WITH AN EMPTY CHAMBER 15
OPERATION 16
MAINTENANCE 17
ROTATING THE CHAMBERS 18
TROUBLESHOOTING 20
PRODUCT & COMPONENT WARRANTY 22
MAINTENANCE SCHEDULE 23
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 1
SPECIFICATIONS
Chamber dimensions 630mm L x 740mm (incl. handles) W x 450mm H
Underfloor clearance required Minimum 500mm
Volume per chamber 60L active space
Chamber material Roto-moulded LDPE
Power usage 12V 5W Fan & transformer
Certification
SAI Global Certification / AS/NZS 1546.2:2008 On-site
domestic wastewater treatment units - Waterless
composting toilets. This model is approved in QLD, NSW, VIC,
ACT and WA. (The products are approved only if installed as
per the installation manual)
As soon as your order arrives, even if you are not planning to install for some time, please open and
check for any breakages, damage or shortages in your order.
All transit breakages must be reported within 7 days.
See back page for contact details.

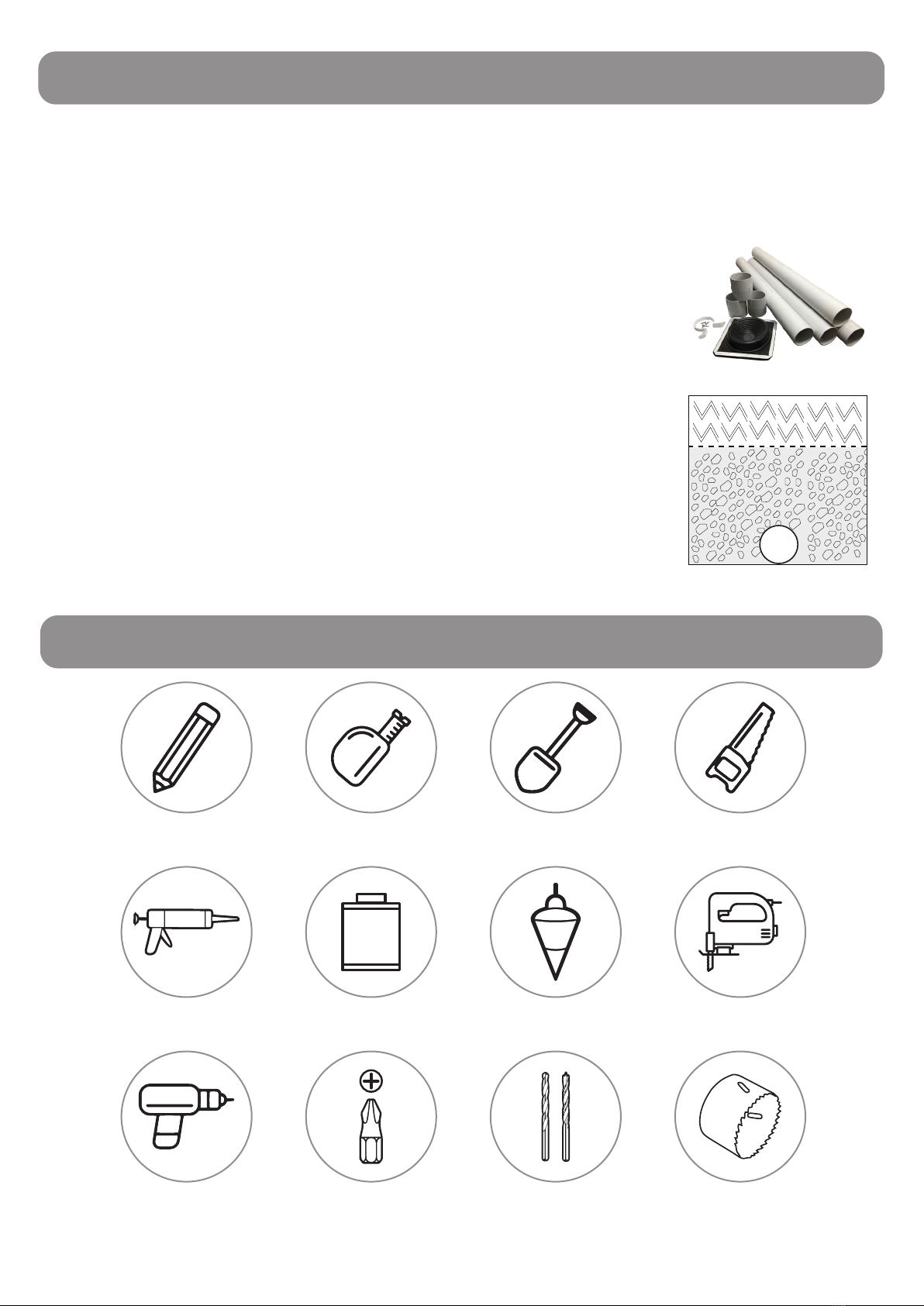

ITEMS REQUIRED (NOT INCLUDED)
You will need the following items to complete your installation.
A vent kit and drain kit are available to purchase separately from Ecoflo.
Vent items
• Wall brackets to fix the vent pipe to the building
• A length of 100mm DWV vent pipe to connect to the air exhaust (length
depends on specific installation)
• Dektite if DWV vent pipe will penetrate the roof
Leachate drain items (please check with your local authority)
• Ø100mm Agricultural pipe
• 1.5m x 0.5m Synthetic or Hessian geotextile mat
• 50mm PVC pipe to connect the hose to the agricultural pipe
• 0.30m³ 20mm Aggregate
TOOLS REQUIRED
PVC
CEMENT
SILICONE
Marker Tape Measure Shovel Hand Saw
JigsawPlumb BobPVC CementCaulk Gun
Power Drill Philips Drill Bit Masonry and Brad
Point Drill Bits Hole Saw
Drill Bit
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 3

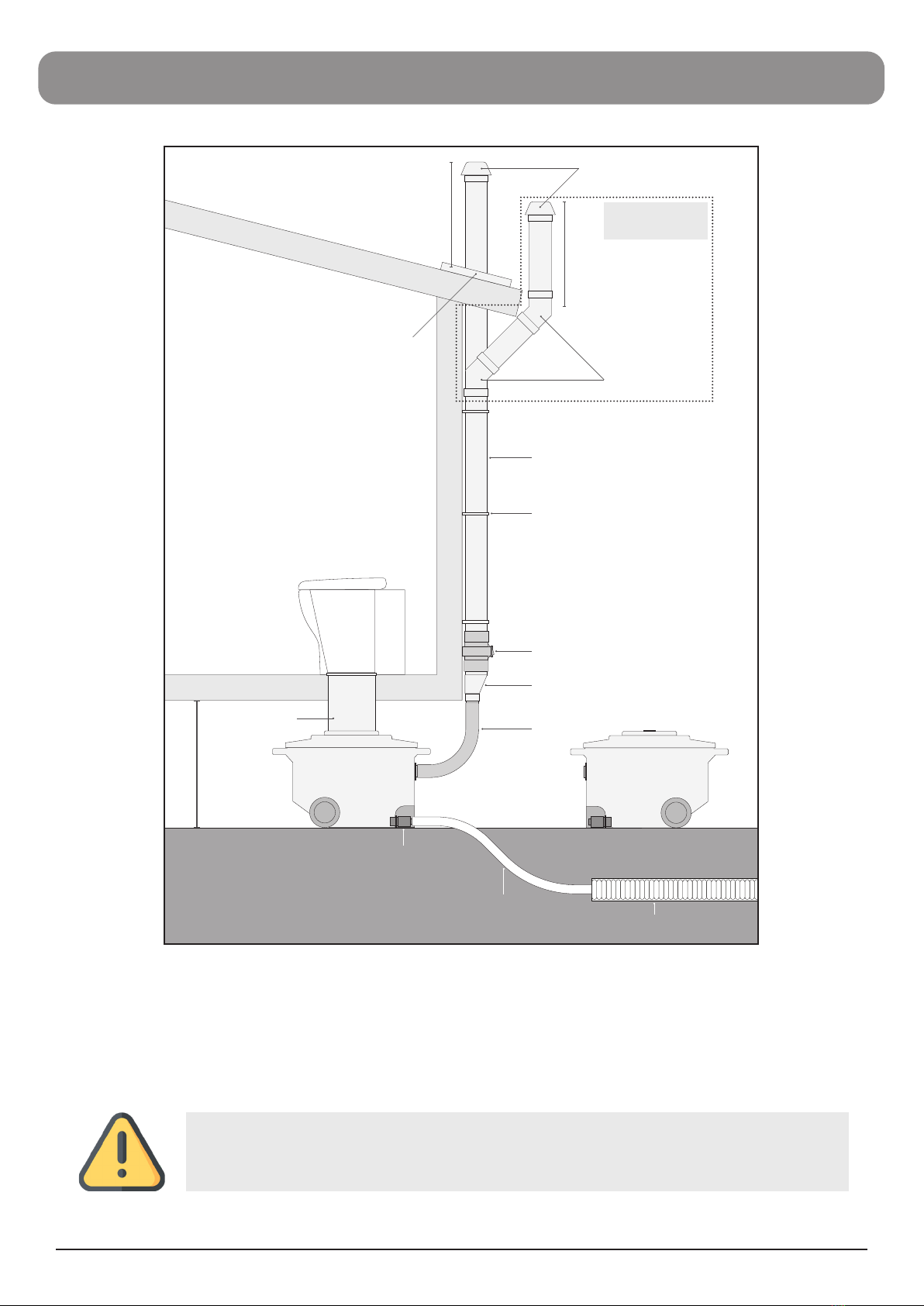

SCHEMATICS
If you are planning to excavate an area under the house for the compost
chambers, please ensure the area is well-drained and any retaining walls
are built to the satisfaction of the local authority.
Pedestal
Chute
Min. 500mm
Fan in housing
L.I.T Reducer
Vent pipe
Brackets*
*Not included in package
100mm DWV/Sewer pipe*
45° bend
Dektite*
600mm
600mm
Vent cowl
Camlock fittings
Excess liquid drain hose
Leachate drain*
In-service
chamber Out-of-service
chamber
Optional
Vent
Installation
* Not included in package.
A separate vent kit and drain kit are available to purchase from Ecoflo.
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 4
INSTALLATION
STEP 1: POSITION THE PEDESTAL
Locate the approximate area where you want the pedestal to go before cutting the hole.
The usual position for pedestals is centered between side walls.
NOTE: Due to the pedestals being man made, the distance to the center may vary from 245-255mm.
Please check before cutting the hole.
STEP 2: POSITION THE WASTE CHUTE
A 240mm hole must be cut in the toilet room floor to accommodate the waste chute.
1
Go to the underfloor area and look for
the hole you have drilled. Check to see if
there is a floor joist, water pipe or electrical
wiring under the area you are going to cut.
Following the provided pedestal floor template, mark the location of the centre hole 245-
255mm from the back wall. Drill a small hole.
Back wallSide wall
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 5

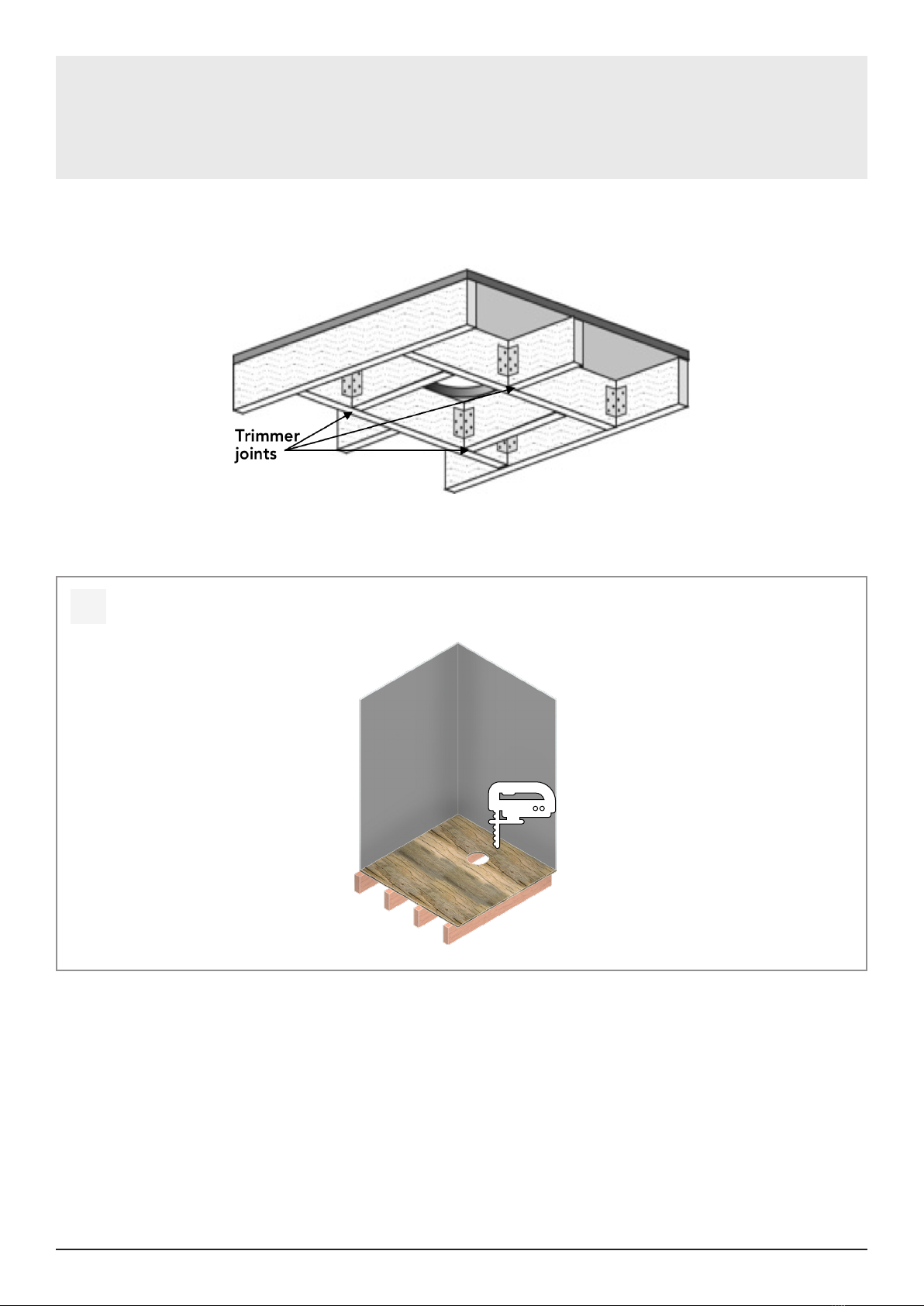

If there is a joist in the way, either reposition the waste hole OR install trimmer joists to each end
of the cut joist, and fix all connections with galvanized framing anchors with 4 nails each leg
(refer to diagram below).
View from under floor
2Following the pedestal floor template, draw a 240mm diameter circle. Cut out the hole with
a jigsaw.
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 6
STEP 3: INSTALL THE WASTE CHUTE
First ensure the pad or ground on which the ‘In-service’ chamber will reside is at its final level beneath
the toilet room. It is recommended to install a concrete pad/tiles for the chamber to sit on.
Insert the chute into the
hole
12
4
5 6
3
Slide the lid up the chute.
Cut off any excess chute length
20mm below the mark.
Seal and secure the chute to the
floor with silicone. Follow the separate pedestal
instruction sheet to install the
pedestal.
Place the chamber in position
and lower the lid. Mark where the
chute meets the hole in the lid.
20mm below
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 7

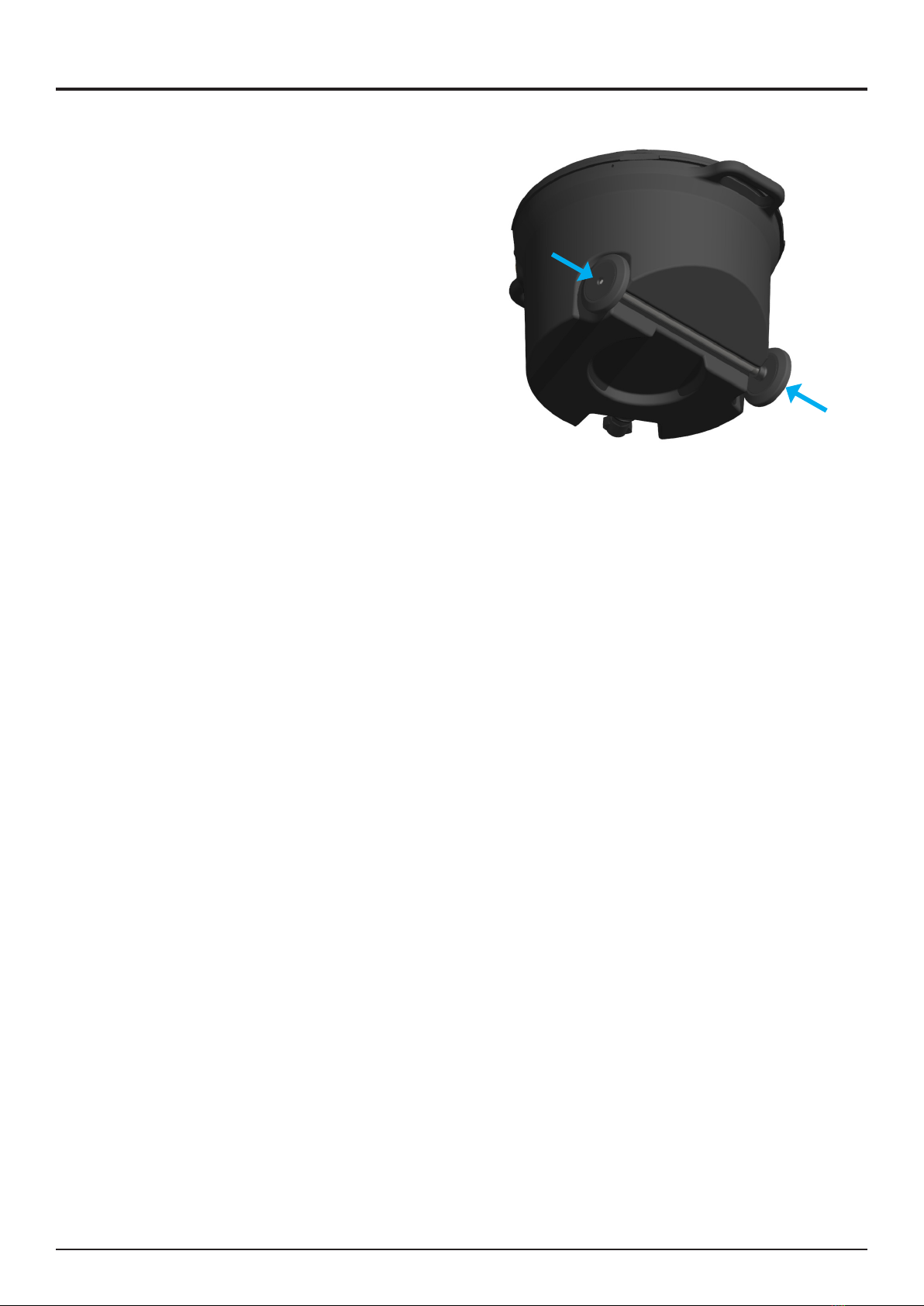

STEP 4: INSTALL THE WHEELS
Push the wheels onto the ends of the
axle until you hear them click.
Place the axle in position under the
chamber.
©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30 8

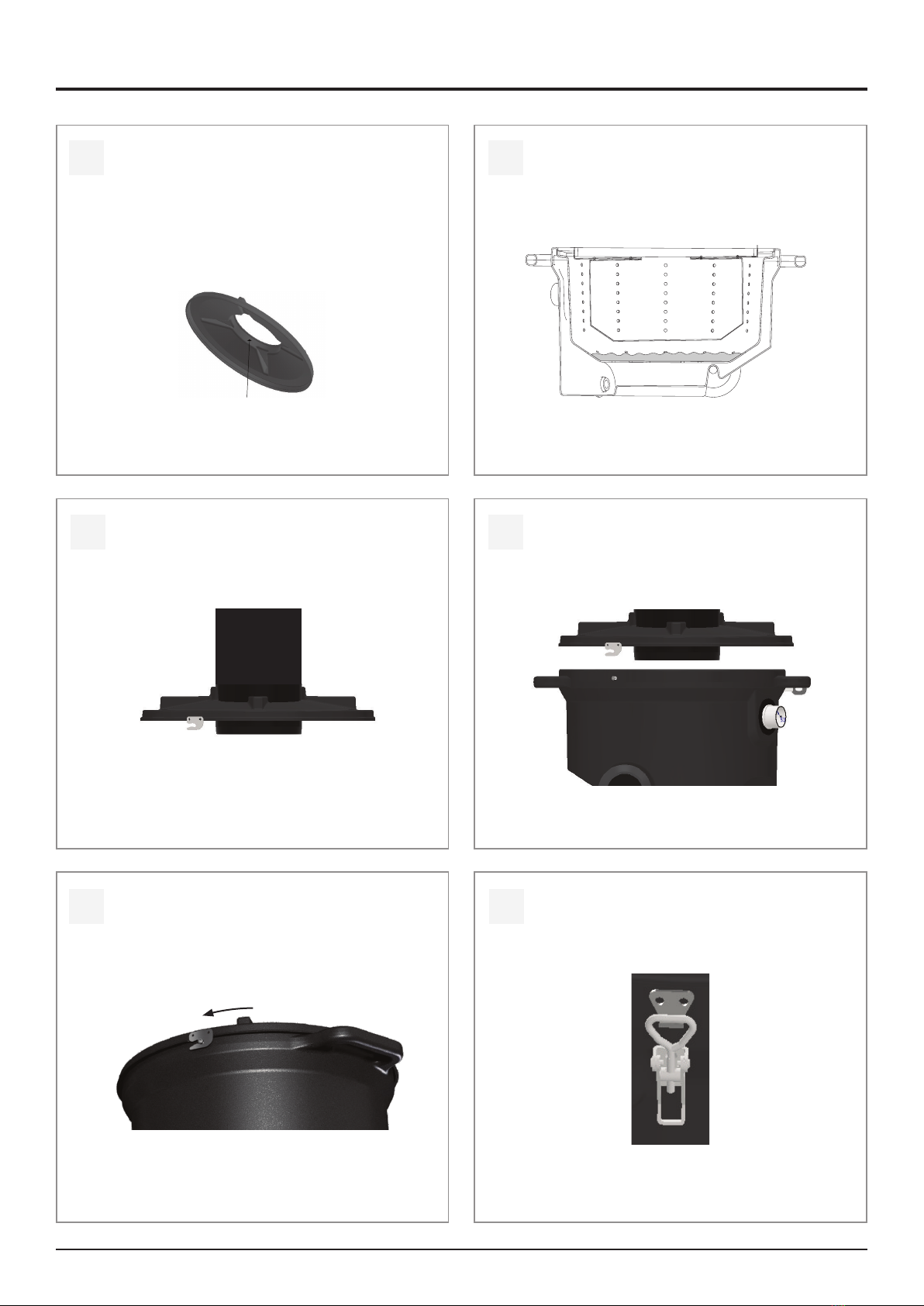

STEP 5: INSTALL THE IN-SERVICE CHAMBER
A brush or rubber seal is supplied for
the ‘In-service’ lid and acts as a seal
to prevent any odour emitting from
the chamber.
Add 50mm depth of bulking agent to
the chamber to create a bed. Slightly
dampen with water.
Slide the lid up onto the waste chute
from underneath.
Rotate the lid to lock the catch plates
onto the pins.
Place the chamber underneath the lid
and lower it onto the chamber.
Lock the toggle latches as shown below.
Place brush seal on inside surfaceof
chute extrusion as shown.
For rubber seal: Apply silicone to the inside of
the rubber seal and attach it around the rim
of the hole.
1
5
3
2
4
6
For brush seal: Remove the adhesive cover
and stick the brush seal around the inside
surface of the extrusion (see arrow).
