Closet Maid Maxload 4380 Manuale utente
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com 1
4380 & 34380 11/1901-10146-00
6 FT - 10 FT ADJUSTABLE GARAGE ORGANIZER
INSTALLATION INSTRUCTIONS
What you will need:
• Please read all instructions carefully.
• Familiarize yourself with all parts (see “PARTS INCLUDED WITH KIT”) and check quantities.
• Follow all safety precautions (see “SAFETY PRECAUTIONS”).
• Follow all manufacturer installation requirements in order to comply with the
advertised weight load specifications.
BEFORE BEGINNING
Primary Configuration
*Static Load Evenly Distributed. Must be installed per manufacturer’s
specifications or weight load capacity does not apply.
Whichever load reaches
capacity first:
Maximum Shelving Load*: 100 lbs/ft
Maximum 40 in. Hang Track Load*: 700 lbs
Maximum System Load*: 1,400 lbs
(See pages 6)
Primary Configuration Kit Capacity
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com
2

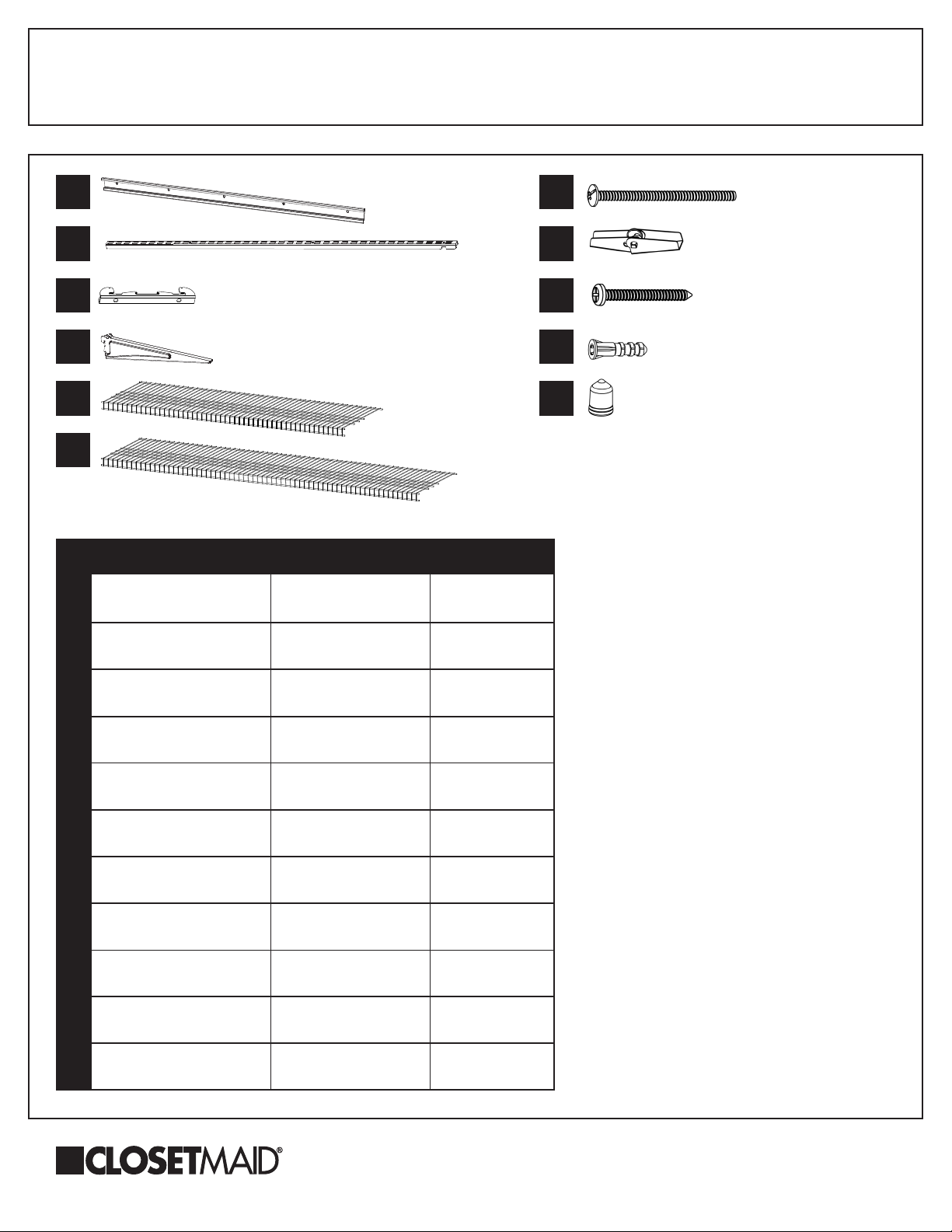

PARTS INCLUDED WITH KIT
Hang Track
Standard
Standard Extender
Shelf Bracket
Wire Shelf
Wire Shelf
Screw
Toggle Bolt
Panhead Screw
Anchor
End Cap
40 in. (3)
48 in. (10)
(4)
(23)
48 in. (2)
72 in. (2)
3/ 16 in. (45)
3/ 16 in. (45)
#12 x 2 in. (45)
1/4 in. (45)
(48)
93583
93585
28192
93582
43717
43719
274
270
688
650
90813
A
B
C
D
E
F
AA
BB
CC
DD
EE
Name Size (Qty) Part Number
AAA
B BB
CCC
D DD
E
F
EE
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com 3
FOLLOW INSTRUCTIONS CAREFULLY
Please do not return product to the retail store. For product assistance and warranty
information please call Consumer Affairs at 1-800-874-0008.
Manufacturer Warranty
Manufacturer will replace any missing or damaged part due to manufacturer defect for one
year after purchase. Please have proof of purchase for warranty claims.
• Unit MUST be installed as per the installation instructions beginning on
page 7 to satisfy published weight load capacity.
• This unit contains small parts which could be a choking hazard for small
children. Children should be under adult supervision at all times or
serious injury could occur.
• Always unload unit prior to moving the unit. The weight of personal
belongings can cause the unit to become unstable and either tip or
collapse. Serious bodily injury and/or damage to personal belongings
may occur.
• Do not overload unit. If any shelf, top, or bottom of unit bows or bends,
it is overloaded. The shelf, top, or bottom could collapse and cause
serious bodily injury and/or damage to personal belongings.
• Do not drop items on shelves.
SAFETY PRECAUTIONS
WARNING
• Do not climb or step on the unit. The unit may become unstable and
either tip or collapse. Serious bodily injury and/or damage to personal
belongings may occur.
• Do not mount or attach anything to the sides, rear, or front of the unit as
this can create a force which can cause the unit to tip. Serious bodily
injury and/or damage to personal belongings may occur.
• Follow proper safety procedures if using power tools and ladders.
• We recommend you protect your work surface during assembly to
prevent scratching or damage to table tops, wood floors, etc.
• We recommend you tighten screws by hand. Use care not to overtighten
if using power tools.
1
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com
4
MEASURE AND FIT (WIDTH)
This is a versatile organizer with multiple orientations depending on the size of your area. Once you understand how the pieces work together, you have many design options. However, it’s
important to decide what your final organizer will look like before starting.
The next page features diagrams for several closet design ideas. Find the configuration closest to your area size and choose the design option you prefer for your closet. In some cases, the hang
track, shelf, and/or standards should be cut to fit depending on the size of your area.
Measure wall area width and height to determine if cutting the hang track, shelving, or standards will be required. If the wall width is smaller than 80 in., the hang track and possibly the
shelves will require cutting. If the wall height is shorter than 99 in., the standards may require cutting.
PLEASE NOTE: Any alteration of components voids any advertised performance specifications listed in this manual.
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com 5
CONFIGURATION EXAMPLES
10 ft.
40 in. 40 in. 40 in.
10 ft.
40 in. 40 in. 40 in.
10 ft.
40 in. 40 in. 40 in.
Configuration 3
Configuration 4
Configuration 5
A
CUT HANG TRACK, IF NECESSARY
CUTTING WILL ONLY BE REQUIRED FOR SPACES LESS THAN 80 IN. OR 120 IN. WIDE.
If your space is less than 80 in. or 120 in. wide, cutting Hang Track to fit space may be required.
See Hang Track Location Diagrams for guidelines depending on your closet width.
Advertised weight loads in this manual apply to ONLY Configuration 1 (the Primary Configuration) as installed per manufacturer’s specification and DO NOT APPLY to any other alternative configurations.
6.67 ft.
40 in. 40 in.
6.67 ft.
40 in. 40 in.
Configuration 1: Primary Configuration
Configuration 2
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com
6
PARTS NEEDED FOR
PRIMARY CONFIGURATION
Ax2
x9
x4
x18
x2
x2
x48 * Installation hardware varies based on wall type
B
D
E
F
EE
C
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com 7
SAFETY PRECAUTIONS
RECOMMENDED INSTALLATION
The following installation is required to satisfy the weight capacity rating indicated for this product. In order for the weight load specifications to be valid, you MUST install the components
in this organizer per the following installation instructions. Before moving on to the system installation instructions, please take the time to review the installation requirements below.
If you are unable to install per the primary configuration installation instructions, alternate installation methods are provided on page 6.
WARNING
A)
B)
C)
Locate studs.
Hit studs in at least 5 holes.
Use a toggle bolt on each hole that does not hit a stud.
AA
AA AA AA AA
BB
BB BB BB BB
CC CC CC CC CC
STUD STUD STUD STUDSTUD
TOGGLE TOGGLE TOGGLE TOGGLE TOGGLE
STUD STUD STUD STUDSTUD
2
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com
8
MARK HANG TRACK LOCATION
99 in.
A) The hang track can be installed at any height, keeping in mind the overall height of your standards once installed. Be aware that the hang track is the highest point in the system,
meaning no shelving can be placed above it.
B) Measure hang track to desired height and use a level to assure hang track is straight before marking holes and making a level line.
C) When track is at desired height and level, mark each screw hole on the wall using a pencil. Do this for all tracks, spacing according to the size of your area. It’s recommended to
install one track before others, including drilling any necessary holes.
D) For Configurations 1 and 2, the minimum hang track installed height is 99 in. from the top of your baseboard.
3a
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com 9
FOR DRYWALL INSTALLATION
C) Insert a toggle bolt into the predrilled holes in the drywall. Be sure to install the toggle bolt assembly only in the holes where there are no studs. For any marks over a stud, use a
panhead screw directly. This will enhance the security of the hang track mounting.
IMPORTANT: SECURE HARDWARE THROUGH EACH HOLE!
* Tighten toggle bolts first, then stud screws
B) Insert toggle bolts through the holes in the hang track that aren’t over studs,
and then thread the toggle anchor onto the bolt once it’s through the track.
STUD = SCREW
DRYWALL = TOGGLE BOLT
TOP
BOTTOM
A
AA
BB
CC
DRILL 1/2 IN. HOLES.
FOR DRYWALL INSTALLATION
A) Locate each pencil mark and drill a 1/2 in. hole for any marks not over a stud. DRILL 1/2 IN. HOLES. NO DRILL FOR STUD MOUNTING.
3b
© 2020 ClosetMaid LLC | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com
10
FOR CONCRETE INSTALLATION
DD
B) Insert anchors into 1/4 in. predrilled holes and secure hang track with panhead screws.
IMPORTANT: SECURE HARDWARE THROUGH EACH HOLE!
FOR CONCRETE INSTALLATION
A) Locate each pencil mark and drill a 1/4 in. hole at least 2 in. deep using a masonry drill bit.
DRILL 1/4 IN. HOLES.
SCREWS AND ANCHORS ONLY
CC
DRILL 1/4 IN. HOLES.
