CMA Dishmachines UC50E Manuale utente
MODELUC50e
PARTS MANUALRev 1.00B
800-854-6417
FAX 714-895-2141
DISTRIBUTED EXCLUSIVELY BY
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841
www.cmadishmachines.com
Parts Manual
TABLE OF CONTENTS
MODEL UC50E
1. PARTS MANUAL ..........................................................................................3
1.1. MECHANICAL DRAWINGS..................................................................................................................3
1.1.1. General Body Parts..................................................................................................................3
1.1.2. Lockup System ..........................................................................................................................4
1.1.3. Control Panel ...........................................................................................................................5
1.1.4. Control Components.................................................................................................................6
1.1.5. Solenoid Valve Group...............................................................................................................7
1.1.6. DVGW.......................................................................................................................................7
1.1.7. Rinse Aid Dispenser Group......................................................................................................8
1.1.8. Detergent Dispenser Group......................................................................................................9
1.1.9. Boiler Group...........................................................................................................................10
1.1.10. 3 Ways Connection.................................................................................................................11
1.1.11. Wash Pump.............................................................................................................................12
1.1.12. Drain Pump Group.................................................................................................................13
1.1.13. Pressure Switch Group...........................................................................................................13
1.1.14. Turret Group ..........................................................................................................................14
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 2
Parts Manual
1. Parts Manual
1.1. Mechanical Drawings

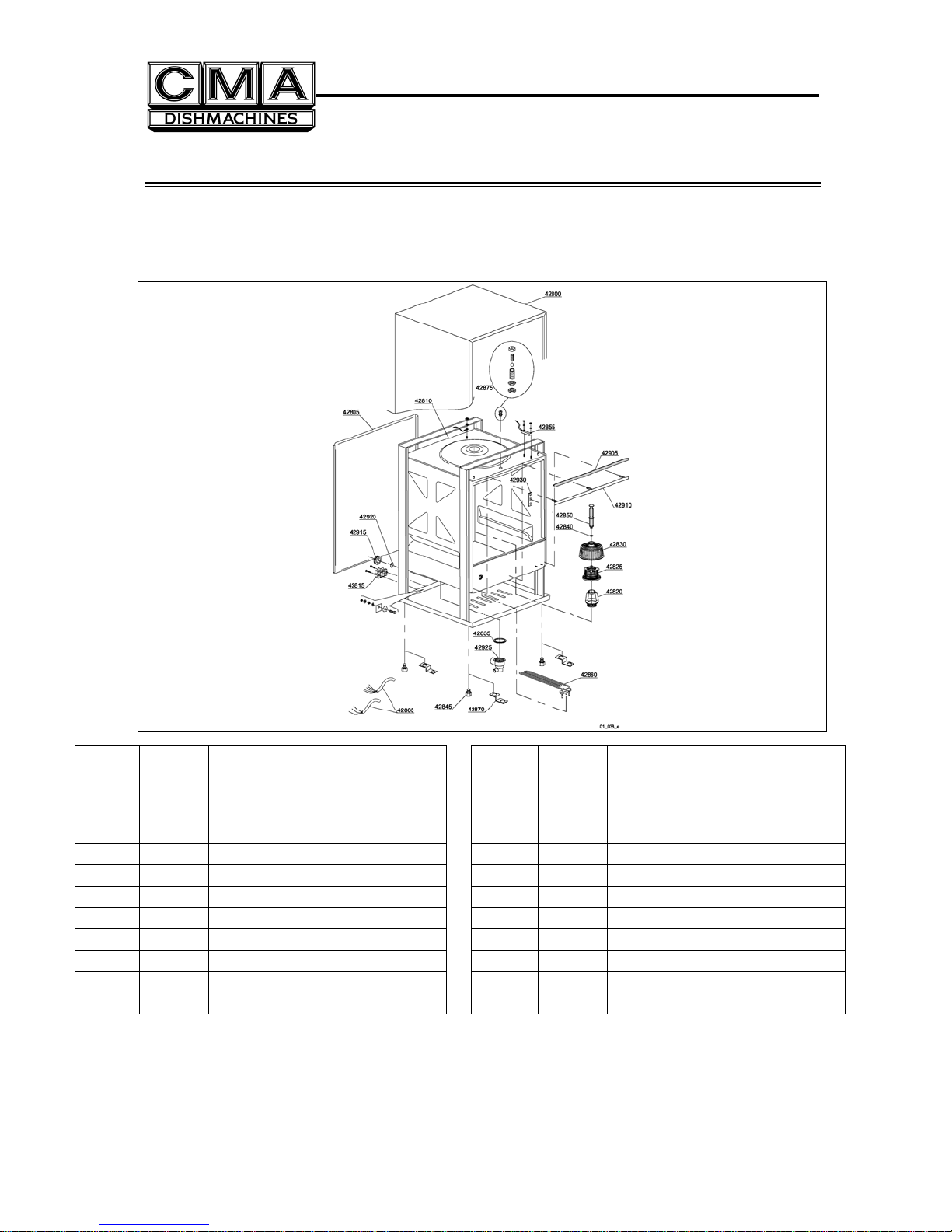

1.1.1. General Body Parts
ID P/N DESCRIPTION ID P/N DESCRIPTION
42800 2100.67 Cover 42855 2100.15 Reed magnet (UL)
42805 2101.21 Back panel 42860 2100.66 2700W 220V 1 F6lx26 Heating element
42810 2101.22 Body 42865 2101.24 5x2,5x2500 cable
42815 2101.23 Cable-fastener with screw 42865 2101.25 3x4x2500 cable
42820 2100.71 Ferrule with filter 42875 2101.05 Door jack assembly
42825 2100.03 Internal filter with rack 42905 2101.26 Door O-ring
42830 2100.07 Suction filter 42910 2101.27 Door O-ring angular
42835 2101.07 95x75x3 O-ring minimum 2 pieces 42915 2101.28 D.40mm unloading pipe pass min 2pcs
42840 2100.57 DEM 40 O-ring minimum 2 pieces 42920 2101.29 D.13mm dosing pipe pass min 2pcs
42845 2100.62 High foot minimum 4 pieces 42925 2100.70 Right side scrap tray
42850 2100.53 Overflow pipe
42930 2100.80 Door rod slide (minimum 4 pieces)
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 3
Parts Manual

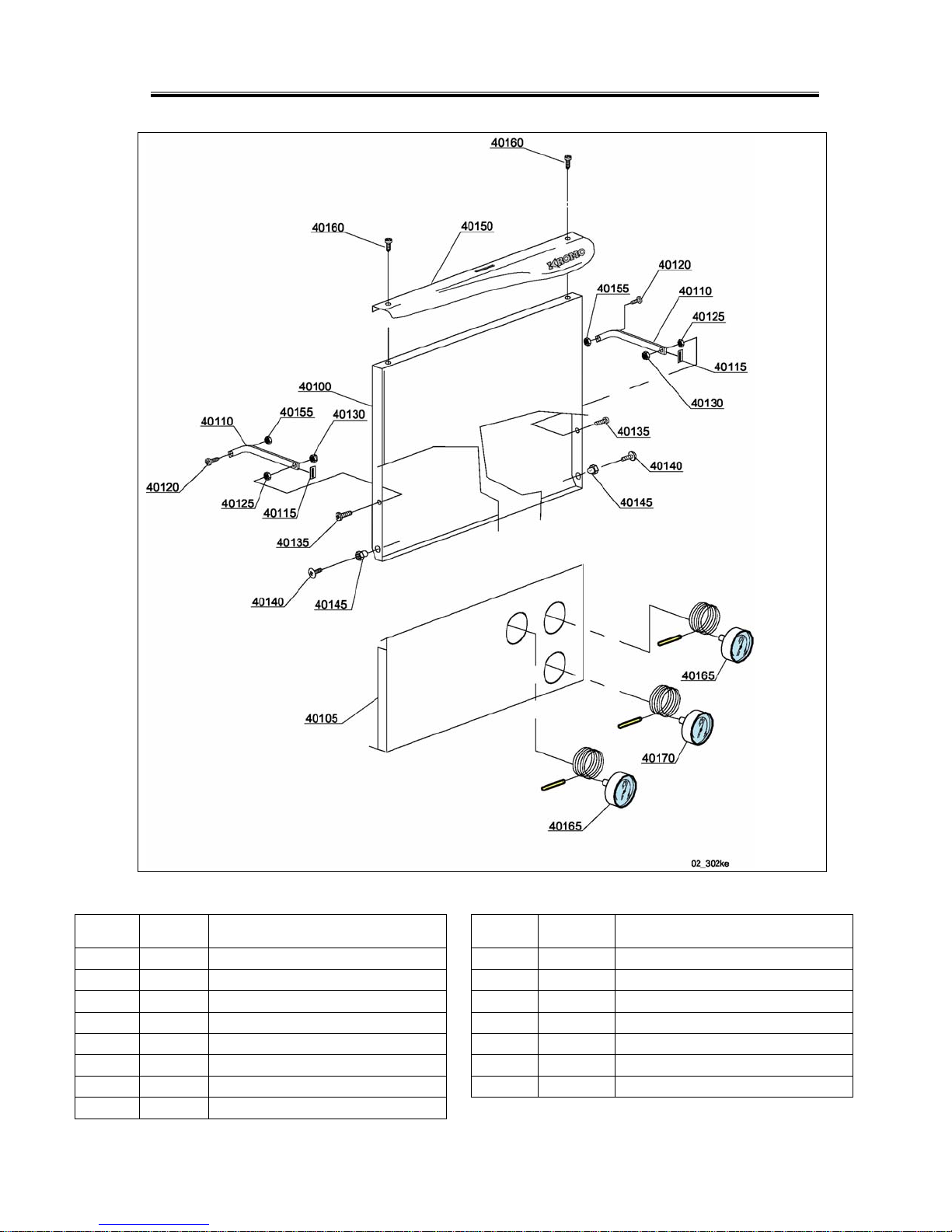

1.1.2. Lockup System
ID P/N DESCRIPTION ID P/N DESCRIPTION
40100 21001.06 Door 40140 2101.32 M6xl2 stainless steel screw
40105 21001.30 Lower door 40145 2101.33 Bush
40110 2100.86 Right/left door rod 40150 2100.23 Stainless steel handle
40115 2100.81 Hinge door seal 40155 2101.34 M4 inox Plated nut
40120 2101.31 M4x8 screw minimum 20 pieces 40160 2101.35 M4xl4 screw
40125 2100.82 M6 stainless steel nut min 20 pieces 40165 2100.39 Thermometer - UL ARTHERMO
40130 2100.83 M6 self-locking nut min 10 pieces 40170 2100.27 Gauge - UL ARTHERMO
40135 2100.84 M6xl6 stainless steel screw min 10 pcs
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 4
Parts Manual

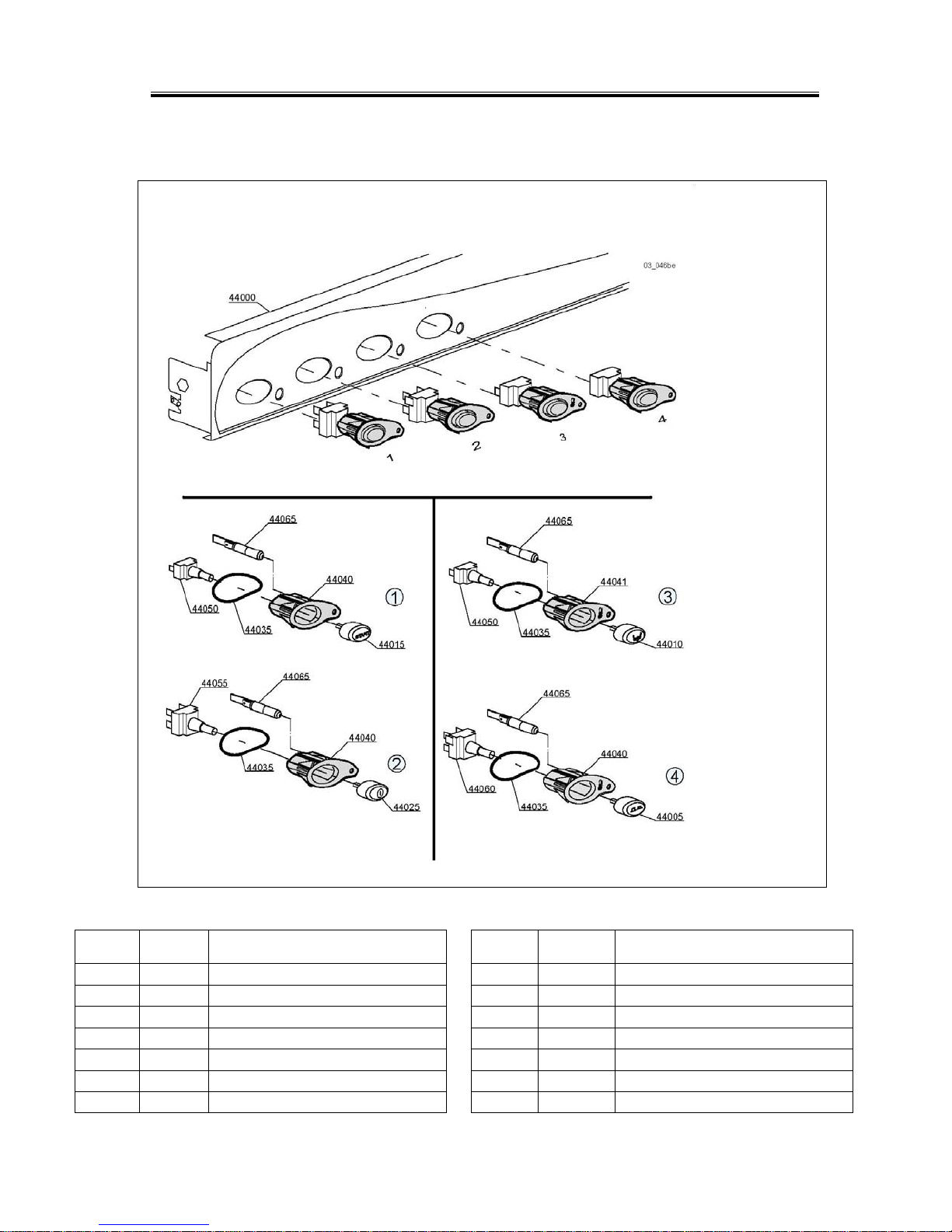

1.1.3. Control Panel
ID P/N DESCRIPTION ID P/N DESCRIPTION
44000 2101.36 Control panel 44041 2101.38 Temperature push button support
44005 2100.94 Time selector switch push button 44050 2100.43 16A unipolar switch
44010 2100.93 Drain pump push button 44055 2100.35 16A bipolar switch
44015 2100.91 Start push button 44055 2101.39 16A switch
44025 2100.92 ON-OFF push button 44060 2100.05 16A bipolar switch
44035 2101.09 OR 2100 O-ring 44060 2101.40 16A bipolar switch
44040 2101.37 Push button support
44065 2100.47 Pilot light 220V
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 5
Parts Manual

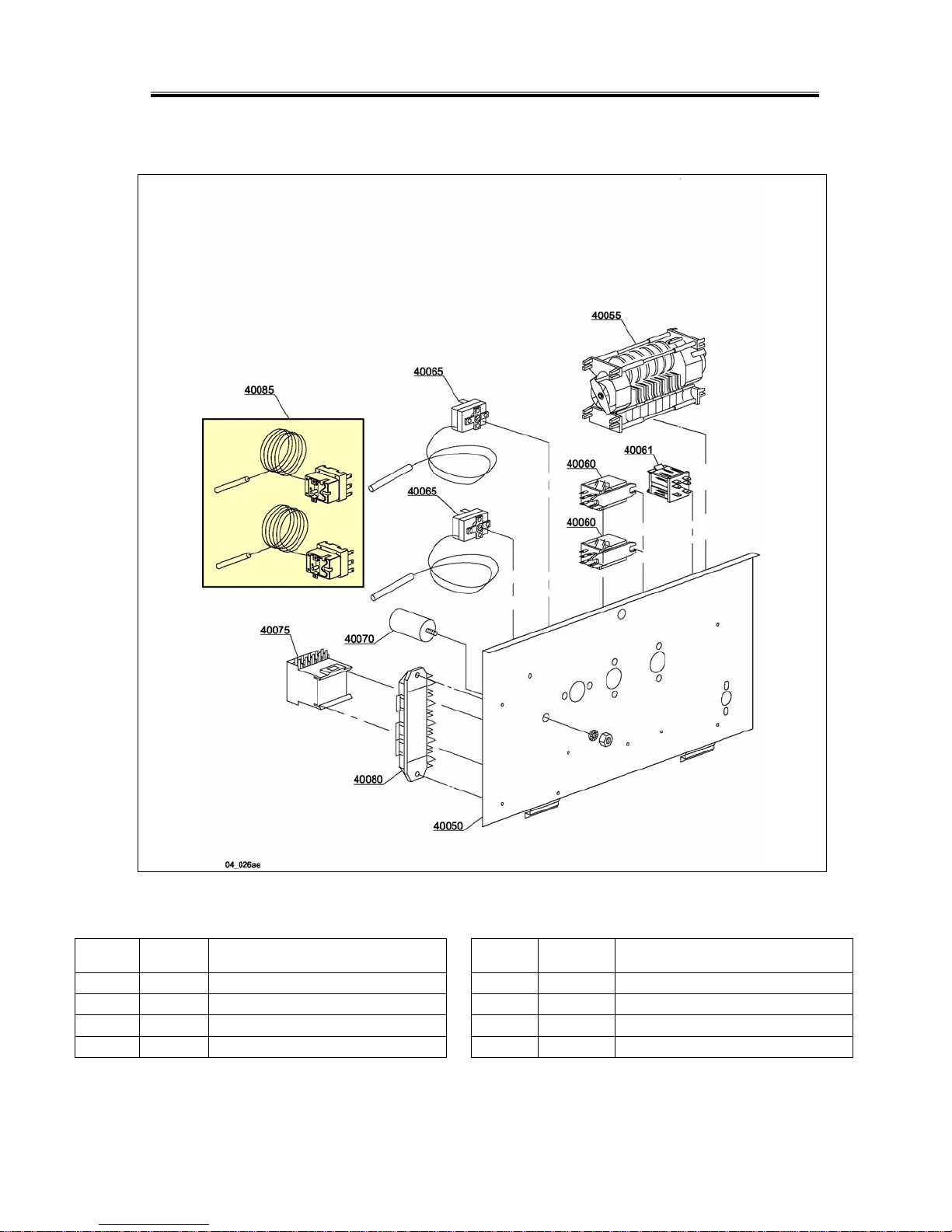

1.1.4. Control Components
ID P/N DESCRIPTION ID P/N DESCRIPTION
40050 2101.41 Electric component panel 40065 2100.25 0-90°C thermostat
40055 2100.21 120"/180" timer - 220Vac 60Hz 40075 2100.69 Contactor 230V 50/60Hz
40060 2100.29 FINDER 16A bipolar relay 40080 2100.51 6 poles terminal board
40061 2100.33 FINDER 16A bipolar relay in deviation
40085 2100.37 Security Thermostat 90/110
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 6
Parts Manual

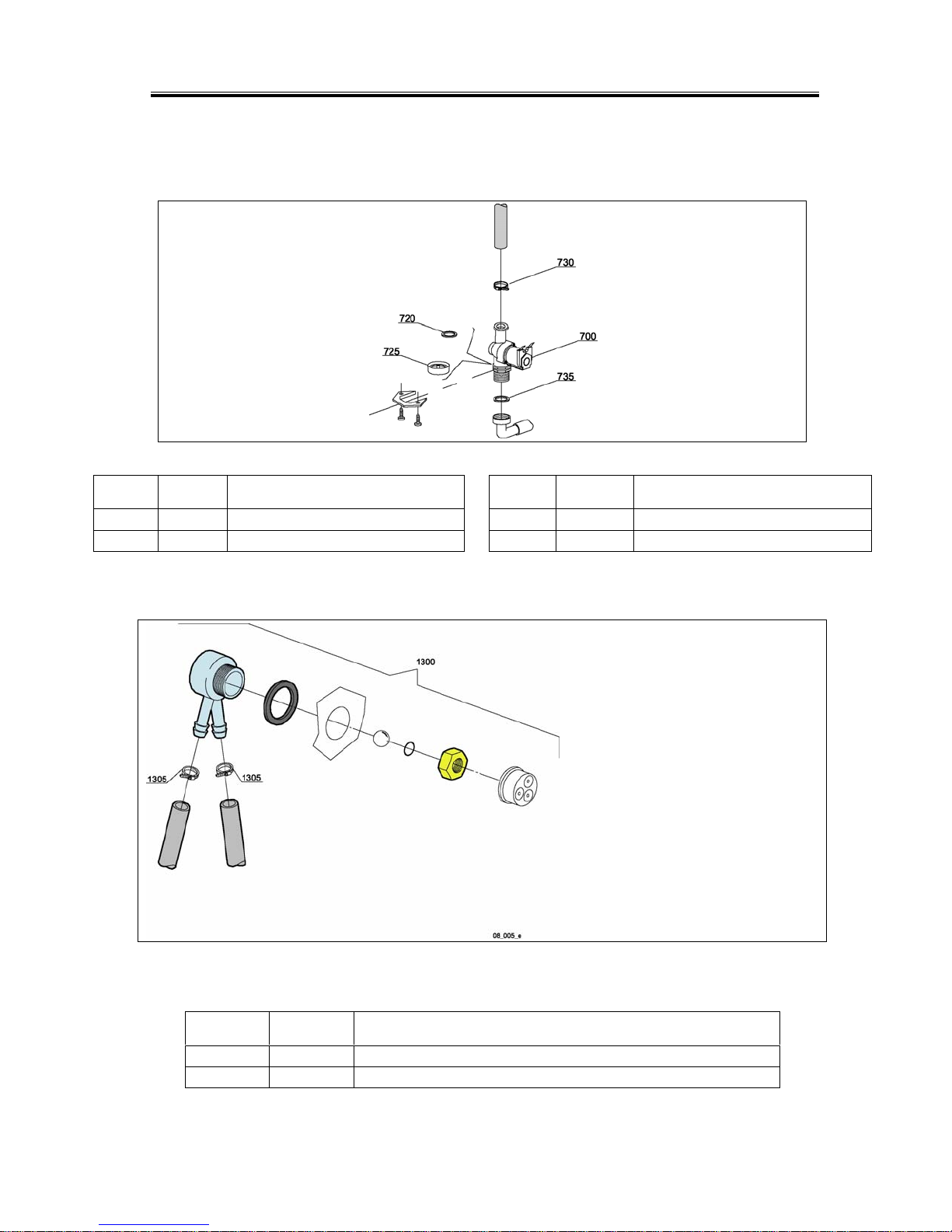

1.1.5. Solenoid Valve Group
1.1.6. DVGW
ID P/N DESCRIPTION ID P/N DESCRIPTION
700 2100.13 Single solenoid valve - 230Vac 730 2101.42 12/22 clamp (minimum 3 pieces)
720 N.C. Pressure reducing valve
735 2101.43 3/4 gasket
ID P/N DESCRIPTION
1300 2101.10 DVGW assembly
1305 2101.42 12/22 clamp (minimum 3 pieces)
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 7
Parts Manual
1.1.7. Rinse Aid Dispenser Group
ID P/N DESCRIPTION ID P /N DESCRIPTION
4800 2101.44 Tecnopro non return valve 4820 2100.45 Tecnopro rinse aid dispenser
4805 2104.45 D22 O-ring
4830 2101.47 Ballast
4810 2101.46 Membrane 4840 2101.48 Small filter minimum 3 pcs
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 8
Parts Manual
1.1.8. Detergent Dispenser Group
ID P/N DESCRIPTION ID P/N DESCRIPTION
5100 2100.19 Seco detergent pump 5115 2101.02 Complete s/s injector
5105 2101.47 Ballast
51135 2100.95 Seco thermoplastic pipe
5110 2101.48 Small filter
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 9
Parts Manual
1.1.9. Boiler Group
ID P/N DESCRIPTION ID P/N DESCRIPTION
5000 2101.11 OR 151 NBR O-ring (minimum 5 pcs) 5015 2101.49 Insulation boiler
5005 2101.20 Boiler
5020 2101.51 D160 End piece (minimum 2 pieces)
5010 2100.01 6/6.53 KW 230/240V 3 heating element 5025 2101.52 Safety thermostat
MODEL UC50e PARTS MANUAL Rev. 1.00B Page 10
