CMA Dishmachines UC65e Manuale
Undercounter
High Temperature
Dishwasher
Service Replacement Parts
CMA Dishmachines
12700 Knott Avenue
Garden Grove, CA 92841
Toll Free: 1 (800) 854-6417
Fax: 1 (714) 895-2141
Issue Date: 6.25.13
Manual P/N 0512865 rev. C
Printed in the USA
For machines beginning with S/N W090217876 and above
Machine Serial No.
Models:
UC65e
UC65e
CMA Dishmachines
12700 Knott Avenue
Garden Grove, CA 92841
Toll Free: 1- (800) 854-6417
Fax: 1- (714) 895-2141
COPYRIGHT © 2013 All rights reserved Printed in the USA
For future reference, record your dishwasher information in the box below.
Model Number__________________________ Serial Number_______________________
Voltage________________Hertz_____________ Phase__________________
Service Agent __________________________________ Tel:______________________
Parts Distributor _________________________________ Tel:______________________
ATTENTION:
The model no., serial no., voltage, Hz
and phase are needed to identify your
machine and to answer questions.
The machine data plate is located
on the lower front panel.
Please have this information ready
if you call for service assistance.
National Service Department
CMA Dishmachines
12700 Knott Avenue
Garden Grove, CA 92841
Toll-free: 1 (800) 854-6417
Fax: 1 (714) 895-2141
i
Revision History
Revision Revised Serial Number Revision
Date Pages Effectivity Description
6.04.09 All W090217876 Released First Edition
3.15.11 22-23 W090217876 Added motor fan cover to parts list
1.04.11 31 W090217876 Item 5 changed to P/N 0513110
33 Item 6 changed to P/N 0512120
Item 18 changed to P/N 0312840
35 Item 13 changed to P/N 0512855
6.09.11 44-45 W090217876 Item 13 changed to P/N 0312924
46-47 W090217876 Changed door assembly to P/N 0713141
4.19.13 5 All Added hose barb to instructions
24-55 W120631743 Revised pressure gauge piping
26-27 W120631743 Added P/N 109069 thermostat
All Revisedll/draintimer,P/N0713133
30-31 W120631743 Revised pressure gauge piping
34-35 All Added hose barb P/N 0512231
46-47 All AddedDoordripseals,P/N0512953
and P/N 0512954
53-62 All Added parts installation instructions
6.25.13 2-3 All Added hard wiring info to installation
Revision History
• The Revision History can contain part number changes, new instructions, or
information that was not available at print time.
• We reserve the right to make changes to these instructions without notice and without
incurring any liability by making the changes..
• Equipment owners may request a revised manual, at no charge, by calling
CMA Dishmachines at 1 (800) 854-6417.
ii
Model Description
Model Description
UC65e
High temperature hot water sanitizing dishwasher with built-in 40°F/22°C rise booster heater.
208-240VAC/60/1
iii
Model UC65e Undercounter Dishwasher
Revision History...................................................................................................................i
Model Descriptions..............................................................................................................ii
Service Replacement Parts.......................................................................21
Table of Contents
Table of Contents
1
Service Replacement Parts
Service Replacement Parts
Illustrations Page
Wash Pump/Motor Assembly ................................................................................................................................ 2
Booster Assembly................................................................................................................................................... 4
Electrical Panel and Timer Assembly ..................................................................................................................... 6
Control Panel Assembly ......................................................................................................................................... 8
Upper Final Rinse Piping Assembly ....................................................................................................................... 0
Wash and Rinse Spray Arm Assemblies ................................................................................................................ 2
Drain Pump and Lower Hose Assemblies.............................................................................................................. 4
Wash Tank Heater and DrainAssemblies.............................................................................................................. 6
Fill Solenoid Valve Assembly.................................................................................................................................. 8
Detergent Pump Assembly..................................................................................................................................... 0
Rinse-aid Pump Assembly...................................................................................................................................... 2
Panel Assembly...................................................................................................................................................... 4
Door Assembly ....................................................................................................................................................... 6
Dish racks, Line Strainer and Pressure Regulating Vavle (PRV)...........................................................................
2

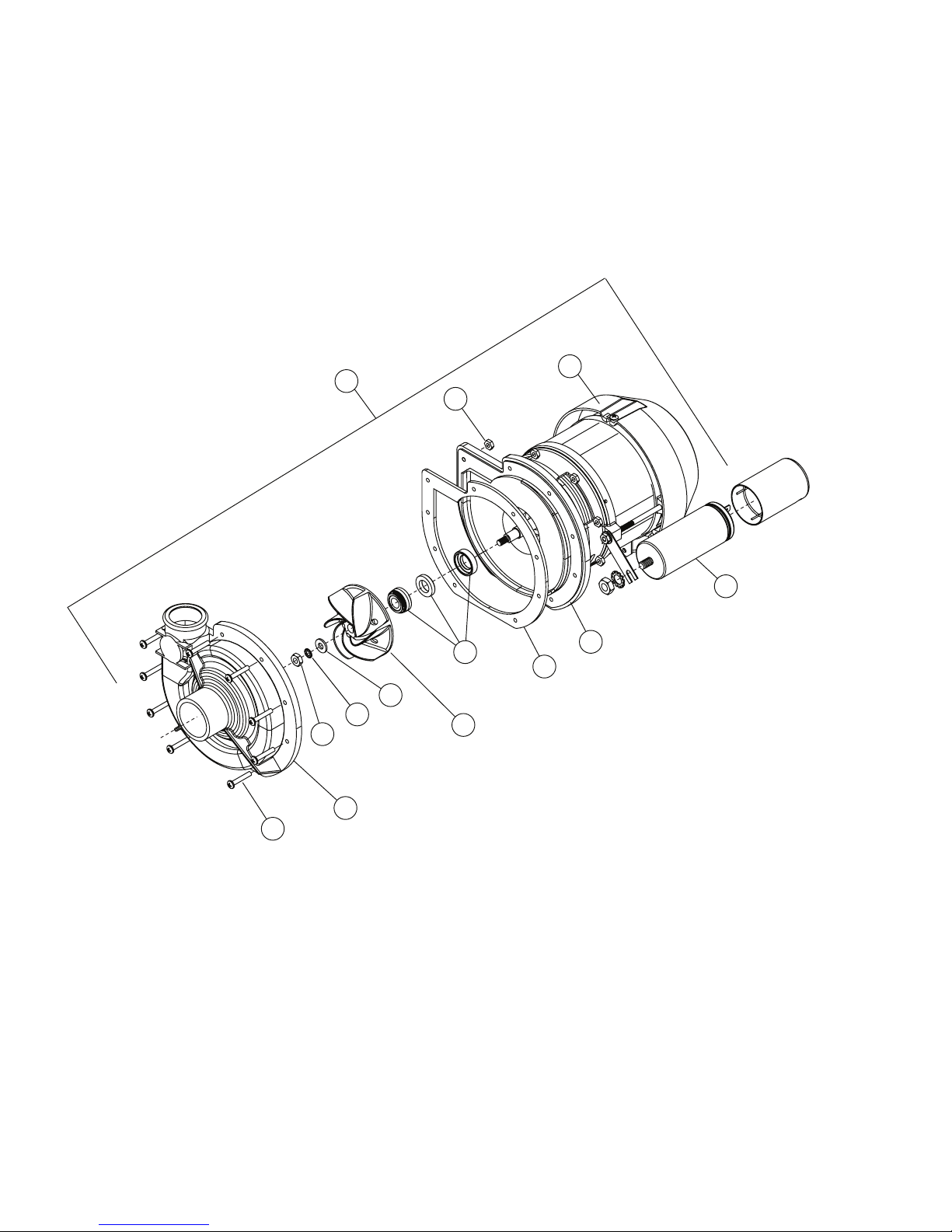

Wash Pump/Motor Assembly
12
6
345
79
8
10
11 12
12
3
Item Part Description Qty.
No. No.
1 2103.01 SCREW, M4, PHIL, PAN HD. 9
2 2103.02 IMPELLER HOUSING COVER 1
3 2103.03 NUT, M6 (left-hand threads) 1
4 0501501 WASHER, LOCK, 1/4" 1
5 2103.05 WASHER, PLAIN, M6 1
6 2103.06 IMPELLER 1
7 2103.07 SEAL 1
8 2103.30 GASKET, PUMP 1
9 2103.09 BACKPLATE, PUMP 1
10 2103.08 NUT, M4 9
11 2103.10 PUMP/MOTOR ASSEMBLY COMPLETE 1
220VAC/60/1
12 0513131 COVER, REAR MOTOR FAN 1
13 2103.11 CAPACITOR 16μF 1
Wash Pump/Motor Assembly
4

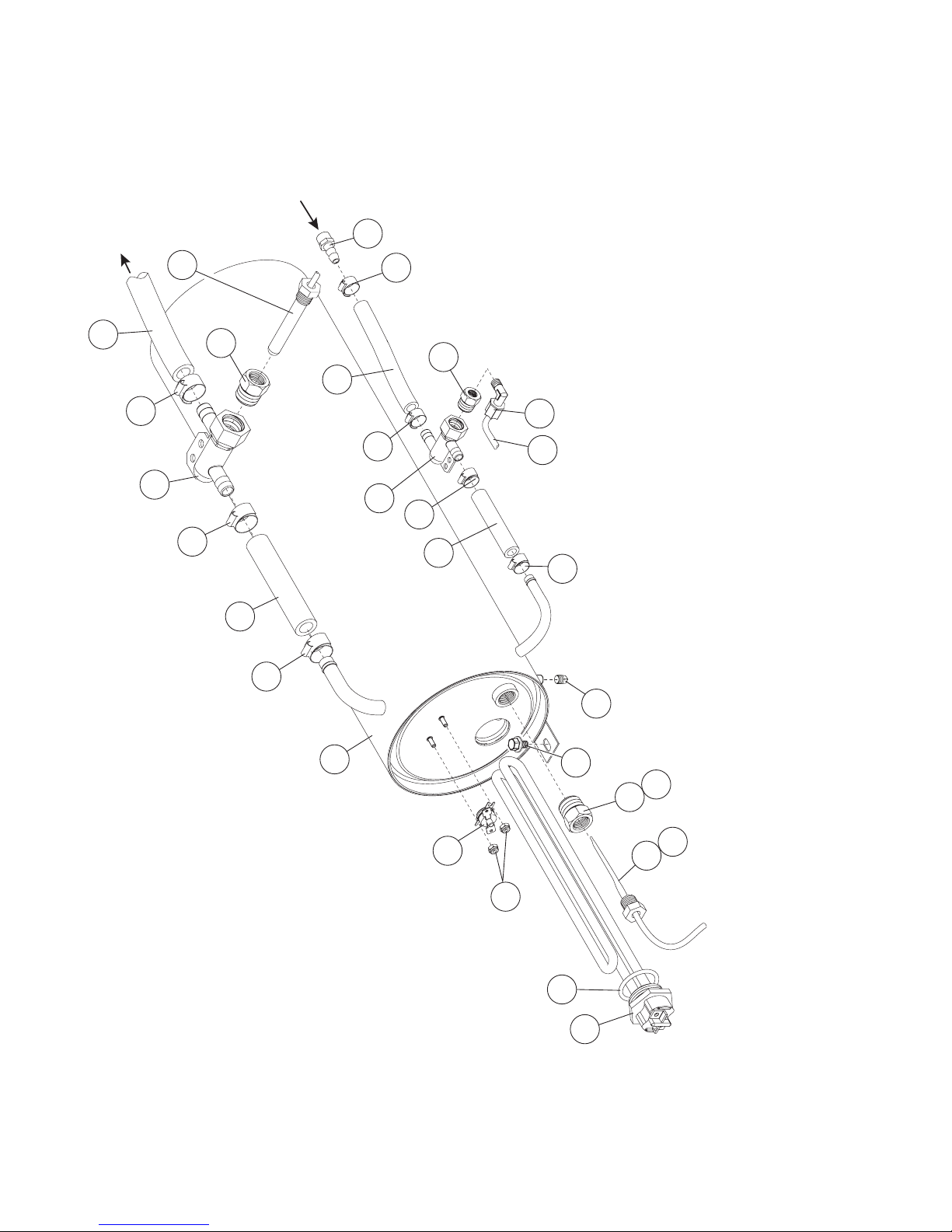

Booster Assembly
1
2
9
6
10
6
11 6
10
12
13
8
15
10
11
14
16
5
4
3
6
6
6
7
6
18
17
19
21
20
From
Fill
Valve
To
Final
Rinse
5
Item Part Description Qty.
No. No.
1 2103.12 HEATER, BOOSTER 4kW, 208V, 40°F RISE 1
(Does not include gasket)
1 2103.13 HEATER, BOOSTER 6kW, 208V, 70°F RISE 1
(Does not include gasket)
2 2103.14 GASKET, BOOSTER HEATER 1
3 2103.15 THERMOSTAT, CONTROL 195°F 1
(Prior to S/N W120631743)
4 109069 THERMOSTAT, CONTROL 110-195°F 1
(Beginning with S/N W120631743)
5 2103.16 BOLT, HEX FLANGE, 1/4-20 X 3/8" SST 1
6 0512985 CLAMP, 29/32" x 1/2" WIDE SST 6
7 2103.22 HOSE, BOOSTER FILL 1
8 2103.19 THERMOSTAT, HI-LIMIT FIXED SNAP 240°F 1
9 0712835 TANK, BOOSTER (All S/N's) 1
(Includes Item 14)
10 2103.22 HOSE, 1/2" ID A/R
11 2103.23 TEE, RINSE 2
12 2103.24 FITTING, BOOSTER THERMOMETER 1
13 0302.00 THERMOMETER, 2" DIAL, 7' CAPILLARY 1
14 2103.26 PLUG, 1/8" SST 1
15 2103.27 NUT, GRIP 6-32 W/NYLON INSERT 2
16 0512920 FITTING, BOOSTER THERMOSTAT 1
(Use with Item 3, Prior to S/N W120631743))
17 0512425 FITTING, BOOSTER THERMOSTAT 1
(Use with Item 3, Beginning with S/N W120631743))
18 2103.62 FITTING, COMP. 1/4" OD X 1/8" MPT ELL J 1
19 0512298 BUSHING, REDUCER 1/2" X 1/8" 1
20 2103.74 TUBING, 1/4" NATURAL 2 FT.
21 40014.00 COUPLER, 1/2" HOSE X 1/2" FNPT BRASS 1
Booster Assembly
