DEL OZONE®SPA
INSTALLATION INSTRUCTIONS & PRODUCT MANUAL
®
C-M-P.COM/SPA-SANITIZERS
THE COMPLETE MODERN SPA®
IMPORTANT SAFETY INFORMATION: READ AND FOLLOW ALL INSTRUCTIONS
Save these instructions. Leave manual with homeowner after installation. Improper installation, adjustment,
alteration, service, or lack of maintenance can cause injury or property damage. Read the installation,
operating, & maintenance instructions thoroughly before installing or servicing this equipment.
2
READ AND FOLLOW ALL INSTRUCTIONS
Read this manual completely before attempting installation. All permanent
electrical connections should be made by a qualified electrician. Follow all
applicable electrical codes.
DANGER
Be sure the electrical power is shut OFF at the main circuit breaker
before installing the DEL Ozone® Spa.
NOTICE If the DEL Ozone® Spa electrical connection is to be attached
to the spa controls, be sure the spa controls are protected by a Ground
Fault Circuit Interrupter (G.F.C.I.). If the DEL Ozone® Spa is connected to an
independent electrical supply, then a G.F.C.I. must be installed between the DEL
Ozone® Spa and the electrical supply.
WARNING To reduce the risk of electrical shock, if the power cord
is damaged, replace the entire unit immediately.
NOTICE The DEL Ozone® Spa must be mounted indoors or sheltered,
under a cover, from natural elements (rain, sun, sprinklers). Mount the DEL
Ozone® Spa so that it is inaccessible to anyone in the spa.
NOTICE Plastic ozone supply tubing is available with the DEL Ozone® Spa.
Never replace this tubing with metal tubing.
CAUTION Do not operate the DEL Ozone® Spa unless sufficient air flow is
being drawn through the unit.
WARNING Short term inhalation of high concentrations of ozone and long
term inhalations of low concentrations of ozone can cause harmful
physiological effects. Do not inhale ozone gas produced by this device.
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS
1
SECTION 1 Installation
1. Overview .............................................................................................. 2
2. Mounting.............................................................................................. 2
3. Plumbing.............................................................................................. 2
4. Electrical................................................................................................ 3
5. Operation............................................................................................. 3
SECTION 2 Maintenance
6. System Maintenance ........................................................................ 3
SUPPORT.................................................................................................... 6
DIAGRAMS SHOWN IN THESE INSTRUCTIONS
page 2..............................................DEL OZONE®TYPICAL MIXING SYSTEM
page 5...........................DEL OZONE®SPA MOUNTING & CONNECTIONS
TABLE OF CONTENTS
Covered by one or more U.S. patents or pending patent applications. See c-m-p.com/patents for details..
2
1. Overview
Achieve The Complete Modern Spa® by choosing sanitizing components
that work together, creating the best possible installation. The DEL Ozone
Spa is a high-end, modern ozone product for spas. The unit is compact,
completely self-contained and easy to install.
2. Mounting
a. The DEL Ozone Spa must be mounted horizontally with ozone
tubing connection pointing down. Use both mounting flanges.
b. Mount as high as possible within the protected equipment area.
3A. Plumbing - DEL Mixing System
a. For optimal dissolution of ozone into the water, install the DEL
mixing system in the water circulation line as generally shown in
Figure 1.

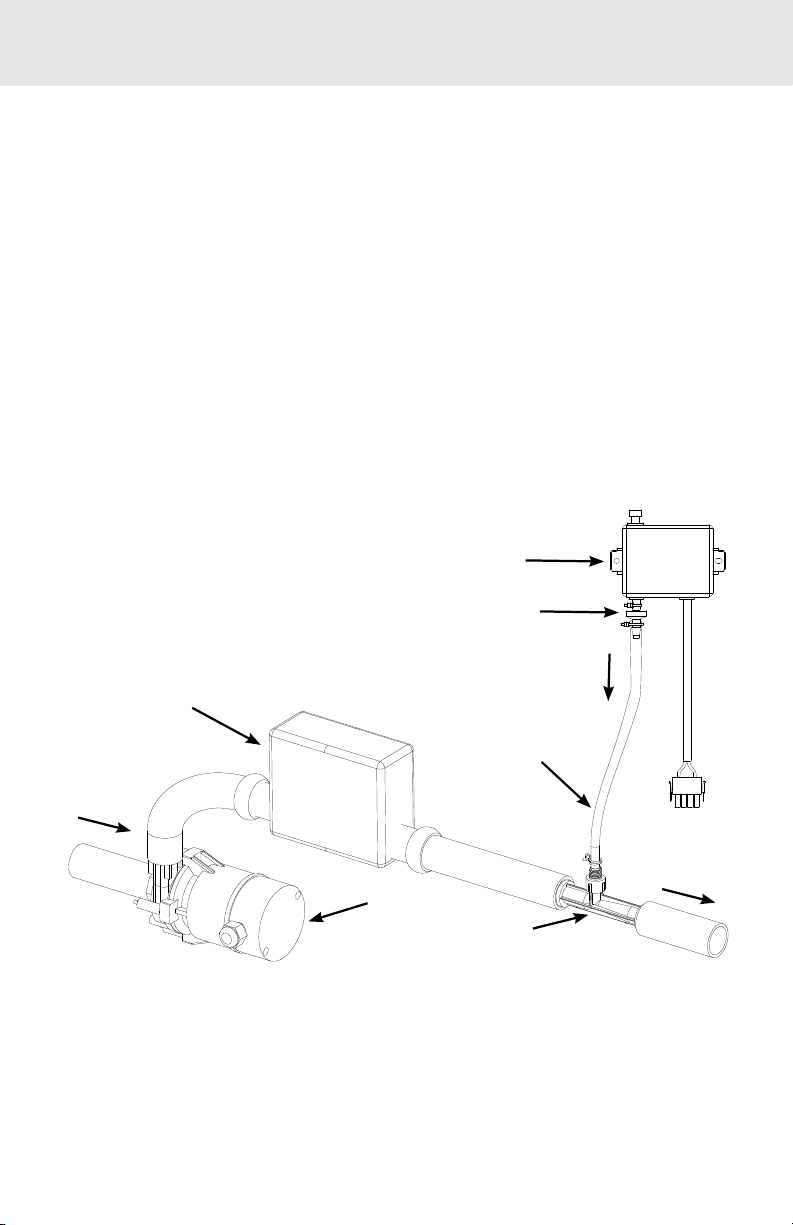

Figure 1: DEL Ozone Typical Mixing System
Ozone Generator
Check Valve
Ozone
Flow
Spa Controller
Injector
Pump
Spa Return
Spa Supply
Ozone
Tubing
b. For other circulation systems, CMP provides a wide range of
installation kits. Contact Customer Service for assistance.
SECTION 1 Installation
3
SECTION 2 Maintenance
3B. Plumbing - Ozone Generator
a. Connect ozone compatible tubing (1/4” internal diameter) to the
check valve on the DEL Ozone Spa.
b. Run tubing to the ozone injector or appropriate vacuum source.
i. If the ozone generator is mounted above the water line,
tubing may be run directly to the vacuum source.
ii. If ozone generator is mounted below the water line, run
tubing to a point above the water line and back down to the
vacuum source.
c. Secure all tubing connections with hose clamps.
4. Electrical
a. Verify that there is no power to the spa and connect the DEL
Ozone Spa cord into the mating connector(s) on the spa control
box.
b. Where possible, route the DEL Ozone Spa power cord away
from other electrical lines. Avoid routing the power cord parallel
to any low-voltage signal wires.
5. Operation
a. With the spa filled to the proper level, run the spa controller
through several cycles.
i. Verify that the green light on the DEL Ozone Spa turns on
and off as required by the controller.
ii. Verify that gas is flowing into the injector (there should be no
water in the tubing and very small bubbles at the return).
iii. Verify that water does not push past the check valve during
any spa cycle.
iv. Check for and correct any leaks in the ozone tubing.
6. System Maintenance
a. Ordering Information:
To locate the dealer nearest you call 1-800-733-9060
Be prepared with the following information:
• Name • Date Purchased
• Address • Dealer Name
• Model #
4
SECTION 2 Maintenance
b. Standard Replacement Parts List:
Ozone Check Valve (7-2108-01)
Ozone Tubing (7-0075)
The ozone check valve and tubing should be replaced annually.
c. Regularly inspect ozone supply tubing for cracks or wear. Also
check to make sure no water is present between the check valve
and the ozone generator. This indicates check valve failure.
Replace the ozone check valve and tubing immediately.
WARNING Trace amounts of nitric acid may be present in the check
valve or tubing and could be mildly corrosive. If condensation is
present shut off the ozone generator and allow the moisture to be
drawn out or dried up prior to servicing.
5
MOUNTING & CONNECTION DIAGRAM

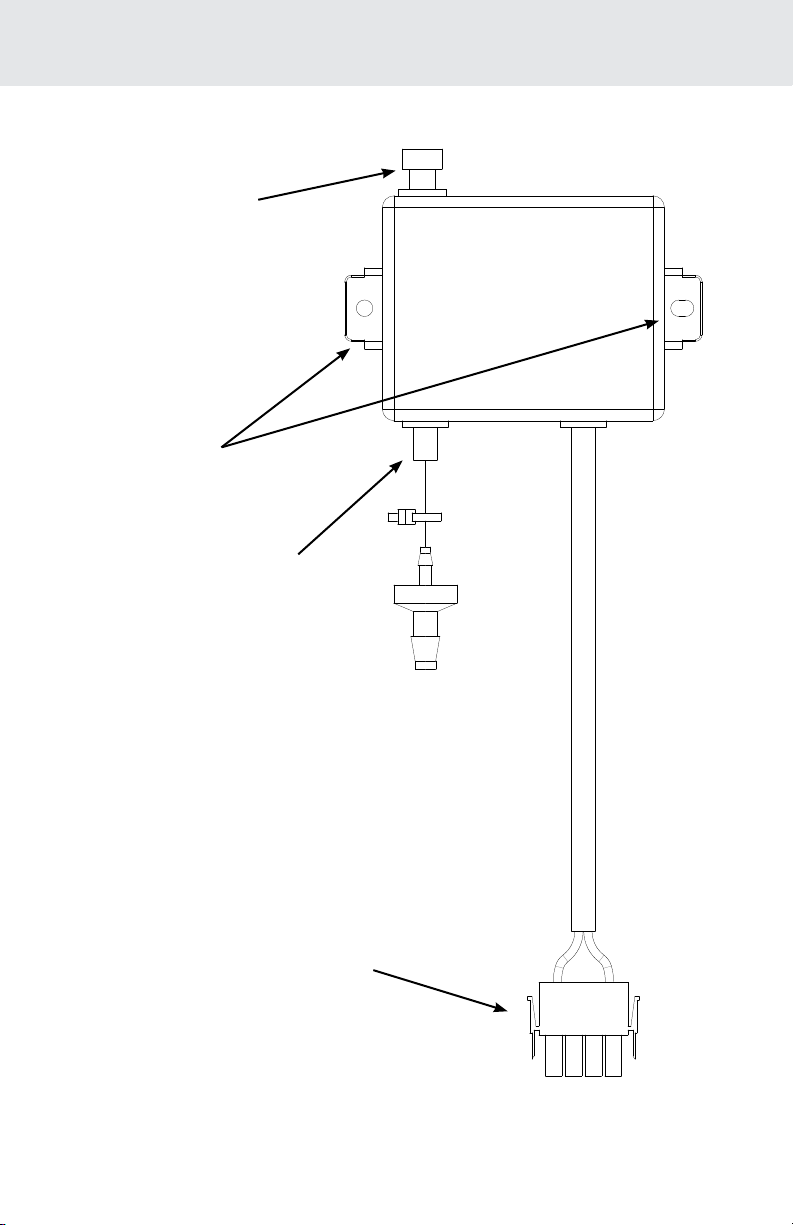

Figure 2: DEL Ozone Spa Mounting & Connections
Ozone Outlet
Mounting Flange
Connector
Air Inlet
6
SUPPORT
SAVE THESE INSTRUCTIONS
Record Information on this System Below & Keep for Your Records
Installer ______________________________________________________________
System Purchased From _____________________________________________
Installation Date _____________________________
Serial Number _______________________________
Model Number ______________________________
CMP Customer Service & Tech Support
Toll Free: 1-800-733-9060
FAX: 770-632-7115
suppor[email protected]
Warranty Questions
7
NOTES
CMP, LLC
36 HERRING ROAD, NEWNAN, GA 30265
WWW.C-M-P.COM/DEL
0521ab
