CNET CAR-854 Manuale utente

CAR

854 Wireless

ter

User

Manua

- 1 -

CAR-854

Wireless 802.11 b/g

ADSL2/2+ Modem Router

User Manual

CAR

854 Wireless

ter

User

Manua

- 2 -

Contents

1 Introduction………………………….……………………….….……..

2 Hardware Installation………………………………………..…………

3 Connecting CAR-854 via Ethernet…………………………….………

3.1 Setup CAR-854 via Ethernet Cable

…………………………………….…

3.2 Configure TCP/IP

…………………………………………………….…

4 Configure CAR-854 via HTML………………………………....……

4.1 Login

……………………………………………………………...….

5 Interface Setup……………………..…………………………..…...….

5.1 Software Configuration

…………………….………………….…..……

5.2 LAN Configuration

…………………….………………….……………

5.2 Wireless Configuration…

……………….………………….…...….……

5.3 WAN Configuration

…………………….………………………………

5.4 Services Configuration

…………………….………………….…………

5.5 Advance Configuration

…………………….……………………………

5.6 Diagnostic

………………………………..……………………………

5.7 Admin

………………….……………..……………..……………..…

5.8 Statistics

…………………….…………………..………….………….

6 Channel Mode

Configuration

….…………………..…….….………….

6.1 Bridge Mode

….…………………..…….….………………….……….

6.2 MER (Mac Encapsulating Routing) Mode

….…………..…………...…….

6.3 PPPoE Mode

….…………..…………...……………………………….

6.4 PPPoA Mode

….…………..…………...……………………………….

6.5 1483 Routed Mode

….…………..…………...………………………….

Appendices

……………....…………...…………………………………..

CAR

854 Wireless

ter

User

Manua

- 3 -

1 Introduction

The ADSL2+ Wireless Router is a high-speed ADSL2+ Ethernet/Wireless router that is

specifically designed to connect to the Internet and to directly connect to your local area

network(LAN) via high-speed 10/100 Mbps Ethernet, or wireless LAN (WLAN). The

ADSL2+ modem is compatible with the latest ADSL standards, including ADSL2 and

ADSL2+, and supports up to 24 Mbps downstream and 1.5Mbps upstream to deliver true

broadband speed and throughput. The DSL router supports wireless 802.11b/g and the

following security protocols: WEP, WPA, WPA2, and 802.1x. To ensure fully compatibility,

the DSL device was tested with all major DSLAMs, and support standard 10/100 Mbps

Base-T Ethernet interface Auto MDI/MDIx 10/100 Switch function allowing user easily to

link to PC or other Switches/Hubs. The DSL device is an idea solution for multi-users

utilizing build-in channel mode (PPPoE/A, IPoA, IPoE), IP routing, NAT functionalities

sharing the ADSL link. The DSL device is also a perfect solution for the residential users,

it supports the users with bridge mode in host based PPPoE Client.

Package Content

ADSL2+ Router * 1

Dedicated Power Adaptor * 1

RJ-45 Ethernet cable * 1

RJ-11 telephone cable * 1

Installation CD * 1

Antenna * 1

Quick Installation Guide * 1

Warning!

Only use the power adapter provided in the package, otherwise it may cause

hardware damage.

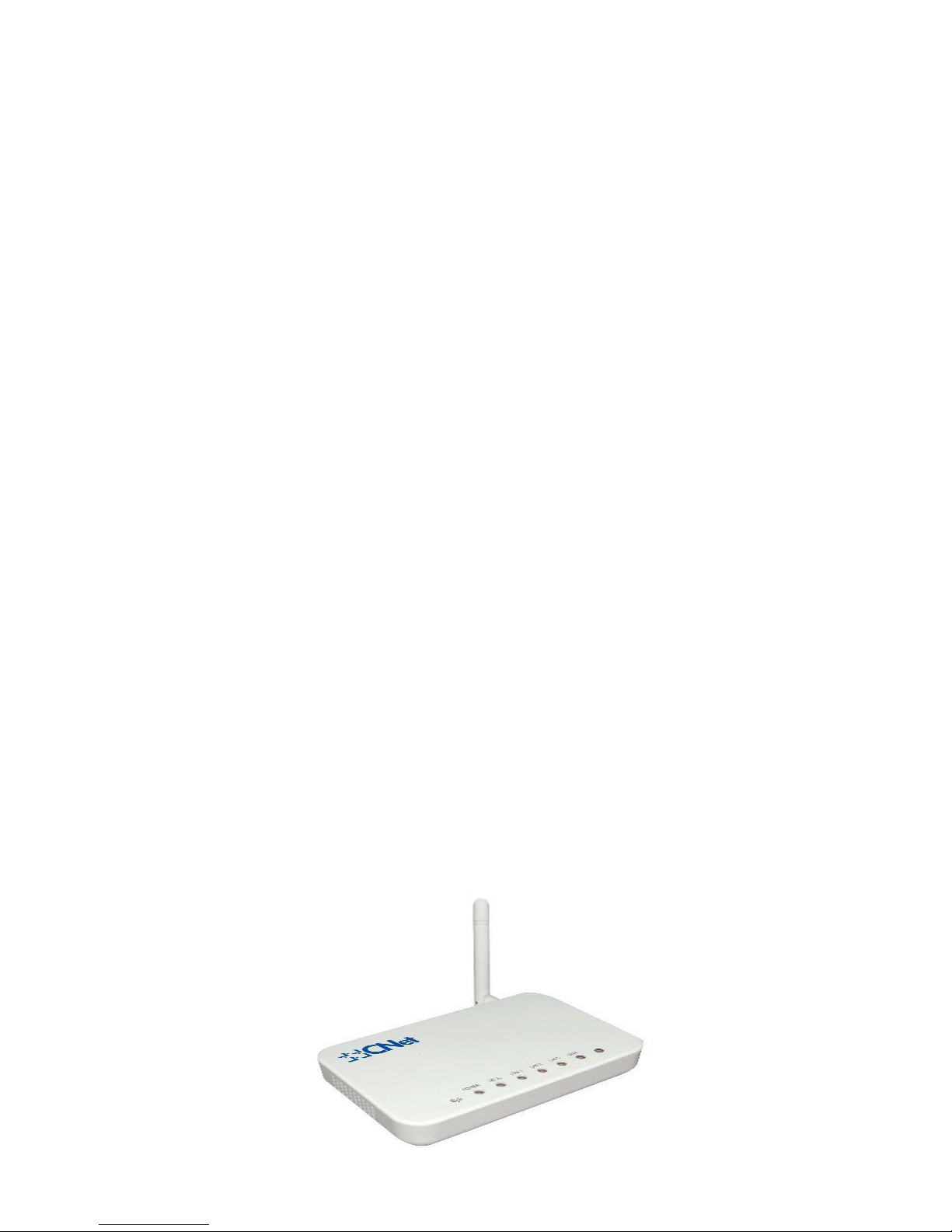

Front Panel

Wireless b/g and four port ADSL2/2+ Router

CAR

854 Wireless

ter

User

Manua

- 4 -

The LED Indicators read as below

LED NAME

Descriptions

POWER (Red light)

On: Power supply is connected and switch on.

DSL (Orange light) Blinking: Training with DSLAM.

On: ADSL modem links to DSLAM successfully

LAN 1-4 (Green light) On: ADSL modem has a successful Ethernet connection.

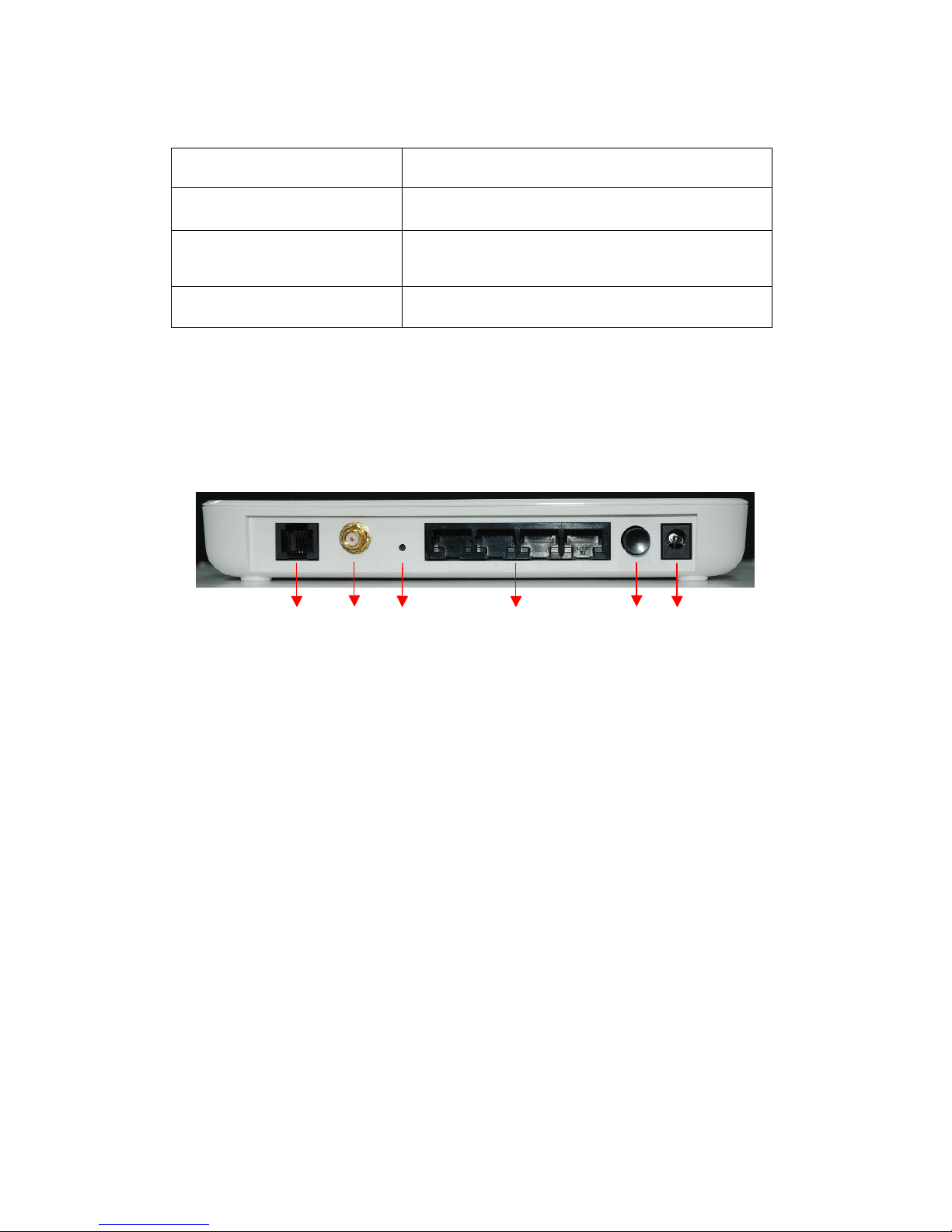

Rear Panel

Wireless-b/g and ADSL2+ Router- Four-Port

The rear panel of the ADSL2+ Router provides access to the DC power adapter, one USB connection,

four LAN connections, one WAN connection, and power on/off switch.

WAN ANT. Reset LAN 1 - 4 Power Switch Power Jack

1.1 Specifications

1.1.1 ADSL Standard

ITU-T G.992.1(G.dmt)

ANSI T1.413 Issue 2

G.992.2 (G.lite)

G.994.1 (G.hs)

Auto-negotiating rate adaptation

ADSL2 G.dmt.bis (G.992.3)

ADSL2 G.lite.bis (G.992.4)

ADSL2+ (G.992.5)

1.1.2 Wireless Features

Compliant with IEEE 802.11 B/G

Up to 54 Mbps wireless operation rate

64/128 bits WEP for security

WPA/WPA2 support

ACL (MAC address Filtering)

CAR

854 Wireless

ter

User

Manua

- 5 -

2. Hardware Installation

1. Connect the RJ-11 cable from ADSL2+ Router WAN port to DSLAM.

2. Connect the SMA from Diople Antenna.

3. Connect the RJ-45 cable from your PC to ADSL2+ Router LAN1-4 port.

4. Connect the power adapter from power jack to power outlet.

5. Push the power switch in “on” mode.

WAN Antenna Reset LAN 1-4 Power Switch Power Jack

connector

RJ-11 phone cable RJ-45 Ethernet cable power adapter

CAR

854 Wireless

ter

User

Manua

- 6 -

3. Connecting CAR-854 via Ethernet

Your router can be managed from anywhere with the embedded Web configuration using

a Web browser, such as Microsoft Internet Explorer or Netscape Navigator. Internet

Explorer 6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript

enabled should be used.

3.1. Setup CAR-854 via Ethernet Cable

If there is an available LAN card present in your PC, you just simply connect ADSL router

and PC through the Ethernet cable. Once you establish internet connection, you could browse

the Web through the Ethernet cable.

3.2. Configure TCP/IP

Step 1: Click Start then Settings and choose Control Panel

CAR

854 Wireless

ter

User

Manua

- 7 -

Step 2: Double click Network icon.

Step 3: Select Configuration tab, then choose TCP/IP from the list of installed network

components and click properties button.

CAR

854 Wireless

ter

User

Manua

- 8 -

Step 4: You can setup the following configuration in two methods:

Option1: Get an IP from Router Automatically

Select the IP Address tab.

Select Obtain an IP address automatically and click OK.

1) Select Gateway tab and click OK

CAR

854 Wireless

ter

User

Manua

- 9 -

2) Then, select DNS Configuration tab and select disable DNS then click OK to

finish the configuration.

Option2: Configure IP Manually

1) At IP Address tab, select specify an IP address, set default IP address as

192.168.1.X (X is a number between 2 to 254) in IP address field and

255.255.255.0 in Subnet Mask field.

CAR

854 Wireless

ter

User

Manua

- 10 -

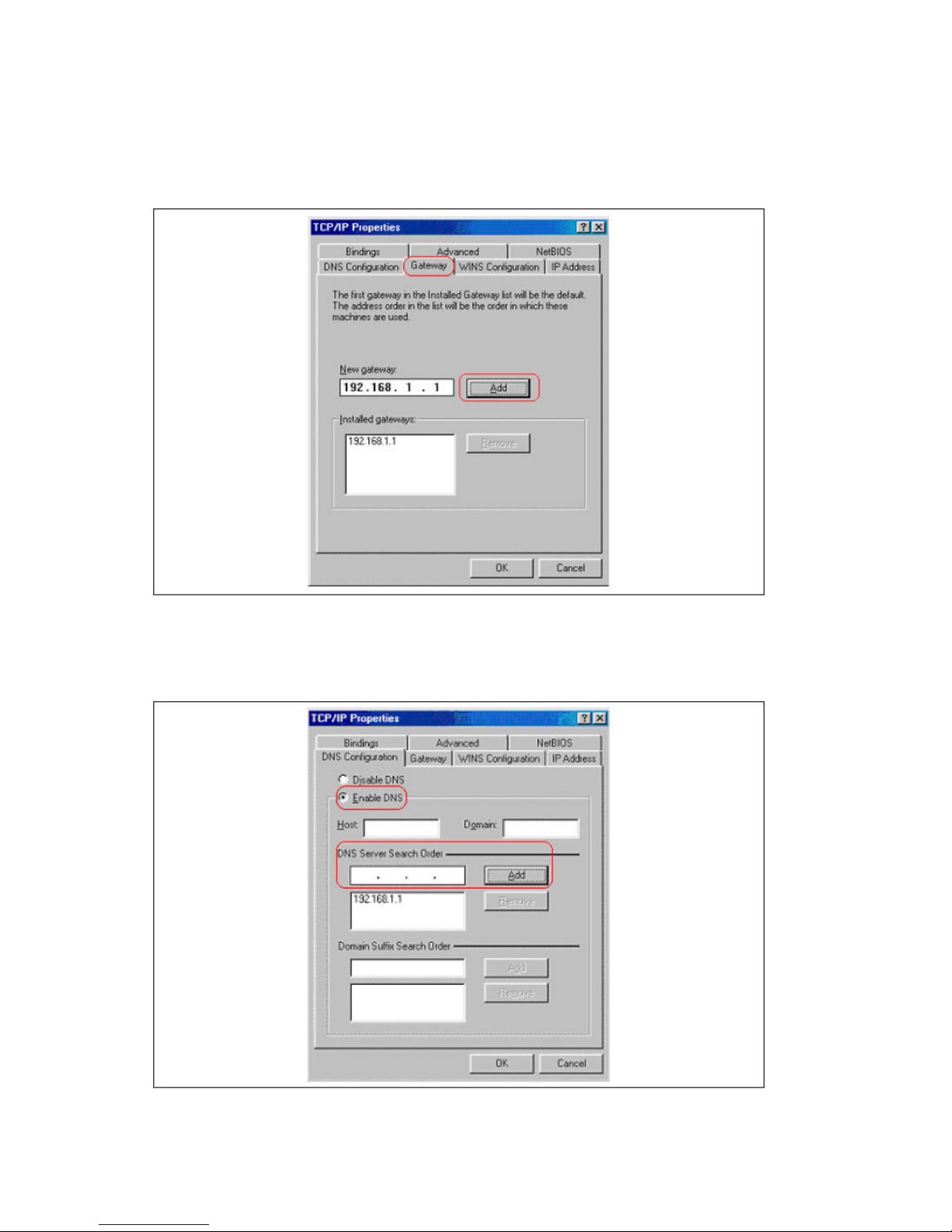

Select Gateway tab and add default Router IP address 192.168.1.1in the New

gateway field and click Add.

Under DNS configuration tab,select Enable DNS and add DNS values(192.168.1.1)

in DNS server search order field then click add
