Coaster 950306 Guida rapida

C O A S T E R F IN E FU RN ITURE

A S S E M B LY IN S T RUC TION

2014/06/6

950306

CABINET

www.coastercompany.com

page 1 of 7

PARTS IDENTIFICATION

ASSEMBLY INSTRUCTION

ITEM :

ASSEMBLY TIPS:

1.Remove hardware from box and sort by size.

2.Please check to see that all hardware and parts are present prior to start of assembly.

3.Please follow attached instructions in the same sequence as numbered to assure fast &

easy assembly.

Warning !

1. Don't attempt to repair or modify parts that are broken or defective .Please contact the

store immediately.

2. This product is for home use only and not intended for commercial establishment.

Assembly Instruction

page 2 of 7

www.coastercompany.com

950306

LEFT SIDE FRAME 1PC

MIDDLE FRAME 1PC

RIGHT SIDE FRAME 1PC

BOTTOM PANEL 2PCS

FRONT RAIL 2PCS

BACK RAIL 2PCS

TOP PANEL 1PC

MIRROR PANEL 4PCS

UPPER & LOWER 2PCS

BACK PANEL

MIDDLE BACK PANEL 1PC

RIGHT DOOR 2PCS

LEFT DOOR 2PCS

SHELF 4PCS

N GLASS CLAMP 2PCS

7fo3egap

moc.ynapmocretsaoc.www

NOITCURTSNIYLBMESSA

ITEM :

HARDWARE PACKAGE

Q’TY

FIGURE

NO: DESCRIPTION

3 22 PCS

4 4 PCS

5 38 PCS

6 4 PCS

7 4 PCS

2 22

950306

WOOD DOWEL

CAM BOLT

CAM LOCK

LONG BOLT

ROUND HEAD SHORT SCREW

SHORT BOLT

KNOB

15 PCS

PCS

10 16 PCS

8 PCS

4 PCS

56 PCS

8 PCS

HINGE

FLAT HEAD SCREW

SHELF HOLDER

MAGNET

ROUND HEAD LONG SCREW

page 4 of 7

www.coastercompany.com

ASSEMBLY INSTRUCTION

ITEM : 950306

STEP 1:

Use Cam Bolt(2) & Wood Dowel(1) to

Side Panel(A&C) & Middle Panel(B),insert

Cam lock(3) into holes of Bottom(D) & Rail(E&F),

attach Side Panel(A&C) & Middle Panel(B) to

Bottom Panel(D) & Front Rail(E) & Back Rail(F)

with screwdriver,rotate Cam Lock(3) clockwise

to secure Cam Bolt(2).

STEP 2:

Use Cam Bolt(2) & Wood Dowel(1) to

Top Panel(G) ,insert Cam lock(3) into holes

of Side Panel(A&C) & Middle Panel(B),attach

Top Panel(G) to Side Panel(A&C) & Middle

Panel(B) with screwdriver,rotate Cam Lock(3)

clockwise to secure Cam Bolt(2).

Use Long Bolt(4) through Front Rail(E) to

Top Panel(G) with screwdriver,then tighten.

It need two persons and takes about thirty minutes to

assembly the item.

page 5 of 7

www.coastercompany.com

ASSEMBLY INSTRUCTION

ITEM : 950306

STEP 3:

Insert Mirror Panel to Glass Clamp,then

into grooves of preassembled unit from

Step 2 back.

STEP 4:

Insert Back Panel(I&J) into grooves

of preassembled unit from Step 3,

tighten Round Head Short Screw(5)

with Phillips screwdriver.

STEP 5:

Use Flat Head Screw(9) through

Hinge(8) to Door(K&L) with screwdriver,

then tighter.

Attach Short Bolt(6) through Door

(K&L) to Knob(7) with screwdriver,

then tighter.

page 6 of 7

www.coastercompany.com

ASSEMBLY INSTRUCTION

ITEM : 950306

STEP 6:

Use Flat Head Screw (9) to hinge (8) to

Side Panel (A&C) & Middle Panel(B), tighten

Flat Head Screw (9) with screwdriver.

Use Round Head Long Screw(12) to

Magnet(11) & Top Panel(G) together.

STEP 7:

Insert Shelf Holder(10) to the holes

of Side Panel(A&C) & Middle Panel(C),

then put Shelf Panel(M) on the

Shelf Holder(10).

page 7 of 7

www.coastercompany.com

ASSEMBLY INSTRUCTION

ITEM : 950306

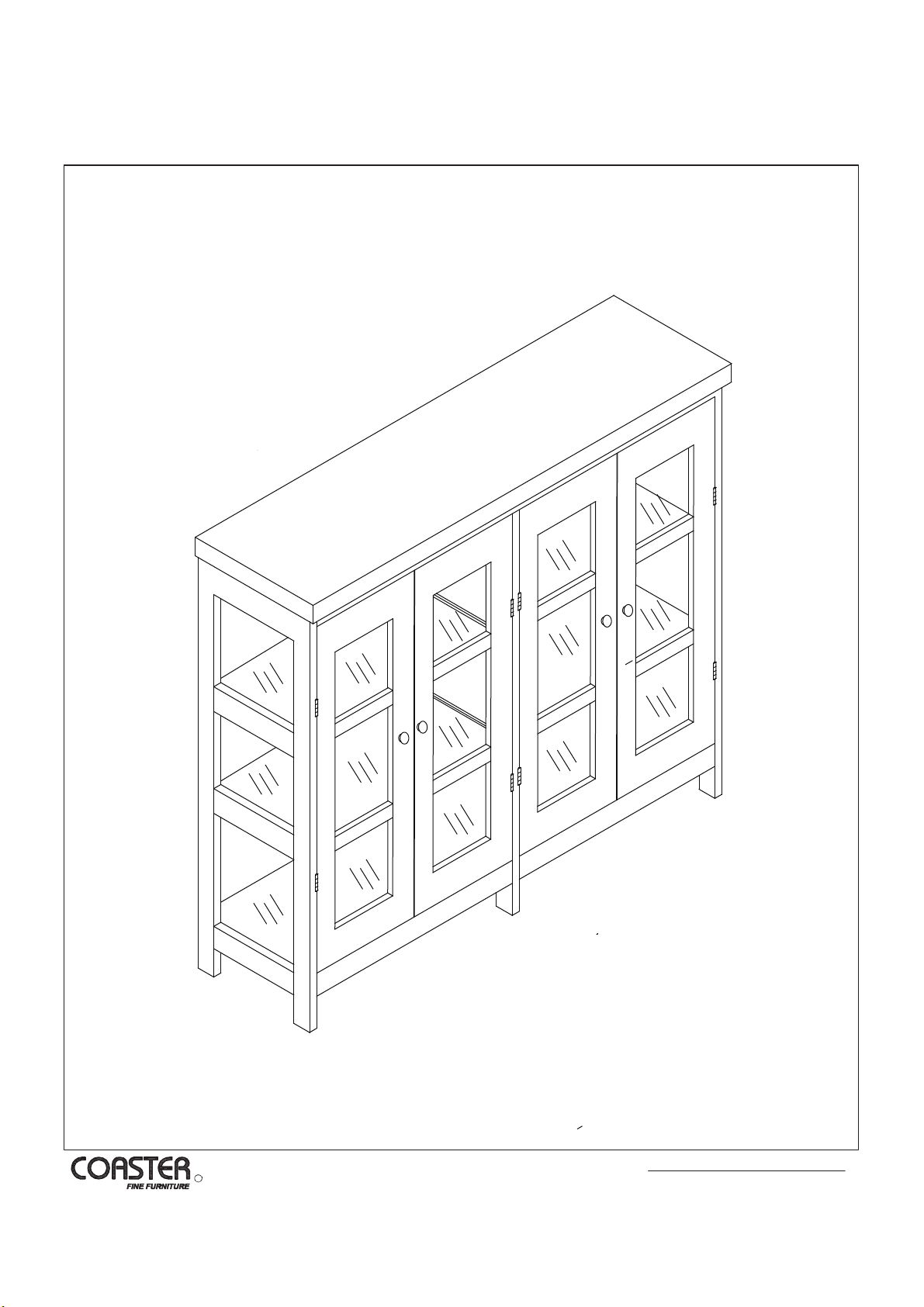

STEP 8:

Now your new cabinet to use.
