Coax TVS-5000C Manuale utente

Digital HD Cable Receiver

TVS-5000C

Optional USB PVR

Operation Manual

Version 1.00-E

SAFETY INSTRUCTIONS

Read ALL the safety instructions before first use of your STB.

Power source

The STB power cord needs to be plugged into a working AC outlet.

Safety considerations

Position ALL leads so that they are not likely to be walked on or pinched by things placed on or against them.

Do not use the STB in wet or damp conditions. Do not allow the STB to get wet, i.e.

dripping or splashing, as this may be dangerous. Do not place water filled object, such as vases, on top

of the STB.

Make sure that no naked flame sources, such as candles, are placed on top of the STB.

Ventilation

Any slots and openings on the STB are for ventilation. DO NOT COVER OR BLOCK THEM as it

could lead to overheating.

NEVER let children push anything into the holes or slots on the case.

Servicing

There are no user serviceable parts in your STB. If service is needed:

CALL COAXIAL CABLE TV AT 734-1424 IF YOU HAVE ANY SERVICE ISSUES

Remote Control Battery Disposal

Please ensure batteries from the remote are disposed of safety.

SERIOUS WARNING!

NEVER power off when the STB is recording, file reading, or playing back a video.

It’s possible to damage the USB drive if your STB has an external USB drive attached.

The USB port of TVS-5000C can provide standard power to external USB drive.

DO NOT ADD ANY USB POWER ADAPTER TO STB!!!

INDEX

1. GETTING STARTED..................................................................................................................6

1.1 USE REMOTE CONTROLLER .....................................................................................................................6

1.2 REAR PANEL.............................................................................................................................................7

1.3 CONNECTING TOTV................................................................................................................................8

1.4 REMOTE CONTROLLER.............................................................................................................................8

2. BASIC FUNCTIONS...................................................................................................................9

2.1 POWER ON/POWER STANDBY..................................................................................................................9

2.2 VOLUME UP/DOWN AND MUTE ...............................................................................................................9

2.3 TV /RADIO SWITCH .................................................................................................................................9

2.4 CHANGE CHANNELS .........................................................................................................................9

2.5 DISPLAYCHANNEL EPG INFORMATION..........................................................................................9

2.6 PREVIOUS CHANNEL RECALL.......................................................................................................10

2.7 SWITCH LANGUAGE OF PROGRAMS .......................................................................................................10

2.8 EPG (ELECTRONICPROGRAM GUIDE ) .................................................................................................10

2.9 TELETEXT..............................................................................................................................................10

2.10 SUBTITLE (CLOSED CAPTIONING)

.........................................................................................................11

2.11 FAVORITES

............................................................................................................................................11

2.12 RECORDING (WILL ONLY WORK WHEN EXTERNAL USB DEVICE IS ATTACHED)...............................11

2.13 MUSIC/MOVIE/PVR PLAYBACK ............................................................................................................13

2.14 DEFAULT PASSWORD...........................................................................................................................13

3. MAIN MENU.............................................................................................................................14

4. TV/RADIO..................................................................................................................................15

5. SYSTEM SETTING...................................................................................................................15

5.1 INSTALLATION.......................................................................................................................................16

5.1.1 NIT Search.........................................................................................................................................16

5.1.2 AUTO Search.....................................................................................................................................16

5.1.3 Manual Search ...................................................................................................................................16

5.2 CH MANAGER........................................................................................................................................16

5.2.1 TV/Radio Manager ............................................................................................................................17

5.2.2 Delete All...........................................................................................................................................17

5.3 PARENTAL RATING.................................................................................................................................18

5.3.1 TV/Radio Lock ..................................................................................................................................18

5.3.2 Change PIN Code...............................................................................................................................18

5.4 ADVANCE SETTING.................................................................................................................................19

5.4.1 Language Setting................................................................................................................................19

5.4.2 Audio Setting .....................................................................................................................................19

5.4.3 Display Setting...................................................................................................................................20

5.4.4 Video Setting .....................................................................................................................................20

5.4.5 Aspect Ratio Setting ..........................................................................................................................20

5.4.6 PVR setting........................................................................................................................................21

5.4.7 PVR File Style ...................................................................................................................................21

5.4.8 PVR File Size.....................................................................................................................................21

5.4.9 Preferred Storage................................................................................................................................22

5.4.10 PVR File Delete...............................................................................................................................22

5.4.11 Timeshift..........................................................................................................................................22

5.4.12 Timeshift Length..............................................................................................................................23

5.4.13 Timeshift to Record .........................................................................................................................23

5.4.14 Zoom Mode......................................................................................................................................23

5.4.15 Factory Reset ...................................................................................................................................24

5.5 SYSTEM INFO .........................................................................................................................................24

5.6 SIGNAL TEST..........................................................................................................................................24

5.7 CA SETTING............................................................................................................................................25

5.7.1 Subscription right...............................................................................................................................25

5.7.2 Parental control..................................................................................................................................25

5.7.3 Change CA PIN .................................................................................................................................26

5.7.4 CA message .......................................................................................................................................26

6. BOOK MANAGER....................................................................................................................26

7. ENTERTAINMENT..................................................................................................................27

7.1 BOX MAN ..............................................................................................................................................27

7.2 BURNING TETRIS....................................................................................................................................27

7.3 HIT RAT.................................................................................................................................................28

7.4 GO BANG...............................................................................................................................................28

7.5 SODOKU ................................................................................................................................................29

8. HELP...........................................................................................................................................29

9. MEDIA PLAYER.......................................................................................................................30

9.1 BASIC FUNCTIONS..................................................................................................................................30

9.2 KEY DEFINITION....................................................................................................................................30

10. APPENDIX A TECHNICAL SPECIFICATION....................................................32

11. APPENDIX B TROUBLESHOOTING....................................................................33

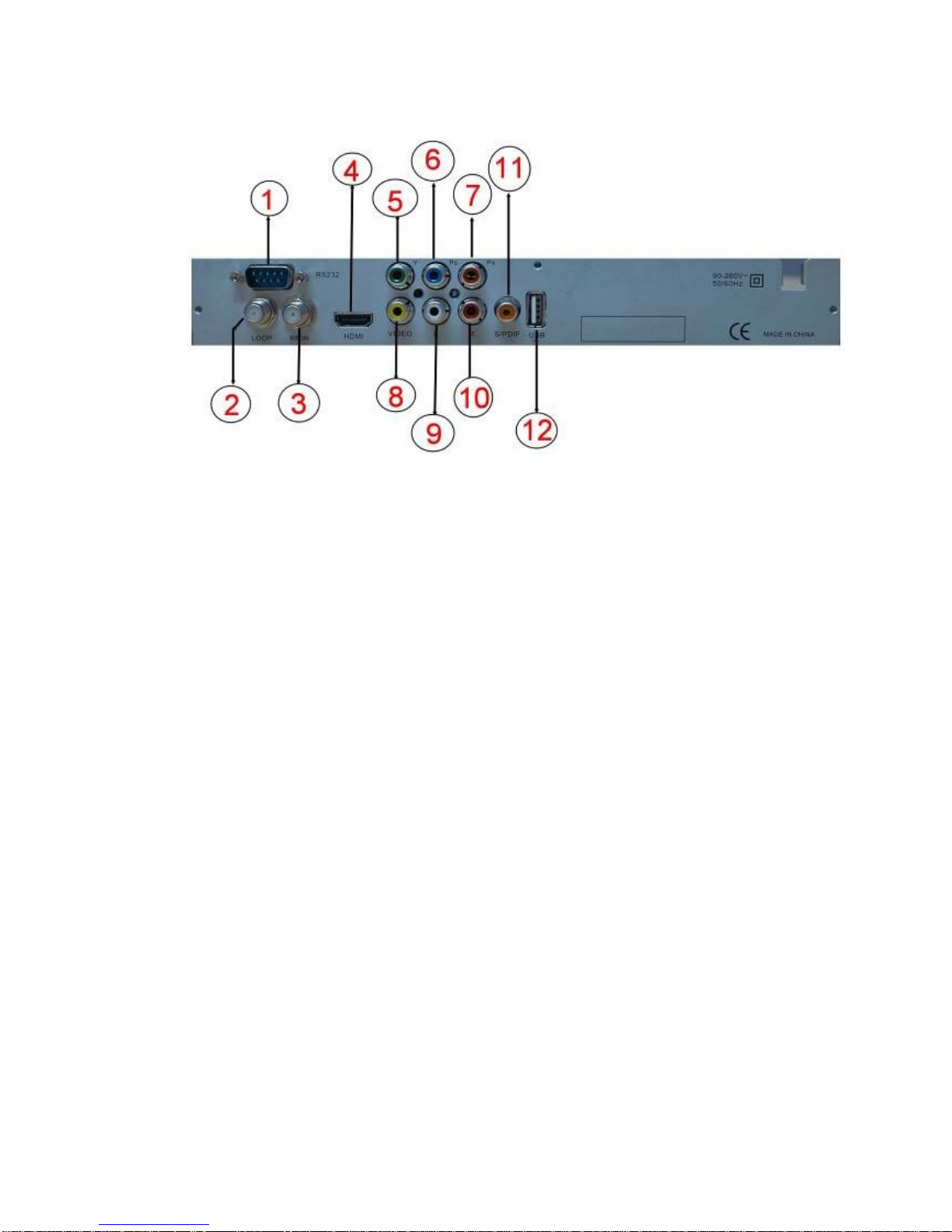

1.2 REAL PANEL

Figure 1-1-1 Rear panel of TVS-5000C

○

1RS232：RS232 port，this port is used for engine.

○

2LOOP

：DO NOT USE!

○

3RF IN：Connect CABLE to this connector

○

4HDMI：High Definition Multimedia Interface

○

5○

6○

7YPbPr：YPBPRis the analog video signal carried by component video cable in

consumer electronics. The green cable carries Y, the blue cable carries PBand the red cable

carries PR.

○

8Video：RCA Video port, the yellow cable carries the video;

○

9○

10 L,R ：Left Audio port, the white cable carries the Left port; Right Audio port, the red

cable carries the right audio.

○

11 S/PDIF: S/PDIF output, this port can connect HIFI with STB.

○

12 USB: USB2.0 master port to connect External USB mass storage device

1.3 CONNECTING TOTV

Note: Before connect this Set Top Box (STB) to other devices, please SHUT DOWN all devices.

Connect the STB with the HDMI cable from the STB to the HDMI jack on the TV set;

Connect a coaxial cable to the set top box “RF IN” connector on its rear panel. ”RF IN” connector

Is the second one from the edge of STB. STB will not work if on wrong connector.

Plug the set top box’s power cord into the AC power socket on the wall. The

set top box starts in a normal state of “playback the program that it received”.

USB: USB master, connecting with External USB mass storage.

S/DIF: This port can connect HIFI with STB.

IF the STB does “NOT” show a picture – make SURE the TV is set to the proper input – it will be HDMI

1.4 REMOTE CONTROLLER

1. POWER: Turns the receiver power on/power standby.

2. MUTE: Mutes the current channel audio.

3. Numeric Key (0-9): You can change channel by input the channel

number directly.

4. FAV: Press to display the favorite List.

5. RECALL: Return previous program

6. TV/RADIO: In TV mode, toggle switch between TV and Radio.

In media mode, PLAY function.

7. MUSIC: Hot key to play compatible music from USB drive.

8. MOVIE: Hot key to play compatible movie from USB drive.

9. PVR: Hot key to play recorded programs from USB drive.

10. || : Play/Pause

11. 口：Stop

12. >> : Forward.

13. << : Backward.

14. |< : Previous

15 >|: Next.

16 INF (INFO): If you press the INF button once, the EPG data or

Recording information for the highlighted channel will display.

Pressing INF will remove the display. This works the the full screen

EPG also.

17. Pg Up: Page up.

18. Pg Dn: Page down.

19. REC (|<<): In TV mode, record current channel to the USB

device. In the media mode, previous track.

20. UP Arrow: Move Up in menu. Channel up.

21. LEFT Arrow: Move Left in menu. Decrease the audio output level.

22. DOWN Arrow: Move Down in menu. Channel down.

23. RIGHT Arrow: Move Right in menu. Increase the audio output level.

24 .QUIT: Close current active menu and go back to up menu..

25. MENU: Press to access the SYSTEM MENU.

26. EPG: The EPG menu of the current channel is displayed.

27. MAIL: Hot key to enter email menu. Messages from cable company ONLY!

28. TEXT: Hot key to enter Teletext menu. (Not used in USA)

29. SUBT: Used to turn Closed Captioning ON or OFF

30. TRACK: Sets the current channel audio to stereo/left-mono/right-mono.

31. LANG: Choice the program’s voice language (If SAP is available)

32. PTV: Reserved

33. MOSAIC: Reserved

34. FILE: Hot key to enter storage directory

35. EDIT: Reserved

36. TIMER: Reserved

37. HELP: Reserved

38. F1-F4: Function key, reference from menu

39. OK: Confirm key.

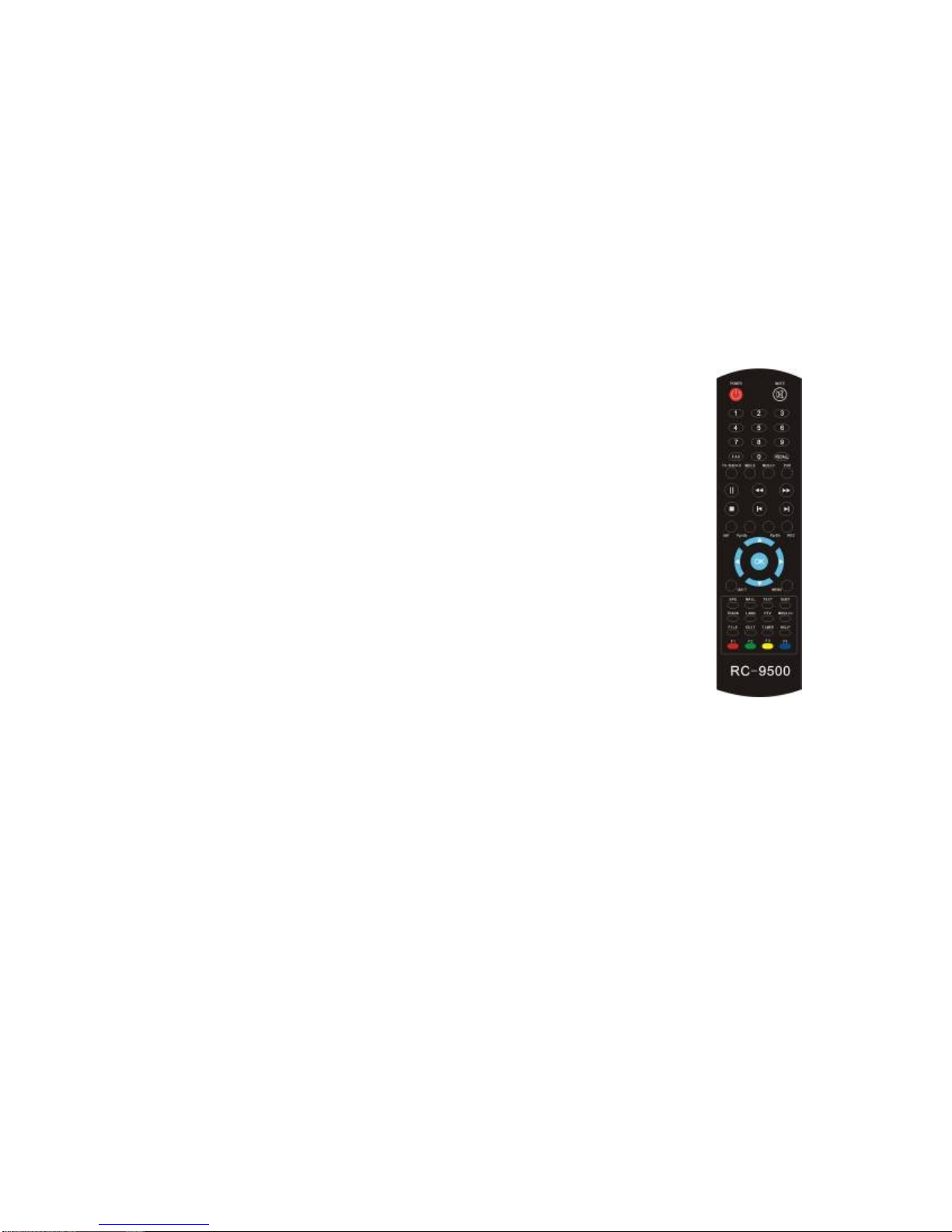

Figure 1-2

Remote Control

2. BASIC FUNCTIONS

2.1 POWER ON/POWER STANDBY

The set top box should be connected in the sequence below in order to protect it from damage.

Connect cable to STB

Connect STB to TV set

Connect AC power plug to the STB

Power ON (From the remote)

When the STB is in “STANDBY” mode (will show time on front of STB), press POWER on remote to power on.

Power OFF (From the remote)

When it is running, pressing POWER on the remote will enter into the “STANDBY" mode.

2.2 VOLUME UP/DOWN AND MUTE

Press ←or →to adjust volume when system is in normal playing mode; and it will show volume bar

on the screen;

Press MUTE to enter mute mode when normally playing and repress MUTE to back the normal

state.

2.3 TV /RADIO SWITCH

Press TV/RADIO to switch program when it is in full screen; There are currently no radio channels.

You can switch between TV and Radio via program management.

2.4 Change Channels

Press key ↑

or ↓

to switch to the previous or next program.

If there are favorite programs that have been set up, just press FAV key to enter Favorite program

list and press key ↑

or ↓

to switch to the previous or next of your favorite program.

2.5 DISPLAY Channel EPG Information

Pressing the INF key will show the program information for the current program whether you are just

watching a regular channel, in the EPG, or Recording. Pressing INF a second time will remove the display.

2.6 PREVIOUS CHANNEL RECALL

Press RECALL, with no other menus up, to return to the previous channel.

2.7 SWITCH LANGUAGEOF PROGRAMS.

Press LANGUAGE to switch the language audio of current program. (If SAP available)

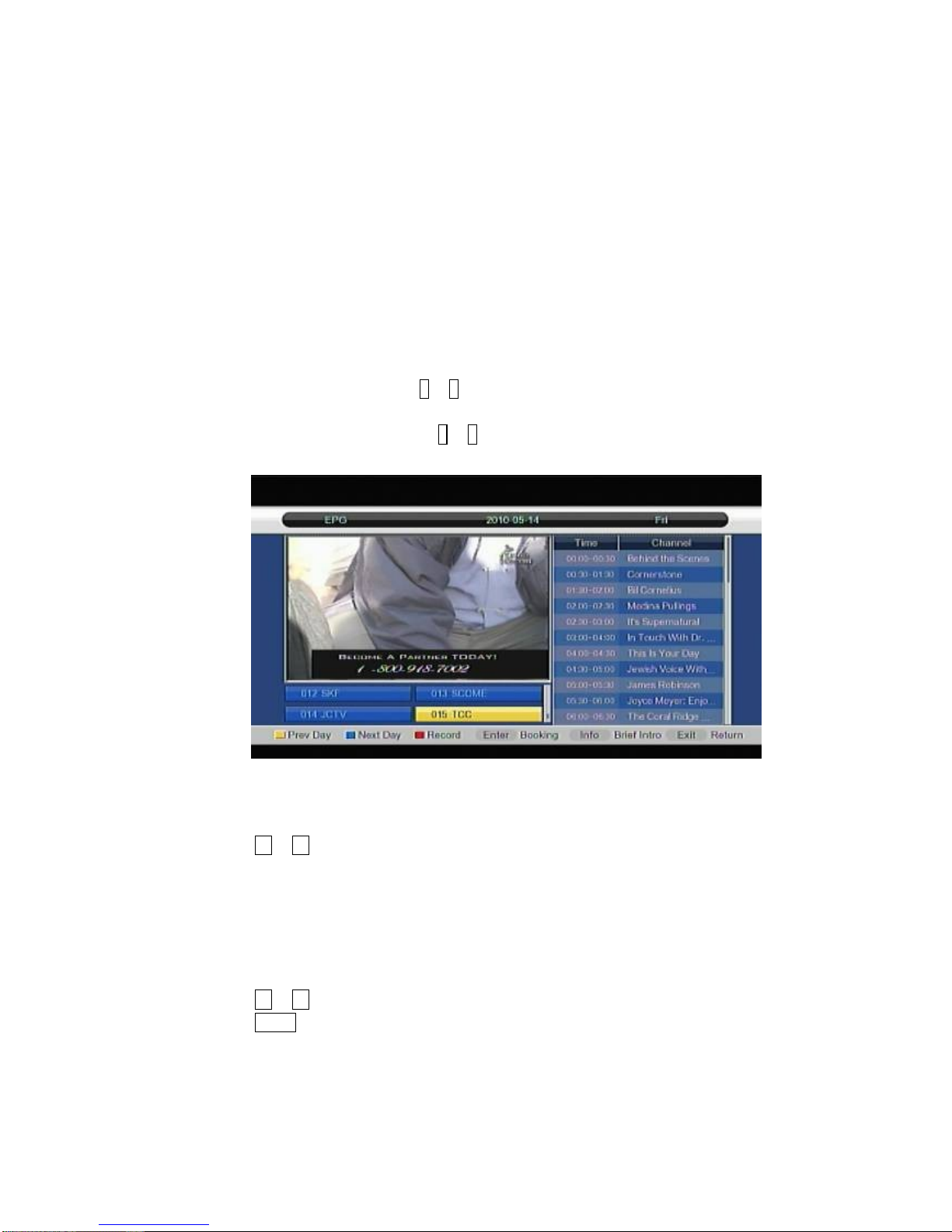

2.8 EPG(ELECTRONICPROGRAMS GUIDE)

Press key <EPG> on the remote controller to enter EPG page to know more about the programs to be

played. The EPG menu describe as above:

Area 1 shows video ;

Area 2 shows channel list, press ↑

or ↓

to switch between channels;

Area 3 shows key help to operate current menu.

Area 4 shows EPG event list, press ↑

or ↓

to switch between event,;

Area 5 shows time and date list with week and year;

Figure 2-2 Daily EPG menu

In area 4 press INFO to show the current detailed program information ;

Press ←or →to switch between Area 2 and Area 4. You can also just press in the channel number.

2.9 TELETEXT (Not used in USA)

If you want to watch teletext, please press <TEXT> on the remote controller to enter Teletext page.

Input three digits to go to corresponding page you want.

Press Up to go to the previous page; while press key <Down> to go to the next page.

Press ←or →to back for 100 pages; while press Right to advance for 100 pages.

Press QUIT key to exit from Teletext.

2.10 SUBTITLE (Closed Captioning)

When resetting STB, the defaulted is Closed Captioning is on. To change this, press the SUBT key and select

Either “OFF” or “CC”

Press ←or →key to choose whether to open CC, press ↑

or ↓

key move upward and

downward to choose CC, (CC will be where 'English' is in the pictures below).

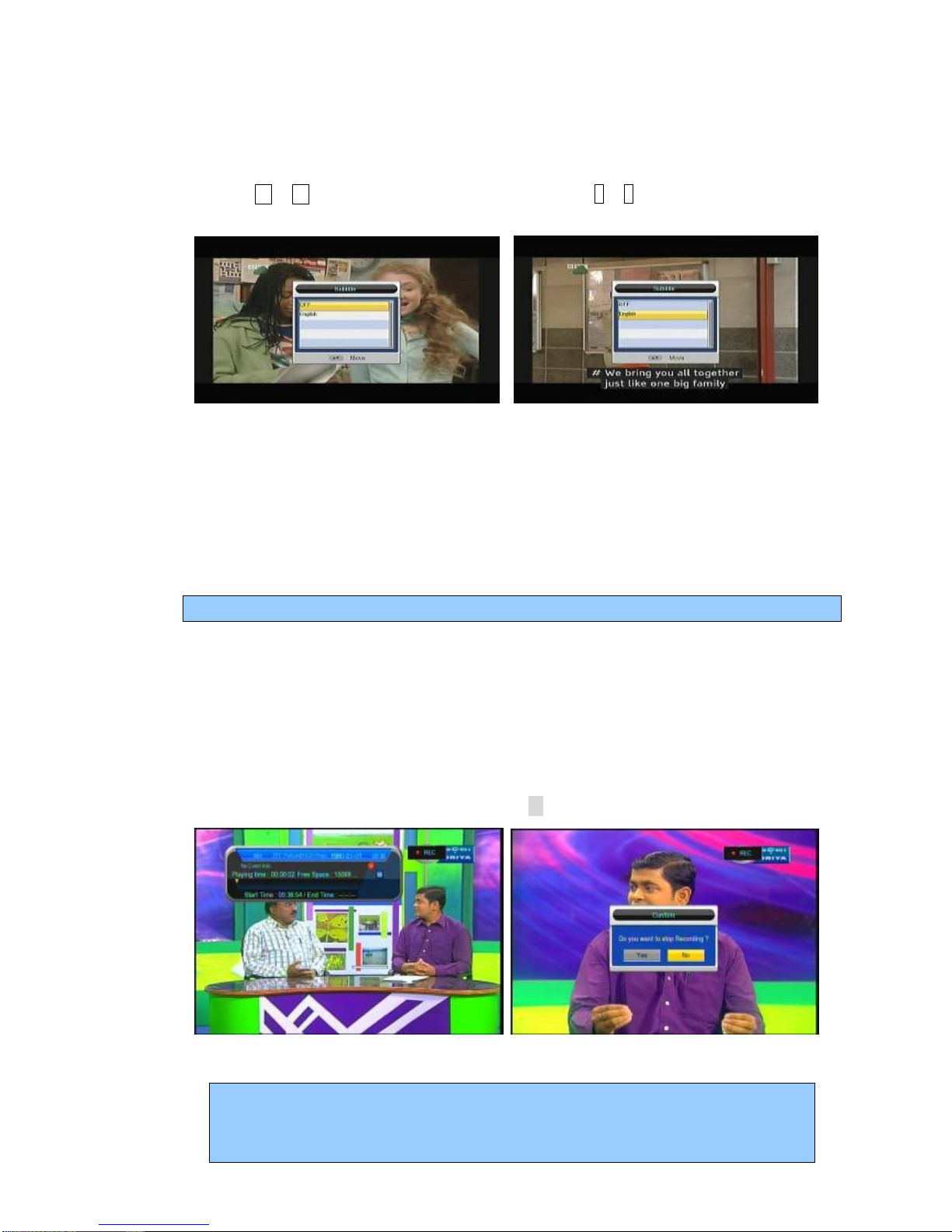

Figure 2-3 CC Select/off

2.11 FAVORITES

Press FAV key to enter FAV menu. This will show channels that have been made a Favorite.

Note: There are no FAV settings in the Radio channel

2.12 RECORDING (Will only work when external USB device attached)

There are three ways to record TV program. They are Real Time Recording, EPG Recording, and

Schedule Recording. **NOTE:YOU CAN ONLY RECORD ONE CHANNEL AT A TIME!**

Before you record a TV program, a pop-up caution message will appear if no USB device is attached.

Real Time Recording

In viewing mode press the REC button, you can record current TV program into selected device.

This is Real Time Recording. **NOTE:You can ONLY record the channel you are watching.**

During recording, it will show message “REC”. Press “

口”, to stop recording.

Figure 2-4 Recording start and stop

To “Timeshift” record (pa se live TV) yo m st have a USB device connected to the nit.

To start the “Timeshift” recording, j st press the “Play/Pa se” b tton to start the recording.

Pressing the “Play/Pa se” b tton again will start playing from the time yo started recording.

NOTE:It is best to try this BEFORE recording to see if USB device will work properly.

Test USB device with Timeshift recording FIRST. If no errors will work properly for recording.

Indice

Manuali Ricevitore TV popolari di altre marche

NEC

NEC PX-TUAN-01 Manuale utente

Edision

Edision Piccollino Manuale utente

Matsui

Matsui DTR1 Manuale utente

Dyon

Dyon Raptor Manuale utente

Strong

Strong SRT 2401 Istruzioni operative

TerraTec

TerraTec CINERGY DT USB XS DIVERSITY Manuale di istruzioni

Haier

Haier 34F9K Manuale utente

TechniSat

TechniSat DigiCom 1 Manuale utente

Haier

Haier LT19A1 Manuale utente

Triax

Triax CR 317 Manuale utente

DirecTV

DirecTV D10-300 Manuale utente

Motorola

Motorola VIP2502W Manuale utente

ActionTec

ActionTec WirelessTV Manuale utente

Motorola

Motorola VIP1200 Series Manuale utente

Xoro

Xoro HRT 1300 Manuale utente

Motorola

Motorola DH6200 Manuale utente

Manhattan

Manhattan Plaza DS-100 Manuale utente

Micro Prose

Micro Prose MPI-500 Manuale utente
