Model 5001

SDI

Non-Reclocking Distribution

Amplifier

Owner's Manual

The Cobalt Digital 5001 is a Leitch

Digital Frame compatible card that provides eight non-reclocked serial

digital video outputs.

The 5001 accepts SMPTE 259 A,B,C and D digital rates of 143-540 Mbits. Card edge LED indicators show data

lock and power presence.

The 5001 uses the latest in surface mount technology and SDI input equalizer components. The printed circuit

board is a four layered board utilizing internal power planes and micro strip design to control board impedance,

thus improving signal quality.

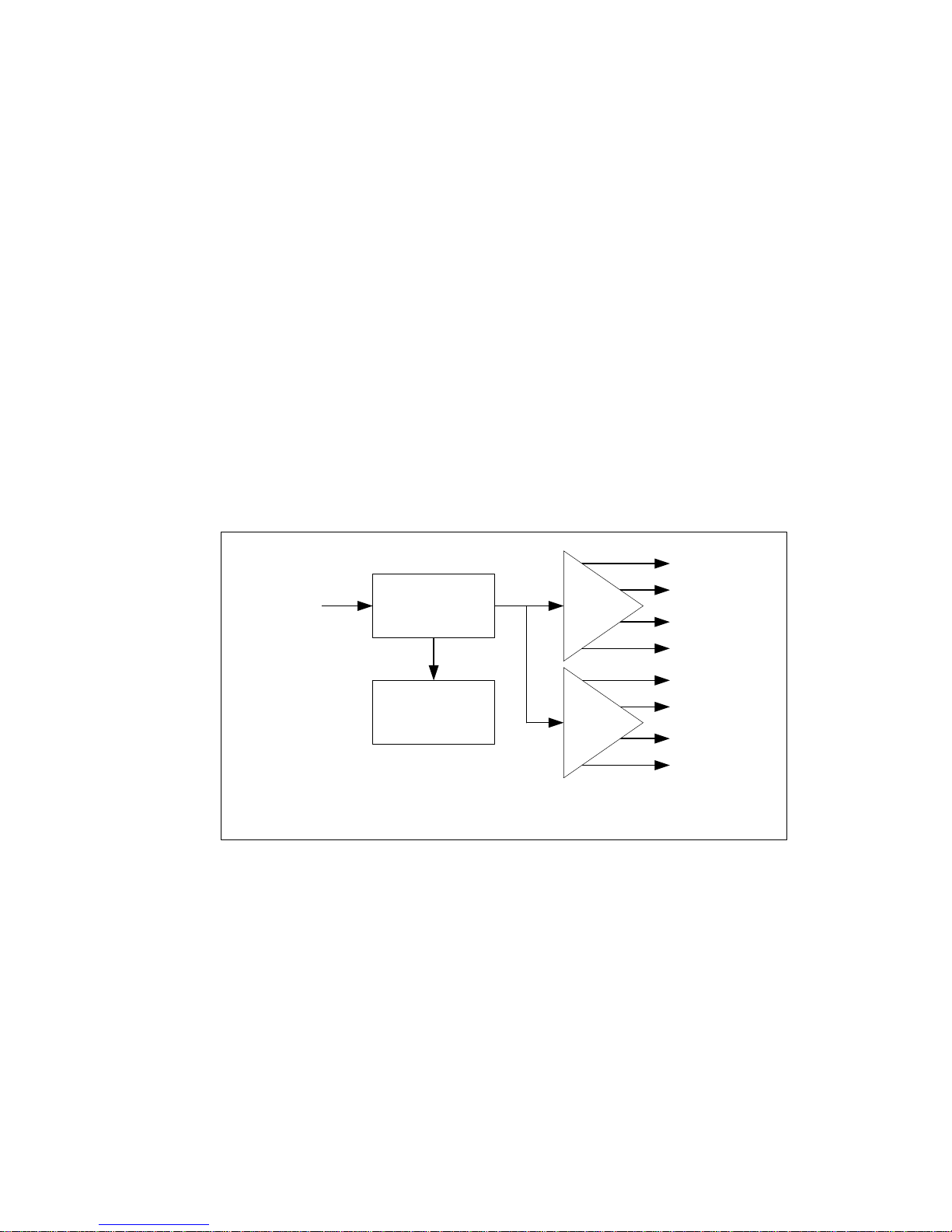

The functional Diagram is shown below (Fig. 1).

5001 Owner's Manual

Page 2 of 4

Equalize

DDA

Status

Display

Fig. 1: 5001 SDI Non-reclocking Distribution Amplifier

Out-8

Out-7

Out-6

Out-5

Out-4

Out-3

Out-2

Out-1

SDI In

143-360 Mb/s

Selection of SDI Output Mute

The 5001 can be set to mute weak SDI input signals that are beyond the recovery range of the input equalizer.

We recommend turning output mute on as it removes output noise when a SDI signal is not present at the input.

To select this option to mute set S1-1 (Fig. 3) on or up. To turn output muting off, set S1-1 to off of down. If

mute mode is set off the Data presence indicator may turn on even though valid data is not present. This is due

to random pick up noise as the normal data mute mode is turned off.

5001 Owner's Manual

Output muting

Power

Data

SDI 4:2:2 Input

Non-reclocked SDI Output

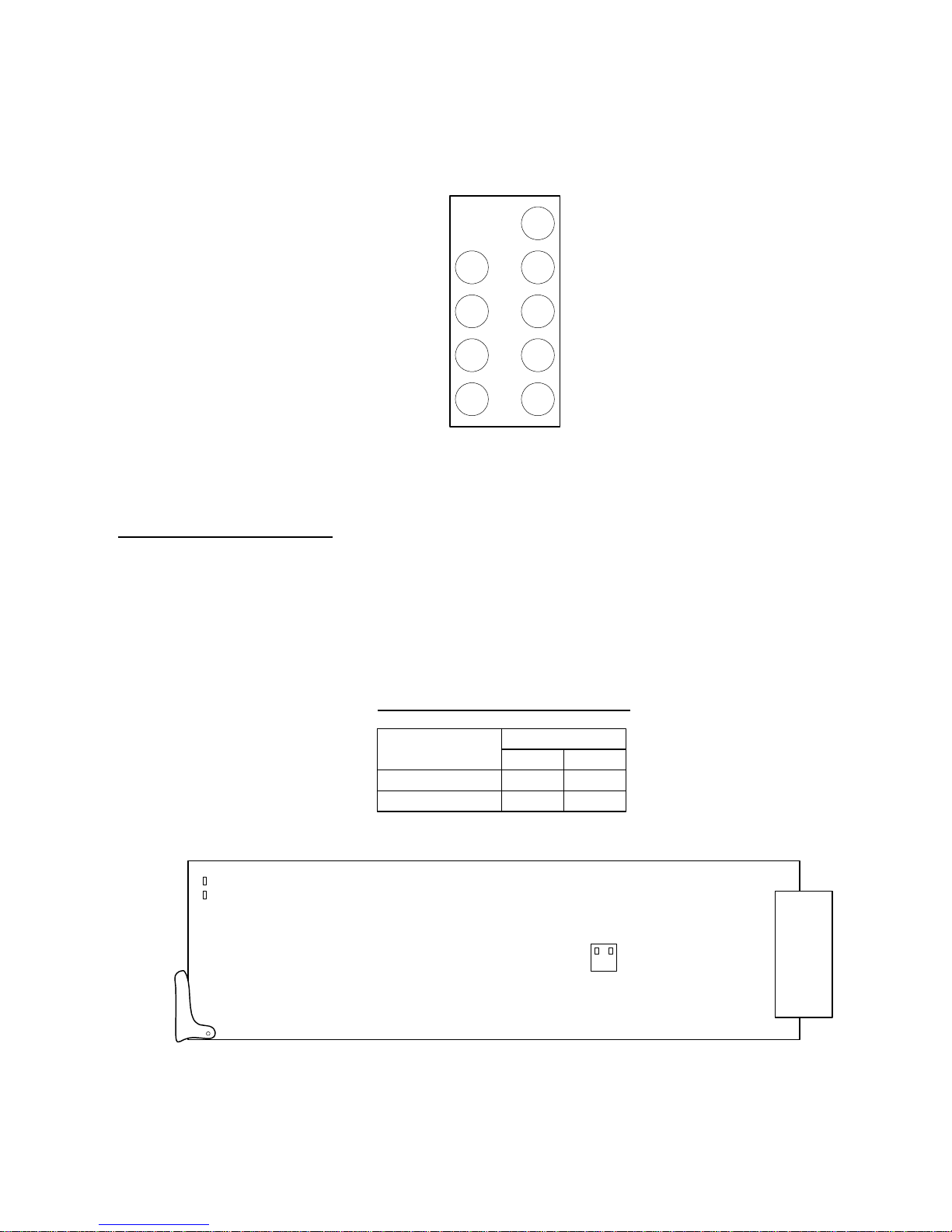

Fig. 2: Rear view of Frame BNC connector panel

Non-reclocked SDI Output

The Leitch

frame provides a total of 9 BNC connectors per card. I/O configuration is shown below:

Page 3 of 4

Fig. 3: 5001 Indicator and Switch Locations.

Segment

SDI Mute

SDI Pass

Desired output

ON N/C

OFF N/C

Mute Output Switch Configuration

Ofc: 217 344-1243

Fax: 217 344-1245 [email protected]

www.cobaltdigital.com

Cobalt Digital Inc.

2406 E. University Ave.

Urbana, IL 61802

5001 Owner's Manual

Specifications:

Input: Signal type 50-600 Mbits SDI

Equalization Auto to 40 dB at 200 MHz

Return Loss >15 dB at 270 Mbit

Termination 75 ohms located on PCB

Output: Number of Outputs Eight

Level 800 mV +/- 10%

Return Loss >15 dB at 270 Mbit

Delay 10 nS

Power: Positive Rail 1.5 Watts

Negative Rail 0 Watts

Temperature range: 40-140 degrees F. ambient (non-condensing) with air flow.

Status Indicators: Power and Data present

Notes: Specifications subject to change without notice. This product is not authorized for use in life support

systems. Product liability limited only to the replacement of this unit. Cobalt Digital Inc. does not assume any

liability for loss of use due to failure of this component.

Page 4 of 4

Rev 1.5 rmw
