3.8m Oset Antenna
Receive only and Transmit / Receive
The most important thing we build is trust
Document number here in this font and color
2
www.cobham.com/patriot
This COBHAM SATCOM Patriot product is warranted to be free from defects in material and
workmanship under normal use and service. Patriot antenna products shall repair or replace defective
equipment, at no charge, or at its option, refund the purchase price, if the equipment is returned to Patriot
products not more than twelve (12) months after shipment. Removal or reinstallation of equipment and its
transportation shall not be at cost of COBHAM SATCOM Patriot product except Patriot product shall return
repaired or replaced equipment freight prepaid.
This Warranty shall not apply to equipment which has been repaired or altered in any way so as to affect
its stability or durability, or which has been subject to misuse, negligence or accident. This Warranty does
not cover equipment which has been impaired by severe weather conditions such as excessive wind, ice,
storms, lightning, or other natural occurrences over which COBHAM SATCOM Patriot products has no
control, and this Warranty shall not apply to equipment which has been operated or installed other than in
accordance with the instructions furnished by COBHAM SATCOM Patriot products.
Claimants under this Warranty shall present their claims along with the defective equipment to COBHAM
SATCOM Patriot products immediately upon failure. Noncompliance with any part of this claim procedure
may invalidate this warranty in whole or in part.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER AGREEMENTS AND WARRANTIES, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY. PATRIOT ANTENNA DOES NOT AUTHORIZE ANY PERSON TO AS-
SUME FOR IT THE OBLIGATIONS CONTAINED IN THIS WARRANTY AND
PATRIOT ANTENNA NEITHER ASSUMES NOR AUTHORIZES ANY REPRESENTATIVE OR OTHER
PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE EQUIPMENT
DELIVERED OR PROVIDED.
IN NO EVENT SHALL COBHAM SATCOM PATRIOT ANTENNA PRODUCTS BE LIABLE FOR ANY LOSS OF
PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND.
In no event shall COBHAM SATCOM Patriot products be liable for damages in an amount greater than the
purchase price of the equipment.
Some states do not allow limitations on how long an implied warranty lasts, or allow the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
COBHAM SATCOM Patriot products has the right to void the warranty when the antenna is installed by
someone other then a certied installer.
LIMITED TWELVE (12) MONTH WARRANTY
Product Serial Number- _________________
Date Purchased- _________________
Cobham SATCOM Land Systems
Patriot Products
704 North Clark Street
Albion, MI 49224 USA
Tel: (517)629-5990
Fax: (517)629-6690
3
www.cobham.com/patriot
1. Perform as many functions as possible on the ground.
2. Watch out for overhead power lines. Check the distance to the power lines before starting
installation.
We recommend you stay a minimum of 6 meters (20 feet) from all power lines.
3. Do not use metal ladders.
4. Do not install antenna or mast assembly on a windy day.
5. If you start to drop antenna or mast assembly, get away from it and let if fall.
6. If any part of the antenna or mast assembly comes in contact with a power line, call your
local power company. DO NOT TRY TO REMOVE IT YOURSELF! They will remove it safely.
7. Make sure that the mast assembly is properly grounded.
WARNING
Assembling dish antennas on windy days can be dangerous. Because of the antenna surface,
even slight winds create strong forces. For example, a 1.0m antenna facing a wind of 32 km/h
(20 mph) can undergo forces of 269 N (60 lbs.). Be prepared to safely handle these forces at un-
expected moments. Do not attempt to assemble, move or mount dish on windy days or serious,
even fatal accidents may occur. COBHAM SATCOM Patriot antenna product is not responsible or
liable for damage or injury resulting from antenna installations.
INSTALLATION OF THIS PRODUCT SHOULD BE PERFORMED ONLY BY A PROFES-
SIONAL INSTALLER AND IS NOT RECOMMENDED FOR CONSUMER D.I.Y.
(DO-IT-YOURSELF) INSTALLATIONS.
IMPORTANT!!!
WATCH FOR WIRES!
Installation of this product near power lines is dangerous. For your
own safety, follow these important safety rules.
4
www.cobham.com/patriot
Item# Part Description Part Numbe Quantity
1 ASSY, 3.8M OFFSET A-LEFT PANEL 238204 1
2 ASSY,3.8M OFFSET A-RIGHT PANEL 238205 1
3 ASSY,3.8M OFFSET B PANEL 238206 2
4 ASSY,3.8M OFFSET C-LEFT PANEL 238208 1
5 ASSY,3.8 MTR OFFSET C-RIGHT PANEL 238209 1
6 ASSY,3.8M OFFSET RADIAL BEAM A 238210 1
7 ASSY,3.8M OFFSET RADIAL BEAM B 238211 4
8 ASSY,3.8M OFFSET RADIAL BEAM C 238213 2
9 ASSY,3.8M OFFSET 90” BACK SUPPORT 238223 2
10 ASSEM, CURFING 42.68” “B” 238910 2
11 ASSEM, CURFING 46.79” “A” 238911 2
12 ASSEM, CURFING 57.00” “C” 238912 2
13 TUBE,3.8M OFFSET FEED SUPPORT 238993 2
14 ASSEM, 3.8M OFFSET FEED PLATE 238996 1
15 MOUNT,3.8M OFFSET KINGPST AND YOKE 238308 1
16 ASSY,3.8M OFFSET MAST STRUT 238307 1
17 ASSY,3.8 MTR OFFSET HUB 238214 1
18 ASSY,3.8M OFFSET KP ELEV.ROD 238302 1
PG 7 PLATE,3.8M OFFSET KP AZ LOCKDOWN 238304-04 1
PG 7 ASSY,3.8M OFFSET KP AZ LOCKDOWN 238304 1
PG 7 ASSY,3.8M OFFSET KP AZIMUTH ROD 238303 1
PG 9 SHIM, 2.4M BOOM .25” 224132 4
PG10 ANGLE,3.8M OFFSET HUB 238214-12 28
PG11 ASSY,3.8M OFFSET 65” BACK SUPPORT L 238224 1
PG11 BRKT.,3.8M OFFSET BACK SUPPORT 238222 21
PG11 ANGLE,3.8M 45”BACK SUPPORT 238219 4
PG11 ASSY,3.8M OFFSET 65” BACK SUPPORT R 238225 1
PG11 ANGLE,3.8M 32” BACK SUPPORT 238220 4
PG11 ASSY,3.8M OFFSET 65” BACK SUPPORT L 238224 1
PG11 ASSY,3.8M OFFSET 65” BACK SUPPORT R 238225 1
PG11 ANGLE,3.8M OFFSET 90” BACK SUPPORT 238223 2
PREBAG,3.8M.OFFSET REFLECTOR HWD. 3HP38011 1
PAINT, OFF WHITE TOUCH UP, 8 OZ. 4M9055 1
5
www.cobham.com/patriot
Grounding Rod Clamp & Grounding Block - As required by
National Electric Code or local codes.
Ground Wire - #10 solid copper or as required by National
Electric Code or local codes.
Coaxial Cable (Size & Length required).
Concrete & Rebar (See Foundation Appendix A).
Preinstallation materials checklist
1- 5/32”, 3/16” , 1/4” allen wrenches
2- Combination wrenches -
7/16”, 1/2”, 9/16”, 3/4”, 15/16”, 1-1/8”
1- Large Crescent wrench or Pipe Wrench with
3in. jaw opening
1- Inclinometer (for sighting in)
1- Compass (for sighting in)
1- Impact drill
(for drilling cement anchor holes)
6
Tools Needed
Reference Drawing
Refer to Parts and Hardware list on page 5 for part descriptions. This figure is an overall assembled an-
tenna and can assist the installer with locating parts and understanding the relationship between compo-
nents.
2
12
13
11
4
1
20
18
17
19
14
5
6
7
8
9
10
15 16
23
24
25
8
7
9
6
10
11
12
13
14
15
1
2
54
3
3
17
16
18
6
www.cobham.com/patriot
1. Place the King Post Mast assembly onto the foundation threaded rods and secure with nuts
and washers from the foundation hardware pack. Be sure to use the 4-base reinforcement
plates provided as shown.
NOTE: The mast should be pointed due south (northern hemisphere sites)
2. Attach ASSY,3.8M OFFSET MAST STRUT (pt# 238307) using 5/8in hardware. Mark area on
foundation for cement anchor placement location (see page 16 for foundation details and
anchor requirments)
NOTE: The use of an impact drill for drilling cement will be needed.
3. Assemble either the Fixed or Motorized Mount Assembly Kit option purchased with the system.
King Post Assembly Placement
7
Installation Procedure
1. Place the King Post Mast assembly onto the foundation threaded rods and secure with nuts and washers from the
foundation hardware pack. Be sure to use the 4-base reinforcement plates provided as shown.
NOTE: The mast should be pointed due south (northern hemisphere sites)
2. Attach the Mast Strut assemblies using 5/8in hardware, and 5/8in cement anchor hardware at the pad.
NOTE: The use of an impact drill for drilling cement will be needed.
3. Assemble either the Fixed or Motorized Mount Assembly Kit option purchased with the system.
See Appendix B for Fixed Mount Assembly Kit Option
See Appendix C for Motorized Mount Assembly Kit Option.
Mount Assembly
Cement
Anchor
Hardware
Base Reinforce-
ment Plates (4)
PLATE, KP BASE
(pt# 245000-204)
ASSY,3.8M OFFSET
MAST STRUT
(pt# 238307)
Area to be marked
see Pg.16 for approximent location for
anchor placement
7
www.cobham.com/patriot
1. Attach 3.8m OFFSET AZ LOCK DOWN ASSEMBLY (PT# 238304) and LOCKDOWN PLATE
(pt# 238304-04) to Kingpost assembly using (4) 1/2nc X 2-1/4 botls and matching washers and nuts.
Leave hardware lose at this time.
2. Slide AZ LOCK DOWN ROD (pt# 238303) thru tube on lock down plate as pictured below. Leave
hardware lose at this time.
3. Attach yoke end of AZ LOCK DOWN ROD to yoke using 3/4” x 2.00” shoulder bolt and 5/8” nut
washers as pictured below.
4. Tighten all hardware once proper AZ angle has been set.
NOTE:
All hardware mentioned above
can be found in hardware bag
AZ LOCK DOWN ROD
(pt# 238303)
OFFSET AZ LOCK DOWN ASSEMBLY (PT#
238304)
LOCKDOWN PLATE
(pt# 238304-04)
Az Lockdown Assembly
8
www.cobham.com/patriot
8
Hub Assembly
1. Place the Hub onto the A-frame using the pre-installed shoulder bolt hardware as shown.
2. Connect the Fixed or Motorized accessories per the attached Appendixs (Fixed shown)
For Fixed Mount Option- See Appendix B.
For Motorized Mount Option- See Appendix C
1. Attach ASSY,3.8M OFFSET KP ELEV.ROD (pt#238302) to yoke pick up detail using
3/4”X 2.00” shoulder bolt, 5/8 nut and washer.
2. Place 3.8M OFFSET KP ELEV.PIVOT BLOCK (pt# 238003) on to 3.8M OFFSET KP ELEV.ROD
(pt#238302) as pictured below. (Leave THIS hardware loose at this time)
2. Place the HUB ASSEMBLY (pt# 238214) on to the A-frame using the pre-installed shoulder
bolt hardware as shown.
3. Attach 3.8M OFFSET KP ELEV.PIVOT BLOCK (pt# 238003) to HUB ASSEMBLY using
(2) 3/4nc X 1-1/2 bolts and matching lock washers.
4. Tighten all hardware at this time.
NOTE:
All hardware mentioned above
can be found in hardware bag
#3HP38013.
3.8M OFFSET KP ELEV.PIVOT
BLOCK (pt# 238003)
3.8M OFFSET KP ELEV.ROD
(pt#238302)
HUB ASSEMBLY
(238214)
Hub Assembly
9
www.cobham.com/patriot
1. Install TUBE,3.8M OFFSET FEED SUPPORTS (pt# 238993) using (4) 1/2nc x 7.00” bolts, matching
washers and (4) FEED BOOM SHIMS (pt# 224132).
2. Tighten all Feed Support hardware.
Feed Boom Install
FEED BOOM SHIMS
(PT#224132)
TUBE,3.8M OFFSET FEED
SUPPORTS (pt# 238993)
This hole, closest
to the edge, up.
Feed Plate Assembly Install
1. Install 3.8M OFFSET FEED PLATE ASSEMBLY
(pt# 238996) using (4) 3/8nc x 3.00” bolts,
washers and nuts.
NOTE:
All hardware mentioned above can
be found in hardware bag #3HP38016.
NOTE:
Make sure that feed booms
are placed as pictured below
with feed plate mounting
holes up.
10
www.cobham.com/patriot
Apply wax here
to aid in sliding
radial beams in to hub
Apply wax here
to aid in sliding
radial beams in to hub

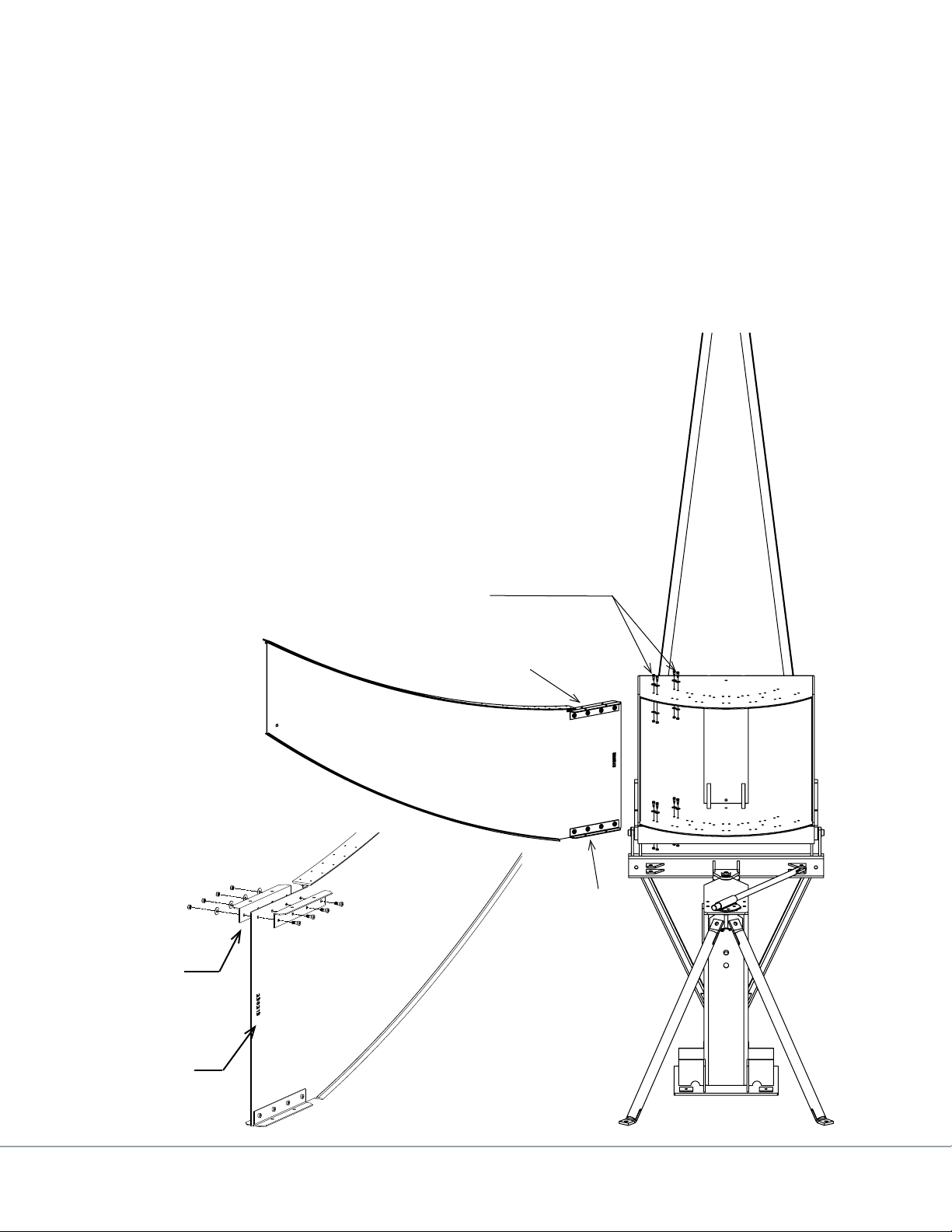

1. Fasten (4) ANGLE,3.8M OFFSET HUB (pt# 238214-12) to each Radial
Beam as shown, using (4) 3/8in shoulder (1) 5/16” washer, and nut per.
2. Adjust the Hub into the position shown, and select 3.8M OFFSET RADIAL
BEAM C ASSEMBLY (pt#238213), and place into the outermost location
inside the Hub. Fasten using 3/8in shoulder bolt hardware, (1) 5/16”
washer, nut per lose. Do the same with the opposing 3.8M OFFSET
RADIAL BEAM C ASSEMBLY (pt#238213).
NOTE: Hard to reach hardware can be accessed by reaching inside and
around the end of the Radial Beam to reach the back side.
3. Repeat step 2 for 3.8M OFFSET RADIAL BEAM B ASSEMBLY (pt# 238211)
3.8M OFFSET RADIAL BEAM A ASSEMBLY (pt# 238210)
4. Tighten all Radial Beam hardware in steps 1 through 3.
ANGLE,3.8M OFFSET HUB
(238214-12)
RADIAL BEAM
ASSEMBLY
NOTE: Shoulder bolts are fastened from the
inside of the Hub with the washers and nuts
on the outside.
All hardware can be found in bag
#3HP38011
Radial Beam Install
Indice
Altri manuali COBHAM Antenna
COBHAM
COBHAM Explorer 3075 Manuale utente
COBHAM
COBHAM Explorer 325 Manuale utente
COBHAM
COBHAM EXPLORER 5075GX Manuale utente
COBHAM
COBHAM SAILOR 100 GX Manuale utente
COBHAM
COBHAM Sea Tel Manuale utente
COBHAM
COBHAM Sea Tel 4010W-33 Manuale utente
COBHAM
COBHAM EXPLORER 6075LX Guida
COBHAM
COBHAM Sea Tel 4010W-17 Manuale utente
COBHAM
COBHAM Sea Tel Tracker 6000 Manuale utente
COBHAM
COBHAM Sailor 900 VSAT Manuale utente
COBHAM
COBHAM SAILOR 800 VSAT Manuale per l'uso e la cura
COBHAM
COBHAM EXPLORER 6075LX Manuale utente
COBHAM
COBHAM SAILOR 60 GX-R2 4.5 W Manuale utente
COBHAM
COBHAM SAILOR 800 VSAT Manuale per l'uso e la cura
COBHAM
COBHAM SAILOR 900 Manuale utente
COBHAM
COBHAM Saailor Fleet One Manuale utente
COBHAM
COBHAM Explorer 710 Manuale utente
COBHAM
COBHAM SAILOR 100 TV Manuale per l'uso e la cura
COBHAM
COBHAM SAILOR 900 Ka Manuale utente
COBHAM
COBHAM SAILOR 1000 XTR Ka 4.5W ADU Manuale utente
Manuali Antenna popolari di altre marche
Alfa Network
Alfa Network APA-L01 Manuale utente
Naval
Naval PR-422CA Manuale utente
Feig Electronic
Feig Electronic ID ISC.ANTH200/200 Series Manuale utente
TERK Technologies
TERK Technologies TV44 Manuale utente
Directive Systems & Engineering
Directive Systems & Engineering DSE2324LYRMK Manuale utente
HP
HP J8999A Manuale utente
