Coby DP730 Manuale utente

SPECIFICATION

Display Type

Full-Color TFT LCD

Display Resolution

480x234

Memory

MS Card

SD/MMC Card

Full-size USB

Photo Format

JPEG BMP

USS Host

USS 2.0 High-Speed

Power Supply

DC 5V, 1A,

11X1-240V AC Adapter

Power consumpdon

<03W

Dimensions

217x150x24mm

Weight

310+10g

Specilkalions and manual are sublect to change without prior notice.

Nidescreen Digitcil Photo Frame

DP730

INSTRUCTION MANUAL

Please read this manual carefully before operation

4111114

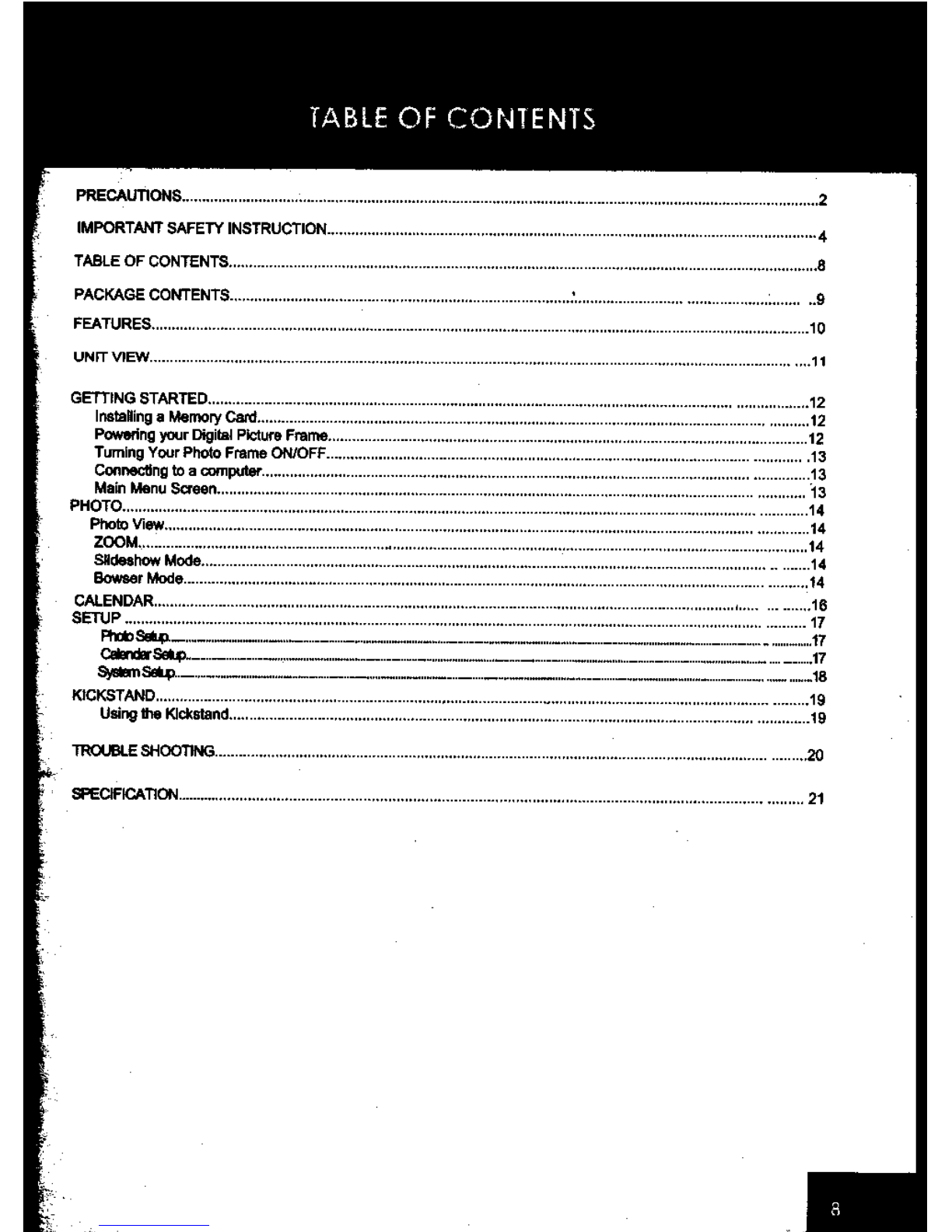

TABLE OF CONTENTS

PRECAUTIONS



IMPORTANT SAFETY INSTRUCTION



TABLE OF CONTENTS



PACKAGE CONTENTS



..9

FEATURES



UNIT VIEW



GETTING STARTED



Installing a Memory Card



Powering your Digital Picture Frame



Turning Your Photo Frame ON/OFF



Connecting to a computer



Main Menu Screen






Photo View



ZOOM



Slideshow Mode



Bowser Mode



CALENDAR



SETUP



PhabSetp.—

...........17

CelendeSeLp..

SyslienSeSp.

KICKSTAND



Using the KIdosland



TROUBLE SHOOTING



SPECIFICATION.

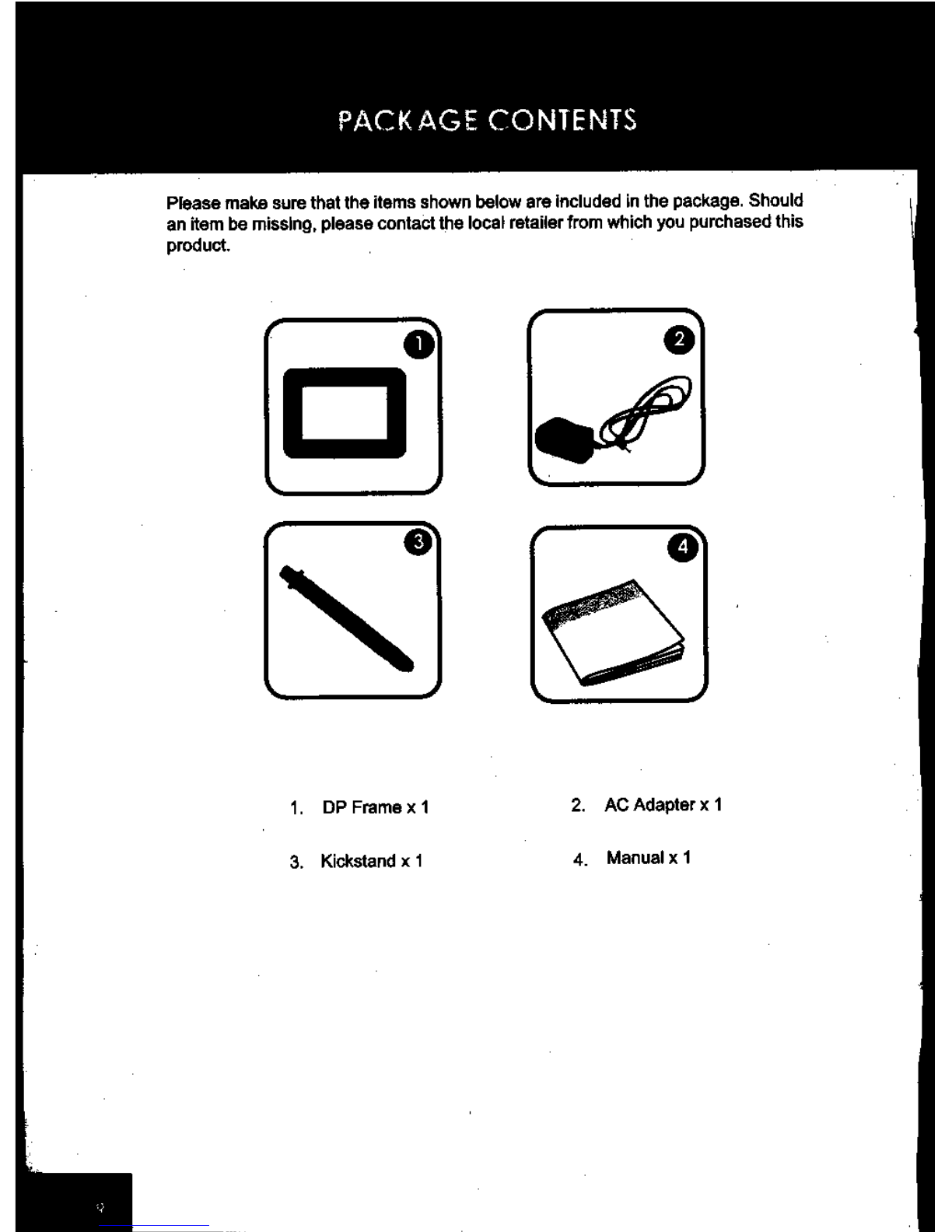

PACK AGE CONTENTS

Please make sure that the items shown below are Included in the package. Should

an item be missing, please contact the local retailer from which you purchased this

product.

LN°

1. DP Frame x 1



2. AC Adapter x 1

3. Kickstand x 1



4. Manual x

FEATURES

7" widescreen TFT LCD color display

Displays JPEG, BMP photo files

•

Photo slideshow mode

•

Calendar and clock

SD, MMC, MS card slot

•

Full-size USB port for use with flash memory drives

•

Wall-mountable design with detachable stand

•

Built-in memory

TFT Display

Minl-size USB port

To connect with computer.

Full.*Lae USB port

To connect with USB flash drives.

Ms/SCIAIMIC card slot

Connect the Ms/SD/MMC card.

Power Jack

Connect with the power source.

8. Menu

Press to exit.

On the Mein Menu Screen, press this button to

move the cursor to the memory device list.

7. Direction buttons

Press the lefUright button to move the cursor

tett/right in menu setting and to turn pages in the full

screen display mode and Calendar mode.

Press the up/down button to move the cursor

up/down during menu selection.

On the Main Menu Screen, press up/down button

to select the desired memory device, and then

press Ok button to confirm

in Calendar mode, press up/down button to view

the previous/next month.

OK button

Press to enter during menu

selection.

In photo (full-screen) display

mode, press this button to change

between slideshow mode and

Manual mode.

In Calendar mode, press this

button to change view.

Power switch

To turn the photo frame on/off.

10.

Ventilation slots

11.

Mounting hole

Connect the kickstand.

Metalling a Memory Card

Your photo frame supports the following types of memory cards:

•

Memory Stick (MS)

•

Secure Digital (SD)

•

Multi Media Card (MMC)

•

USB Flash storage Drive

Simply insert the memory card of your choice into its corresponding card slot lo-

cated on the right panel of the photo frame.Take care to orient the card in the proper

direction.

Getting photos and files onto your picture frame for viewing couldn't be easier!

Powering your Digital Photo Frame

Your photo Frame should be connected to

an AC 100-240V wall outlet.

•

Using the supplied power adapter,

plug one end of the adapter into

your photo frame's Power In jack

and plug the other end into an AC

100-240V wall outlet.

not connect the power plug to a power outlet other than that

which is indicated here or on the label as this may result in the risk

of fire or electric shock.

Do not handle the power plug with wet hands. Doing so may cause

electric shock.

Use only AC adapters of the type specified here. Failure to

may cause a fire or damage the player.

GETTING STARTED

Turning Your Photo Frame On/Off

To turn your photo frame on, set the Power Switch to the "On" position.

To turn your photo frame off, set the Power Switch to the "Off' position.

Connecting to a Computer

Connect the photo frame to your computer with a USB cable. Upon connection:

- Your computer will automatically recognize the memory cards installed in

your photo frame. Icons representing your Installed memory cards will appear

as "Removable Disk" when you open "My Computer".

• The photo frame has 1MS built-in memory, it can be used as a USB flash disk, you can

download some pictures from computer to the built-in memory and enjoy them as a demo

slideshow.

Make sure that there's

no USB flash drive connecting to the DP frame

before connecting the DP frame to a computer.

Main Menu Screen

Upon turning on the power, your photo frame will display the "Main menu" screen shown below:

Press the MENU button and then press The UP/DOWN button to select an available card.

Inserted: A card icon that is In-color Indicates that a memory card has been

inserted(installed) in the corresponding slot.

No card: A card icon that is grayed-out indicates that a memory card has not been

installed in the corresponding slot and Is not available for use.

Selected: A higlighted frame indicates that the card slot is selected. Only card slots with

an installed memory card may be selected.

The demo slideshow will automatically start in approximately 8 seconds if you don't press

any button.

PitatLY.liw

To view the pictures, select the Photo icon on the main menu screen and press Enter button to enter

the Photo mode.

If your photo frame is set to thumbnail in photo setup, it will display in thumbnail mode. In this mode,

to display a photo(full screen), use the direction buttons to select a thumbnail and press enter button

to confirm.

81Idipshow Modg

If your photo frame is set to slideshow In photo setup, it will display the photo In slideshow mode.

Press Enter button to change between alideshow mode and bowser mode.

Bowser Mods

During playback, press Enter button to change between slideshow mode and bowser mode. In

bowser mode, press UP button to display the tool

menu,

the screen will shown as below:

000000000

•

The Photo List will display supported Photo files, only.

Your photo frame can display baseline JPEG /BMP files.

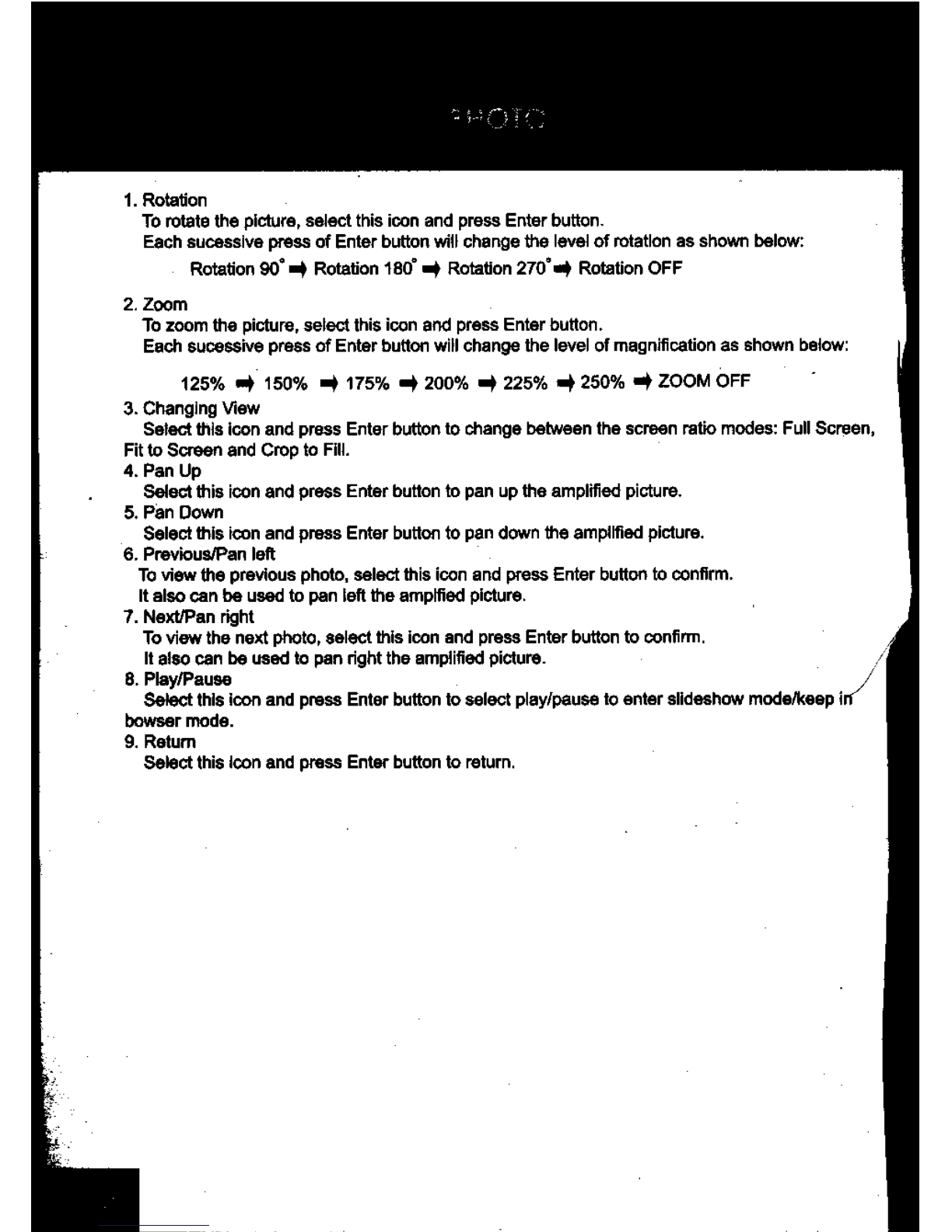

Rotation

To rotate the picture, select this icon and press Enter button.

Each sucessive press of Enter button will change the level of rotation as shown below:

Rotation 90'

Rotation 180

Rotation 270".4 Rotation OFF

Zoom

To zoom the picture, select this icon and press Enter button.

Each sucessive press of Enter button will change the level of magnification as shown below:

125%

150% 4 175%

200%

225%

250%

ZOOM OFF

Changing View

Select this icon and press Enter button to change between the screen ratio modes: Full Screen,

Fit to Screen and Crop to Fill.

Pan Up

Select this icon and press Enter button to pan up the amplified picture.

Pan Down

Select this icon and press Enter button to pan down The amplified picture.

Previous/Pan left

To view the previous photo, select this icon and press Enter button to confirm.

It also can be used to pan left the amplfied picture.

Next/Pan right

To view the next photo, select this Icon and press Enter button to confirm.

It also can be used to pan right the amplified picture.

Play/Pause

Select this icon and press Enter button to select play/pause to enter slideshow mode/keep i

bowser mode.

Return

Select this Icon and press Enter button to return.
