Please read this manual carefully before operation
TV-to-Go USB Receiver
for ATSC Mobile DTV
DTV111 User Manual
Table of Contents
Part I
Table of Contents
Package Contents
Hardware Components
System Requirements
Specications
Part II
Installation
Part III
Enjoy Mobile DTV
- Connect USB Receiver
- Description of buttons
- Channel Scan
- Live Mobile DTV
- Live Audio
- Time Shift
- Reserve Recording
- Sleep Timer
- Screen Capture
- Recording
- File Playback
Part IV
S/W Upgrade
Technical Support
Important Safety
Instructions
Legal and Trademark Info
1
Package Contents
Coby® DTV111 Mobile DTV Receiver
Compact Antenna
Mini-CD
(contains software & user manual)
External Antenna
Quick Manual
Please make sure that the items shown below are included in the package.
Should an item be missing, please contact the local retailer from which you purchased this product.
To view the user manual, you may need to
download and install the free Adobe Acrobat
Reader from http://get.adobe.com/reader/.
2
WARNING
The base of the external antenna contains a magnet.
Do not place or store the antenna near hard disk drives, laptops, computers,
or other objects that may be damaged by magnetic fields
Hardware Components
Compact Antenna :
Retractable antenna best suited for travel.
Extend and position the angle of the
antenna for optimal reception.
External Antenna :
Use this antenna for better signal reception.
For best results, place the antenna in a
position as high as possible.
If you are using this antenna indoors,
place the antenna as close to a window as possible.
Compact Antenna
Antenna Connector
USB Cap
About the Antennas
Two types of interchangeable antennas are provided.
Simply plug the antenna of your choice into the Antenna Connector socket of the DTV111.
USB Connector
3
System Requirements
Specications
OS
CPU
Memory
PC Interface
OS : Windows® XP, Windows Vista, Windows 7 (32- & 64-bit)
CPU : Intel Atom N270 or above
Memory : 1GB
PC Interface : USB 2.0
Broadcasting Type
Frequency Range
Video Decoding
Audio Decoding
Input Voltage
Power Consumption
Antenna Connector
Antenna
ATSC-M/H (Mobile/Handheld)
VHF (57 ~ 240MHz) & UHF (470 ~ 700MHz)
H.264/AVC (Frame Size: 416 x 240)
HE AAC+ v2 (Sampling Range: 24KHz/48KHz/Stereo/Mono – Stereo)
DC 5V
Under 140 mA(Max) / Average 80mA in Power Saving Mode (NOG3)
AMB Type
Detachable Compact Antenna & External Antenna (5M) support
4
Installation
1.
2.
3.
Load the mini-CD into your computer’s DVD/CD-ROM drive.
To start the installation, double-click the le “setup.exe”.
The Setup Wizard screen shown below will appear.
Click ‘Next’ to continue.
A mini-CD adapter is required to load
the disc into a slot-loading drive. Please
contact the manufacturer of the drive
or computer for details.
If your computer is set to hide le
extensions, the installation le will
appear as simply “setup”.
1.
2.
Notes
5
Installation

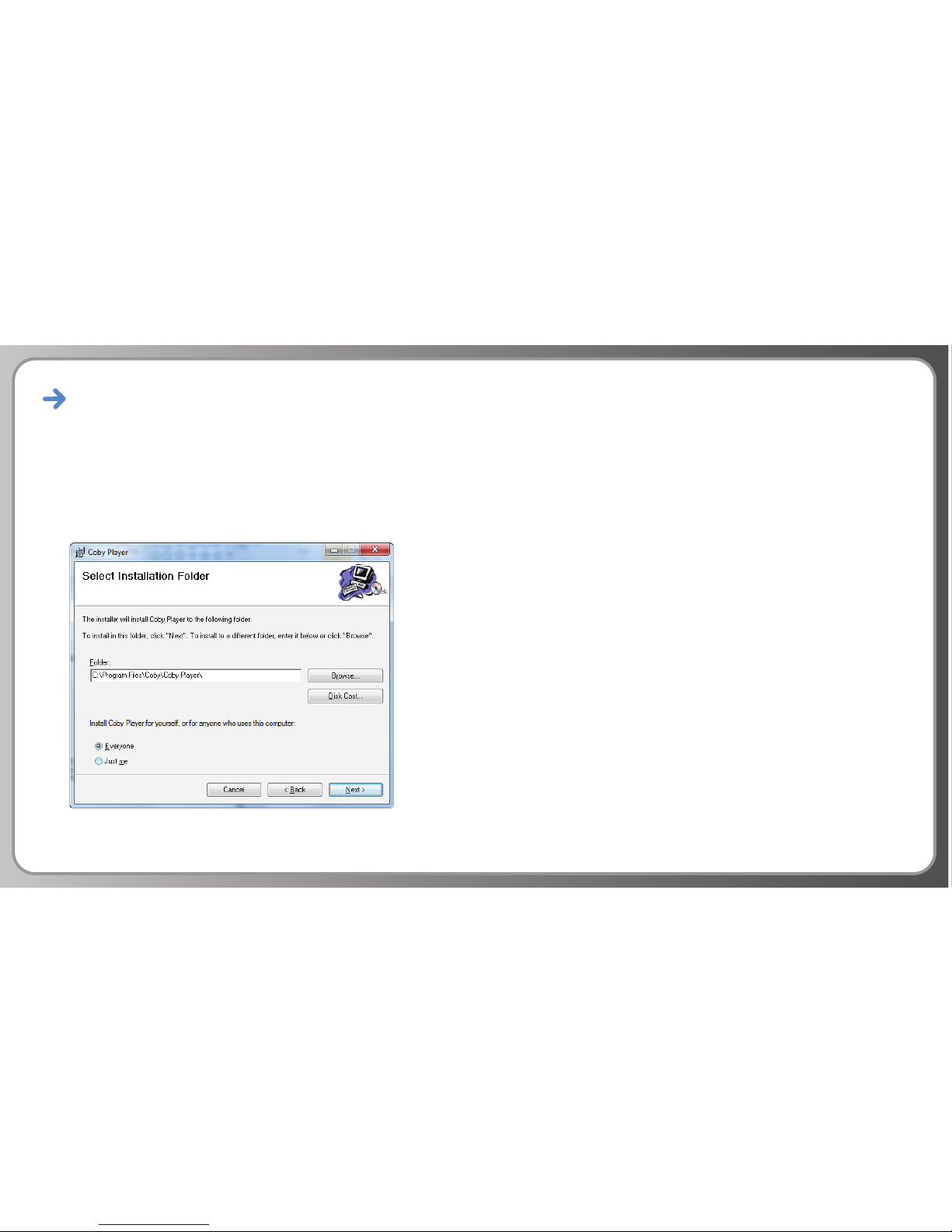

Select a destination folder for the software installation.
The default, recommended destination is the “Program Files” folder.
To change the destination folder, click “Browse”.
Click “Next” to continue.
6
Installation
Click ‘Next’ to conrm and start the installation.
7
Installation
The window below will appear while the software is being installed.
8
Installation
The installer will examine your system for the Coby DTV111 device.
When this window appears, plug the DTV111 into your computer’s USB port.
9
