Code 3 LSS222 Manuale utente

Read all instructions and warnings before installing and using.

INSTALLER: This manual must be delivered to the end user of this equipment.

IMPORTANT:

LSS222

Dual Stacked Beacon

Contents: Introduction................................................................................2

FeaturesandSpeciﬁcations.....................................................2-3

FlashPatterns............................................................................3

Dimensions................................................................................3

Current Draw.........................................................................4

Installation&Mounting..............................................................5

Wiring..............................................................................5

Operation.........................................................................6

Maintenance..............................................................................6

Troublleshooting.....................................................................6

Notes......................................................................................6-7

Warranty....................................................................................8

INSTALLATION &

OPERATION

MANUAL

Features and Speciﬁcations

Operating Voltage: DC10V-30V, Reverse Polarity Protected

Flash Modes:

1. Cycle-Flash: Cycles through Triple, Quad, Double, and Fast Single modes at

approximately 109 fpm.

2. Triple-Flash: Three consecutive pulses per ﬂash.

3. Quad-Flash: Four consecutive pulses per ﬂash.

4. Double-Flash: Two consecutive pulses per ﬂash.

5. Fast Single: Single ﬂash pattern.

6. Steady-burn: Continuous ON-state operation.

Please note that a PHASE 1 ﬂash pattern alternates with other synchronized beacons and a PHASE 2 pattern

ﬂashes simultaneously with other synchronized beacons.

Introduction

The LSS222 is a weatherproof LED based warning light beacon that contains 16 state-of-the-art high intensity

LED's in two stacked rows. The reﬂector's unique design captures the light of the LED's with individual parabo-

las that efﬁciently collect the light and broadcast it through the fresnelled lens.

This Product contains high intensity LED devices. To prevent eye damage, DO NOTstare

into light beam at close range.

WARNING!

Theuseofthisoranywarningdevicedoesnotinsurethatalldriverscanorwillobserveorreacttoanemergency

warning signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed

safely before entering an intersection, driving against trafﬁc, responding at a high rate of speed, or walking on

or around trafﬁc lanes.

Theeffectivenessofthiswarningdevice ishighlydependentuponcorrectmountingandwiring. Read andfollow

themanufacturer’sinstructionsbeforeinstallingorusingthisdevice. Thevehicleoperatorshouldinsuredailythat

allfeaturesofthedeviceoperatecorrectly. Inuse,thevehicleoperatorshouldinsuretheprojectionofthewarning

signalis notblocked byvehicle components(i.e.: opentrunks orcompartment doors),people, vehicles,or other

obstructions. This equipment is intended for use by authorized personnel only. It is the user’s responsibility to

understand and obey all laws regarding emergency warning devices. The user should check all applicable city,

state and federal laws and regulations.

Code 3 , Inc., assumes no liability for any loss resulting from the use of this warning device.

Proper installation is vital to the performance of this warning device and the safe operation of the emergency

vehicle. Itis important to recognizethattheoperatoroftheemergencyvehicleisunderpsychological and physi-

ologicalstress caused by the emergencysituation. The warningdevice should beinstalled insuch a manner as

to: A) Not reduce the output performance of the system, B) Place the controls within convenient reach of the

operator so that he can operate the system without losing eye contact with the roadway.

Emergencywarningdevicesoftenrequirehighelectricalvoltagesand/orcurrents.Properlyprotectandusecau-

tion around live electrical connections. Grounding or shorting of electrical connections can cause high current

arcing, which can cause personal injury and/or severe vehicle damage, including ﬁre.

PROPERINSTALLATIONCOMBINEDWITHOPERATORTRAININGINTHEPROPERUSEOFEMERGENCY

WARNING DEVICES IS ESSENTIAL TO INSURE THE SAFETY OF EMERGENCY PERSONNELAND THE

PUBLIC.

WARNING!

PATTERN NO. PATTERNS SYNCHRONIZE

1 75FPM TripleAlter Phase 1 YES

2 75FPM TripleAlter Phase 2 YES

3 75FPM Quad Flash Phase 1 YES

4 75FPM Quad Flash Phase 2 YES

5 Double Flash 75FPM Phase 1 CAT13 YES

6 Double Flash 75FPM Phase 2 CAT13 YES

7 Double Flash 150FPM Phase 1 YES

8 Double Flash 150FPM Phase 2 YES

9 Single Flash 75FPM Phase 1 CAT13 YES

10 Single Flash 75FPM Phase 2 CAT13 YES

11 Single Flash 150FPM Phase 1 YES

12 Single Flash 150FPM Phase 2 YES

13 Single Flash 375FPM Phase 1 YES

14 Single Flash 375FPM Phase 2 YES

15 TripleAlter D 75FPM YES

16 Dynamic Flash D 150FPM YES

17 Double Flash D 150FPM YES

18 Double Flash D 75FPM YES

19 Single Flash D 375FPM YES

20 Single Flash D 150FPM YES

21 Single Flash D 75FPM YES

22 Dynamic Flash Phase 1 YES

23 Dynamic Flash Phase 2 YES

24 ModulationAction Flash NO

25 ModulationAction Flash NO

26 Rotator 50FPM YES

27 Rotator 75FPM YES

28 Rotator 125FPM YES

29 Rotator 250FPM YES

30 NFPAQuad Flash NO

31 Single Flash 75FPM CAT13 NO

32 Double Flash 75 FPM CAT13 NO

33 ECE 65 Double Flash Phase 1 YES

34 ECE 65 Double Flash Phase 2 YES

35 ECE 65 120FPM Single Flash Phase 1 YES

36 ECE 65 120FPM Single Flash Phase 2 YES

37 ECE 65 125FPM Rotator Flash YES

38 Steady Burn NO

39 Autorun (random) NO

40 OFF

Flash Patterns:

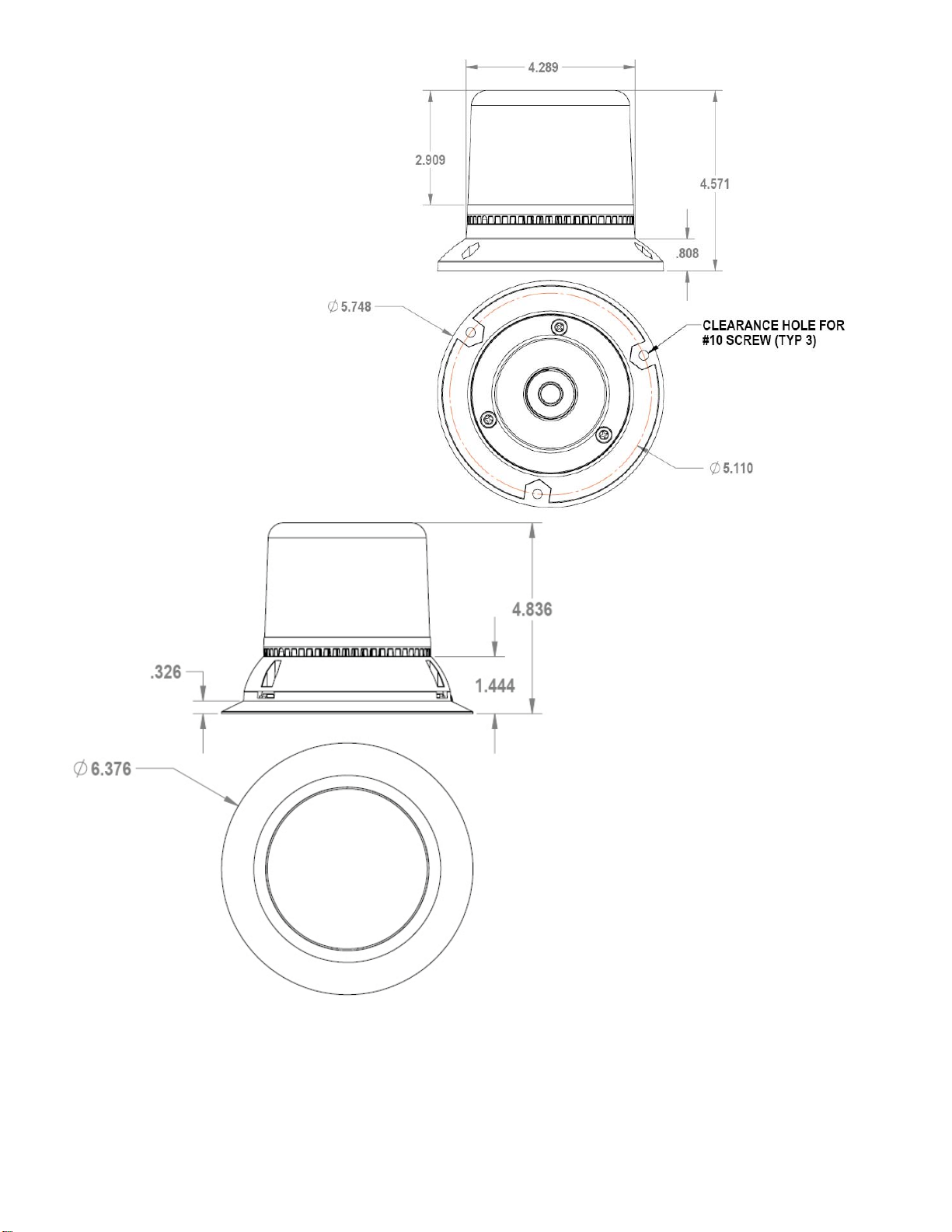

LS222 Pipe Mount / Permanent Mount

Dimensions

LS222 Magnetic Mount

Flashing Current Draw: Flashing Current Draw:

Amber/Red/Blue: .85A Avg. 1.0AMax.

Current Draw

WARNING!

Aswithanymagnetially-mountedwarning device,itsuse ontheexteriorof amovingvehicle isatthesole

descretion and responsibility of the user.

This magnetic mount product provides a secure, temporary installation in most circumstances and is

recommended for stationary use only.

Installation & Mounting

Magnetic Mounting:

The magnetic based beacon provides a secure, temporary installation. The beacon should be placed in the

center of the roof where the least amount of curvature occurs. Check the magnet for debris before installation.

Any foreign matter can reduce holding power and scratch the vehicle. The roof surface should be dry and have a

dull, not glossy ﬁnish. Aglossy, highly waxed surface will reduce the magnet's holding power. When placed, the

beacon should adhere ﬁrmly. The user should not attempt to drive with the beacon in place should the unit slide

or move easily.

Permanent Mounting:

The permanent mount beacon provides a secure, permanent installation. Use the supplied foam gasket and

screws to mount the beacon in the desired location. Wire routing should be taken into consideration when choos-

ing a mounting location.

Pipe Mounting (optional):

The beacon base will accept a standard 1" NPT pipe. Hand tighten the beacon base on the pipe thread until the

pipe bottoms out inside the unit. DO NOT OVERTIGHTEN - BASE IS PLASTIC.

Wiring Instructions

Magnetic Mounting:

The magnetic mount beacon is equipped with a light plug with rocker switch, that plugs into a 12 Volt DC cigarette

lighter outlet; rotate and push with reasonable moderate force to insure the best possible connection.

Permanent Mount:

The beacon is terminated with a 6" long 4-wire cable harness that may be connected as follows:

COLOR FUNCTION CONNECT TO

Red Power +VDC

Black Ground Chassis Ground

Blue Pattern Switching Chassis Ground toActivate

Yellow Synchonization See Synchronization Section

TROUBLESHOOTING

Problem Probable Cause Remedy

Lighthead does not activate a. No power to unit a. Check wire for loose connection

b. Power input wire reversed b. Reverse power wires

c. Damaged or shortaged cabling c. Check cables for damage

d. Defective lighthead d. Replace lighthead module

Lighthead is constantly ON a. Control wire permanently

grounded or shorted to GND a.Avoid permanent grounding of

control wire

LED module housings may become hot with extended use. Allow modules to cool completely

before attempting to remove.

WARNING!

Maintenance:

The beacons are completely sealed units designed to be maintenance free. Refer to the guide below for help

with troubleshooting. Should the unit be diagnosed as malfunctioning, remove unit and replace with a new

module.

Operation:

Synchronization (Permanent Mount Only):

To sync two beacons, conﬁgure both lights to display the same Phase 1 pattern. With the power off, connect

the YELLOW wires from each lights together. When the lights are activated, their patterns will be synchronized.

To conﬁgure the two lightheads to alternate their patterns, advance the pattern of either beacon to the Phase 2

mode of the current pattern.Amaximum of 8 lights may be sychronized.

Setting the Flash Pattern (Magnetic base):

Depress the rocker switch on the lighter plug:

- Less than 1 second for the NEXT pattern

- 1 to 3 seconds for the PREVIOUS pattern

- 3 to 5 seconds for the DEFAULT pattern

- Greater than 5 seconds to TURN OFF the beacon

Setting the Flash Pattern (Permanent base):

Connect blue wire to black wire (chassis ground):

- Less than 1 second for the NEXT pattern

- 1 to 3 seconds for the PREVIOUS pattern

- 3 to 5 seconds for the DEFAULT pattern

- Greater than 5 seconds to TURN OFF the beacon

NOTES

Revision 0, 09/09 - Instruction Book Part No. T16417

PRODUCT RETURNS

If a product must be returned for repair or replacement*, please contact our factory to obtain a Return

GoodsAuthorization Number (RGAnumber) before you ship the product to Code 3, Inc. Write the RGAnumber

clearly on the package near the mailing label. Be sure you use sufﬁcient packing materials to avoid damage to

the product being returned while in transit.

*Code 3, Inc. reserves the right to repair or replace at its discretion. Code 3, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or

reinstallation of products requiring service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products return to sender after the service has been

rendered.

Code 3, Inc.

10986 N. Warson Road

St. Louis, Missouri 63114-2029—USA

Ph. (314) 426-2700 Fax (314) 426-1337

www.code3pse.com

WARRANTY

Code 3, Inc.'s L.E.D. emergency devices are tested and found to be operational at the time of manufacture.

Providedtheyareinstalledandoperatedinaccordancewithmanufacturer'srecommendations,Code3,Inc.guarantees

allpartsandcomponentsexceptthelampstoaperiodof1year,LEDLightheadmodulestoaperiodof5years(unless

otherwise expressed) from the date of purchase or delivery, whichever is later. Units demonstrated to be defective

within the warranty period will be repaired or replaced at the factory service center at no cost.

Use of lamp or other electrical load of a wattage higher than installed or recommended by the factory, or use

ofinappropriateorinadequatewiringorcircuitprotectioncausesthiswarrantytobecomevoid. Failureordestruction

of the product resulting from abuse or unusual use and/or accidents is not covered by this warranty. Code 3, Inc.

shall in no way be liable for other damages including consequential, indirect or special damages whether loss is due

to negligence or breach of warranty.

CODE 3, INC. MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY INCLUDING, WITHOUT LIMITA-

TION, WARRANTIES OF FITNESS OR MERCHANTABILITY, WITH RESPECT TO THIS PRODUCT.

PROBLEMS OR QUESTIONS? CALL OUR TECHNICALASSISTANCE HOTLINE (314) 996-2800

WWW.CODE3PSE.COM

Code 3®is a registered trademark of Code 3, Inc., a subsidiary of Public Safety Equipment, Inc.
