Remote Start with Keyless Entry

Installation Guide

CA 5150

2 2010AudiovoxElectronicsCorporation.Allrightsreserved.

Before You Begin ...................................................................................... 3

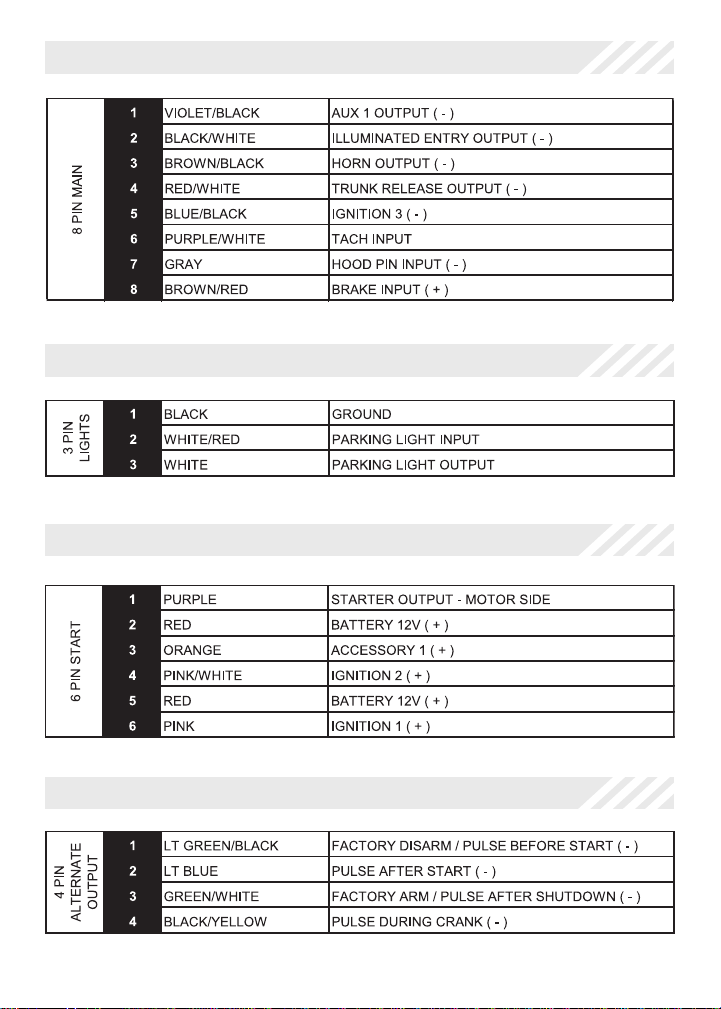

Wire Connection Guide ...........................................................................4

8 Pin Main Harness ...................................................................................5

3 Pin Parking Light Harness .....................................................................8

6 Pin Start Harness ...................................................................................8

4 Pin Alternate Harness..........................................................................10

2 Pin Door Lock Harness........................................................................ 11

Additional Ports ...................................................................................... 15

Antenna / LED / Programming Port .......................................................15

DBIPort....................................................................................................15

Tracking Port ...........................................................................................15

Set Up & Programming.......................................................................... 16

Transmitter Programming ........................................................................16

Manual Feature Programming.................................................................16

Programming Feature Banks ..................................................................17

Tach Programming ..................................................................................18

Smart Tachless.Mode .............................................................................18

Feature Descriptions .............................................................................19

Transmitter Button Functions .............................................................22

Remote Start Shutdown Diagnostics ................................................ 23

System Layout.........................................................................................24

Table of Contents

32010AudiovoxElectronicsCorporation.Allrightsreserved.

PROFESSIONALINSTALLATION

STRONGLYRECOMMENDED

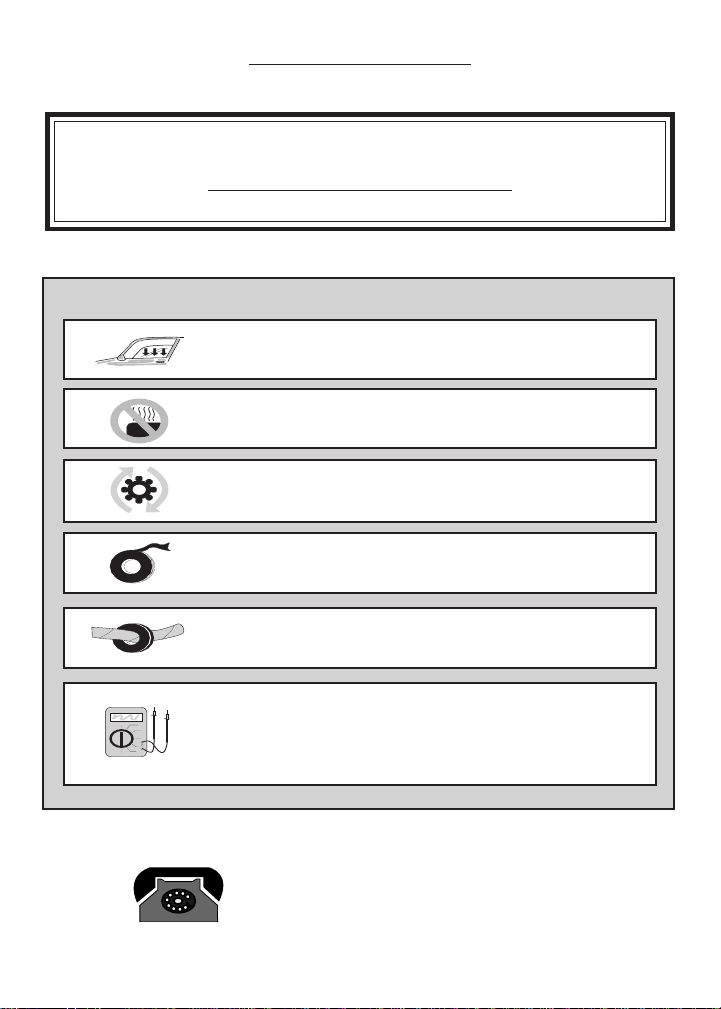

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE A TEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

4 2010AudiovoxElectronicsCorporation.Allrightsreserved.

6 Pin Start Harness

4 Pin Alternate Harness

8 Pin Main Harness

3 Pin Parking Light Harness

52010AudiovoxElectronicsCorporation.Allrightsreserved.

2 Pin Door Lock Harness

1 VIOLET/BLACK AUX 1

This wire provides a ( - ) 500mA output capable of driving relays. For Control of

optional accessories (i.e. Power Window/Sunroof, etc.).

To activate refer to the transmitter button configuration chart. Please refer to the

selectable options for timing.

8 Pin Main Harness

2 BLACK/WHITE ILLUMINATEDENTRYOUTPUT( -)

This wire provides a ( - ) 500mA output for 30 seconds when the system is

disarmed capable of driving relays.

Locate the vehicle’s dome light or pin switch wire.

Verification: This wire will register positive voltage or ground when the

vehicle's dome light is turned ON.

3 BROWN/BLACK HORNOUTPUT(- )

Locate the vehicle’s horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current

output, 500mA.

6 2010AudiovoxElectronicsCorporation.Allrightsreserved.

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK ActiveOutput

Wire

VATS Control Module

Matching Value

Resistor

Ignition Switch

VATS Wire #1, WHITE or WHITE/BLACK

VATS Wire #2, WHITE or VIOLET/WHITE

X CUT

GM VATS

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or

3rd Ignition Wire

Jump To PINK

Ignition Output

Wire From

Control Module

Ignition 3 Accessory 2/

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or 3rd

Accessory Wire

Jump To ORANGE

Accessory Output

Wire From

Control Module

4 RED/WHITE TRUNKRELEASE OUTPUT ( -)

Locate the vehicle’s trunk release wire at the trunk release switch.

Verification: This wire will register either positive voltage or ground when

the trunk release is activated.

This is a low current output, 500mA.

5 BLUE/BLACK IGNITION3 /ACTIVEOUTPUT(- )

The Active Output/Ignition 3 output wire provides a ground output when the remote

start function is activated and remains until 4 seconds after the remote start is

shutdown. The Ignition 3 output wire can be used for several functions listed

below. If this wire will be used for multiple application's a 1 amp diode is required

in-line with the stripe facing the control module.

Factory transponder (coded key) bypass.

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not

supplied).

Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).

Accessory 2/3 output, see the following diagram. Use an SPDT relay (not

supplied).

72010AudiovoxElectronicsCorporation.Allrightsreserved.

6 PURPLE/WHITE TACHINPUT

Locate the vehicle’s ignition coil or fuel injector in the engine compartment.

Verification: Test using the following procedure:

1. Set voltmeter to AC VOLTS.

2. Attach positive lead of a volt meter to a constant 12-volt source.

3. Attach negative lead of a volt meter to the wire to be tested.

4. Start the engine.

5. Have someone press on the gas pedal slightly as you monitor the meter. If

connected to the correct wire, the voltage reading will increase as the engine’s

RPM increases.

Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil

or fuel injector.

7 GRAY HOODPIN INPUT (- )

Install a Hood Pin Switch and connect to the GRAY wire. This connection is

required for Remote Start.

Verification: This wire when connected will register ground when the

vehicle's hood is opened.

Connect the GRAY wire to the hood pin.

NOTE: Be sure to loom the wire, and seal the grommet.

8 BROWN/RED BRAKE INPUT ( + )

Locate the vehicle’s brake light wire at the brake pedal mounted switch.

Verification: This wire registers positive voltage when the brake pedal is

pressed.

Connect the BROWN/RED wire to the vehicle’s brake light wire.

8 2010AudiovoxElectronicsCorporation.Allrightsreserved.

6 Pin Start Harness

1 PURPLE STARTER OUTPUT( +)

Locate the vehicle starter wire.

Verification: This wire registers voltage only when the key is turned to the

START position.

Verification:

The starter wire registers voltage when the key is turned to the

START position.

Connect the PURPLE wire to the vehicle starter wire.

1 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

3 Pin Parking Light Harness

2 WHITE/RED PARKING LIGHT INPUT

3 WHITE PARKINGLIGHTOUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights are

turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

92010AudiovoxElectronicsCorporation.Allrightsreserved.

2 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

3 ORANGE ACCESSORY 1 ( + )

Locate the vehicle’s accessory wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to ACC

(Accessory) and the ON (or RUN) position. The voltage drops out when the

key is turned to the START(or CRANK) position.

Connect the ORANGE wire to the vehicle’s accessory wire.

4 PINK/WHITE IGNITION 2 ( + )

Locate the vehicle’s 2nd ignition wire at the ignition switch (if equipped).

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position, but not the ACC (Accessory) position. The voltage does not

drop out when the key is turned to the START(or CRANK) position.

Connect the PINK/WHITE wire to the vehicle’s ignition 2 wire.

Programmable output: IGN, ACC, Start.

5 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

3 GREEN/WHITE FACTORYARM /

PULSEAFTER SHUTDOWN ( - )

This wire will supply a ( - ) 500mA pulse after the remote start shuts down. This

is typically used to re-lock the vehicle’s doors if they unlock upon remote start

shutdown. It can also be used to pulse a door pin-switch wire to prevent the

vehicle’s accessories from remaining on after remote start shutdown.

6 PINK IGNITION1(+)

Locate the vehicle’s ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START(or CRANK) position.

Connect the PINK wire to the vehicle’s Ignition wire.

This wire is also used for Ignition 1 Output.

4 Pin Alternate Harness

1 LT GREEN/BLACK FACTORY DISARM /

PULSE BEFORE START ( - )

This wire will supply a ( - ) 500mA pulse both upon disarming the system and when

the remote start feature is activated. Locate the factory perimeter alarm disarm

wire from the key cylinder inside the drivers door.

Verification: This wire registers ground if the key is turned to the unlock

position in the driver’s door cylinder.

Connect the LIGHT GREEN/BLACK wire to the factory alarm disarm wire.

2 LTBLUE PULSEAFTER START (- )

This wire will supply a ( - ) 500mA pulse both upon arming the system and upon

successful completion of the remote start activation sequence and is typically

used to re-lock the vehicle’s doors upon remote start if necessary.

Altri manuali per CA 5150

Indice

Altri manuali Code Alarm Avviamento remoto

Code Alarm

Code Alarm CA2LCD5 Manuale utente

Code Alarm

Code Alarm CA 4051 Manuale utente

Code Alarm

Code Alarm PC 7400 Manuale utente

Code Alarm

Code Alarm PC 7600 Manuale utente

Code Alarm

Code Alarm F40 Manuale utente

Code Alarm

Code Alarm ca5154 professional Series Manuale utente

Code Alarm

Code Alarm PROFESSIONAL SERIES Manuale utente

Code Alarm

Code Alarm ca6553 Manuale utente

Code Alarm

Code Alarm Professional ca5054 Manuale utente

Code Alarm

Code Alarm ca6554 Manuale utente

Code Alarm

Code Alarm CA 6150 Manuale utente

Code Alarm

Code Alarm CA1BTW5 Manuale utente

Code Alarm

Code Alarm CA 440SS Manuale utente

Code Alarm

Code Alarm PROFESSIONAL SERIES Manuale utente

Code Alarm

Code Alarm PC 4300 Manuale utente

Code Alarm

Code Alarm PC 4400 Manuale utente

Code Alarm

Code Alarm Professional Series CA 4050 Manuale utente

Code Alarm

Code Alarm CA-520 Manuale utente

Code Alarm

Code Alarm ca4B5 Manuale utente

Code Alarm

Code Alarm Professional Series CA 6550 Manuale utente

Code Alarm

Code Alarm ca 4552 Manuale utente

Code Alarm

Code Alarm ca5154 professional Series Manuale utente

Code Alarm

Code Alarm ca 4552 Manuale utente

Code Alarm

Code Alarm Professional Series CA 5050 Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale

Rooboost

Rooboost RB-1750WP Manuale utente
