KL1200 - Right Hand Programming & Operating

Instructions

Codes - The Basics

The KitLock has four code levels available:

1. Master Code

2. Sub-Master Code

3. User Code

4. Technician Code

The KitLock is supplied with two factory set codes:

1. Master Code:55 44 33 22

2. User Code:00 99

When fitted immediately change the Master Code and User Code.

All Master Codes and Sub-Master Codes are 8 digits long.

All User Codes are 4 digits long.

All Technician Codes are 6 digits long.

The lock ‘open’ time is set at 4 seconds.



Functions

Before programming, select the most appropriate function for the application:

A) PRIVATE USE

Important Note: This is the default function and is already pre-programmed in new locks.This is the most

common function and is used where the same code will be repeatedly used

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions

common function and is used where the same code will be repeatedly used.

B) PUBLIC USE

The user enters their own personal four-digit code. This locks the lock. The same code is entered to open the lock

before being erased and ready for the next new user. This function is used for short term, multi occupancy

applications, e.g. a locker in a leisure centre.



Operating Instructions

Note:The KitLock 1200 has a 10 button keypad and a # bar. The # bar is only used for programming functions

when lock is in Private Use Function

Master Code:

Open the lock

Change the Master Code

Set / Change / Delete the Sub-Master and User Code

Select between Private and Public Functions

Set or delete the Technician Code

Disable or enable the sounder

Sub-Master Code:

Open the lock

Change the Sub-Master

Set / Change / Delete / the User Code

User Code:

Open the lock

Change the User Code

Technician Codecan:

Open the lock in Technician mode without erasing User Code when inPublic Use Function

A code cannot be programmed into more than one level

Lost Code Procedure

Note:The procedure requires the door to be open

• Remove the rear-fixing bolt and swing the lock over the edge of the door to reveal the battery compartment

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions

• Remove the rear-fixing bolt and swing the lock over the edge of the door to reveal the battery compartment.

• Remove one battery.

• Press and hold the 5 button, replace the battery, the blue LED will flash twice, release the 5 button. Within three

seconds press the 5 button three times. The blue LED will flash twice and the lock will have reverted to the

factory master code 55 44 33 22 and all other stored settings will be erased.

Penalty time

• Entering three incorrect codes will cause the lock into shutdown for 10 seconds.

Battery Power

The KitLock should provide well in excess of 50,000 openings, of 4 seconds each, from 2 x AAA 1.5v cells.

Low Battery

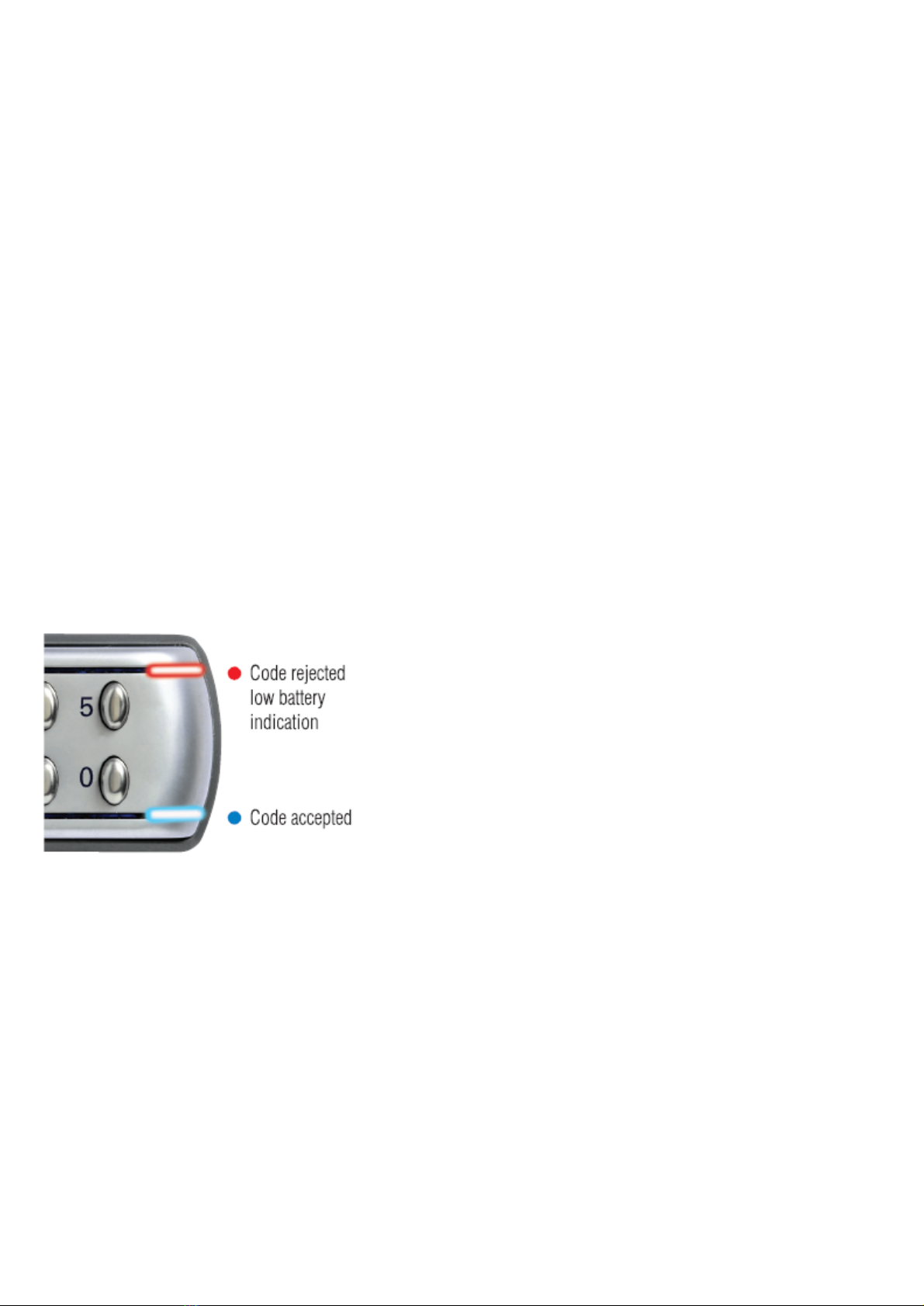

When the battery power is low the Red LED will flash 3 times before the Blue LED flashes to signal acceptance

of the code. Batteries should be changed as soon as this happens. The lock will operate for 100 times with low

battery.



https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions



Master Code Commands

Change the MASTER CODE

#Master Code•65•New Master Code•New Master Code••

Example: #55443322•65•12345678•12345678••

Result: Master Code has been changed to 12345678.

Note: # prefix not required when inB) Public Use

Set or change the USER CODE

#Master Code•60•User Code••

Example: #55443322•60•9999••

Result: New User Code 9999now operative.

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions

Delete USER CODE

#Master Code•64••

Example:#55443322•64••

Result: User Code deleted.

Set or change the SUB-MASTER CODE

#Master Code•69•Sub-Master Code•Sub-Master Code••

Example: #55443322•69•87654321•87654321••

Result: Sub-Master Code 87654321 now operative.

Note: # prefix not required when inB) Public Use

Delete SUB-MASTER CODE

#Master Code•63•63••

Example: #55443322•63•63••

Result: Sub-Master Code deleted.

Note: # prefix not required when inB) Public Use



Sub-Master Code Commands

Change the SUB-MASTER CODE

#Sub-Master Code•68•New Sub-Master Code•New Sub-Master Code••

Example: #87654321•68•10101010•10101010••

Result: Sub-MasterCode has been changed to 10101010.

Note: # prefix not required when inB) Public Use

Set or Change the USER CODE

#Sub-Master Code•62•User Code••

Example: #87654321•62•6666••

Result: New User Code 6666 now operative.

Delete USER CODE

#Sub-Master Code•67••

Example: #87654321•67••

Result: User Code deleted.

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions



User Code Commands

A) PRIVATE USE: Changing the USER CODE

#User Code•New User Code•New User Code••

Example: #0099•6688•6688••

Result: User Code now 6688.



B) PUBLIC USE: Set the USER CODE

Enter personal four-digit code to lock•Re-enter same code to open••

1. When the lock is opened the User Code will be erased and ready for the next new user to enter

their code.

2. When locked in B) Public Use Function the•LED will flash every two seconds indicating

locked status.

3. Keypad in this function is only active when lever is in closed position.



Special Master Code Commands

Changing from PRIVATE USE to PUBLIC USE with TECHNICIAN CODE enabled

#Master Code•50•Technician Code•Technician Code••

Example: #55443322•50•555555•555555••

Result: The lock is automatically set into functionPublic UseAND allows the

programmedTechnician Codeto open the lockWITHOUTthe enteredUser Codebeing erased.

Note: If lock is opened with a Master Code the User Code will be erased.



Changing from PRIVATE USE to PUBLIC USE without a TECHNICIAN CODE

#Master Code•61••

Example: #55443322•61••

Result: The lock will now work inPublic Use

Note:

1. The locking pin is now programmed to be withdrawn when using the above code string and is

waiting and ready to accept a User Code. Please note that the keypad is now inactive when the

lever is in the open position

2. Only the Master Code and Sub-Master Code will be retained fromPrivate Use Function



Changing from PUBLIC USE to PRIVATE USE

#Master Code•55••

Example: #55443322•55••

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions

Result: The lock will now revert to Private Use with the default User Code 0099 active until

reprogrammed.

Note: When the program is changed fromPublic Useabove toPrivate Use, the locking pin should

now move to the locked position and previous single User Code erased. The # bar will now be

required for programming.



Restrict the LOCKED TIME

Special Note : The number of hours the lock can be set to remain locked is 2, 4, 6, 8, 10 or 12 hours.

On the KL1200 Right Hand version keypad this is set as follows:

2h=60, 4h=69, 6h=68, 8h=67, 10h=56

#Master Code•56•(Number of hours lock to remain locked)••

Example: #55443322•56•69••

Result: The lock will auto open after 4 hours. If a new User Code is entered it will once again relock

for 4 hours. If the lock is opened during the 4 hours period then the lock remains open until a new

User Code is entered as normal.

Note: This program will only work when the lock has been set intoPublic Use Function.



Set lock in TECHNICIAN MODE

#Master Code•50•Technician Code•Technician Code••

Example: #55443322•50•555555•555555••

Result: The lock set into Technician Mode with Technician Code 555555

Note:

1. Technician Code only available when lock is set inB) Public Use

2. The Technician Code is able to open the lock without the entered User Code being erased.

3. Opening the lock with the Master Code will erase the User Code.



Delete the TECHNICIAN CODE

#Master Code•54•54••

Result: Technician Code deleted



Disable/Enable SOUNDER

Note: the default is for the sounder to activate at every button press. To disable the sounder enter the

following toggle code string:

#Master Code•59•59••

Result: No sound when button pressed. To enable the sounder repeat above code sequence.



https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1200-right-hand-programming-operating-instructions



POI_KL1200RH-v1_0318_OL
