Codonics Virtua Manuale utente
VirtuaTM Reference Guide
iii
Table of Contents
Components.......................................................................................................................................... 1
Assembly............................................................................................................................................... 6
Startup ................................................................................................................................................. 14
Shutdown ............................................................................................................................................ 16
Media Loading..................................................................................................................................... 17
Configuration ...................................................................................................................................... 20
DICOM Host Setup.............................................................................................................................. 31
Software Installation .......................................................................................................................... 32
Troubleshooting ................................................................................................................................. 34
1
Components
1
5
6
4
3
2
1. Display
2. Display arm
3. Front cover
4. Recorder
5. Controller
6. Output bin
2 Virtua Reference Guide
9
8
10
11
12
13
7
7. Ink carriages
8. CD/DVD recorders
9. Eject Ramp
10. Ink Cartridge Load button
11. Robotic disc transporter
12. Printer tray
13. Input bins
3
15
16
17
18
14
14. Controller Soft Power button
15. Flash card reader/USB-2 port
16. Status indicators
17. SmartDrive USB port
18. SmartDrive
SELECT
MENU
21
22
19
20
19. Display/exit on-screen menus
20. Select adjustment item 21. Contrast and Brightness settings
22. Power switch
4 Virtua Reference Guide
CEpartner4U BV,Esdoornlaan 13
3951 DB Maarn, The Netherlands
Phone:+31.6.516.536.26
Codonics Inc.,17991 EnglewoodDr.
Middleburg Heights OH, 44130USA
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) This device may not cause harmful interference, and 2)
this device must accept any interferencereceived, including interference that may
cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numerique de la Classe B est conform a la norme NMB-003 du Canada.
This product is in conformity with the requirements of EC Council directive
93/42/EEC on the approximationof the laws of the Member States relating to
medical devices. This product satisfies the Class B limits of EN 60601-1 and
CISPR 11.
Virtua
TM
Medical Disc Publisher
Made in the U.S.A.
Patents Pending
All Rights Reserved
MODEL / MODLE
VIRTUA-2
ETL CLASSIFIED
CONFORMSTO
UL STD 60601-1
CERTIFIEDTO
CAN/CSA STD C22.2 NO.601.1
3125782
Windows® XP Embedded
XXXXX-XXX-XXX-XXX
XXX-XXXXX

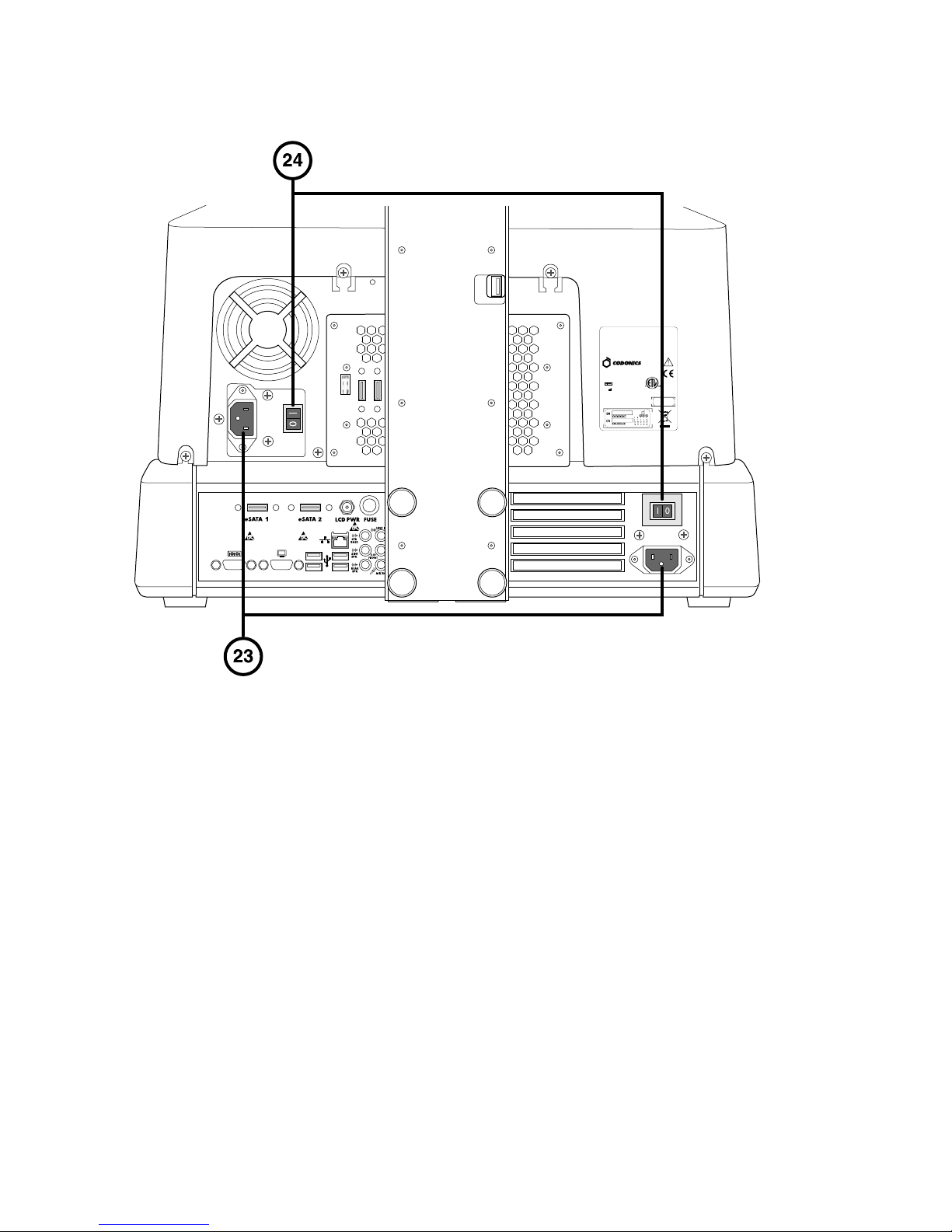

23. Power input ports 24. Hard power switches
5
25 27
302928
26
25. eSATA connectors
26. Display power connector
27. Display fuse
28. VGA connector
29. USB 2.0 connectors
30. Ethernet connector
CEpartner4U BV,Esdoornlaan 13
3951 DB Maarn, The Netherlands
Phone:+31.6.516.536.26
Codonics Inc.,17991 Englewood Dr.
Middleburg Heights OH, 44130USA
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) This device may not cause harmful interference, and 2)
this device must accept any interferencereceived, including interference that may
cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numerique de la Classe B est conform a la norme NMB-003 du Canada.
This product is in conformity with the requirements of EC Council directive
93/42/EEC on the approximation of the laws of the Member States relating to
medical devices. This product satisfies the Class B limits of EN 60601-1 and
CISPR 11.
Virtua
TM
Medical Disc Publisher
Made in the U.S.A.
Patents Pending
All Rights Reserved
MODEL / MODLE
VIRTUA-2
ETL CLASSIFIED
CONFORMSTO
UL STD 60601-1
CERTIFIEDTO
CAN/CSA STD C22.2 NO.601.1
3125782
Windows® XP Embedded
XXXXX-XXX-XXX-XXX
XXX-XXXXX
31
32
31. USB 2.0 connector 32. eSATA connectors
6 Virtua Reference Guide
Assembly
1. Place the Controller on a solid level surface.
2. Remove the cardboard insert (remove the foam piece if present).
