Coffee Queen CAFE ELITE Manuale utente

User manual

CAFÉ ELITE

Your retail dealer

Rev. 110119

U_EN

1. Table of contents.

1. Contents sid. 2

2. General; Warning and safety/ Function descriptions 3-4

3. Overview components, front 5

3. Overview components, inside 6

3. Overview components, membrane switch 7

3. Overview, user card 8

4. SERVICE; Installation and start up 9

Place machine 9

Connecting electrical, water 9

First start up 10

Fill ingredients containers 11

5. Operation

Dispensing drinks 12

Brewing of jug 13

6. Cleaning Daily cleaning

Automatic cleaning of mixer system 14

Automatic cleaning of valves 15

7. Cleaning Weekly

Disassemble mixer system 16

Wash parts 17

Re-install mixer system 18

8. Failure messages 19

9. Storage and transport 19

10. Cleaning and maintenance 19

11. PROGRAMMING Activate with user card 20

Programming Main menu 21

Clean Machine 22

Counters 23-24

2. General. CAFÉ ELITE

Congratulations on choosing a Café Elite Instant coffee machine .

 Readthismanualbeforeusingthecoffeemachineforthersttime.

  Onlyqualiedpersonnelshouldinstallthemachine.

Check that all parts are free of defects. If they are not, stop the installation and contact

your dealer.

Keep this manual in a safe place.

 CremInternationalABiscertiedinaccordancewithISO9001andISO14001,

  ensuringthatitsproductshavethelowestpossibleenvironmentalimpact.

Warningsandsafetyregulations:

The manufacturer is not liable for personal injuries or damages caused by the machine

when is used in a way other than the manner described in the manual.

Likewise, the manufacturer cannot be held liable if maintenance or safety regulations

are neglected.

The warranty will become void if the machine is used in a way other than the manner

described in the manual. The machine may only be operated by an adult.

- The user must be an adult. The machine may not be used by children or other

unsuitable individuals.

- The user must observe the safety regulations applicable in the user’s country.

- The user must also use common sense.

- The user, installer or service technician must inform the manufacturer of any defects or

wear that may jeopardise the machine’s original safety.

- The installer must check the conditions at the place of use, to ensure hygienic and safe

use for the user and customers.

- The manufacturer is responsible for the machine components, and the buyer for

ensuring that trained personnel use the machine.

2. General. CAFÉ ELITE

Functiondescription:

Café Elite has three nozzles, one for hot water and two for a choice of other drinks.

Café Elite has eight buttons, one of which is generally reserved for hot water only and

the others are programmable for dispensing a choice of other drinks.

Café Elite can be programmed to dispense a set volume.

Café Elite canbeprogrammedtodispensecontinuousowfromdispensernozzleor

self-closing faucet.

Firststartup

Turn ON the main switch behind the door, display will show: “water level low”

  “PressEnter”PresstheEbuttontoconrm.

EnergySavingMode:

Hold the stop button for 5 seconds. Display will show standby.

When the machine goes into standby mode, drinks cannot be dispensed and the

water temperature falls to the block ambient temperature.

To return to operation mode, press the stop button for 5 seconds.

Fact:  

Height 735 mm

Width 310 mm

Depth 515 mm

Electrical connection. 1-phase 230V/2200W

Coldwaterconnection: ½” Radius external thread

Ambient temperatures for correct operation +5ºC - +50ºC

Note:Alloptionsmustbeconnectedandinstalledbyaqualiedelectrician.

4 Canisters

Canister: Width Depth Height volume/litre;

coffee 67 225 335 2,7

espresso 67 225 335 2,7

chocolate 67 225 335 2,7

topping 67 225 335 2,7

3 Canisters

Canister: Width Depth Height volume/litre;

coffee 137 225 335 2,7

chocolate 67 225 335 2,7

topping 67 225 335 2,7

3.Viewofcomponents,front    CAFÉELITE

Strength of drinks

++ or - -

Card reader

Key switch

(cup and jug)

Door

lock

Drinks

outlet

Drip tray

insert

Drip tray

Display

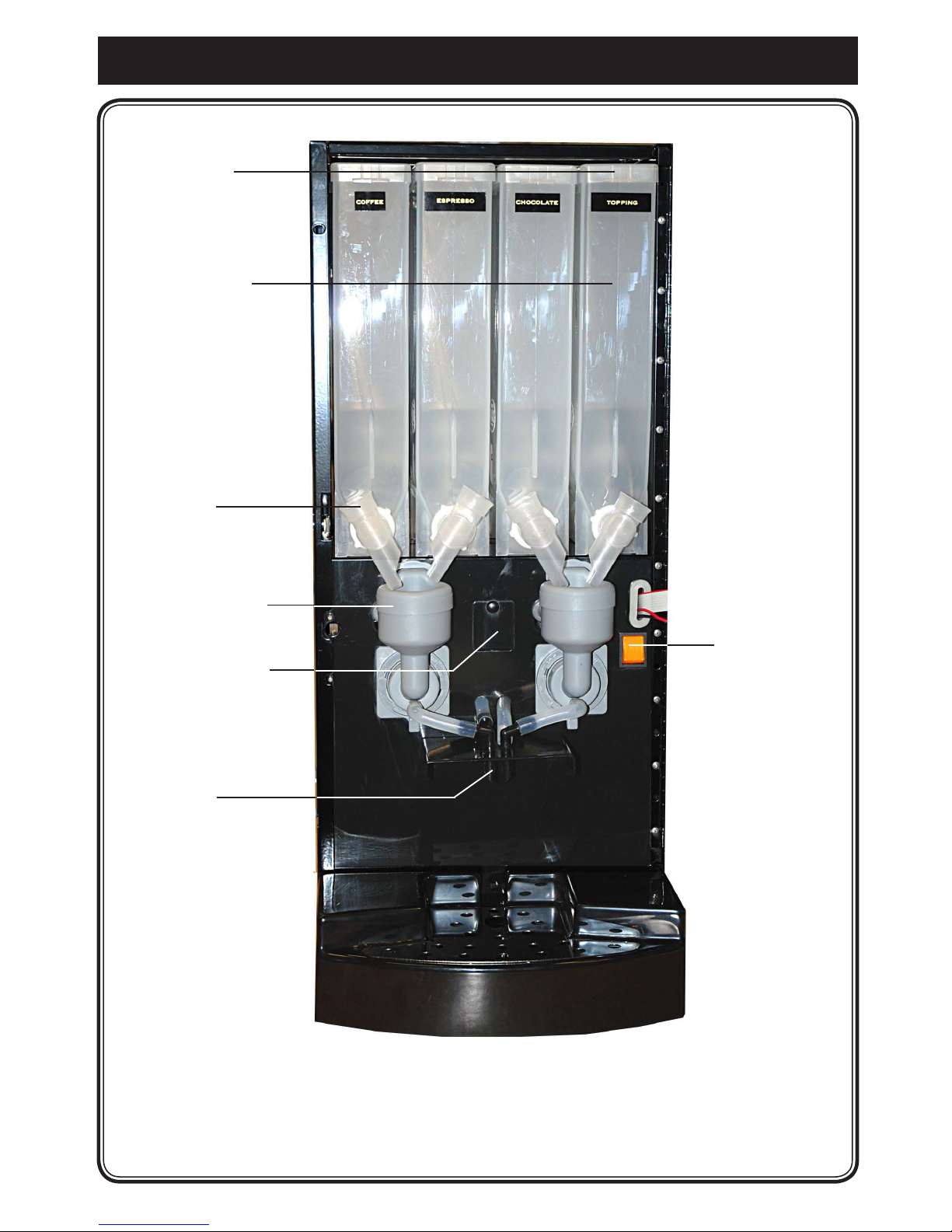

3.Viewofcomponents,inside    CAFÉELITE

ON/OFF

mainswitch

Canisters

Chute

Canister

 lids

Mixingbowl

 Servicelid

(for emptying

water tank)

Drinks

outlet

3.Overviewofcomponents,membraneswitch  CAFÉELITE

Membraneswitch,functionbuttons

Press the + button if you wish to increase the

strength of the drink or go forwards in menu.

Press the - button if you wish to decrease the

strength of the drink or go backwards in menu.

Press the Back button if you want to leave the

submenu and go back to the main menu.

Press the Enter button if you want to enter the

menu, change a value or a setting.

Conrmthenewsettingbypressingthebutton.

Press the STOP button to go back to the start

position in service menu. Press the STOP

button if you want to return to the start menu.

ENERGYSAVINGMODE button. Keep the

STOP button pressed down for c. 5 seconds.

The display shows; Energy Saving Mode. To

return to normal setting, keep the Stop button

pressed down for 5 sec.

ENERGY SAVING MODE, the machine switches off the front display and

decreases the temperature in the water tank to c. 65°C.

5. Overviewofcomponents, function buttons AC12

3.Overviewofcomponents,UserCard   CAFÉELITE

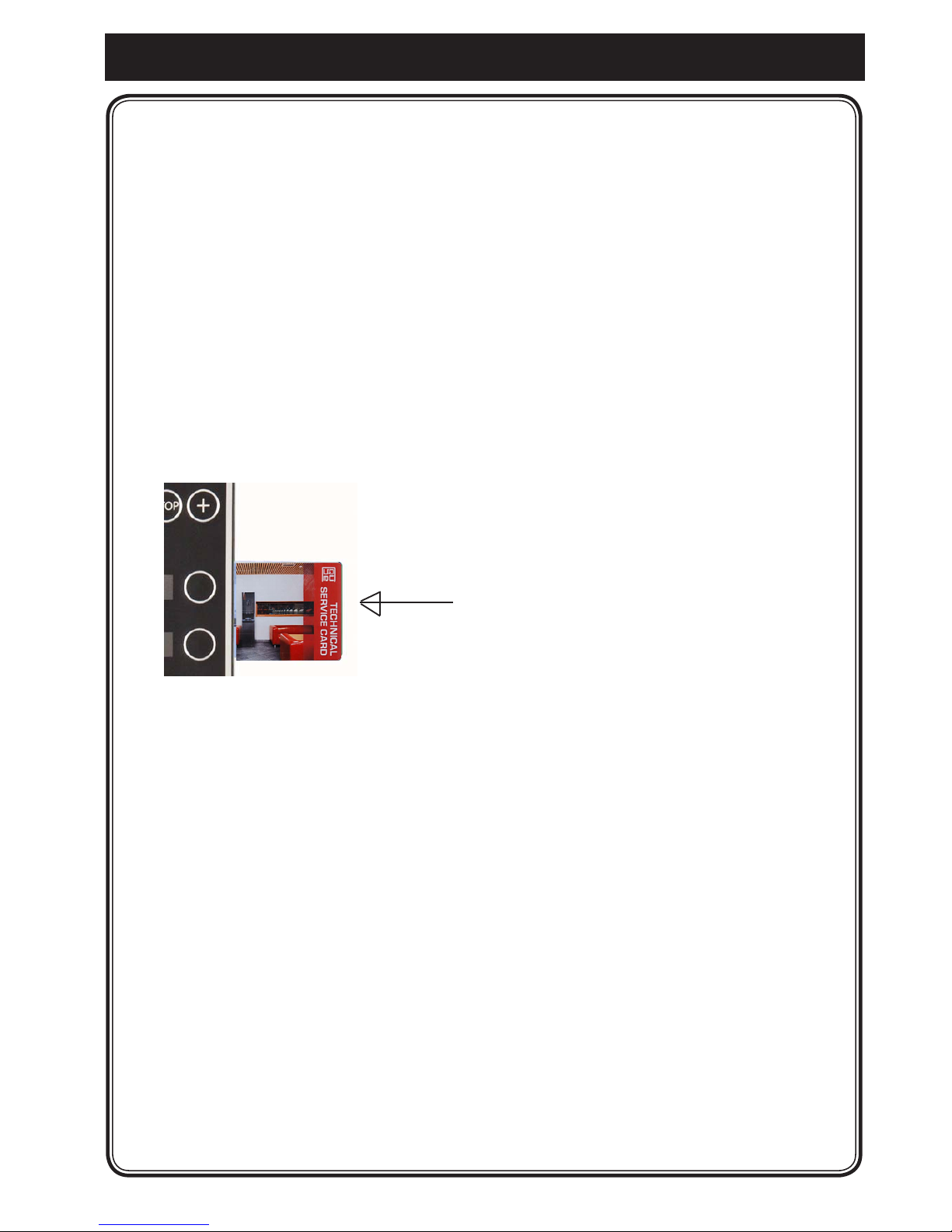

USERCARD.

Insert the user card, according to the illustration.

USER CARD Item number: 1602693.is used for adjusting drinks and counters.

The user card is supplied by your dealer.

To use the machine again. Remove the card and keep it in a safe place.

4.Service.  Installationandstarting  CAFÉELITE

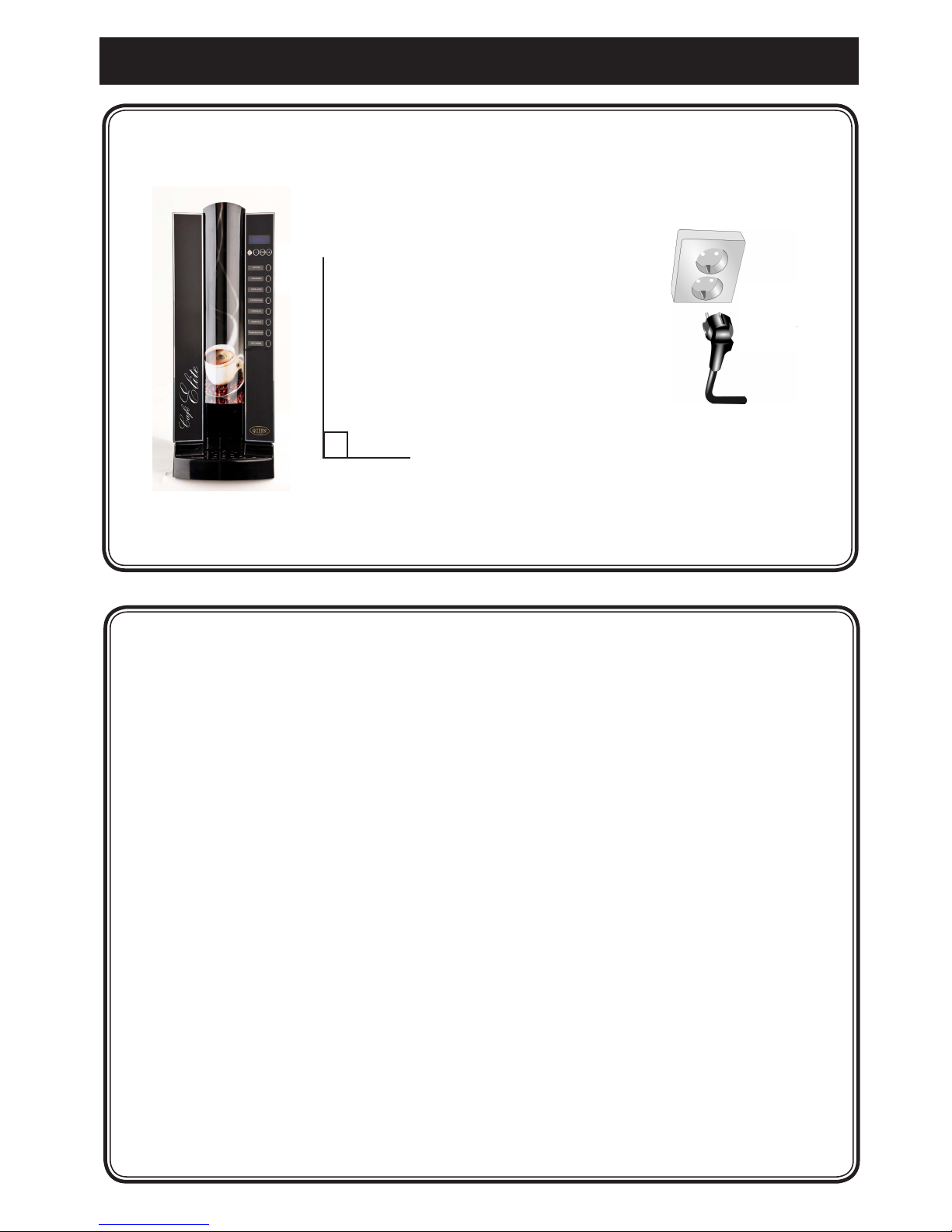

4.1.Placethemachineonaat Connect the electrical plug to a separate

waterproof surface. grounded wall socket

         Groundedwallsocket

          230V10A

Attention!

Make sure there is a space behind the

        machineforfreeowofair.(minimum10cm).

4.2. Water connection

Connect to a coldwatersupplyinlet1/2”Radius using the tube supplied.

Inareaswithhighlevelsoflime,awaterltershouldbeinstalled.

Make sure that the water tube does not have any kinks anywhere when the machine is

moved into place. Pleaseushthewatertubebeforeconnectingtothemachine,this

  istoushoutanyparticleswhichmightotherwisedamagetheinletvalve.

4.3. Open the water inlet.

90º

4.Service.  Installationandstart   CAFÉELITE

Firststartup

4.4. Open the door.

 4.5. Turn ON the main switch behind the door.

4.6. Close the door.

4.7. The display will show: “water level low”

“Press Enter”

4.8. Press the button to start up machine.

 4.9.Displayenshows:“llingwater”

 4.10. Thetankisnowlledautomaticallywith5,0litresofwater.

Heating will not start until the water level reaches the level sensor.

Defaulttemperatureisapprox.85ºC.

  4.11. Machineisreadytouse when ”Select product”, ”Temp” shows in display.

10.

ON/OFF

mainswitch

Selectproduct

Temp 85ºC
