Coffee Queen TOWER Manuale utente

Yourretaildealer

U / GB

Rev080522

...............................................................................

COFFEE QUEEN

Tower 10 litre for wall mounting

Usermanual

1. Tableofcontents page 2

2. General 3

3. Functiondescription,general 3

4. Startup,general 3

5. Overviewofcomponents 4

5. Overviewoperationbuttons 5

6. Indicationswhenbrewing 5

7. Installationandstart 6-9

8. Operationinstructions,brewing 10-13

9. Maintenanceandcleaning 14-15

10. Important! 15

11. Programming 16

12. Error message 17

13. Contemplateduseandwarnings 18

15. DimensionsketchwallTower 19-20

16. Dimensionsketchservingstation 5L 21

1. Table of contents Tower wall mounting

2. General. Tower wall mounting

Coffee Queen TOWER wall mounting

Wecongratulatetoyourchoice of coffee machine.

Thebrewerisequipedwithfullandhalfbrewfunction.andaseparateoutlet for hot water.

Tower is delivered with a brew unit, 2 serving stationsandfilterholders.servingtrolley,

wallbracketwithscrews( 6 adjustable feets).

Coffee Queen AB is certified ISO 9001 and 14001

and therefore a minimal stress of the enviroment.

3. Function description - General

TOWER bulk brewer

Coffeebrewer with automatic water supply.

Itisalso equipped with a separateoutlet forhotwater.

Brewingtakesplacein removable serving stations.

Brewingis carried out in paper filters. (filter523).

Brew time for 5 ltrs. approx. 7min.

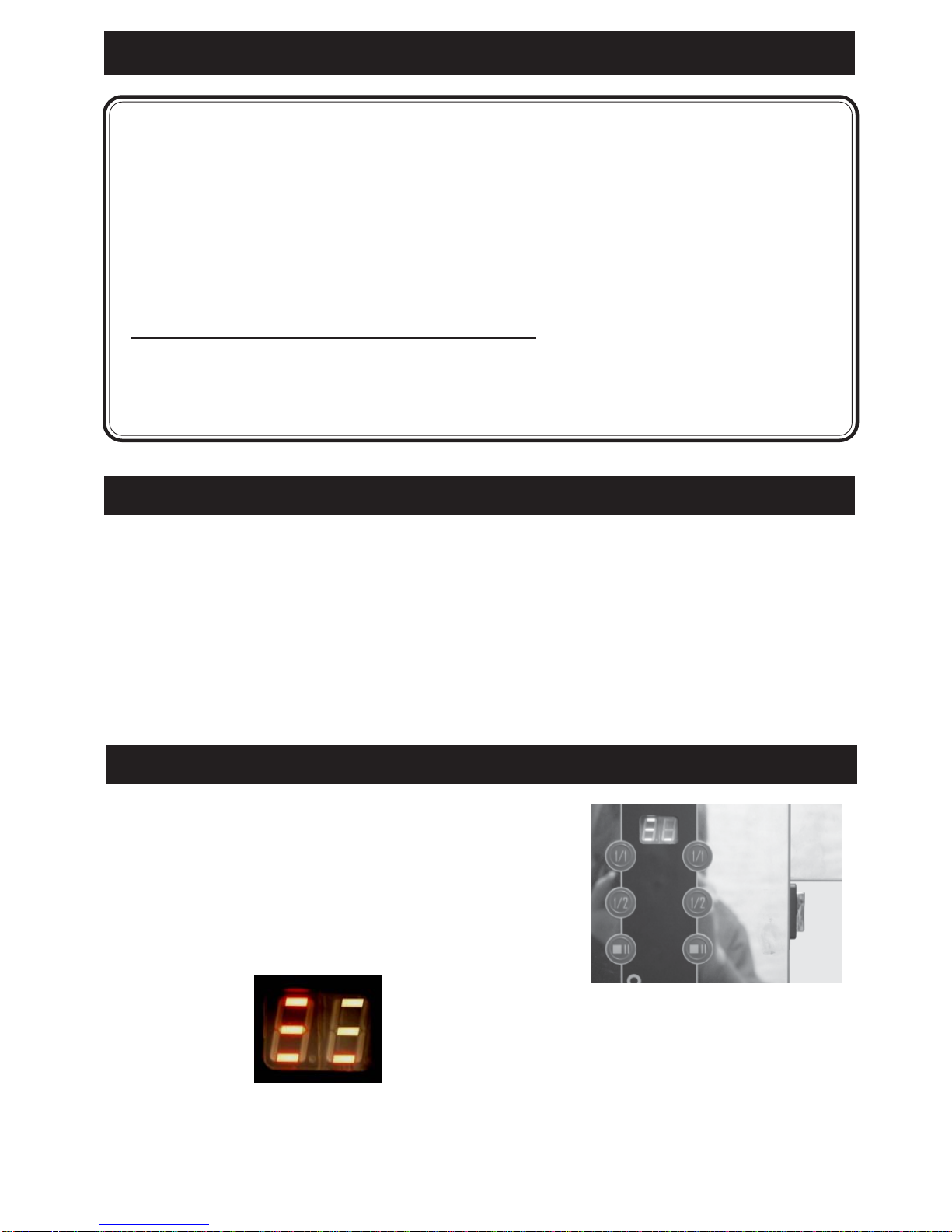

4. Start up - General

Turnonthemain switch(A).

Themachinewill now fill and startheatingwater.

Machineisreadyforbrewingwhen display lights up

andthecorrecttemperaturehasbeenreached. (A)

5. Overview of components. Tower wall mounting

Lid

Handle

Level tube

Tap for coffee

Display

Filter holder

Level tube

Serving

station

Tap for

coffee

ON / OFF-switch

Drip tray

Drip tray insert

Functions key

Serving trolley

Lockable wheels

Tap for

hot water

Wall bracket

5. Overview operating buttons. Tower wall mounting

1/1 Brewing

Fullbrew 5,0litre

1/2 Brewing

Halfbrew 2,5litre

PAUSE / STOP

1/1 Brewing

Fullbrew 5,0litre

1/2 Brewing

Halfbrew 2,5litre

PAUSE / STOP

6. Indications, Brewing. Tower.

Whenmachineis

brewingFullbrew

Displaywillshow:seeA

Whenmachineis

brewingHalfbrew

Display will show: see B

7. INSTALLATION AND START - Tower for wall mounting

7.1 Installationofwallconsole forwall-mountedTower.

7.2 IMPORTANT!

Thebrewingunit’swallconsolemustbeinstalledbyatrainedand authorised individual.

Improperinstallationmaycausethebrewingunit to come loose and result in personal injury

ormaterialdamage or cause it toslant,whichwill impair the proper functioningofthe

machine.Aspiritlevelshouldbeusedto install the wall console, to ensure the machine’s

safeandproperfunctioning.Becausethere are many different types of wall materials,

screwsforwallmountingdonotcomefactorysupplied.

Contactyourlocalretailerforadviceonsuitable screw systems,

Mounting height = 640 mm fromthebottom edge of theconsoleto the floor.

The brewing distance shouldbeapprox. 17 mm betweenthefilter holder and the

servingstation.

approx.

17mm

7. INSTALLATION AND START - Tower for wall-mounting

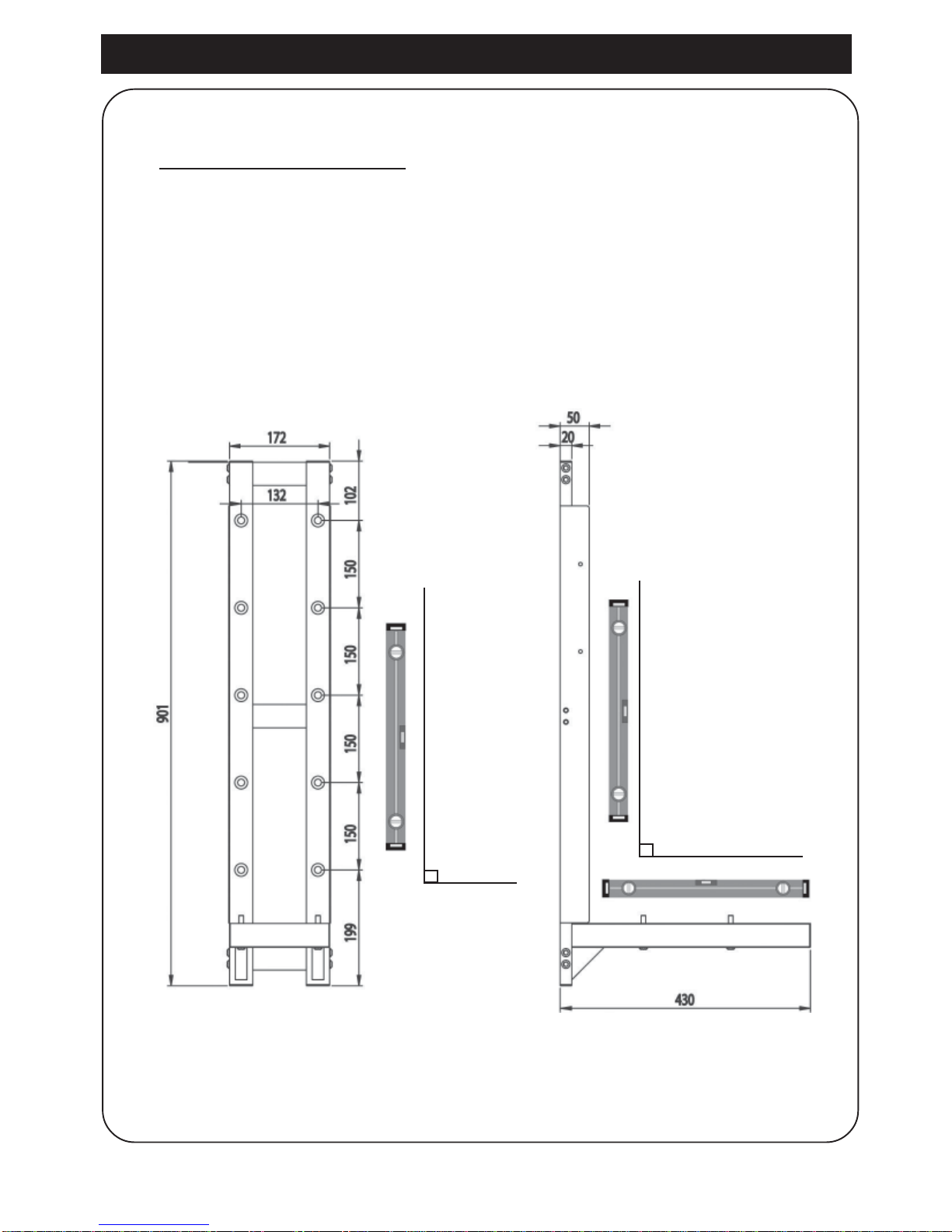

7.3 Mounting of wall console for wall-mounted Tower.

INSTALLATIONINSTRUCTIONS

INSTALLATION ON CONCRETE OR STONE WALL:

1.Markanddrillholes.The holes should be largeenoughforawallplugandscrew.

2.Placethewallplugin the holes and use the screws toscrewthewallconsoleto the wall

INSTALLATION ON WOODEN WALL:

1.Markanddrillholes.

2.Screwthewallconsole to the wall with the appropriate screws.

90°90°

7. INSTALLATION AND START - Tower for wall-mounting.

7.4 Mounting the brewing unit on the wall console.

1. Mountthemetalcasing(A)onthewallconsole.

2. Positionthebrewing unit and screw tothewallusing the 4 screws provided(B).

Seefigure.

3. Screwonthe brewing unit’s upper section with theavailablescrews(C).

BBB

7. Installation and start. Tower for wall-mounting.

7.5. Connectthebrewer unit to acoldwater feed -1/2"R withconnectiontube supplied.

NOTE! Thenewhoseset supplied with the appliance shallbeusedandthat old hose

setsshallnot be reused.Connectiontoa closable valve is recommended.

Min.waterpressure; 2bar(200kPa). Max. waterpressure; 8bar (800kPa).

Watersupply to themachineis the customer’sresponsibility according to

instructionandadvicefrom the supplier.

In areas with high level lime problem, a descaling filter should be mounted.

7.6. Electrical connection;

Thebrewerisnotreconnectableandmayonlybeinstalledtotheelectricsupplynetwork

withavoltagethat is stated on the brewer andshallbecarriedout by an authorized

electrician.

Recommended:Installalinecircuitbreaker and a earth fault breaker to the machine.

CAUTION! Connectiontoa separate 3 phase only

-Brewershould be connected to 380Vwith Zero and earth.

- Use 16Amp fuses.

IMPORTANT!

Electricalinstallationsmustbe done of an certificatedelectrician.

380 V 3 - phase + Zero + ground 9000W

8. Operating instructions. (Brewing coffee) Tower for wall-mounting.

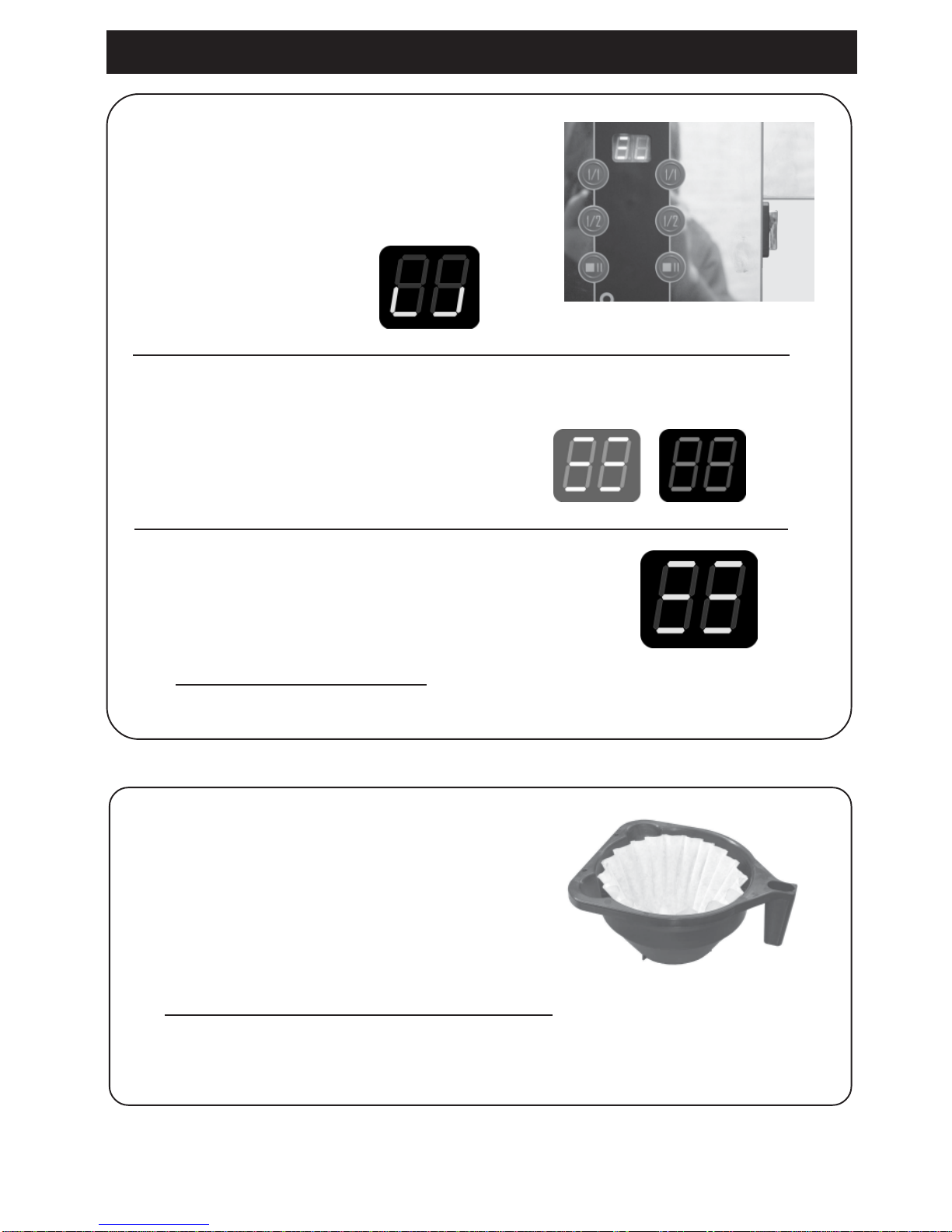

8.1. Startting up machine.

TurnontheswitchA.

Themachinewill now starts filling water .

Display shows:

Placeafilterin the filter holder.

Filter type 523 for 5Litre.

8.3. Place a filter in the filter holder.

Use Coffee Queen´s recommended coffee filter

Filter type 523 for 5Litre. Article no. 110102 - 02

8.2. Machine starts heating water.

Whilemachineisheatingthewater, display

isblinking.

Whenwaterhas reached the right temperature.

Displaywilllightup.

Machine is now ready to brew.

10.
