Assembly
and
Instruction Manual
Fireplace/Charcoal Grill
Model 5065-705
®
U. S. & foreign patents pending
2
Your Coleman RoadTripTM Fireplace/Grill is a versatile unit that
functions as either a fireplace or a charcoal grill. Follow these
instructions for assembly and read carefully, particularly the safety
statements. The safety alert symbol, is a universally recognized
symbol used to identify safety information about hazards that can
result in personal injury. When this symbol is used you should pay
very close attention to what is written. Review these instructions
before beginning assembly or using your fireplace.
®
Introduction
FOLLOW INSTRUCTIONS AND WARNINGS TO AVOID FIRE, SERIOUS
INJURY OR DEATH.
•
Outdoor use only. Never use in enclosed area. Use in unventilated
areas will endanger your life.
• Keep away from all combustible materials including gasoline and other
flammable liquids and vapors.
• Use on a level, noncombustible surface only. Keep away from house,
garage, balconies, or eave overhangs.
• Keep out of the reach of children.
• Be sure screen is in place while in use and do not use in windy conditions.
• Do not overfill firebox or use to burn leaves and trash.
• Exercise the same care you would with an open fire.
• Never leave unit unattended when hot or in use.
• Completely extinguish fire before leaving.
• Use gloves when handling or moving. Ashes can remain warm for a
long time after extinguishing.
• Dispose of cold ashes properly.
• Do not modify in any way nor use with parts not expressly approved by
Coleman.
• Combustion by-products produced when using this product contain
chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Contact local authorities regarding possible burn restrictions before using
product.
WARNING
3
• Check package for all parts needed for assembly.

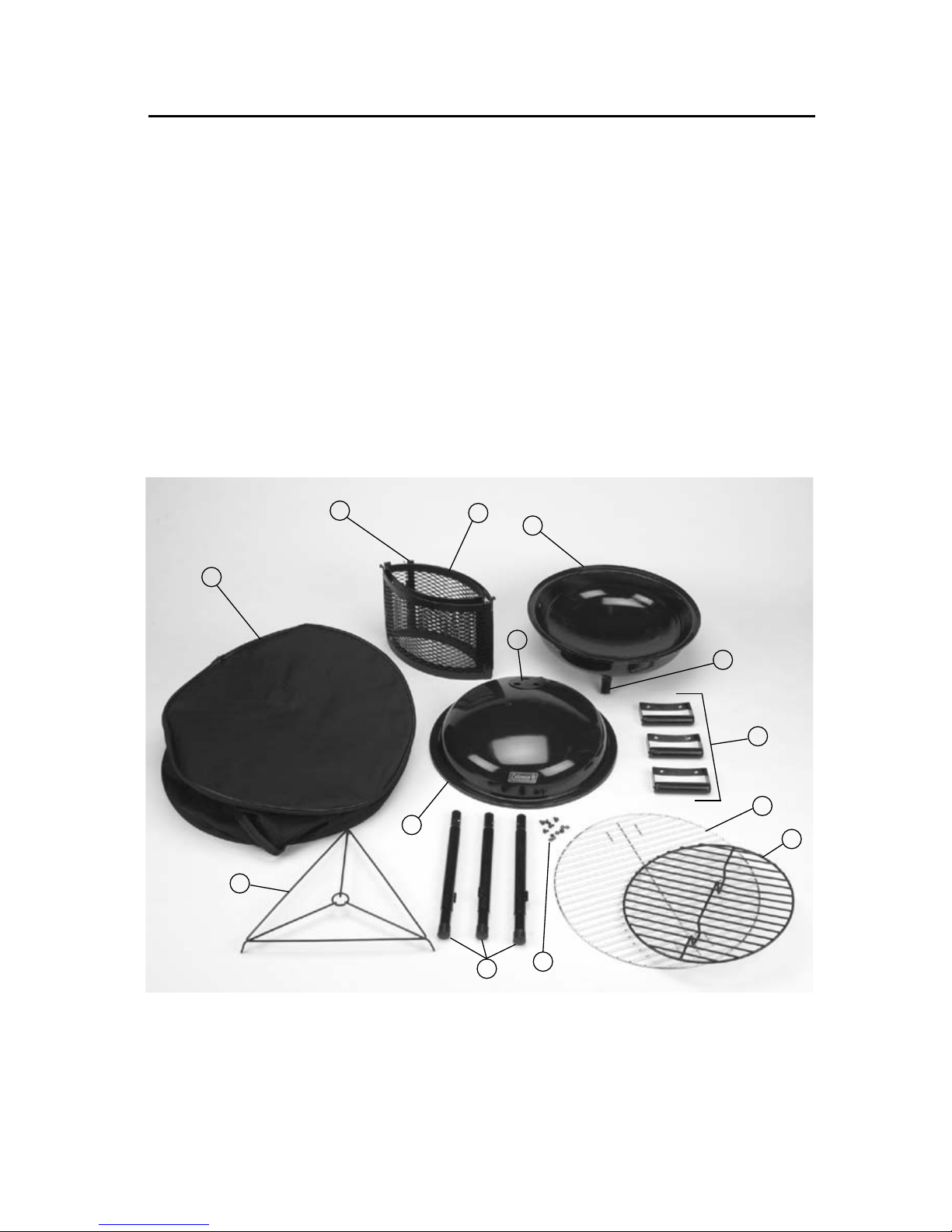

Fireplace/Grill Parts Check List
• Check all items for shipping damage. Call Coleman at 1-800-835-3278
or TDD: 316-832-8707 if you have any problems.
■■1. Lid
■■2.
Firebox
■■
3. Screen Assembly
■■
4. Hinge Pin
■■
5. Cooking Grate
■■
6. Charcoal Grate
■■7.
Handle (3)
■■8. Leg Receptors (3)
■■9. Telescoping Legs (3)
■■10. Wire Brace
■■11. Damper
■■12. Fastener Hardware
■■
13. Carrycase
1
4
2
6
5
8
11
3
9
7
12
10
13
4
Assembly
1. Carefully unpack all parts from shipping box.
2. Insert Telescoping Legs into Receptors with spring clips inside legs.
Important: Orient legs so small tube welded to leg faces inward. This
will ensure proper fit of the Wire Brace. Legs extend by pushing in on
both spring clips protruding from the legs and pulling the legs outward.
Then lock leg in place by aligning spring clips with holes in legs. Always be
sure spring clip is protruding through holes in legs to ensure stability.
Small tubes
must face inward
Spring Clip
Telescoping
Leg
Receptor
3. Assemble Wire Brace to all 3 legs by inserting ends into the small tube
welded to each leg. If wire brace does not fit, check Step 2 above to be
sure small tube is facing inward.
Wire
Brace
Small
Tube
5
4. Attach Handles to Firebox
with 2 bolts, washers & nuts.
Place washer between nut
and firebox. Be careful not to
overtighten bolts as this
could crack the porcelain
finish on the Firebox.
5. Attach Handle to Lid with 2 bolts, washers & nuts.
Again, be careful not to overtighten bolts as this could crack the
porcelain finish on the Lid.
6. Assemble Damper to Lid with 1 bolt & nut.
7. Assemble Screen Assembly by
inserting Hinge Pin into hinges of
mating sections.
Hinge Pin
8. Place Charcoal Grate into
Firebox; place Screen Assembly
along top edge of Firebox & place
Lid on top of Screen Assembly.
You are now ready for use as
either a Fireplace or Charcoal Grill.
6
Set Up and Use
WARNING
Never leave unit unattended when hot or in use. Keep out of reach of
children. For outdoor use only. Never use in enclosed area. Use in unven-
tilated areas will endanger your life.
1. Place unit on a level, noncombustible surface with legs in lowered
position. Keep well away from house, garage, balconies or eave overhangs.
2. Be sure charcoal grate is placed in firebox. Add newspaper, kindling &
wood on top of charcoal grate.
3. Place screen assembly along top edge of firebox.
4. Ignite newspaper & kindling with match or butane lighter. Use charcoal
lighter fluid if necessary.
5. Once fire is well lit, place lid
on top of screen assembly.
AS A FIREPLACE
Set Up and Use
WARNING
Never leave unit unattended when hot or in use. Keep out of reach of
children. For outdoor use only. Never use in enclosed area. Use in unven-
tilated areas will endanger your life.
1. Place unit on a level, noncombustible surface with legs in raised
position. Keep well away from house, garage, balconies or eave overhangs.
2. Be sure charcoal grate is in place in firebox. Place charcoal over
charcoal grate and ignite charcoal as instructed on charcoal packaging.
Use charcoal lighter fluid as needed.
3. Once charcoal is well lit,
place cooking grate on top of
firebox and begin cooking!
AS A CHARCOAL GRILL
7
After Use
Storage in Carrycase
WARNING
To avoid burns – use heavy gloves to remove screen assembly and grates.
1. Completely extinguish fire before leaving.
Extinguish fire by removing screen assembly
and placing lid over firebox with damper closed.
2. Do not use water to douse the fire as this may
crack the porcelain finish of the firebox.
3. Dispose of cold ashes properly.
4. Be careful – fire may be out but firebox can still
be hot. Handle carefully.
5. Store in covered enclosure or disassemble and
place in carrycase. See Storage section below.
8
1. Clean all components prior to storing in carrycase. This will prevent unwanted
odors and extend the life of your fireplace/grill.
2. To disassemble, remove lid, screen assembly and cooking grate.
3. Disassemble the wire brace and telescoping legs from the firebox.
4. Insert cleaned cooking grate into bottom pocket of carrycase and close straps.
5. With legs in short position, insert them through the elastic straps inside the
carrycase. Each leg should be held down by two straps.
6. Next place wire brace on top of legs.
7. Fold screen assembly by removing hinge pin and folding the screen sections
over on each other. Then place folded screen assembly in firebox on top of
charcoal grate.
8. Place firebox into carrycase. For best fit, orient firebox so handles extend out
to match oblong shape of carrycase.
9. Place lid on top of firebox and zip carrycase shut.
9
Maintenance & Care of Fireplace
• Extreme heat from fire may cause paint to burn off from Screen
Assembly. To help restore look & protect steel, use a wire brush to clean,
then repaint with high temperature black paint.
• Always store unit in covered enclosure, preferably in carrycase.
• Check that bolts on handles, leg receptors & damper are tight with no
loose fitting pieces.
10
Parts List
2
3
1
4
13
8
5
6
7
7
7
11
10
9
