Coleman COOKOUT G45151 Manuale utente

Manual Revision #: 11252020 MK

www.colemanbbqs.com

COOKOUTTM

3BURNER BARBECUE

ASSEMBLY MANUAL

085-3181-8 (G45151) Propane Barbecue

LIMITED 2-YEAR WARRANTY

Read and save manual for future reference.

Assemble your grill immediately. Missing or damaged parts

should be claimed within 30 days of purchase.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-800-275-4617.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous

ﬁres, explosions, property damage, or

serious personal injury or even death.

Follow all leak check procedures

carefully prior to operation of barbecue,

even if grill was dealer assembled. Do

not try to light this barbecue without

reading the Lighting Instructions section

of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety

statements, assembly instructions,

use and care directions before

attempting to assemble and cook.

CAUTION

Sharp edges. Wear gloves when

assembling your barbecue.

INSTALLER OR ASSEMBLER/

CONSUMER

This manual should be kept with the

barbecue at all times.

HEAVY ARTICLE : NEEDS 2 TO LIFT

To order non-warranty replacement parts or accessories,

or to register your warranty, please visit us on the web at

www.colemanbbqs.com

DANGER

1. If you smell gas:

a. Shut o gas to the appliance

b. Extinguish any open ﬂame

c. Open lid

d. If odour continues, keep

away from the appliance and

immediately call your gas

supplier or your ﬁre department

2. Requires two people to complete

the assembly process.

3. Beware of sharp edges.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

FOR MISSING PARTS OR DAMAGES CALL

1-800-275-4617

WARNING

1. Do not store or use gasoline

or other ﬂammable liquids or

vapours in the vicinity of this or

any other appliance.

2. An LP cylinder not connected for

use shall not be stored in the vicinity

of this or any other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BARBECUE’S STAINLESS

STEEL AND PAINTED STEEL PARTS

CAN BECOME VERY HOT.

HARDWARE PACK

1/4”-20UNCx13 Screw

X 40

Wheel Spacer

X 2

NO.10-24UNC x10 Screw

X 4

Wheel Washer

X 1

Screw, Gas Tank Support

X 1

Hitch Pin

X 1

123

4 5 6

No. Description Part Number Qty.

1 1/4"-20UNCX13 Screw 20120-13013-250 40

2 NO.10-24UNC x10 Screw 20124-10010-250 4

3 Screw, Gas Tank Support G466-0007-9000 1

4 Wheel Spacer G305-0024-9088 2

5 Wheel Washer 40300-08000-036 1

6 Hitch Pin G306-0005-9088 1

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• 1/4” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a ﬂat, clean surface. Grill is heavy. Two people are

recommended to assemble this barbecue.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

PARTS LIST FOR 085-3181-8 (G45151)

Item No. Qty. Description Part No.

AA 1 Top Lid Assembly G451-X200-01

AB 1 Lid Handle G451-0093-01

AC 1 Thermometer G451-0094-01

AD 1 Thermometer Bezel G451-000C-01

AE 2 Screw, Top Lid G309-0008-01

AF 2 Lid Bumper, Front G527-0002-01

AG 2 Lid Bumper, Rear G451-0098-01

BA 1 Burner Box Assembly G451-2J00-01

BB 3 Main Burner G451-Y400-01

BC 2 Carryover Assembly G451-0041-01

BD 1 Electrode Set, Main Burner G451-000H-01

BE 3 Heat Plate G451-0040-01

BF 3 Cooking Grate G451-0096-01

BG 1 Warming Rack G451-0095-01

BH 1 Upper Back Panel G451-000B-01

BI 1 Heat Shield - Tank G451-6201-01

BJ 1 Grease cup hook G305-0043-01

BK 1 Grease Cup - Burner Box G430-0033-02

CA 1 Control Panel G451-X301-01

CB 3 Control Knob G451-0099-01

CC 3 Knob Bezel G451-000A-01

CD 1 Ignitor G451-000D-01

CE 1 Manifold Assembly G451-Y500-01

CF 1 Regulator G402-0069-01

DA 1 Side Shelf, Left G451-2E00-01

DB 1 Towel Holder G451-X601-01

DC 1 Side Shelf, Right G451-2D00-01

DD 1 Tool Holder G451-X501-01

EA 2 Cart Side, Left G451-2F00-01

EB 1 Cart Side, Right G451-2G00-01

EC 2 Shelves G451-X800-01

ED 4 Cart Leg Cap G451-X701-01

EE 1 Match Holder G401-0079-01

EF 1 Gas Tank Support G451-X702-01

FA 1 Wheel Axle G451-000G-01

FB 2 Wheel G319-0014-01

FC 2 Wheel Cap G451-000F-01

FD 2 Feet G451-000E-01

Item No. Qty. Description Part No.

G1 1 Hardware Pack G451-B049-01

G2 1 Assembly Manual G451-M051-01

G3 1 Safe Use and Care Manual G451-M049-02

EXPLODED DIAGRAM FOR 085-3181-8 (G45151)

CC BA

DB BK

AG AF AE

Extras

Hardware

Pack

Assembly

Manual

Safe Use

& Care

Manual

G1 G2 G3

ASSEMBLY INSTRUCTIONS

X 10

X 14

ASSEMBLY INSTRUCTIONS

4 5

X 2 X 1 X 1

ASSEMBLY INSTRUCTIONS

X 6

Attention: Feed the electrode set (BD)

attached to the main burner,

through the hole on the left

side of the burner box.

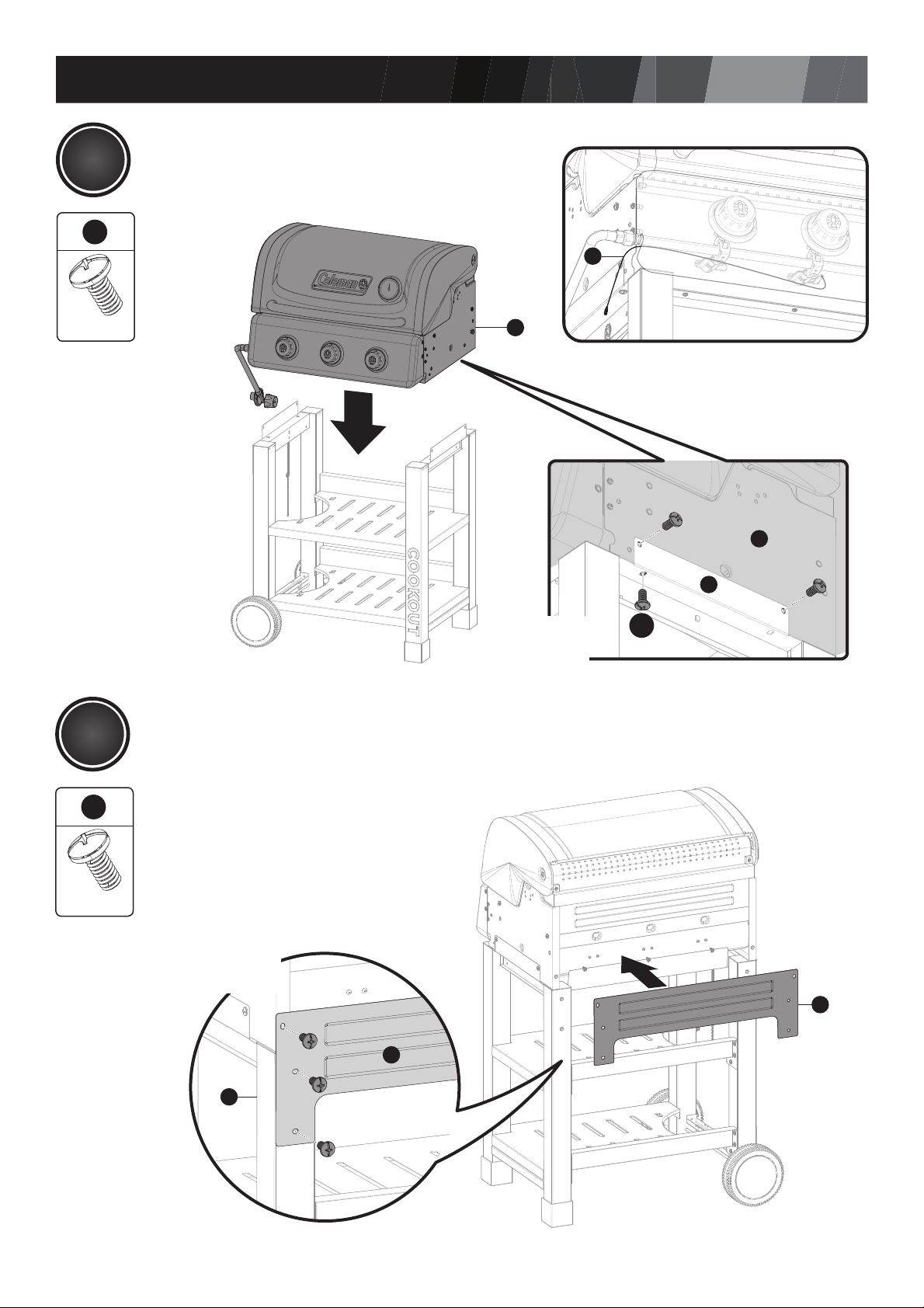

ASSEMBLY INSTRUCTIONS

X 2 X 2

X 2 X 2 DD

ASSEMBLY INSTRUCTIONS

Note: The electrode set (BD) is located

on the left side of the burner box.
