Coleman 9391A133 Manuale utente

Pole Assembly

–For easier setup, do not extend poles

completely.

–Go to the end of pole with the

spring clip and assemble all but the last

shock corded section.The pole should

curve down plus one section. (illus. 2)

–Insert the end with the spring clip into

one of the hub ports until it clicks into

position. (illus. 1, 2)

–Repeat for each of the four remaining

poles. (illus. 2)

–Assemble and connect one pole at a

time to the hub.

13’x13’ SHADE HAVEN

WhenYou Are Ready To Set Up Your

Shelter

–Select a level area clear of rocks,

branches and other hard or sharp objects.

–Do not set up your shelter under trees.

–For easier set up, two or more people

are recommended.

POLE ASSEMBLY PARTS

Instructions apply to Part Number 9391A133

Poles Part No. 9191-313

Hub Part No. 9191-330

Illus. 2

Partially assembled

frame locked into hub

Illus. 1

Poles inserted

into hub

Hub

Spring Clip

Pole

illus. 6

Completed shelter with guy

lines staked out

PRINTED IN SRI LANKA Rev. 10/03

Things You Should Know

• Never store shelter, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles inside

your shelter.Use separate storage bag provided.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• SHELTER POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE.

• Do not leave your shelter set-up for weeks at a time, be aware that expo-

sure to the ultraviolet rays of the sun can seriously damage material and/or

cause it to become discolored.

WARNING: Keep all flame and heat sources away from this tent fabric

This tent meets the flammability requirements of CPAI-84. The fabric will

burn if left in continuous contact with any flame source.The application of

any foreign substance to the tent fabric may render the flame-resistant

properties ineffective.

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN SRI LANKA

Attach Shelter to

Frame

–Drape the canopy over the frame (illus. 3)

–Position each corner over the curved

portion of the pole.

–Fully extend each pole by

completing the interlocking of the

shock corded pole sections.

–Insert the brass hook into the hole

near the base of the pole (illus. 4)

–From the inside of the shelter secure

the pole frame to the shelter with the

hook and loop closures.

–Adjust poles to pull the shelter taut

and stake down through the fabric

loops at the end of each pole (illus. 5)

–Adjust hook straps to increase

tautness (illus. 5)

–Attach guy lines to fabric

guy loops at each corner

and stake out (illus. 6)

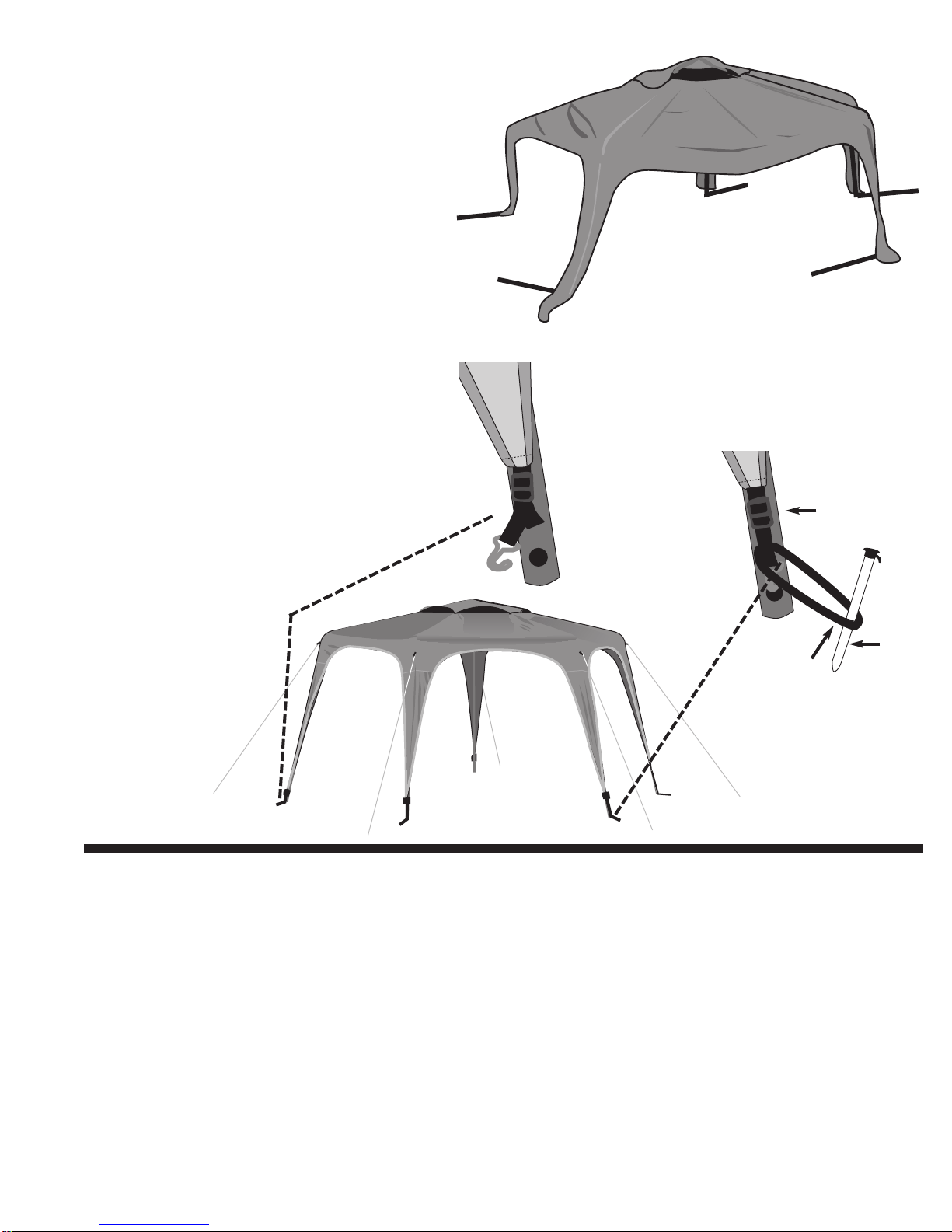

illus. 3 Fabric draped over

partially assembled frame

illus. 4

Insert Brass Hook

into hole near the

base of the pole

illus. 5

Stake through

Stake Loop Hook Strap

Use to

adjust or

tighten

canopy

Stake Loop Stake
