Coleman KRYPTON 2 9870-240 Manuale utente

Assemble Frame

– Insert one end of the Main Tent Pole tips into

the grommet on webbing located at the corner

of the tent. (illus. 3), (illus. 4)

– Go to opposite end of the Main Tent Poles and

gradually apply pressure to the pole, forming

an arch, until you are able to insert the pole tip

into the grommet on the corner web. (illus. 4)

– Repeat for second pole.

– Insert one end of Side Pole into grommet on the

webbing at the side of tent and go to opposite end

of the Side Pole and gradually apply

pressure to the pole, forming an arch,

until you are able to insert the pole

tip into the grommet. (illus. 4)

– Repeat for second pole.

Krypton 2

™

part number 9870-240

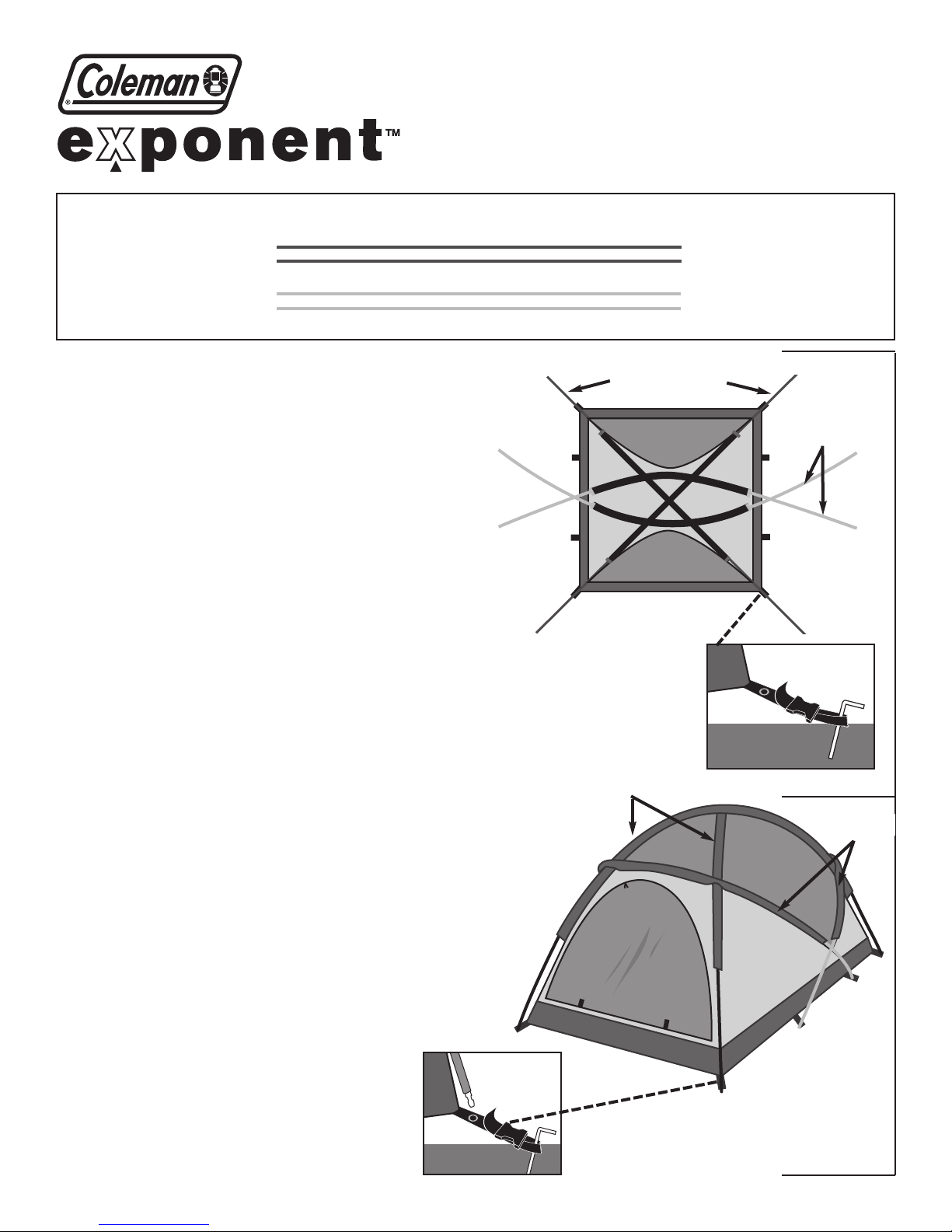

Layout & Positioning

of Tent, Pole Assembly

– Layout and position tent with doors facing

desired direction. (illus. 1) Unzip doors.

– For best results in windy conditions, position

door or back of tent into the wind.

– Stake down tent corners. Keep the floor taut.

(illus. 2)

– Assemble Frame Poles by interlocking the

shock-corded sections. This will make two

long red Main Tent Poles and two long

silver Side Poles.

– Insert the two Main Tent Poles through the pole

sleeves with the red trim.

– Insert the silver Side Poles through the pole

sleeves with the silver trim.

Main Tent Poles (Red)

Part No. 9870-101

Side Poles (Silver)

Part No. 9870-102

Rainfly

Part No. 9870-110

illus. 1

illus. 2

Tent stake

through Loop

illus. 3

Insert Pole Tip on

stake loop into pole.

illus. 4

Tent frame up

POLE ASSEMBLY PARTS

Main Tent Poles

Side Poles

Pro-Tips

• Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing inside your tent. It is NOT LEAKAGE through the tent fabric.

Loosening Velcro at the top of both double-zippered vestibules, allowing good ventilation through the tent, can minimize condensation.

• Never store tent, even for a short period of time, without

drying it thoroughly and brushing off caked dirt. Do not pack

stakes or poles inside your tent. Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE

ITSELF. NEVER PULL ON THE TENT FABRIC OR TENT STAKE

LOOP TO REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE. 3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

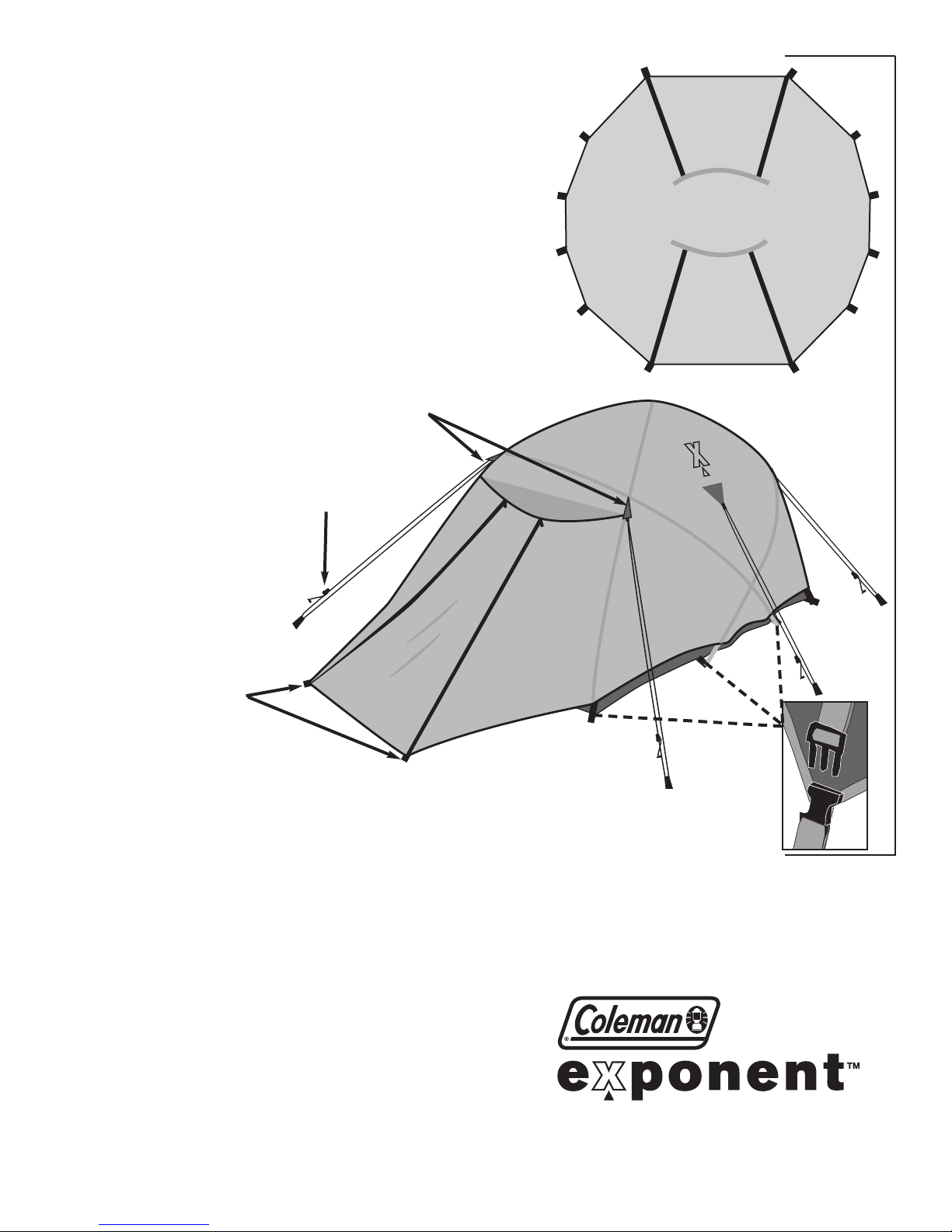

3Attach Rainfly

– Drape Rainfly over tent frame, with

rainfly double zipper doors lining up

over tent doors. (illus. 5)

– Connect the six clips to the clips located

at the corners and sides of the tent.

(illus. 6 & illus. 7)

– Stake out rainfly doors, keep rainfly taut.

(illus. 7)

– Attach Guy Lines to Guy Wings on the

sides of the Rainfly and stake out

(illus.7).

illus. 5

Rainfly

illus. 7

Completed tent

with Rainfly.

Stake out door

and vestibule

Guy Line

Guy Wings

illus. 6

Rainfly clips

onto pole

stake loop

PRINTED IN CHINA
