Coleman Phad X3TM Manuale utente

Assemble Frame

– Start with one of the Main Tent Poles and

gradually apply pressure to the pole,

forming an arch, until you are able to

insert the pole tip into the grommet on

the corner web. (illus. 4)

– Repeat for second pole.

– Go to the Side Pole and gradually apply

pressure to the pole, forming an arch,

until you are able to insert the pole

tip into the grommet. (illus. 4)

Phad X

3™

part number 9830-392

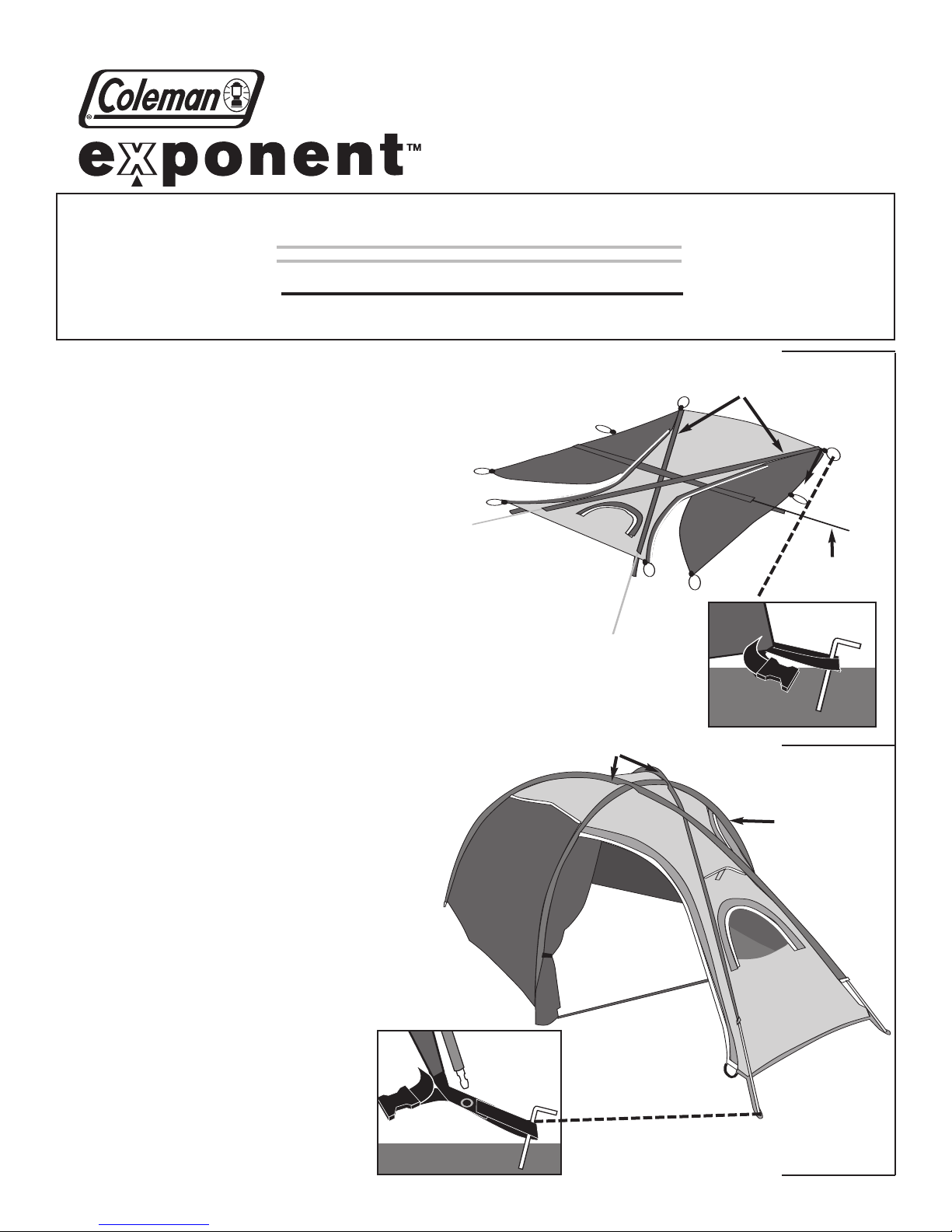

Layout & Positioning

of Rainfly, Pole Assembly

– Layout and position Rainfly with doors facing

desired direction. (illus. 1) Unzip doors.

– For best results in windy conditions, position

back of tent into the wind.

– Stake down rear tent corners. (illus. 1)

– Assemble frame poles by interlocking the

shock-corded sections. This will make two

long silver Main Tent Poles and one red

Side Pole.

– Insert the cap end of the two Main Tent Poles

through the poles sleeves with the silver trim.

– Insert the cap end of the red Side Pole through

the pole sleeve with the red trim.

Main Tent Poles (Silver)

Part No. 9830-1161

Side Pole (Red)

Part No. 9830-1261

Rainfly

Part No. 9830-1361

illus. 1

illus. 2

Tent stake

through Loop

illus. 3

Insert Pole Talon on

stake loop into pole.

illus. 4

Tent frame up

POLE ASSEMBLY PARTS

Main Tent Poles

Side Poles

Side Pole

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside surfaces of your tent. Condensation

is caused by water vapor from your breath, perspiration, or any wet clothing inside your tent. It is NOT LEAKAGE through the tent

fabric. It can be minimized by removing wet clothing from your tent and by providing good ventilation through the tent.

• Never store tent, even for a short period of time, without

drying it thoroughly and brushing off caked dirt. Do not pack

stakes or poles inside your tent. Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE

ITSELF. NEVER PULL ON THE TENT FABRIC OR TENT STAKE

LOOP TO REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

3Attach Tent

– Layout the tent. (illus. 5)

– Position the tent in under the Rainfly

– Starting at the back of the tent, clip the

tent to the Rainfly in the corners and then

the side. (illus. 6)

– Attach the top of the tent to underside of

the Rainfly with toggle and loops.

(illus. 7)

– Optional ground cloth in vestibule can be

removed or attached and clipped to the

webbing at front of the Rainfly. (illus. 6)

– Stake out rainfly doors, keep rainfly

taut. (illus. 8)

– Attach Guy Lines to Guy Wings

on the sides of the Rainfly and

stake out. (illus.8).

illus. 5

Tent positions

in under Rainfly

illus. 8

Completed tent

with Rainfly.

Stake out

Guy Line

Tent toggles to loops

on underside of Rainfly

illus. 6

Tent clips onto

pole stake loop

illus. 7

Attach tent to underside

of Rainfly with toggles

PRINTED IN CHINA
