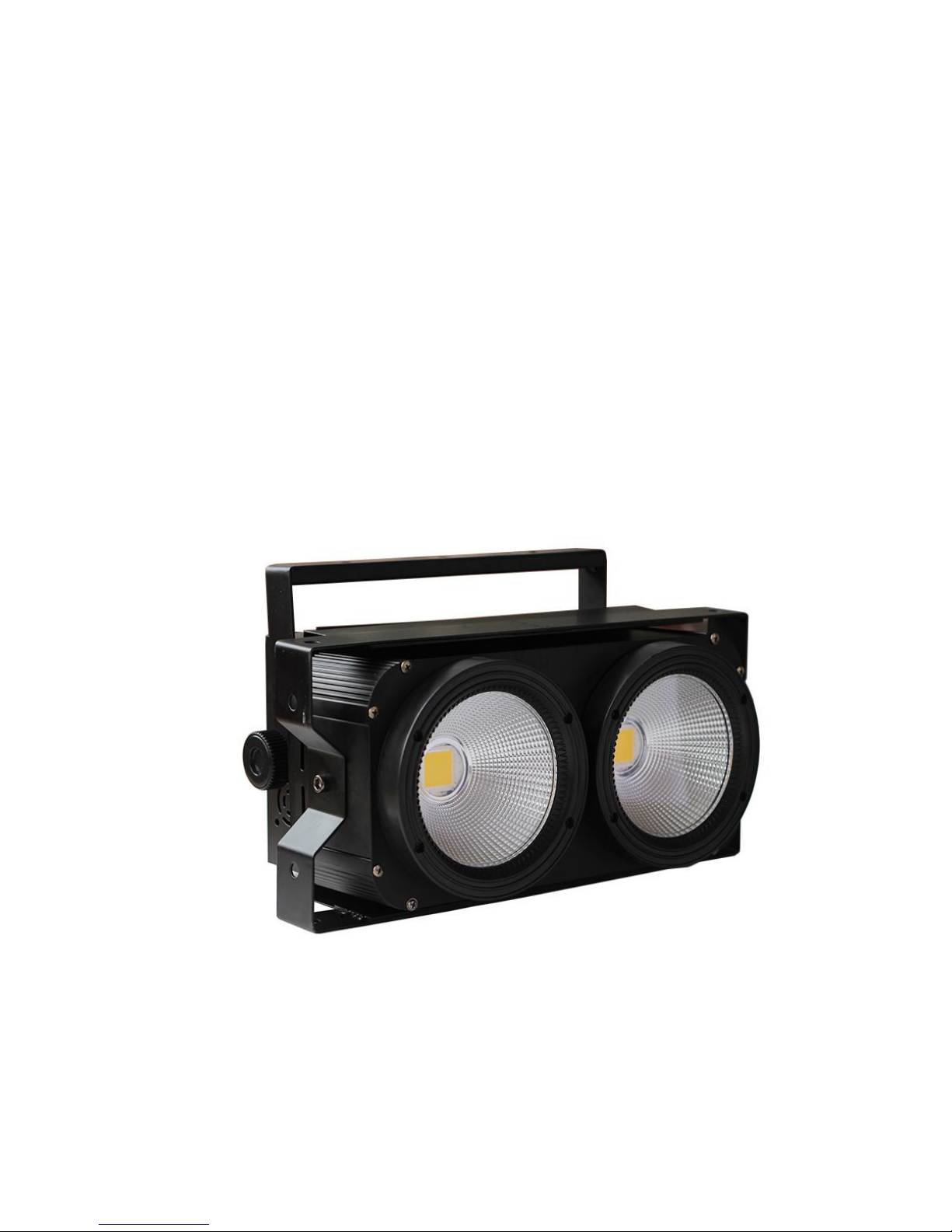

Colorful Light CL-BLC2B Manuale utente
COB 2 Eye Led blinder
lights
User’s manual
Features：
Voltage：AC100V-240V 50/60HZ
Total Power：200W
LED Light Source：Each Power 100W
Quantity：2pcs
Lifespan：50000 hours
Color：Warm White
Color Temperature:Linear color temperature correction
3200K/5600K
Beam Angle：60°
Strobe：Strobe 1-25Hz
Control Mode：DMX512
Channel：2/4/6CH
IP Rate:：IP20
Ambient Temperature：-20°C～40°C
1.Graphic part：
A．Menu
B．Up
C．Done
D．Enter
E．LED Display
A B C D
Press the function key A will cycle out of nine different
function effects, The two numbers before the digital tube
represent the current function (see the menu). The last two
numbers represent the function which is the address code or
speed parameters. Press B or C, you could modify the
parameter. Press D is confirm.
2.Led Display Chart (All functions selected
by pressing the D key to confirm )
NO
Display
function
1
A001
channels address，（001—512）
B, C plus or minus key address code
value
2
2CH-4CH-6CH
Multiple channel mode selection
3
CC99
Running pattern, (01-99)
B, C key to modify the running pattern
4
CP99
Running speed, (01-99)
B, C keys to change the transition speed
5
DE99
Gradient, (01-99)
B, C key to modify the pulse change,
gradual speed
6
BEBE
Voice change
7
Y255
Y color selection, (000-255)
B, C key to modify the color selection
8
W255
White color selection, (000-255)
B, C key to modify the color selection
9
-ON-/ -OFF
Display screen on / off
3.DMX512 CHANNEL TABLE(A6ch)
NO
function
Description
Channel
1
Dimmer
Dimmer linear dimming from dark to
bright
Channel
2
Strobe
Strobe , Slow -- Fast
Channel
3
Function select
0—50：DMX Channel mode；51－－
100：Running pattern,；101—150：
Running speed；151—200：Gradien；
201—255：Voice change
Channel
4
Speed
Speed slow-fast
Channel
5
Y Dimmer
Y Dimmer，linear dimming from dark
to bright
Channel
6
W Dimmer
W Dimmer，linear dimming from dark
to bright
4.DMX512 Channel Description(b6ch)
NO
function
Description
Channel 1
Dimmer
Dimmer linear dimming from dark to
bright
Channel 2
Y Dimmer
Y Dimmer，linear dimming from dark
to bright
Channel 3
W Dimmer
W Dimmer，linear dimming from dark
to bright
Channel 4
Strobe
Strobe , Slow -- Fast
Channel 5
Function
select
0—50：DMX Channel mode；51－－
100：Running pattern,；101—150：
Running speed；151—200：Gradien；
201—255：Voice change
Channel 6
Speed
Speed Slow - Fast
5.DMX512 Channel Description(A4ch)
6.DMX512 Channel Description(b4ch)
NO
Function
Description
Channel 1
Dimmer
Dimmer,linear dimming from dark
to bright
Channel 2
Strobe
Strobe , Slow -- Fast
Channel 3
Function select
0—50：DMX Channel mode；51
－－100：Running pattern,；
101—150：Running speed；
151—200：Gradien；201—255：
Voice change
Channel 4
Speed
Speed,Slow - Fast
NO
Function
Description
Channel 1
Dimmer
Dimmer,linear dimming from dark
to bright
Channel 2
Y Dimmer
Y Dimmer,linear dimming from
dark to bright
Channel 3
W Dimmer
W Dimmer,linear dimming from
dark to bright
Channel 4
Strobe
Strobe,Slow -- Fast
7．DMX512 Channel Description(A2ch)
NO
Function
Description
Channel 1
Dimmer
Dimmer linear dimming from dark
to bright
Channel 2
Strobe
Strobe , Slow -- Fast
8．DMX512 Channel Description(b2ch)
NO
Function
Description
Channel 1
Y Dimmer
Y Dimmer，linear dimming from
dark to bright
Channel 2
W Dimmer
W Dimmer，linear dimming from
dark to bright
9．Features：
Operation is very simple, user-friendly design,
flicker-free dimming, jitter and so on. Can be
adapted to film, photograph, television and other
demanding occasion for lighting.
