ColorKey CKU-7060 Manuale utente
SKU: CKU-7060
USER MANUAL
2
Table of Contents
INTRODUCTION .................................................................................................... ERROR! BOOKMARK NOT DEFINED.
SAFETY ................................................................................................................. ERROR! BOOKMARK NOT DEFINED.
BATTERY LIFE ..................................................................................................... ERROR! BOOKMARK NOT DEFINED.
DISPLAY OPERATION ............................................................................................................................................ 3
MENU GUIDE ........................................................................................................................................................... 7
INFRARED REMOTE CONTROL (IRC) ................................................................................................................. 8
DMX VALUES ......................................................................................................................................................... 10
DMX CONNECTIVITY ........................................................................................... ERROR! BOOKMARK NOT DEFINED.
W-DMX ECOSYSTEM AND WIRELESS LINKING ............................................ ERROR! BOOKMARK NOT DEFINED.
AIRAPP IOS ........................................................................................................... ERROR! BOOKMARK NOT DEFINED.
MASTER/SLAVE MODE OPERATION ............................................................... ERROR! BOOKMARK NOT DEFINED.
TROUBLESHOOTING ........................................................................................................................................... 14
TECHNICAL INFORMATION ................................................................................................................................ 15
Please read these instructions carefully before use. Operating this fixture according to
these instructions is important to avoid any possible damage or accidents caused by
misuse.
3
Contents of Package
• AirPar HEX 4
• IR Remote
• Power Cord
• User Manual
Safety
Caution! Opening this unit voids warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect power before any service or when
moving or setting up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.
• This fixture is for indoor use only.
• This fixture must be installed a minimum distance of 5 meters (16’4”) away from any
lighted objects.
• Do not install or operate this fixture near flammable materials.
• This device must be installed, operated, and maintained by a qualified professional.
• Please check if the voltage is in accordance with the rated power before installing.
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and
replace with a power cord of similar rating.
Service & Support
Your ColorKey product includes a 2-year warranty. For technical support or to register your
product, please visit https://www.colorkeyled.com/support/
You can also reach us by phone Monday thru Friday, 8:30am – 5pm PST at (818) 578-4030.
4
Introduction
Thank you for purchasing the ColorKey AirPar HEX 4!

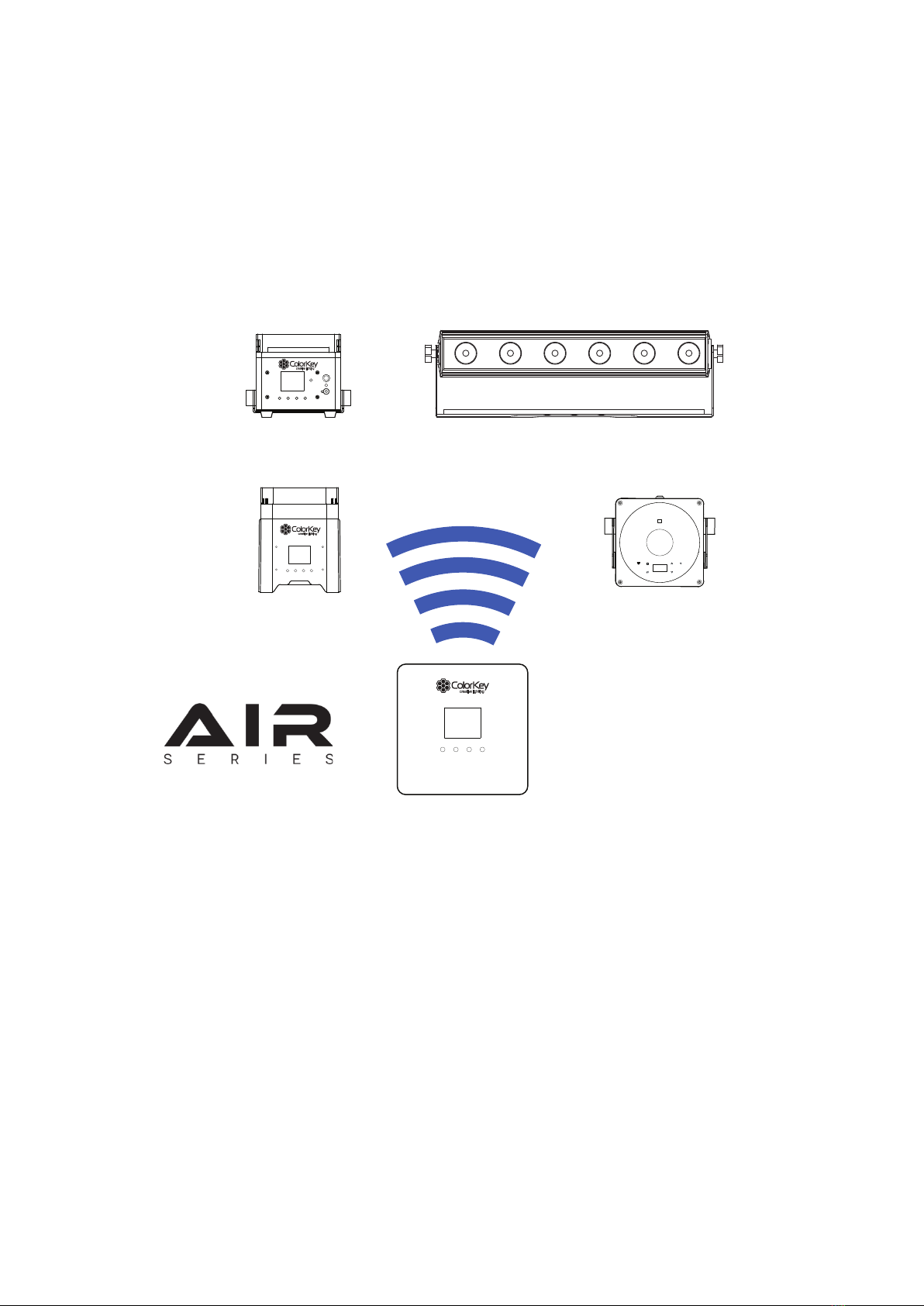

The AirPar is part of the ColorKey Air Series, an ecosystem of battery-powered, wireless
DMX lighting fixtures, with a wireless DMX hub for greater control and connectivity options.
All Air Series fixtures also include an integrated W-DMX transceiver for instant wireless
connectivity. This enables any Air Series fixture to wirelessly control your entire Air Series
rig.
It’s now easier than ever to fill a room with color by simply setting all the fixtures to the same
wireless group ID and watch them automatically connect and synchronize.
AIRHUB
DMX
ESC DOWN UP ENTER
AIRHUB DMX
ESC DOWN UP ENTER
IR
AIRPAR COB
QUAD
ESC DOWN UP ENTER
AIRPAR HEX 4
AIRBAR HEX 6
AIRPAD
QUAD
5
Power & Charging
The AirPar HEX 4 features a rechargeable lithium-ion battery for wire free use. The battery
can power the light for up to 20 hours from a full charge.
An adaptive power supply with an input voltage range of 100 to 240 VAC 50/60Hz is also
included.
The battery charges whenever the included power cable is connected and plugged into a
power source. If the product is plugged in and not in operation, make sure the product is
turned off.
The indicators on the LED Menu Display show how much battery life remains available.

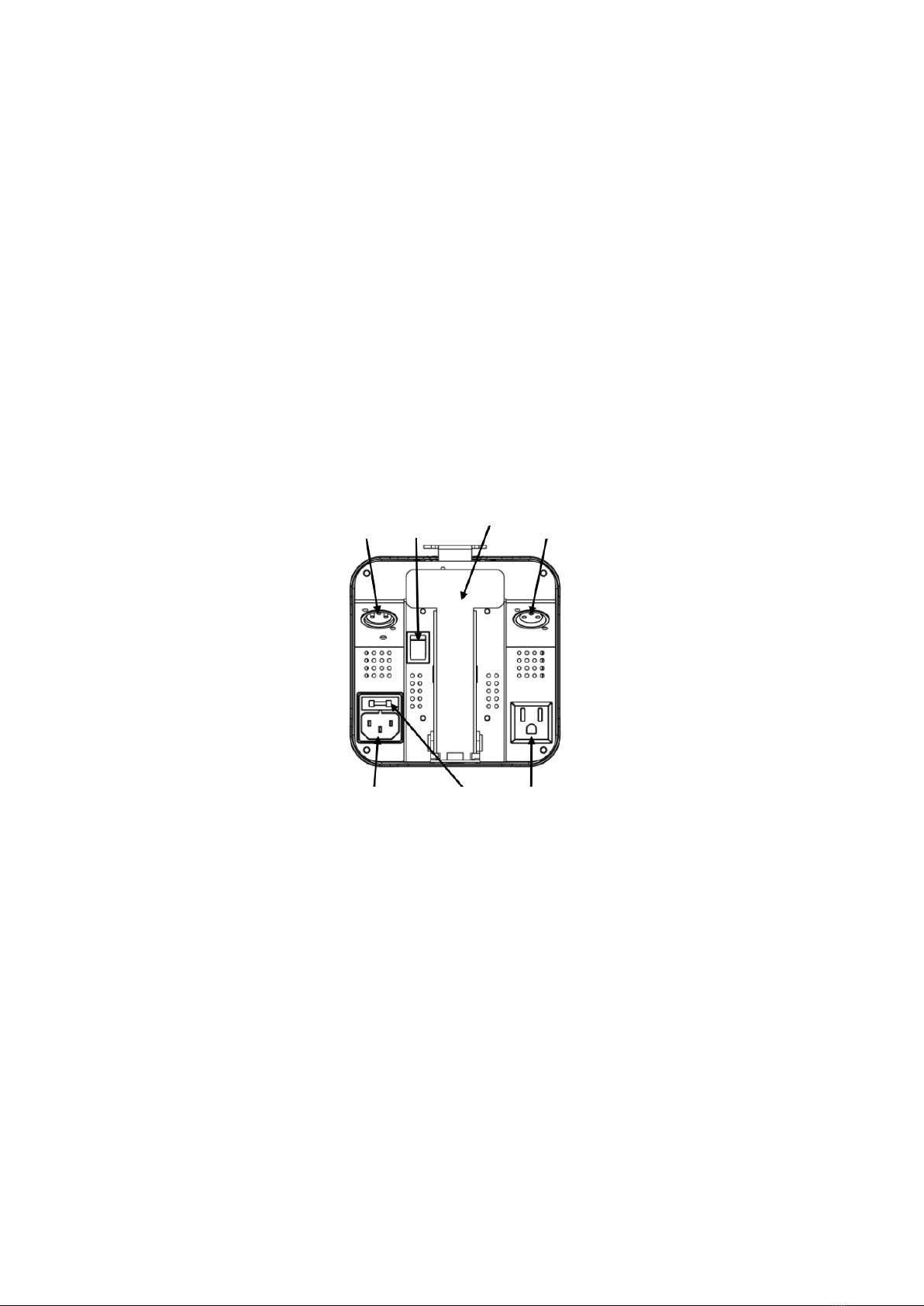

Power Out
Fuse
Power In
DMX Out
DMX In
On/Off
Switch
Kickstand
6

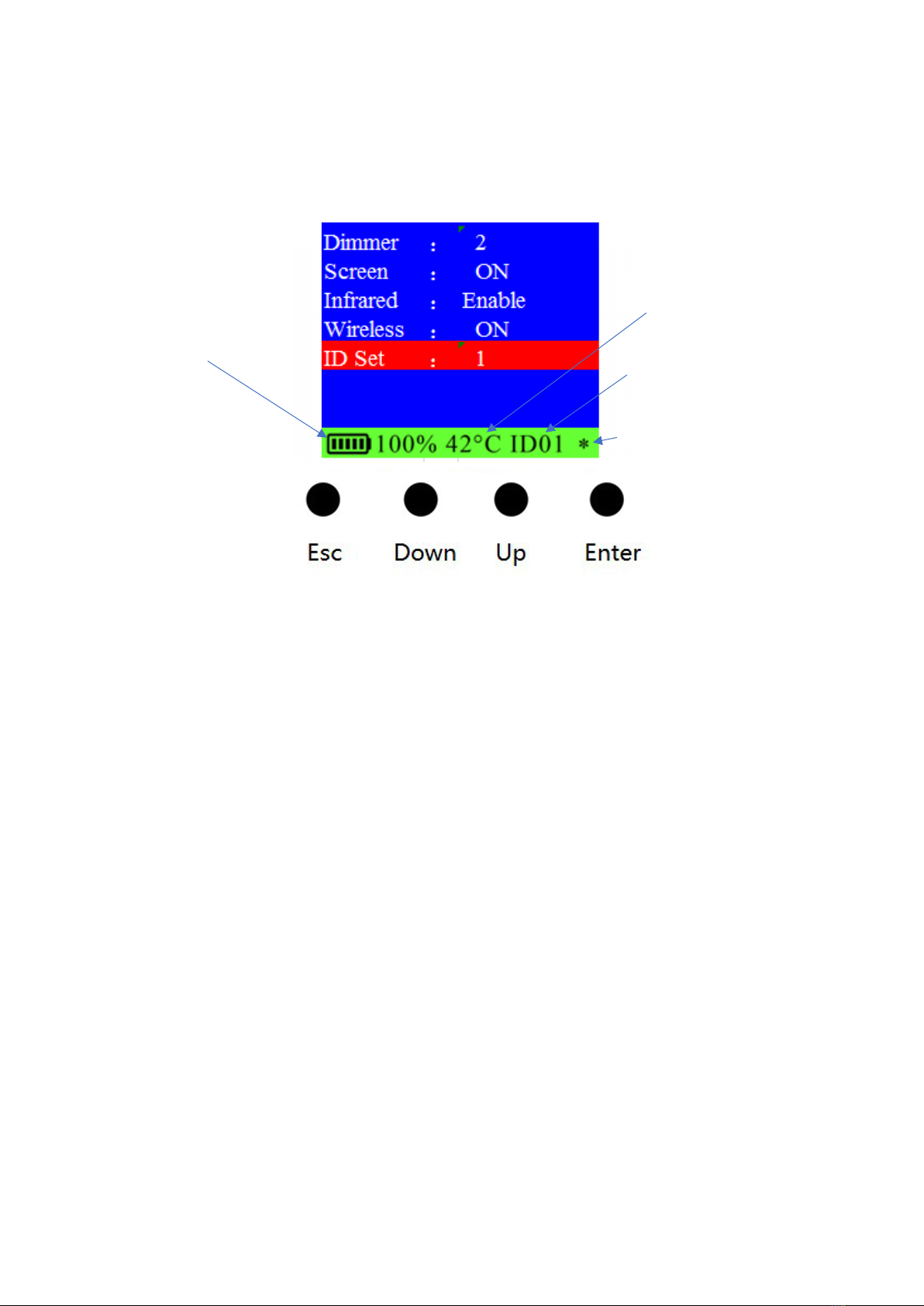

Display Operation
ESC: Navigate to the previous higher-level menu item.
Down: Scrolls through the menu items and numbers in descending order.
Up: Scrolls through the menu items and numbers in ascending order
Enter: Is used to select and confirm/store the current menu selection
Battery Life
Working Temperature
Wireless DMX Group ID
DMX Signal Connected
7
Menu Guide
Address
Set DMX Address (001 to 512)
Channel
Set DMX Channel Mode (3, 6, 8, 11)
Slave
Set light to Slave or Master
Auto
Activate Auto mode and adjust speed (1-15)
Fade
Activate Fade mode and adjust speed (1-15)
Color
Set light to Color mode and scroll through preset colors (1-15)
Sound
Set light to Sound Active mode and adjust sensitivity (1-10)
Red
Adjust Red dimmer (000-255)
Green
Adjust Green dimmer (000-255)
Blue
Adjust Blue dimmer (000-255)
Amber
Adjust Amber dimmer (000-255)
White
Adjust White dimmer (000-255)
UV
Adjust UV dimmer (000-255)
Strobe
Turn on Strobe and adjust speed (1-15)
Dimmer
Adjust Dimmer curve (Linear, Curve, Theatre, Studio)
Screen
Set OLED display to turn off after 30 seconds
Infrared
Enable / Disable Infrared Remote Control
Wireless
Turn Infrared receiver on or off
ID Set
Set Wireless ID group from ID00 to ID15
8

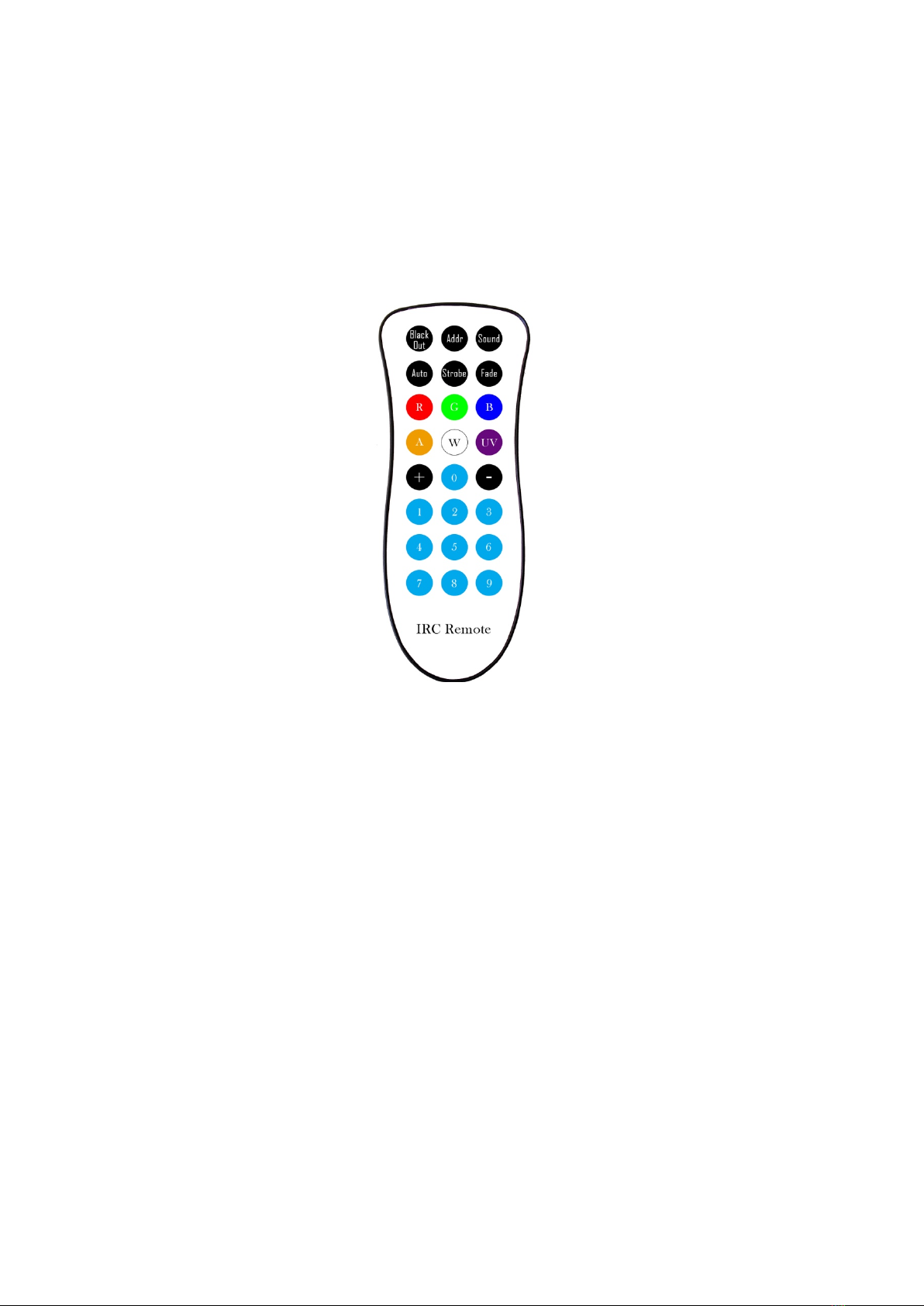

Infrared Remote (IR) Control
To use the IR remote, simply point the remote at the IR receiver on the lighting fixture.
The IR receiver on the AirPar HEX 4 is located top panel with the LED lenses.
Black Out
Black Out mode instantly turns all LED’s off.
Press the Black Out button to engage or disengage Black Out mode.
Addr
Address mode enables you to set the DMX Address of the fixture.
To set up a new DMX address, Press the Addr button, then press (+) or (-) to increase
or decrease the DMX Address Value.
Sound
Sound-Active mode enables the light to respond to ambient sounds in the room using
the fixture’s built-in microphone.
Press the Sound button to activate Sound-Active mode. Press (+) or (-) to increase or
decrease sound sensitivity based on the playback level of the music.
9
Auto
In Auto mode, the light loops through various preprogrammed colors.
To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease
the speed of the program.
Strobe
In Strobe mode, the light will flash at the desired rate.
To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or
decrease the strobing rate. You can change the color using manual color mixing (more
below).
Fade
In Fade Mode, the light creates smooth, gradual color transitions.
To turn on Fade mode, press the Fade button, then press (+) or (-) to increase or
decrease the speed of the program.
Manual Color Mixing
The AirPar is capable of creating an almost unlimited number of colors by mixing the Red,
Green, Blue, and White LEDs.
To begin mixing colors, press the Red (R), Green (G), Blue (B), or White (W) button, then
press (+) or (-) to increase or decrease the brightness of each color. Continue with the
next color until you achieve your desired color.
Color Presets
10 preset colors can be accessed from the IR Remote. Press any number between (0)
and (9) to set a color.
0 - Red
1 - Green
2 - Blue
3 - Amber
4 - White
5 - UV
6 - Yellow
7 - Magenta
8 - Red/Orange
9 - Pink
10
DMX Values
3 channel mode
Channel
Value
Function
1
000-255
Hue
2
000-255
Saturation
3
000-255
Value
6channel mode
Channel
Value
Function
1
000-255
Red
2
000-255
Green
3
000-255
Blue
4
000-255
Amber
5
000-255
White
6
000-255
UV
8 channel mode
Channel
Value
Function
1
000-255
Master Dimmer
2
000-255
Red
3
000-255
Green
4
000-255
Blue
5
000-255
Amber
6
000-255
White
7
000-255
UV
8
000-255
Strobe
