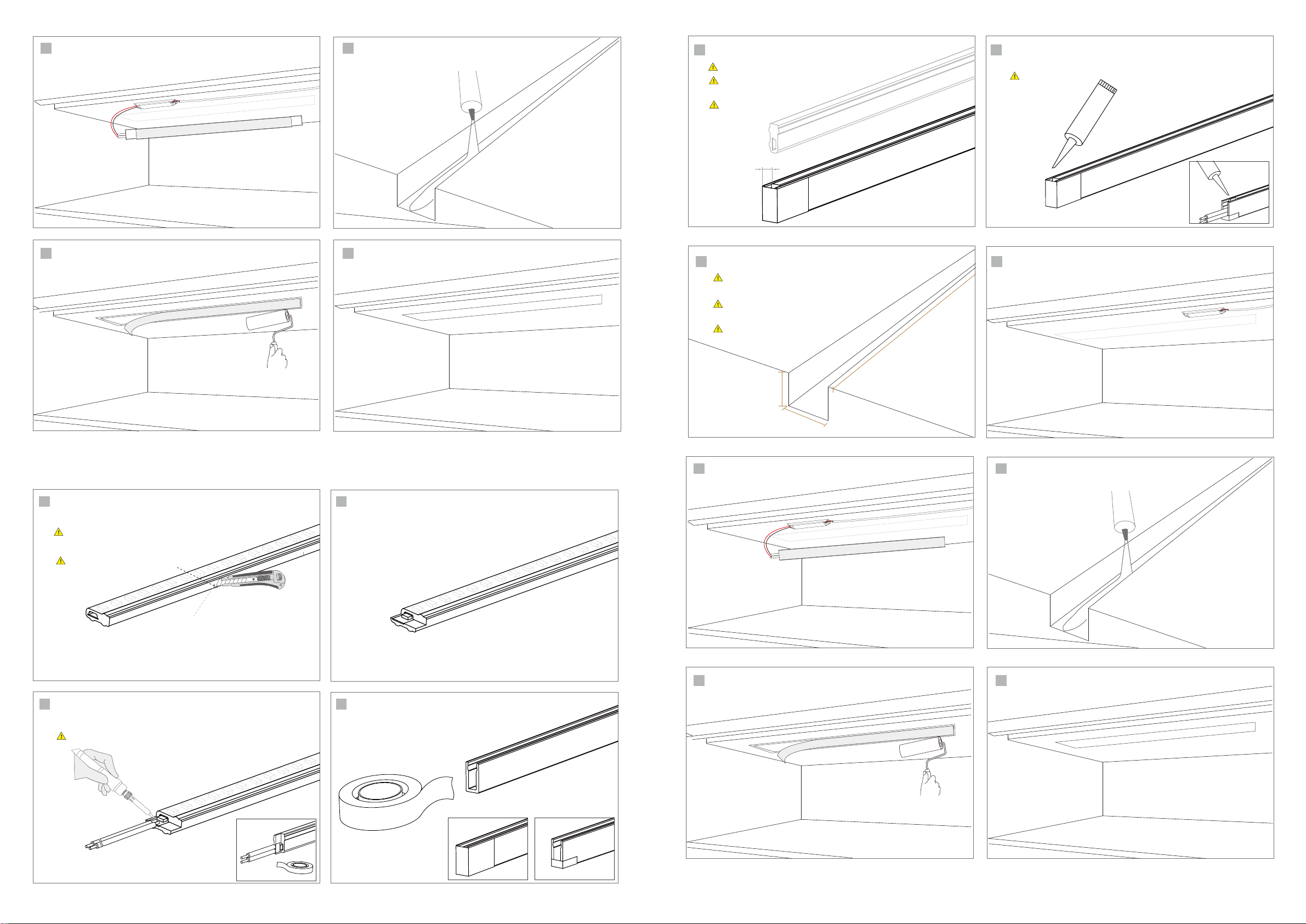

Cut out a piece of light strip with proper dimensions
according to requirements
The connection and installation of plug
Notes
1
Cut at the minimum cutting unit (on the back of strip is
silk-screen cutting line)
Minimum cutting unit of the strip is 50mm
Wait for glue to dry up in 15 minutes, before the next step
Use the 24AWG gray-white wires
The amount of injected glue takes up one half of the
space within the plug
Output voltage of the light strip is DC24V
Bending diameter≥60mm Bending diameter≥60mm
The overall length of the lamp is 50*X+10±5mm
(the lamp length is the length of the strip light
plus the length of plug)
The length of installation trough is
(50*X+10) +2±5mm
X represents the number of
minimum cutting unit
Cut off the upper layer of silica body above copper foil
from one end of the strip cutout
2
The minimum unit
Weld one end of the strip with gray-white wire by
using an electric soldering iron
3Connect the end with a single-hole plug, and inject
glue into the plug
4
5Install the light strip into a profileFirstly inject glue into a holeless plug, and then attach
it to the other end of the light strip
6
Open up a trough at the installation area
7Install the power supply at the right position
8
10.5mm
6mm
L (total length of luminaire)

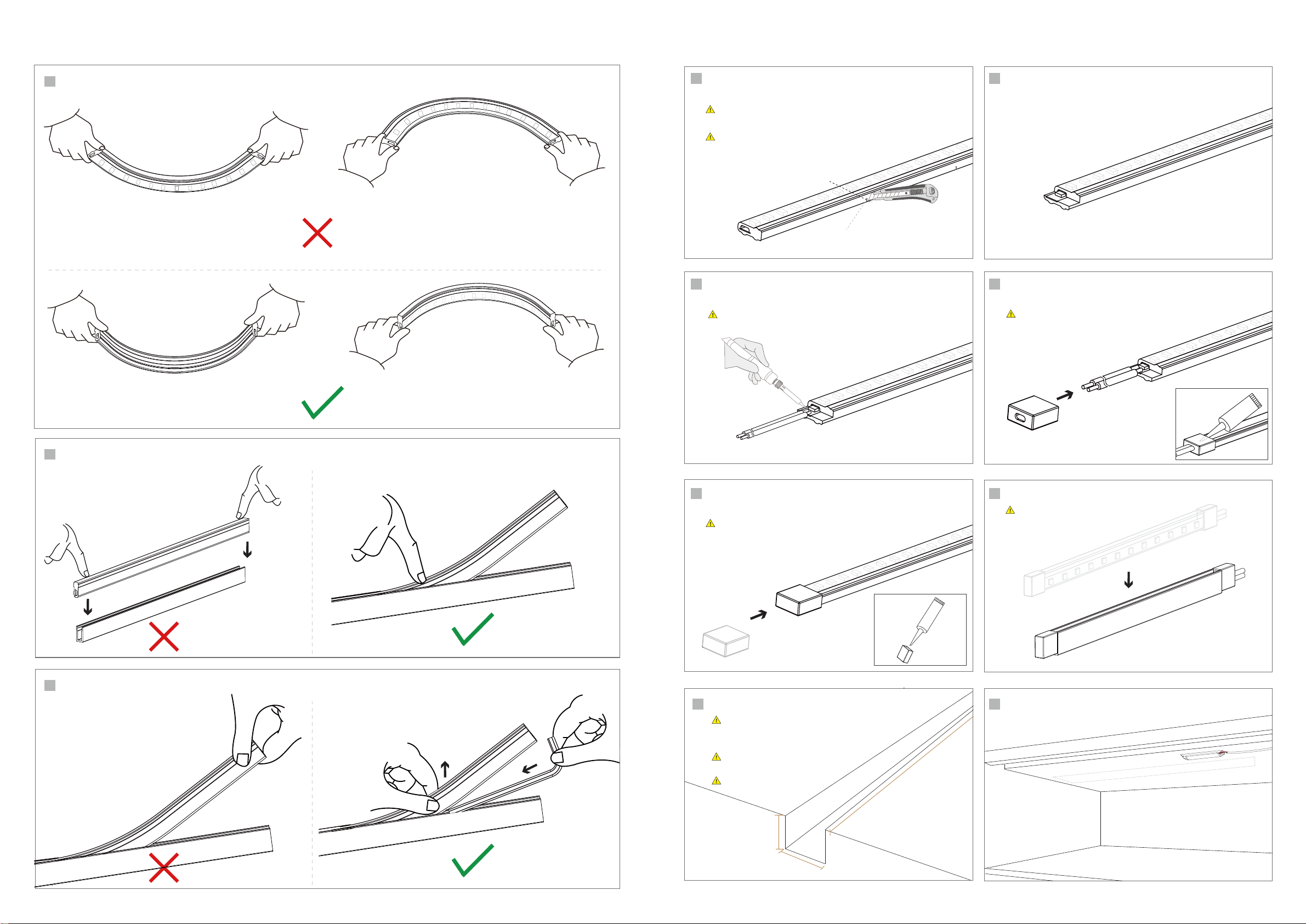

The light strips can only be bent sideways, neither upwards nor downwards is allowed
Upward / downward bending
Sideway bending
1
While disassembling a light strip, use tools and do it carefully. Do not pull it out directly
3
While installing, force in one end firstly, then the rest of the strip. Do not force in both ends at the same time
2
Weld one end of the strip with gray-white wire by using
an electric soldering iron. Insulate the copper foil part
Plugless connection and installation
Minimum cutting unit of the strip
is 50mm
Use the 24AWG gray-white wire
Wait for glue to dry up in 15 minutes, before the next step
Output voltage of the
light strip is
DC24V
While installing, force in one end
firstly then the rest of the strip
X represents the number of
minimum cutting unit
The length of the profile is 50*X+6mm (The
length of the lamp is the length of the profile)
The length of installation trough is
(50*X+6)+2mm
Connect the gray and white wires of the luminaire
with the power supply output terminal
9
Inject glue into the trough
10
Cut out a piece of light strip with proper dimensions
according to requirements
1
Cut at the minimum cutting unit (on the back of strip
is silk-screen cutting line)
Spare a 3mm room between the strip and profile
Cut off the upper layer of silica body wrapping the
copper foil from one end of the piece of strip
2
The minimum unit
3
Seal up both ends of the profile with plastic tape
4
Install the profile into the trough, and cover the
emitting area with textured paper and then
plaster
11
Tear down the textured paper, the end of installation
12
Open up a trough at the installation area
7
Install the power supply at the right position
8
10.5mm
6mm
L (total length of luminaire)
5
Fill up the space within the two ends of the profile
with glue
Install the light strip into a profile
6
textured paper
Connect the gray-white wire with the power supply
output terminal
9
Inject glue into the trough
10
Install the profile into the trough, and cover the
emitting area with textured paper and then
plaster
11
Remove the textured paper to complete the
installation
12
Textured paper
3mm
