Come.up Winch DV-12 light Manuale utente

Self-Recovery Winch

Model: D

PN: 850012 12V / 931811 12V

850124 24V / 931822 24V

Introduction

 Feature

Line pull: 5,443 kg / 12,000 lb wire rope first layer

Wire rope: 9.5 mm × 25 m (3/8" × 82′) galvanized aircraft A7 × 19

Brake: Patented cone brake holds full load

Clutch: Turn the T-handle for rapid wire rope payout

Control: Handheld pendant switch powers the winch

 Unpacking

．Winch assembly……………………………………………………… 1

．Detachable control box……………………………………………… 1

．Remote control………………………………………………………. 1 pc

．Wire rope with clevis hook………………………………………….. 1 pc

．Roller fairlead………………………………………………………… 1 pc

．1.8 m ( 6′ ) 2 gauge battery lead…………………………………… 1 pc

 Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Winch and roller fairlead mountings

．It is very important that the winch will be

mounted on a flat and hard surface of mounting

channel in order to make sure the motor, drum

and gearbox housing are aligned correctly.

．Roller fairlead does not mount to the winch

directly.

．The wire rope shall be wound in an under-wound orientation only.

．Four (4) M10 x 1.50 pitch 8.8 grade high tensile steel bolts must be used in

order to sustain the loads imposed on the winch mounting.

．Two (2) M12 x 1.75 pitch 8.8 grade high tensile steel bolts must be used for

fastening the roller fairlead into the mounting channel.

 Wiring Diagram

•Connect thermal sensor harness plug, control ground, and cable A/F1/F2 to

the motor.

•Attach the ground lead firmly to the negative (–) battery terminal and power

lead to the positive (+) battery terminal. The voltage drop for the winch

motor must not exceed 10% of the nominal voltage of 12/24V DC.

 Nut fastening for motor & contactor

1.Holding the lower nut on the stub and fastening the upper nut clockwise.

2.The torque setting for nut is 14 N-m/124 lb-in.

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The rated line pull shown is based on the first layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

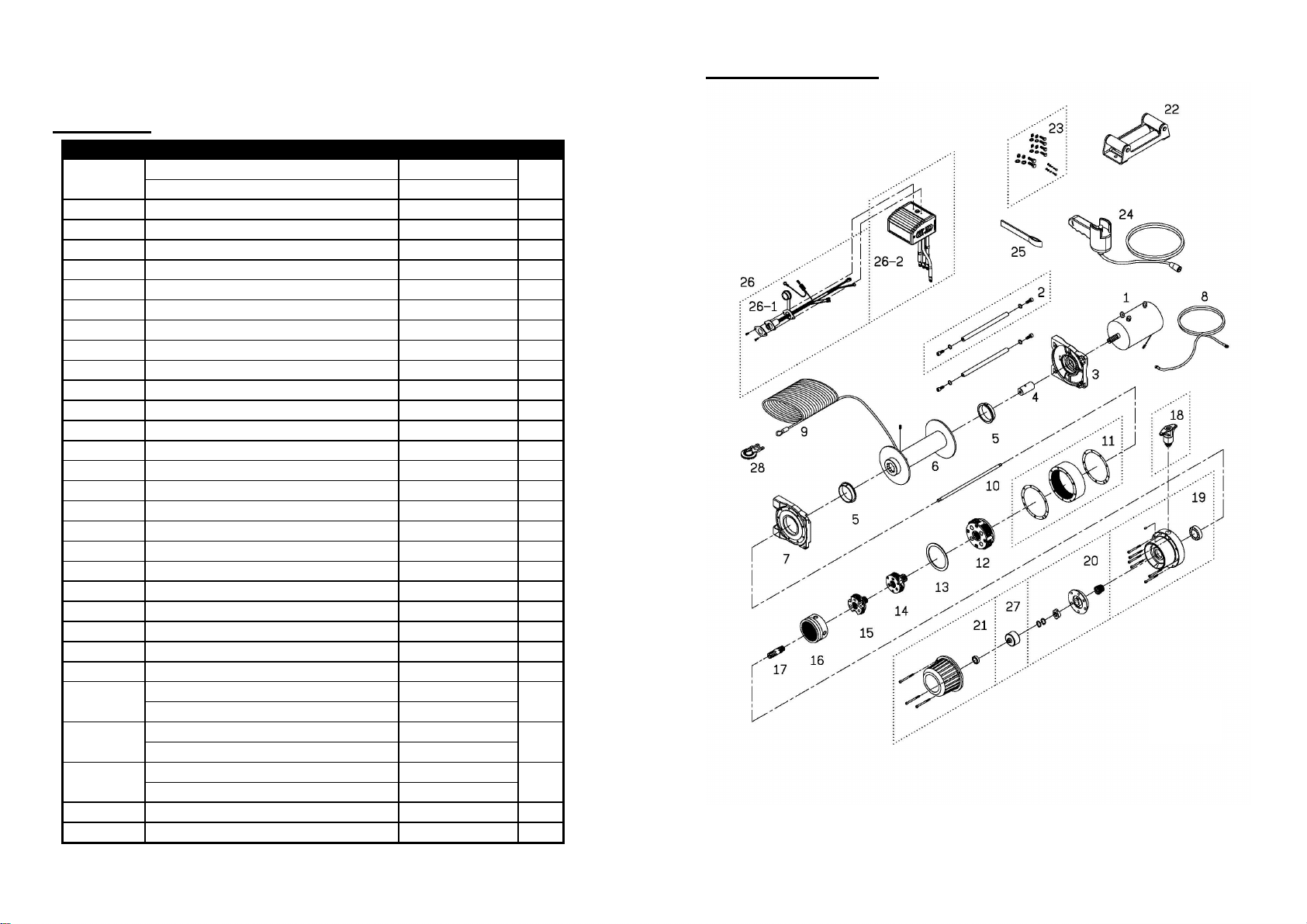

Parts List

Item No. Description Part No. Qty

1 Motor 12V 882153 1

Motor 24V 883126

2 Tie bar kit 880003 2

3 Motor support rack 881779 1

4 Motor coupling 880005 1

5 Drum bushing 880006 2

6 Drum kit 881521 1

7 Gearbox support rack 883360 1

8 Grounding lead 880009 1

9 Wire rope 881994 1

10 1st shaft 881523 1

11 3rd ring gear kit 881524 1

12 3rd stage carrier 881525 1

13 3rd bushing 880014 1

14 2nd stage carrier 881526 1

15 1st stage carrier 881527 1

16 1st & 2nd ring gear 881528 1

17 1st pinion kit 880018 1

18 Clutch kit 881303 1

19 Gear box kit 883361 1

20 Cone brake disc kit 880021 1

21 Brake cover kit 883362 1

22 Roller fairlead 880023 1

23 Mounting hardware 880024 1

24 Remote control 880126 1

25 Handsaver strap 880026 1

26 Detachable control box 12V 881164 1

Detachable control box 24V 881165

26-1 Remote socket kit 12V 881373 1

Remote socket kit 24V 881374

26-2 Detachable control pack 12V 881400 1

Detachable control pack 24V 881401

27 Brake clutch base 881100 1

28 Clevis hook 881996 1

Winch Assembly

2022/02/15 Ver:09
