Comelit HFX-700M KIT Guida di sicurezza
HANDS-FREE EXPANDABLE
VIDEO INTERCOM SYSTEM
,
OWNER S MANUAL
INSTALLATION AND OPERATION
HFX-700M KIT
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
FCC CLASS B NOTICE
HFX-700M KIT VIDEO INTERCOM SYSTEM
1.HFX-700M KIT Introduction
2.HFX-700M KIT Parts Identification
2.1.Main Monitor
2.2.Door Camera
2.3.HFX-700M KIT Packaging
3.HFX-700M KIT Installation
3.1. Positioning the devices
3.2. Installation
3.3. Door Release Options
4. HFX-700M KIT Test after installation
4
5. HFX-700M KIT Operation
XPANSION OPTIONS
System Layout
Wiring Diagram
1. Expansion video monitor (EX-700H)
1.1.EX-700H Identification
1.2.EX-700H Installation
1.3.EX-700H Operation
1.3.1.Broadcast and intercom function
2. Expansion non-video monitor (EX-700A)
2.1.EX-700A Identification
2.2.EX-700A Installation
2.3.EX-700A Operation
2.3.1.Broadcast and intercom function
3.Door camera (EX-700D)
3.1.EX-700D Identification
3.2.EX-700D Installation
3.3.EX-700D Operation
TECHNICAL SPECIFICATIONS
TROUBLE SHOOTING
SERVICE AND WARRANTY
.1. Basic function test
4.2. Door release test(optional)
5.1.Visitor Calls from Door Camera
5.2.Audio and Video monitoring
5.3.
EUnilateral voice mode control
1
2
3
4
4
5
5
7
7
8
8
9
11
12
12
12
13
13
13
13
14
14
15
16
16
18
19
20
21
22
22
23
23
24
25
26
28
29
IMPORTANT SAFETY INSTRUCTIONS
WARING: TO REDUCE THERISK OF FIRE ORELECTRIC
SHOCK, DO NOT EXPOSETHE MONITOR OR POWER
ADAPTER TO WATER ORMOISTURE.
Read Instructions -All the safety and operating instructions should be
read before operating this equipment. These instructions should be
retained for future reference.
Heed Warnings - All warnings on the equipment and in the operating
instructions should be adhered to. All instructions regarding care and
operation of this equipment should be followed.
Power Sources - Equipment should only be connected to the power
supply specified in the operating instructions or as marked on the
equipment.
Power Cord Protection-Keep cable cords and plugs clear off other
objects, particularly at the point where they exit the equipment.
Cleaning - Clean the equipment by wiping with a soft cloth (do not use
any abrasive agents or water).
Non-use Periods - Power cords should be unplugged from the outlet
when left unused for a long period of time.
Object and Liquid Entry - Take care not to drop objects or liquids on
any part of the equipment.
Damage Requiring Service -The unit should be serviced by a qualified
service personnel when:
- The power supply cord or the plug has been damaged or
- Objects have fallen, or liquid has been spilled onto the equipment or
- The equipment has been exposed to rain or
- The equipment does not appear to operate normally or exhibits
a marked change in performance or
- The equipment has been dropped and/or the enclosure has been
damaged.
Servicing - Do not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be
referred to as Qualified Distributor's Service Personnel.
1
WARNING
WARNING: TO REDUCE THE RISK OF FIREOR ELECTRIC
SHOCK, DO NOT EXPOSE THE MONITOR OR POWER
ADAPTER TO WATER OR MOISTURE.
2
CAUTION: DO NOT OPEN. RISK OF ELECTRICAL SHOCK.
CAUTION! TO REDUCE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER OR BACK, NO USER SERVICEABLE PARTS
INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF TWO SYMBOLS
The lighting flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute risk of
electrical shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Monitor is designed for indoor use only. Do not install outdoors.
Keep the equipment dry. If water should get in,wipe off immediately.
Water contains minerals that can erode electronic circuits.
Intercom system is not operational during a power failure .
Intercom system may be affected by radio frequency interference or
EMI(electrical magnetic interference) in areas where broadcasting
station antennas are close by.
Keep all wiring at least 1 foot away from fluorescent lighting, dimmer
switches and AC power.
OTHER WARNINGS
FCC CLASS B NOTICE
3
NOTE:
This equipment has been Certified and found to comply with the limits
regulated by FCC,and CE. Therefore, it is designed to provide reasonable
protection against interference and will not cause interference with other
appliance usage. However, it is imperative that the user follows this
manuals guidelines to avoid improper usage which may result in damage
to the unit, electrical shock, and fire hazard or injury. In order to improve
the feature functions and quality of the product, the specifications are
subject to change without notice from time to time.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference with
radio communications. However, there is no guarantee that interference
will not occur in a particular installaition. If this equipment does cause
harmful interference to radio or televis ion reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to connect the interference by one or more of the following measures:
- Reorient or relocate the monitor unit
- Increase the separation between the monitor and camera
- Connect the equipment on a separate outlet
- Consult the dealer or an experienced radio or television technician
HFX-700M KIT VIDEO INTERCOM SYSTEM
4
1.Introduction
Thank you for purchasing the Hands-Free expandable Video Intercom
System HFX-700M.
This intercom system uses 2-wire installation, and operation is simple.
Allows you to identify and communicate with callers at the door, from the
security and convenience of any room in your home or office. Visitors
activate the system by pressing a call button on the outdoor camera,
which sounds a doorbell chime as well as turning on the inside video
monitor. A two-way intercom then lets you speak with visitors after first
visually identifying them.
It consists of a monitor station and an outdoor doorbell/camera unit.
This unit is capable of expanding up to a total of 4 indoor monitors and
2 door cameras. Expansion monitor can choose video(EX-700H) or
non-video(EX-700A).
For more information regarding the complete line of our products,
please visit www.comelitusa.com
2.HFX-700M KIT Parts Identification

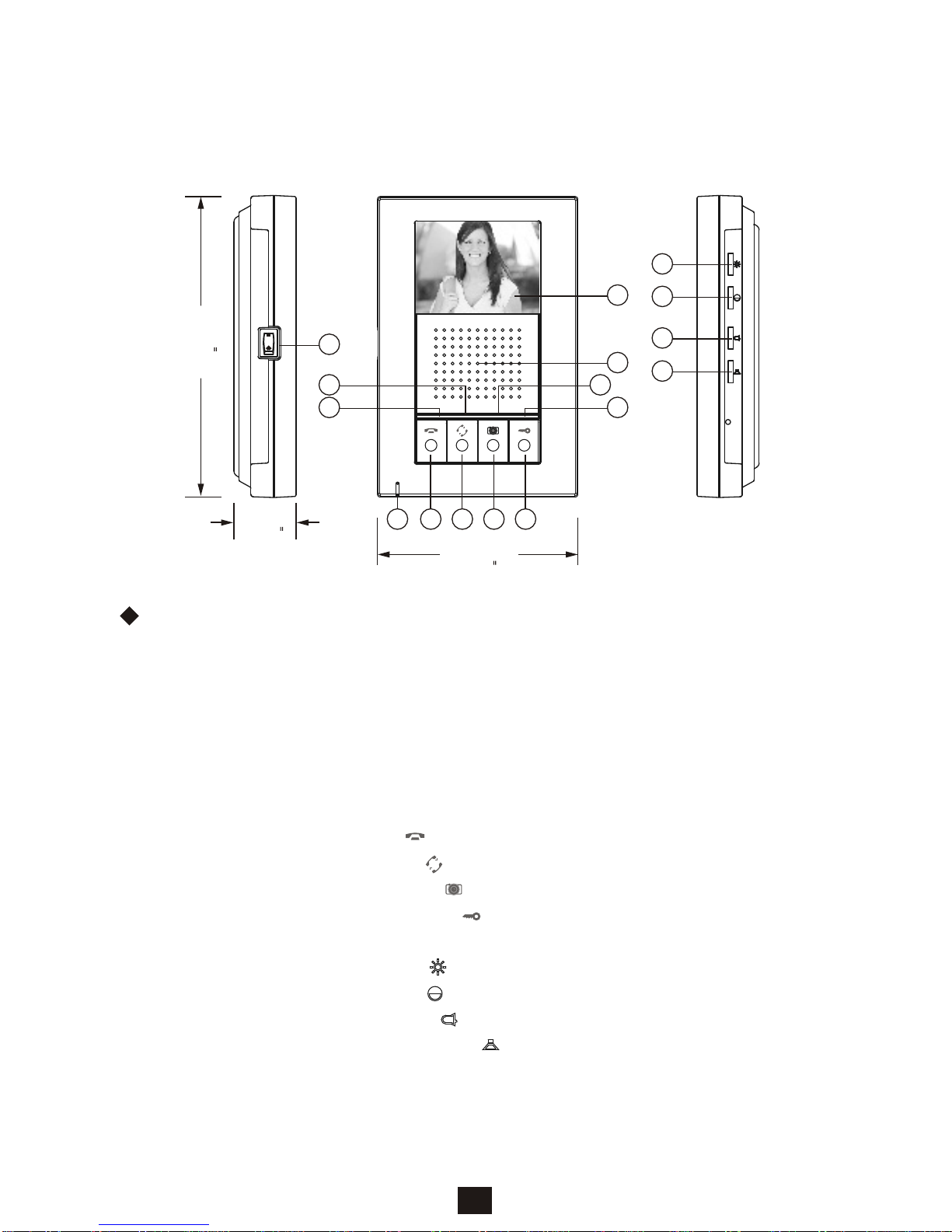

2.1. Main Monitor
2
8910 117
3
4
6
5
12
13
14
15
16
178mm
(7.0 )
36mm
(1.42 ) 118mm
(4.65 )
1. 3.5" Color TFT Screen
2. Speaker
3. In use LED
4. Monitor LED
5. Intercom LED
6. Speaking out LED
7. Microphone
8. Cut-off button( )
9. Intercom button( )
10. Monitoring button( )
11. Door release button( )
12. Power switch
13. Brightness tuner( )
14. Sharpness tuner( )
15. Bell Volume tuner( )
16. Speaker Volume tuner( )
5
Main monitor
HFX-700M Main monitor identification:
2
Wiring terminals
6
PT1
PT2
DG1
DG2
OUT+
OUT-
DR2
DR1
POWER
<+>
<->
136mm
(5.35 )"
89mm
(3.5 )"
8.4mm(0.33 )"
Wall mount bracket
PT1
PT2
DG1
DG2
OUT+
OUT-
DR2
DR1
POWER
<+>
<->
Main monitor wall mount bracket
Magnetic switch sensor connection: for door status detection
External chime or light indicator connection: for optional third party device
Expansion monitor connection: for more indoor monitor expansion
(w/polarity)
Door camera connection(2): to the 2nd door camera terminals(no polarity)
Door camera connection(1): to the 1st door camera terminals(no polarity)
Power adapter connection
1
2
3
4
5
6
1
2
3
4
5
6
2.2. Door Camera
130mm
(5.12 )"
36mm
(1.42 )"
1. White LED Illumination
2. 1/3" Color CCD
3. Microphone
4. Speaker
5. Call button
6. Screw cover
7. CCD view angle knob
(-6 degrees, 0 degrees, 8 degrees, 16 degrees)
8. Jumper 2 (enable/disable light senor)
9. Jumper 1 (dry contact or current output selection)
10. Wire to door strike
11. Wire to main Monitor
7
HFX-700M Door Camera identification:
98mm
(3.86 )"
JP1
JP2
12 3 4
2
3
1
5
4
6
7
8
910 11
Door camera
2.3.HFX-700M KIT Packaging
X1X1
Main monitor
X1
Wall mount bracket
PT1
PT2
DG1
DG2
OUT+
OUT-
DR2
DR1
POWER
<+>
<->
X1
Manual
Adaptor
X1 X4
White wall
mount screws
HANDS-FREE EXPANDABLE
VIDEO INTERCOM SYSTEM
,
OWNER S MANUAL
INSTALLATION AND OPERATION
Screws wrench
X1
X4
Flat head screws

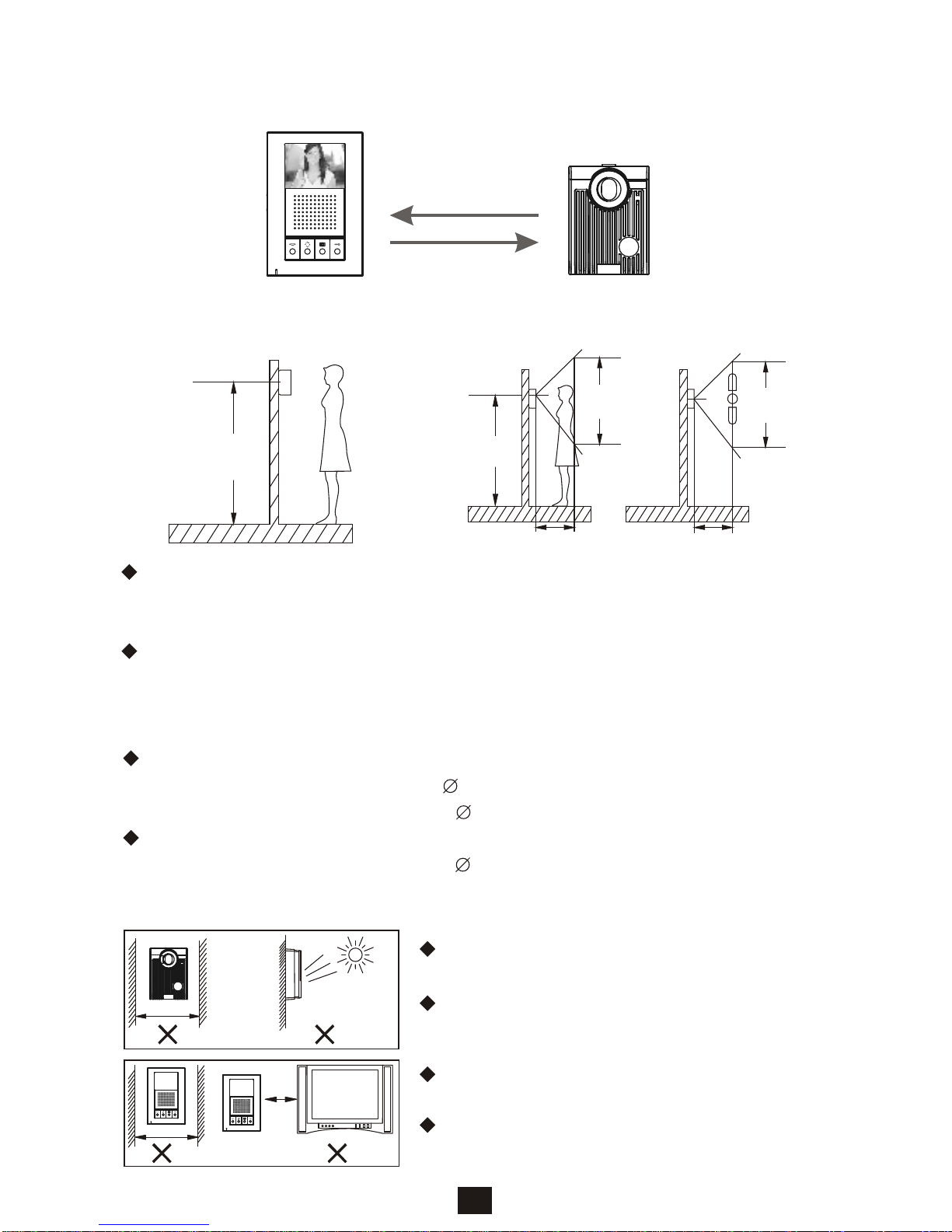

Narrow space may cause feedback
echo on speakerphone function.
Direct sunshine can cause blurry picture
on monitor.
View Angle:Proper height:
Narrow space may cause feedback
echo on speakerphone function.
Too close to high power appliance may
cause audio/video interference.
The proper height of monitor or door camera is 160~170cm(63"~67")
from the ground. This may vary on each installation. View range should
be actively tested before complete.
Viewing window of door camera is about 70cm up-n-down, and 100cm
left-n-right.
3. HFX-700M KIT Installation
3.1. Positioning the devices
8
NOTE 1: Wiring distance
NOTE 2: the installation environment
170cm
(66.9 )"
50cm(19.7 )"50cm(19.7 )"
70cm
(27.6 )"100cm
(39.3 )"
Main monitor
165cm
(64.9 )"
From main monitor to door camera:
Maximum of 50M with AWG22( 0.65mm) normal 2-wire parallel wires.
Maximum of 100M with AWG18( 1.0mm) normal 2-wrie parallel wires.
From monitor to monitor (every section):
Maximum of 100M with AWG22( 0.65mm) normal 2-wrie parallel wires.
Door camera
Altri manuali per HFX-700M KIT
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Comelit Sistema di interfono
Comelit
Comelit 8461V Manuale utente
Comelit
Comelit 1622 Manuale utente
Comelit
Comelit FT BRAVO 01 Manuale utente
Comelit
Comelit 3061A Manuale utente
Comelit
Comelit LS8701 Manuale utente
Comelit
Comelit MT SB2 01 Manuale utente
Comelit
Comelit Planux Memo Video Manuale utente
Comelit
Comelit COMTEL MT VCT 04 Manuale utente
Comelit
Comelit Simplebus2 Ultra UT2010 Manuale utente
Comelit
Comelit 8274 Manuale utente
Comelit
Comelit Ciao CA5100A Manuale utente
Comelit
Comelit 3460EA Manuale utente
Comelit
Comelit 6302S Manuale utente
Comelit
Comelit Mini 6701 Manuale utente
Comelit
Comelit KVS2011KP Manuale utente
Comelit
Comelit Simplebus Diva Series Manuale di istruzioni
Comelit
Comelit Visto ViP WiFi Manuale utente
Comelit
Comelit 6741W Manuale utente
Comelit
Comelit FT PLANUX 03 Manuale del proprietario
Comelit
Comelit 6741W Manuale utente
