Comelit IPCAM720A Manuale di istruzioni

Quick User Guide

Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)

http://www.comelitgroup.com e-mail : export.depar[email protected]

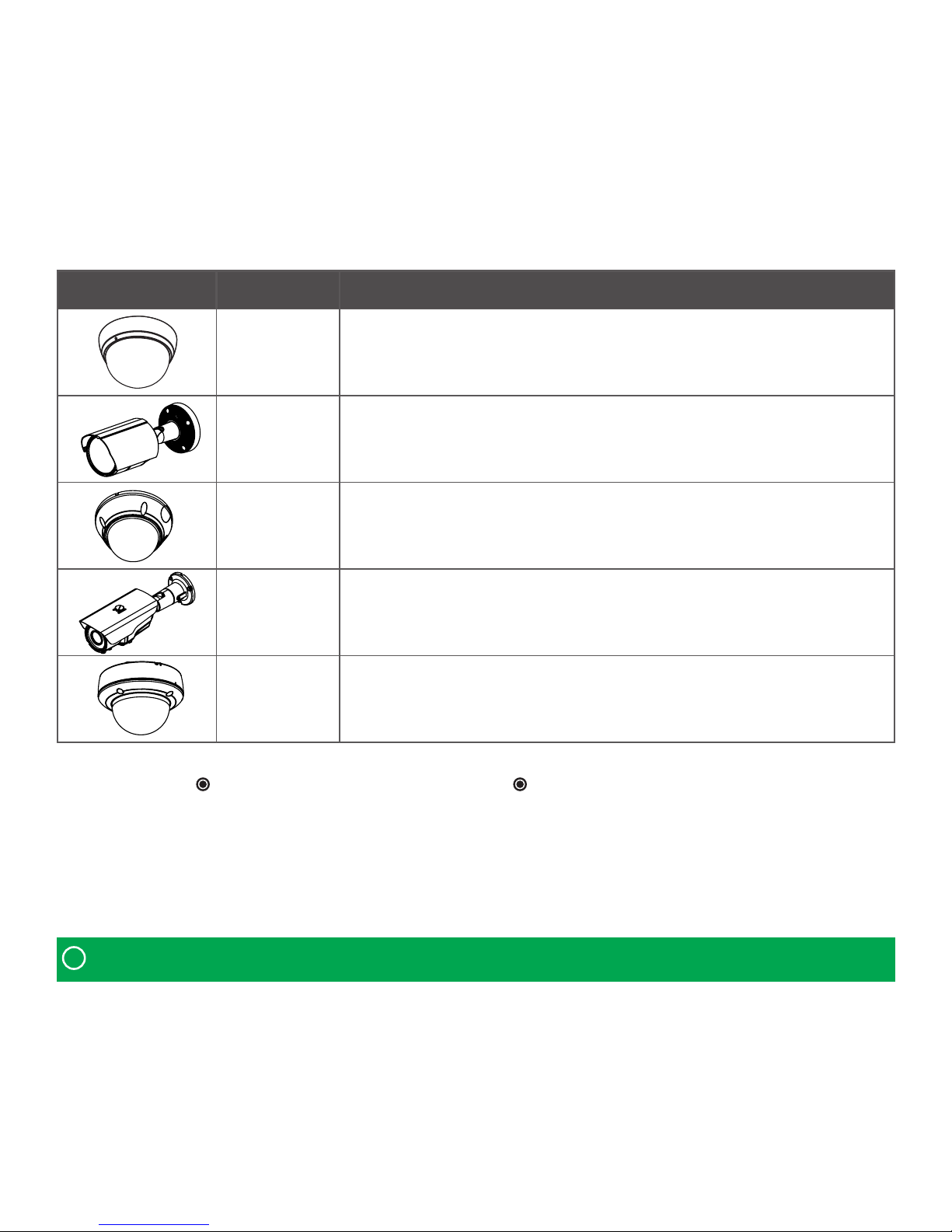

Image Model Description

IPCAM720A Full HD Entry IP IR Plastic Dome Camera

3.7mm Fixed, 24 IR LEDs, H.264 & MPEG4 & MJPEG, SDHC, PoE/DC12V

IPCAM700A Full HD Entry IP IR Bullet Camera

3.7mm Fixed, 24 IR LEDs, H.264& MPEG4 & MJPEG, SDHC, PoE/DC12V, IP66

IPCAM722A Full HD Entry IP IR Vandal Proof Dome Camera

3.7mm Fixed, 24 IR LEDs, H.264& MPEG4 & MJPEG , SDHC, PoE/DC12V, IP66

IPCAM702A Full HD Entry IP IR Bullet Camera

3.5-16mm Vari, 32 IR LEDs, H.264& MPEG4 & MJPEG, SDHC, PoE/DC12V, IP66

IPCAM727A Full HD Entry IP IR Vandal Proof Dome Camera

3.5-16mm Vari, 36 IR LEDs, H.264& MPEG4 & MJPEG, SDHC, PoE/DC12V, IP66

Package Component Contents in the installation CD

1. Camera Unit

2. Installation CD

3. Installation Guide

4. Accessory Kit

5. Template Sheet

1. The User’s Manual

2. The Smart Manager User’s Manual

3. The Smart Manager Installation Software

4. The Comelit RAS Solution User’s Manual

5. The Comelit RAS Solution Software

Check your package to make sure that you received the complete system, including all

components shown above

Note:

1. INSTALLATION

Connecting to the Network

Micro SD memory slot

Hardware Connection

Connect a standard RJ-45 cable to the network port of the Camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for

connection to a hub/switch

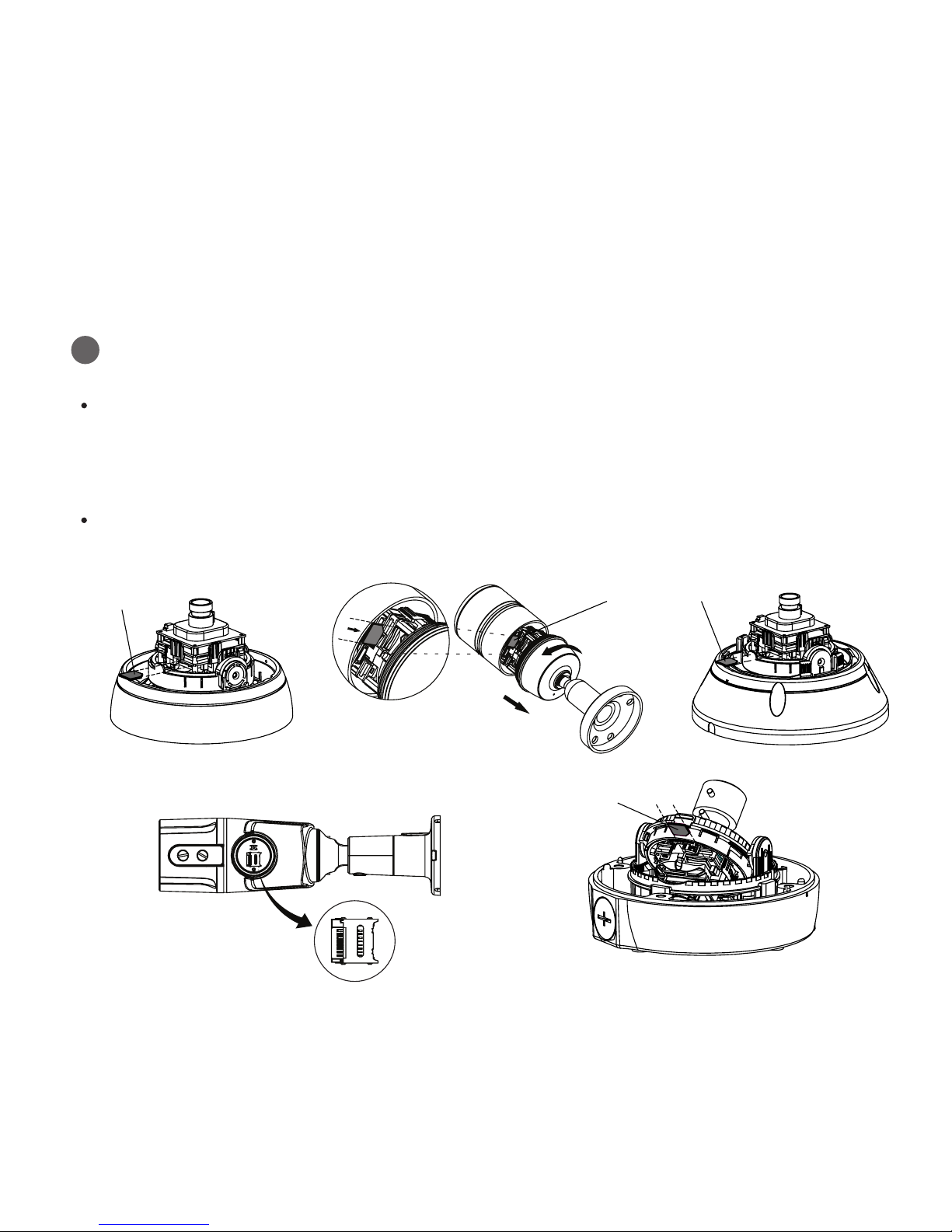

Insert the Micro SD memory card up to 32GB.

[IPCAM720A] [IPCAM722A]

[IPCAM727A][IPCAM702A]

[IPCAM700A]

SD memory card

Micro SD

card slot

SD memory card

Connecting the Power

Connect the DC 12V power adaptor to the camera.

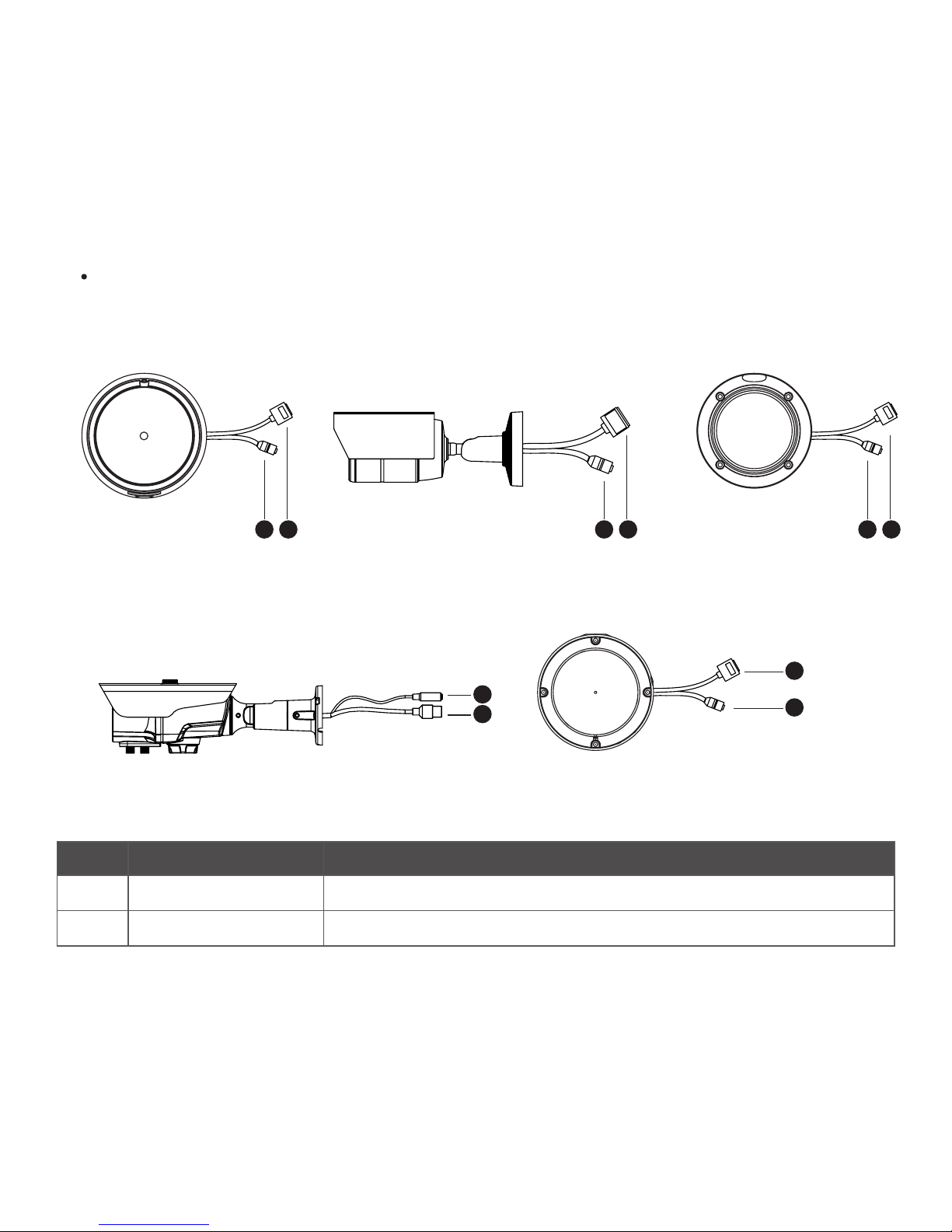

No Name Description

1Power Cable Cable for Power source (DC 12V)

2Ethernet Cable Cable for Ethernet (POE)

[IPCAM720A] [IPCAM722A]

[IPCAM727A][IPCAM702A]

[IPCAM700A]

1 2 1 2

1 2

2Network Connection (Zero Conguration Networking)

IP cameras, NVR, and COMELIT RAS Solution support ZERO conguration. Installation is simple and

convenient. No need any network setting. If there is no DHCP to assign the IP address, it will search the

computer IP address or NVR which is running in the LAN. And then it will set the IP address automatically.

In the IP Camera Registration menu, a list of IP

cameras will appear automatically without IP

address setting.

Once it is congured, IP cameras in the LAN will be searched automatically by

Smart Manager without IP address setting.

Add IP address for ZERO Conguration network

at Advanced TCP/IP Setting on your Computer.

IP address: 169.254.xx.x

Subnet mask: 255.255.0.0

NVR (IPNVR704A, IPNVR708A, IPNVR746A) COMELIT RAS Solution

1. Connect the camera to the network and power up.

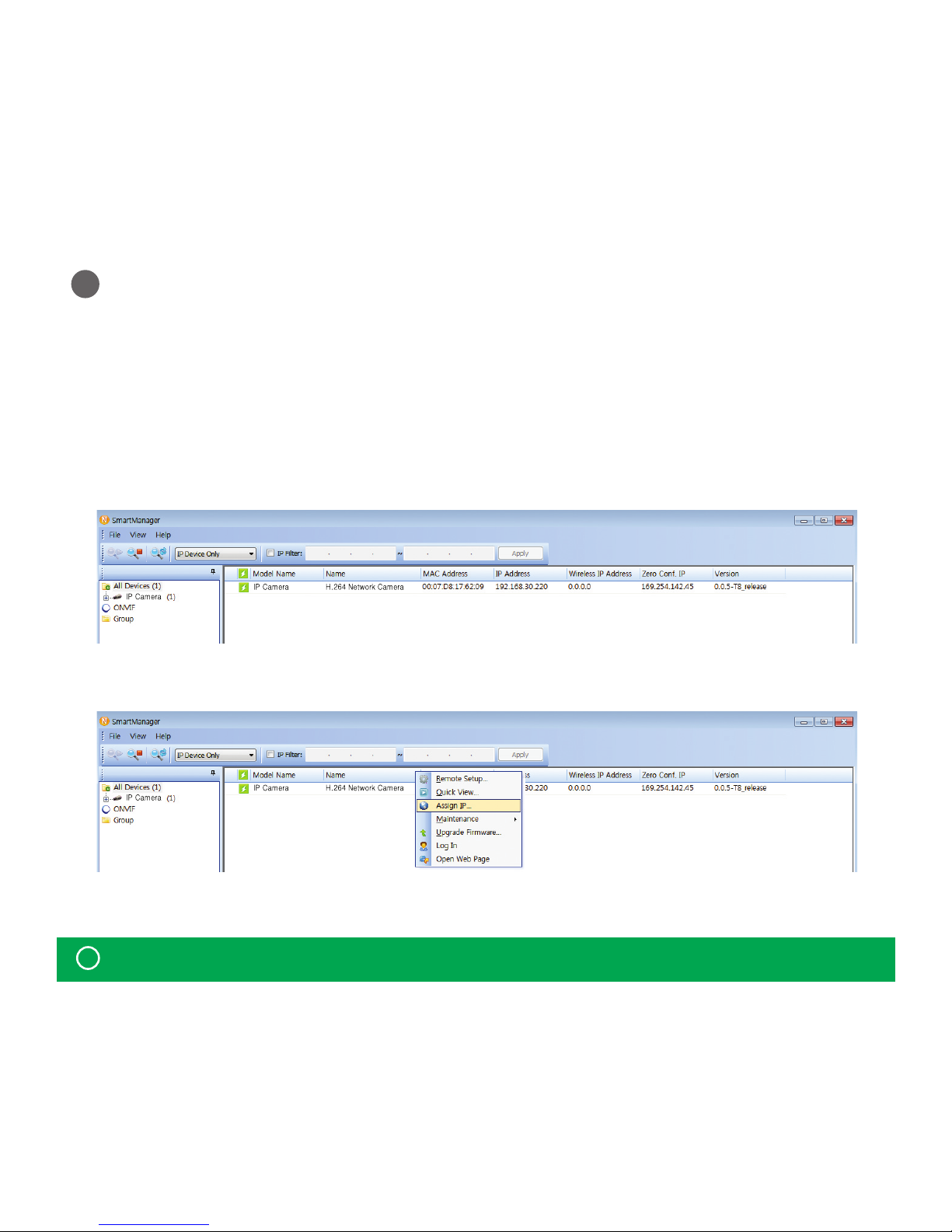

2. Start SmartManager utility

3. Select the camera on the list and click right button of the mouse.

You can see the pop-up menu below.

4. Select Assign IP Address. The Assign IP window will display.

Enter the required IP address.

Network Connection (IP assignment)

(Start>All programs>SmartManager>SmartManager), the main window will be displayed, after

a short while any network devices connected to the network will be displayed in the list.

When a camera is connected without Zero conguration function to the network it has no IP address. So,

it is necessary to allocate an IP address to the device with the“Smart Manager” utility on the CD. (Default IP

192.168.30.220)

Note:

!For more information, refer to the SmartManager User’s Manual.

2. OPERATION

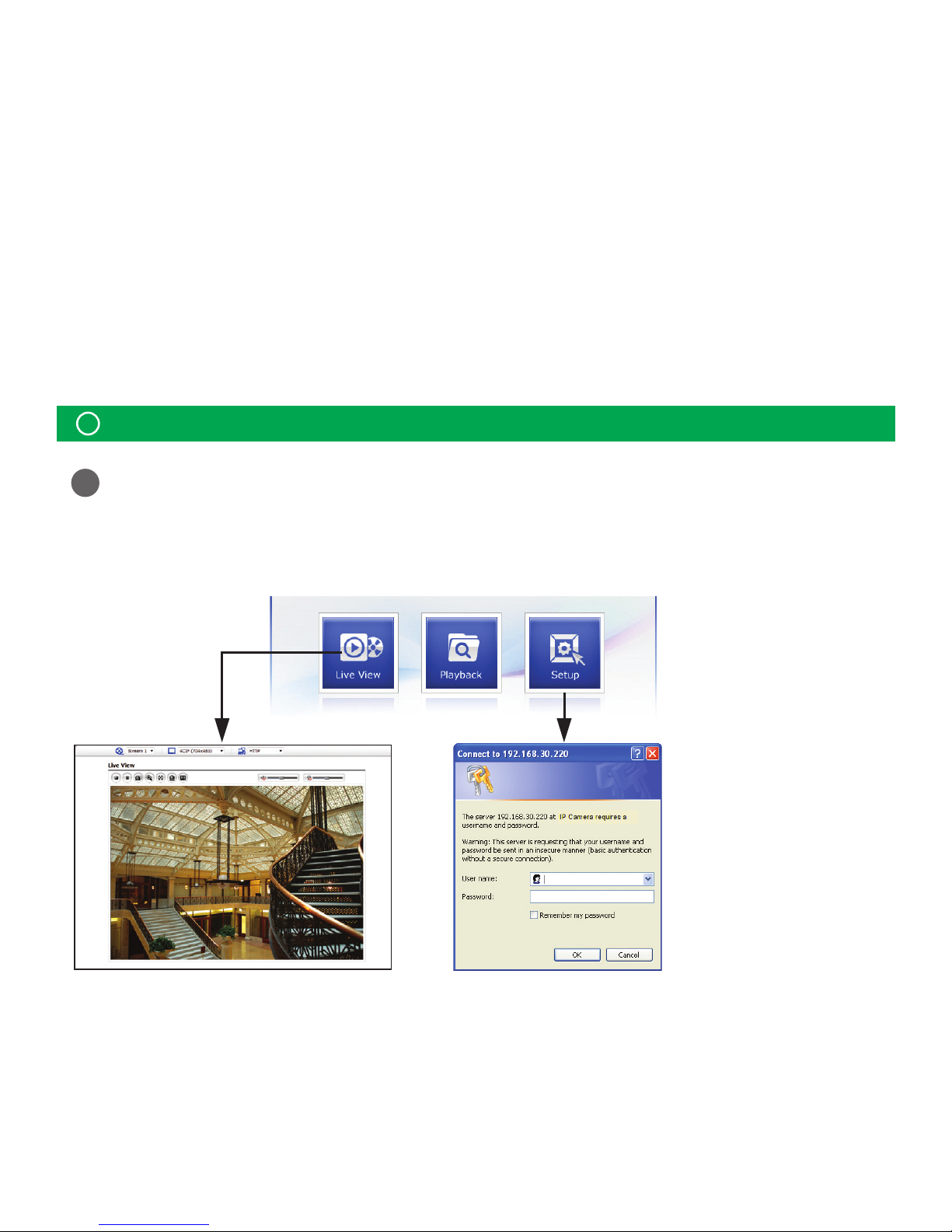

1. Start a browser.

2. Enter the IP address or host name of the network camera in the Location/Address eld of your browser.

3. You can see a starting page. Click Live View or Playback or Setup to enter web page.

How to Access from a browser

The network camera can be used with Windows® operating system and browsers.

The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google®

Chrome® with Windows.

The network camera can be

used with Windows® operating

system and browsers.

The recommended browsers

are Internet Explorer®, Safari®,

Firefox®, Opera™ and Google®

Chrome® with Windows.

Note:

!To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

2Resetting to the factory default settings

To reset the Network Camera to the original factory settings, go to the Setup>System>

Maintenance web page (described in User’s Manual,“System > Maintenance”) or use the

Reset button on the network camera, as described below

1. Switch o the Network Camera by disconnecting

the power adapter.

2. Press and hold the Reset button while reconnecting

the power.

3. Keep the Reset button pressed during about

2 seconds or more than.

4. Release the Reset button.

5. The network camera resets to factory defaults and

restarts after completing the factory reset.

1. Switch o the Network Camera by disconnecting

the power adapter.

2. Remove the front cap of the camera.

3. Press and hold the Reset button while reconnecting

the power.

4. Keep the Reset button pressed during about

2 seconds or more than.

5. Release the Reset button.

6. The network camera resets to factory defaults and

restarts after completing the factory reset.

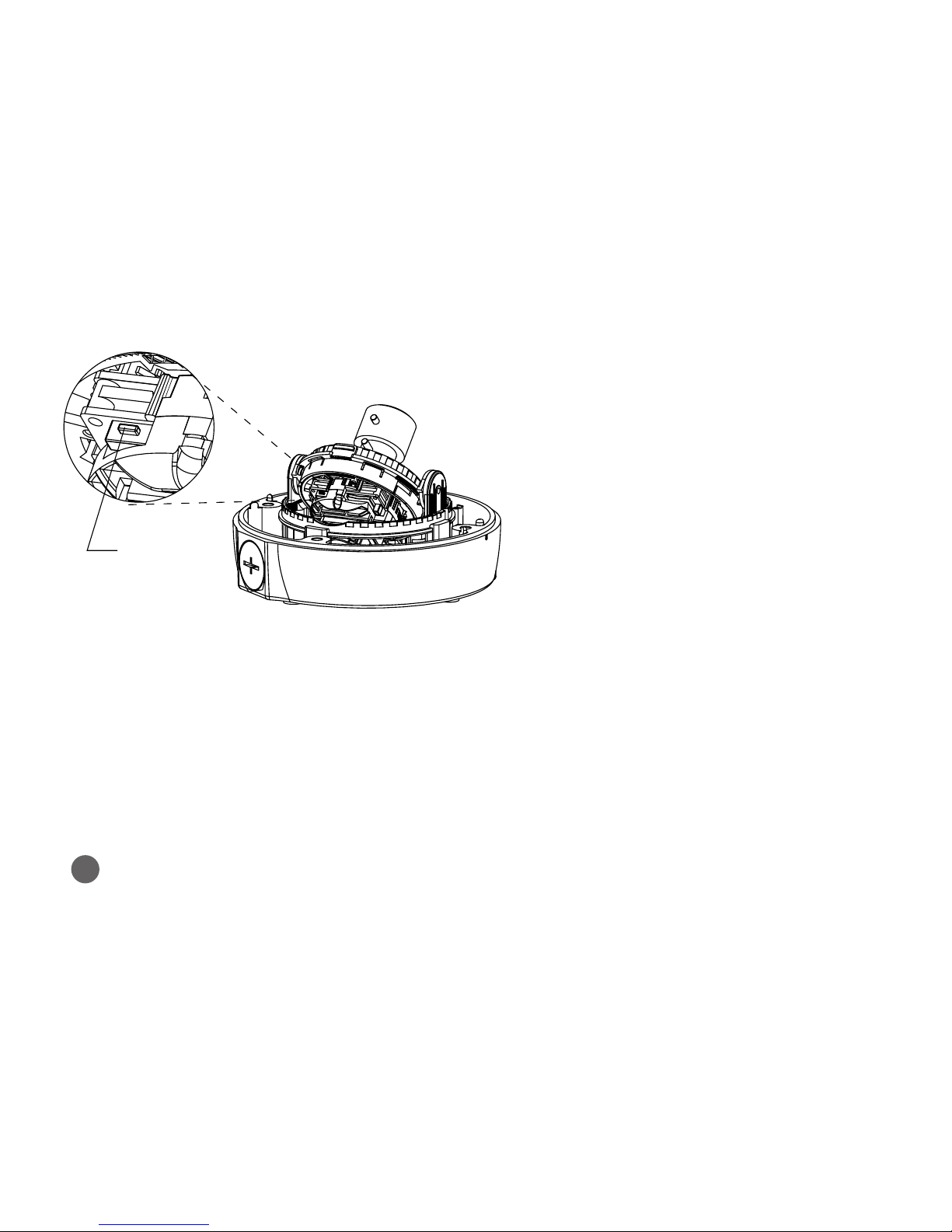

[IPCAM720A]

[IPCAM700A]

Reset Button

1. Switch o the Network Camera by disconnecting

the power adapter.

2. Press and hold the Reset button while reconnecting

the power.

3. Keep the Reset button pressed during about

2 seconds or more than.

4. Release the Reset button.

5. The network camera resets to factory defaults and

restarts after completing the factory reset.

1. Switch o the Network Camera by disconnecting

the power adapter.

2. Remove the front cap of the camera.

3. Press and hold the Reset button while reconnecting

the power.

4. Keep the Reset button pressed during about

2 seconds or more than.

5. Release the Reset button.

6. The network camera resets to factory defaults and

restarts after completing the factory reset.

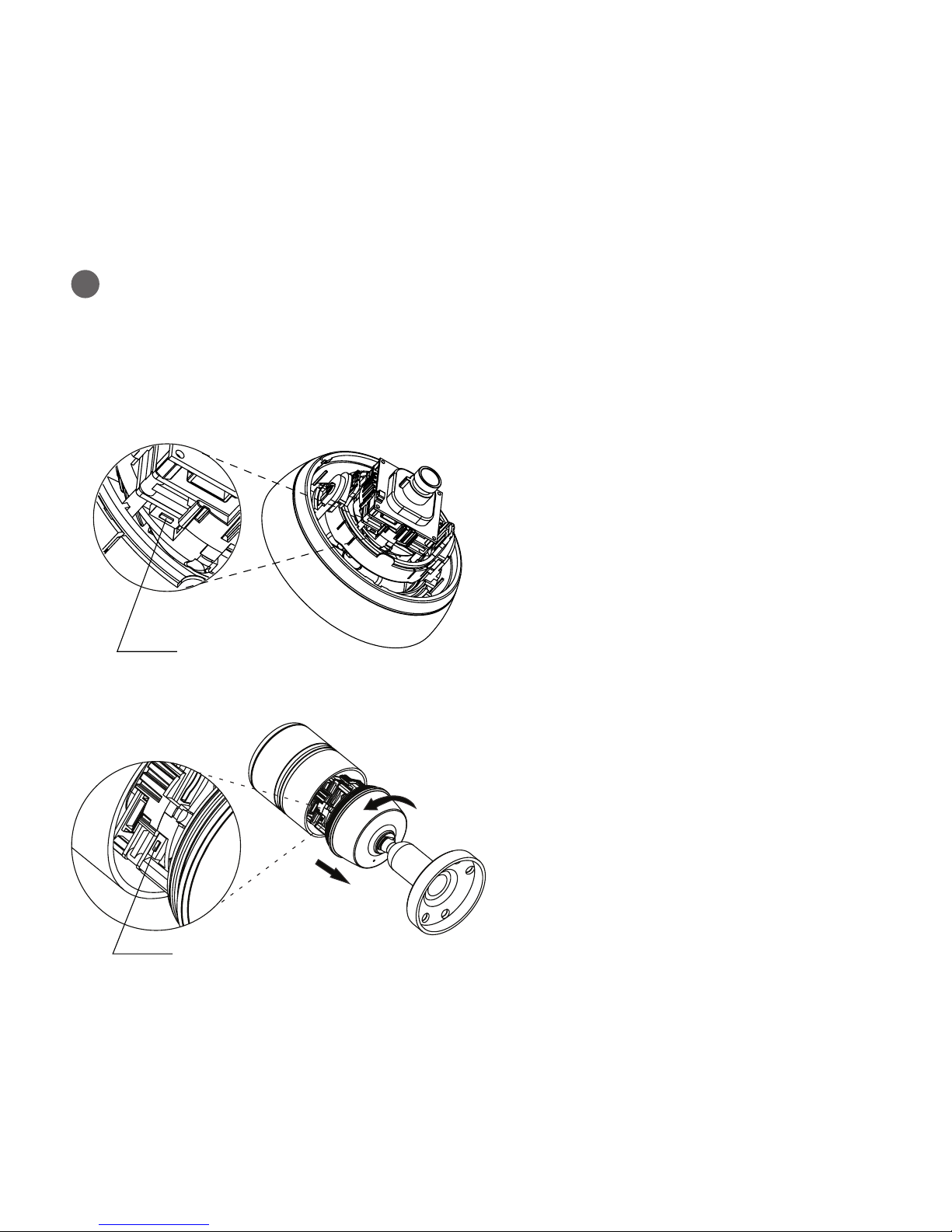

[IPCAM722A]

Reset Button

[IPCAM702A]

Reset Button

1. Switch o the Network Camera by disconnecting

the power adapter.

2. Press and hold the Reset button with a straightened

paperclip while reconnecting the power.

3. Keep the Reset button pressed during about

2 seconds or more than.

4. Release the Reset button.

5. The network camera resets to factory defaults and

restarts after completing the factory reset.

3More information

For more information, please see the Network Camera User’s Manual, which is available on the

CD included in this package.

When performing a Factory Reset, you will lose any settings you have saved.

(Default IP 192.168.30.220)

Caution:

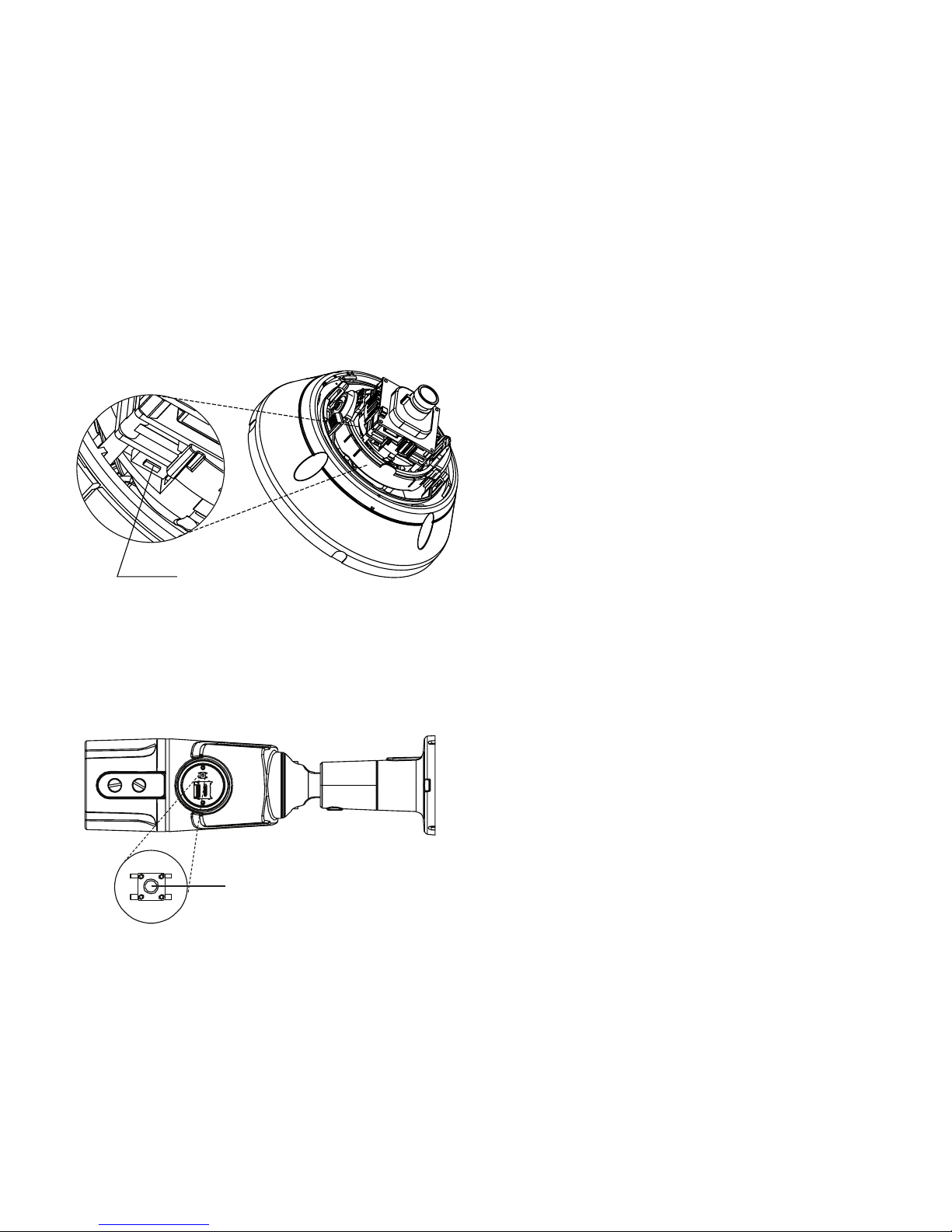

[IPCAM727A]

Reset Button
